Main Image
UNI251BMU33

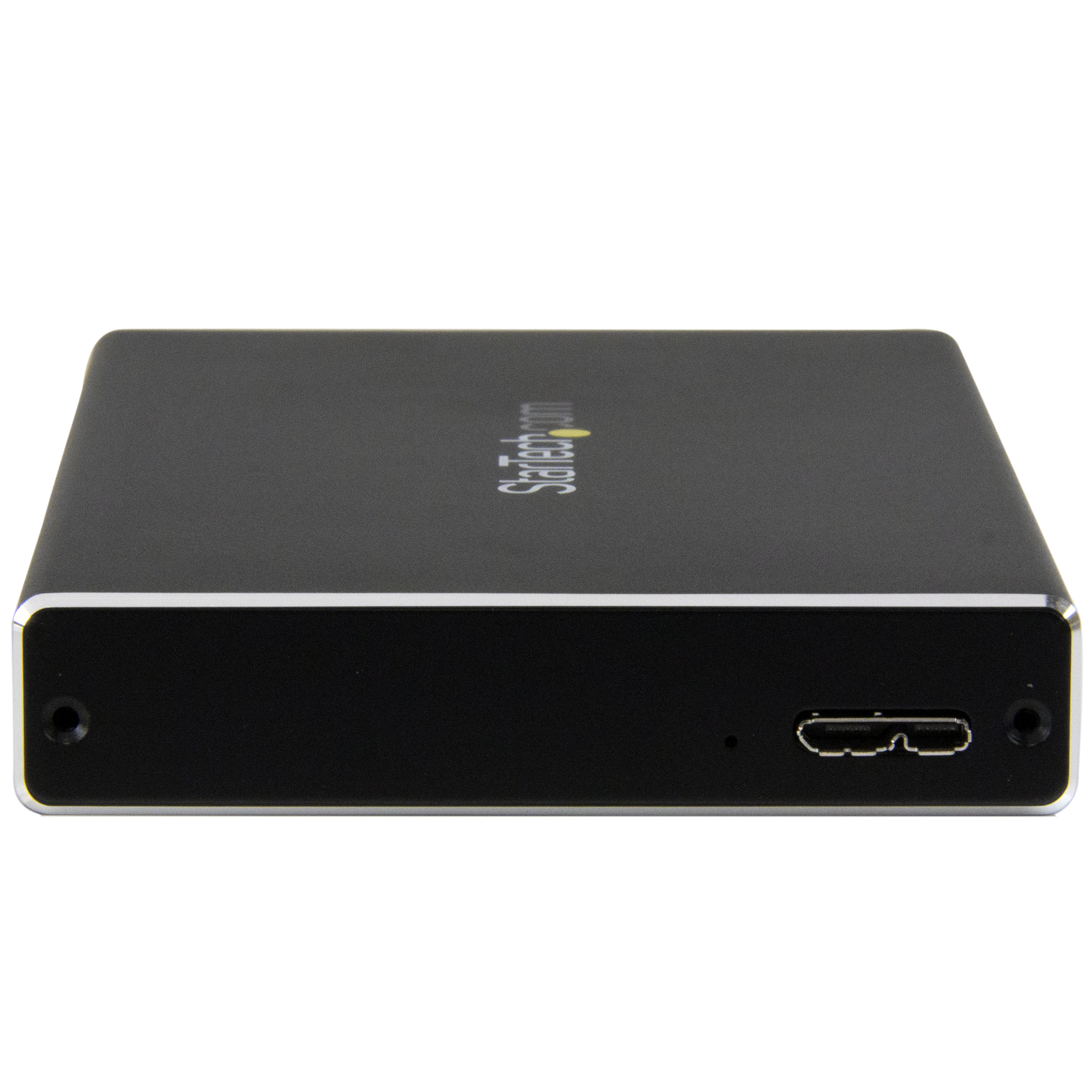

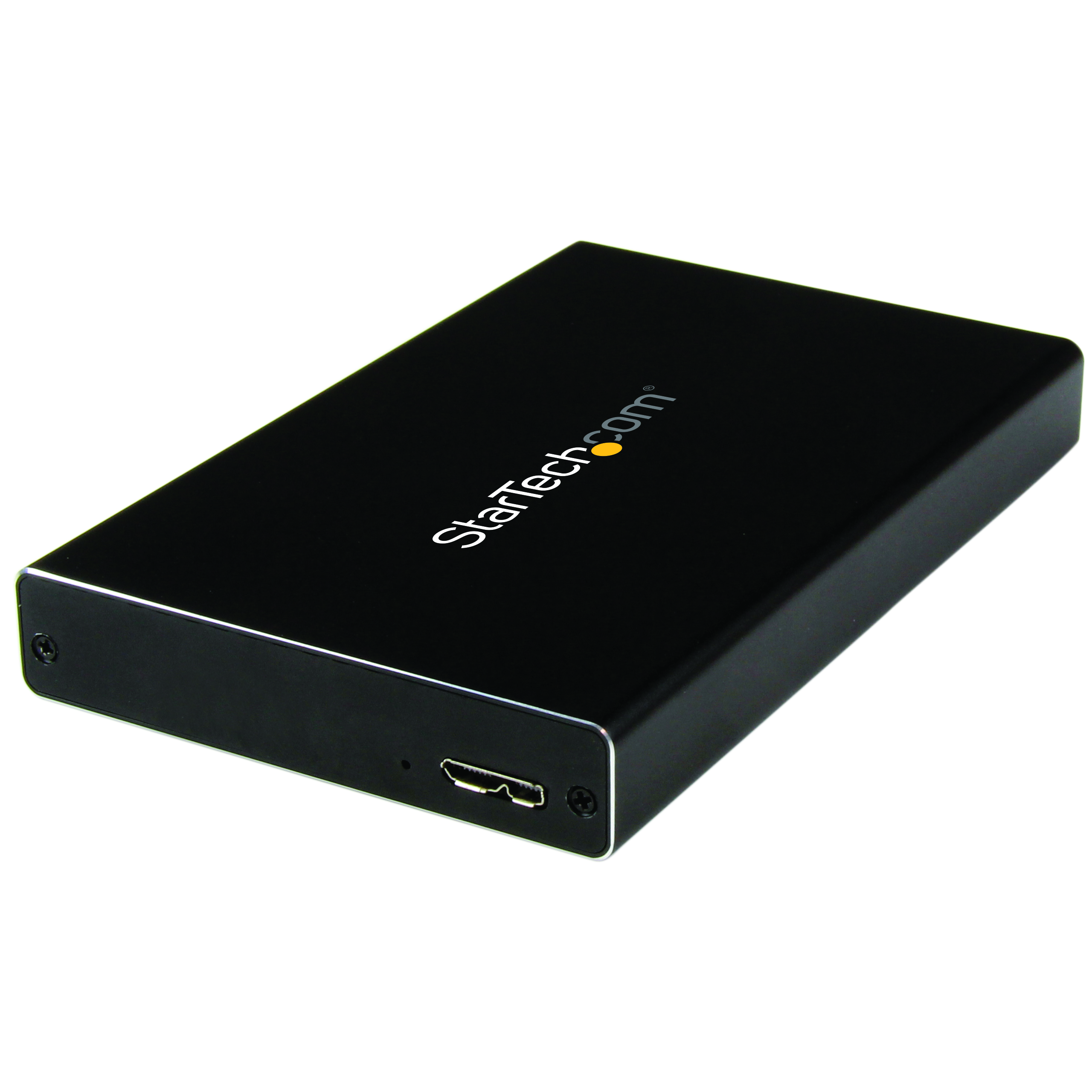

USB 3 0 Universal SATA IDE 2 5in HDD SSD Enclosure
Turn a 2.5” SATA III or IDE HDD / SSD into an external hard drive that connects to your computer through USB 3.0 with UASP
Main Image
Product Images
BOM Image
Product Name USB 3 0 Universal SATA IDE 2 5in HDD SSD Enclosure Product Number UNI251BMU33 UPC 065030859226 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) USB HDD Enclosure Product Title (Short) USB 3.0 SATA/IDE 2.5" HDD/SSD Enclosure Product Title (Medium) USB 3.0 Universal 2.5in SATA III or IDE HDD / SSD Enclosure with UASP Product Title (Standard) 2.5" IDE Hard Drive Enclosure – Supports UASP – Aluminum – IDE and SATA – USB 3.0 HDD Enclosure – External Drive Product Title (Long) USB 3.0 Universal 2.5in SATA III or IDE Hard Drive Enclosure with UASP - Portable External SSD / HDD - TAA Product Title (AMZ) 2.5" IDE Hard Drive Enclosure - Supports UASP - Aluminum - IDE and SATA - USB 3.0 HDD Enclosure - External Drive (UNI251BMU33) Title Ingram (Part 1) USB 3.0 Universal SATA / IDE Title Ingram (Part 2) 2.5in HDD/SSD Enclosure w/ UASP Website Product Headline Turn a 2.5” SATA III or IDE HDD / SSD into an external hard drive that connects to your computer through USB 3.0 with UASP Bullet 1 Broad drive compatibility with support for 2.5in IDE and SATA HDD / SSD Bullet 2 Optimal performance with SATA III & UASP support Bullet 3 Maximum portability with a small footprint and no external power adapter required Bullet 4 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullet 5 Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps) Bullets (Compact) . Bullets (Consolidated) Turn a 2.5" SATA III or IDE HDD/SSD into an external hard drive that connects to your computer through USB 3.0 with UASP - Works with USB 3.0 computers such as Ultrabooks, Macbooks and desktop computers and 2.5in IDE or SATA HDDs and SSDs such as Samsung 840 EVO - 2.5" hard drive enclosure/SATA 2.5 hard drive enclosure - IDE HDD or SSD enclosure/USB to IDE enclosure/2.5 inch enclosure - Turn an unused IDE or SATA drive into additional external storage - Access a variety of different drives Marketing Copy Applications - Turn an unused IDE (PATA) or SATA hard drive into additional external storage
- Access a variety of different drives
- Re-purpose an unused SATA or IDE drive as an external hard drive
- Externally expand the storage capacity of your portable laptop or Ultrabook™ computer
Website Search Keyword - usb 3.0 hard drive enclosure
- 2.5 inch hard drive enclosure
- usb to ide enclosure
- ide hard drive enclosure
- sata 2.5 hard drive enclosure
- 2.5" hard drive enclosure
- 2.5 external hard drive enclosure
- 2.5 in hard drive enclosure
- usb 3.0 ssd enclosure
- ssd hard drive enclosure
- 2.5 sata/ide enclosure
- 2.5 sata hard drive enclosure usb 3.0
- U357-025-UASP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
- USB3AUB50CMB
- USB3AUB15CMS
- USB3AUB1MS
- USB3AUB2MS
- USB3AUB50CMS
- USB3SAUB1
- USB3SAUB3
- USB3SAUB3BK
- PEXUSB3S25
- PEXUSB3S4
- PEXUSB3S4V
- PCIUSB3S4
- PCIUSB3S22
- PEXUSB3S44V
- PEXUSB3S42V
Related Products - SAT2510BU32
- S2510BMU33
- S2510BPU33
- S2510BPU337
- S251SMU33EP
- S2510BU33PW
- S251BRU33
- S251BMU313
- S251BPU313
- S251BPU31C3
- S251BU31315
- S251BRU31C3
- S251BMU3FP

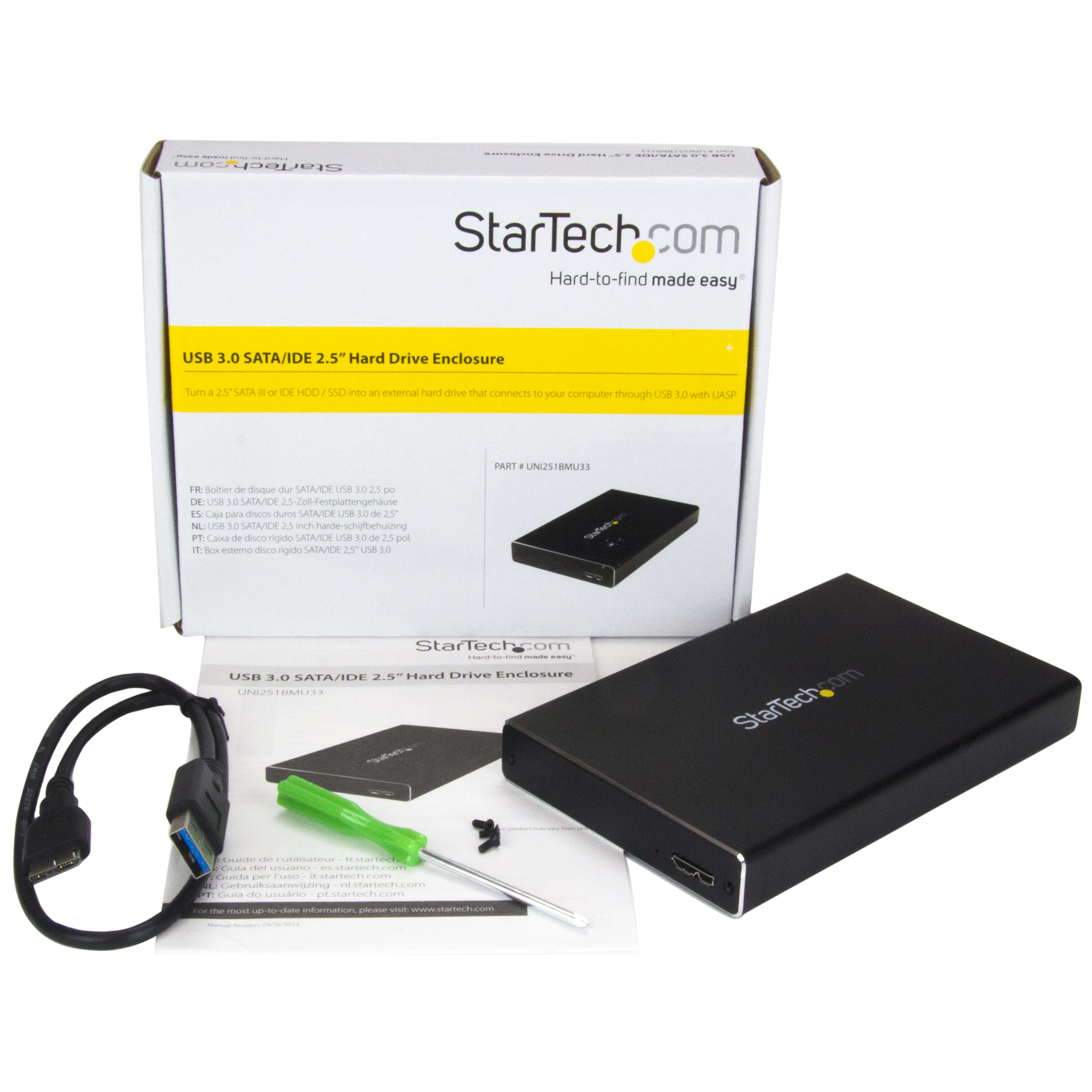

Power Source USB-Powered Color Black Humidity 0% ~ 90% RH Material Aluminum Max Drive Height (mm) 9.5 Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Aluminum Product Length (mm) 125.000 Product Width (mm) 80.000 Product Height (mm) 17.000 Product Weight (g) 130.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Hot Swap Capability No Max Drive Capacity Currently tested with up to 2TB 7200 RPM hard drives Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent Port Multiplier No RAID No SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Compatible Drive Types SATA & IDE Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Drive Power / Activity Number of Drives 1 Carton Depth (mm) 480 Carton Height (mm) 322 Carton Quantity 100 Carton Weight Gross (g) 23098 Included in Package - 1 - USB 3.0 SATA/IDE 2.5” Hard Drive Enclosure
- 1 - USB 3.0 Type-A to Micro-B cable
- 4 - Installation screws
- 1 - Instruction manual
- 1 - Screw driver
Package Depth (mm) 130 Package Height (mm) 32 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 220 Packaging Description USB 3.0 SATA/IDE 2.5” Hard Drive Enclosure Packaging Description India USB 3.0 SATA/IDE 2.5” Hard Drive Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Connector 2 IDE / PATA 2.5in (ATA/133, Power) Connector 2 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-25 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
