Main Image
UNI3510BMU32
3.5" USB 3.0 IDE/SATA HDD Enclosure
Turn a 3.5” IDE or SATA Hard Drive into a USB 3.0 External Hard Drive
Main Image
Product Images
Product Images
BOM Image
Product Name 3.5" USB 3.0 IDE/SATA HDD Enclosure Product Number UNI3510BMU32 UPC 065030851725 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) IDE/SATA HDD Case Product Title (Short) 3.5 USB IDE SATA External HDD Enclosure Product Title (Standard) 3.5in USB 3.0 External IDE / SATA III Universal Hard Drive Enclosure - Portable External HDD Product Title (Long) 3.5in USB 3.0 External IDE / SATA III Universal Hard Drive Enclosure - Portable External HDD Product Title (AMZ) 3.5in USB 3.0 External IDE SATA III Universal Hard Drive Enclosure - Portable IDE or SATA I/II/III HDD Enclosure - Black (UNI3510BMU32) Title Ingram (Part 1) 3.5in Black USB 3.0 IDE SATA Title Ingram (Part 2) External Hard Drive Enclosure Website Product Headline Turn a 3.5” IDE or SATA Hard Drive into a USB 3.0 External Hard Drive Bullet 1 Accepts either SATA or IDE (PATA) drives Bullet 2 SuperSpeed USB 3.0 compliant host interface supporting data transfer rates up to 5Gbps Bullet 3 Compatible with SATA 1.5/3.0/6.0 Gbps or IDE 66/100/133 Mbps hard drives Bullet 4 Supports 3.5" form factor hard drives Bullet 5 Plug-and-Play and Hot-Swap compatible Bullets (Consolidated) Turn a 3.5" IDE or SATA Hard Drive into a USB 3.0 External Hard Drive - 3.5 USB 3.0 Enclosure - IDE SATA Enclosure - USB 3.0 to 3.5 Hard Drive Enclosure - 3.5 inch SATA III Enclosure - Universal Hard Drive Enclosure Marketing Copy Applications - Turn an old SATA or IDE (PATA) hard drive into a portable, external storage solution for use with desktops, laptops or netbooks
- Add external storage to any USB enabled computer system
- Backup data to an external storage device for archiving or freeing up space
- Upgrade from an existing USB 2.0 drive enclosure to a faster USB 3.0 enclosure
Website Search Keyword - USB 2.0 hybrid Enclosure
- SATA
- IDE
- Aluminum Case
- InfoSafe
- External
- Hard Drive
- USB 3.0 Hybrid Enclosure
System and Cable Requirements Available USB port Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
- PEXUSB3S4V
- USB3SAB6
- USB3SAB3
- USB3SAB2MRA
- USB3SAB1MRA
- USB3SAB3MRA
- USB3SAB6BK
- USB3SAB10
- USB3SAB10BK
- USB3SAB1
- PEXUSB3S22
- PEXUSB3S4
- PCIUSB3S22
- PEXUSB3S2E2I
- PCIUSB3S4
Related Products - S2510BPU33
- SATDOCKU3S
- SATDOCKU3SE
- SATDOCKU3SP
- SAT2510BU2
- SAT2510BU2B
- SAT2510BU3
- SAT3510U3V
- SAT3510BU3
- SAT2510BU2E
- IDE3510U2
- UNI3510U2EB
- UNI2510U2V
- IDE2510U2
- UNI3510U2
- UNIDOCK3U
- UNIDUPDOCK
- UNIDOCK2U

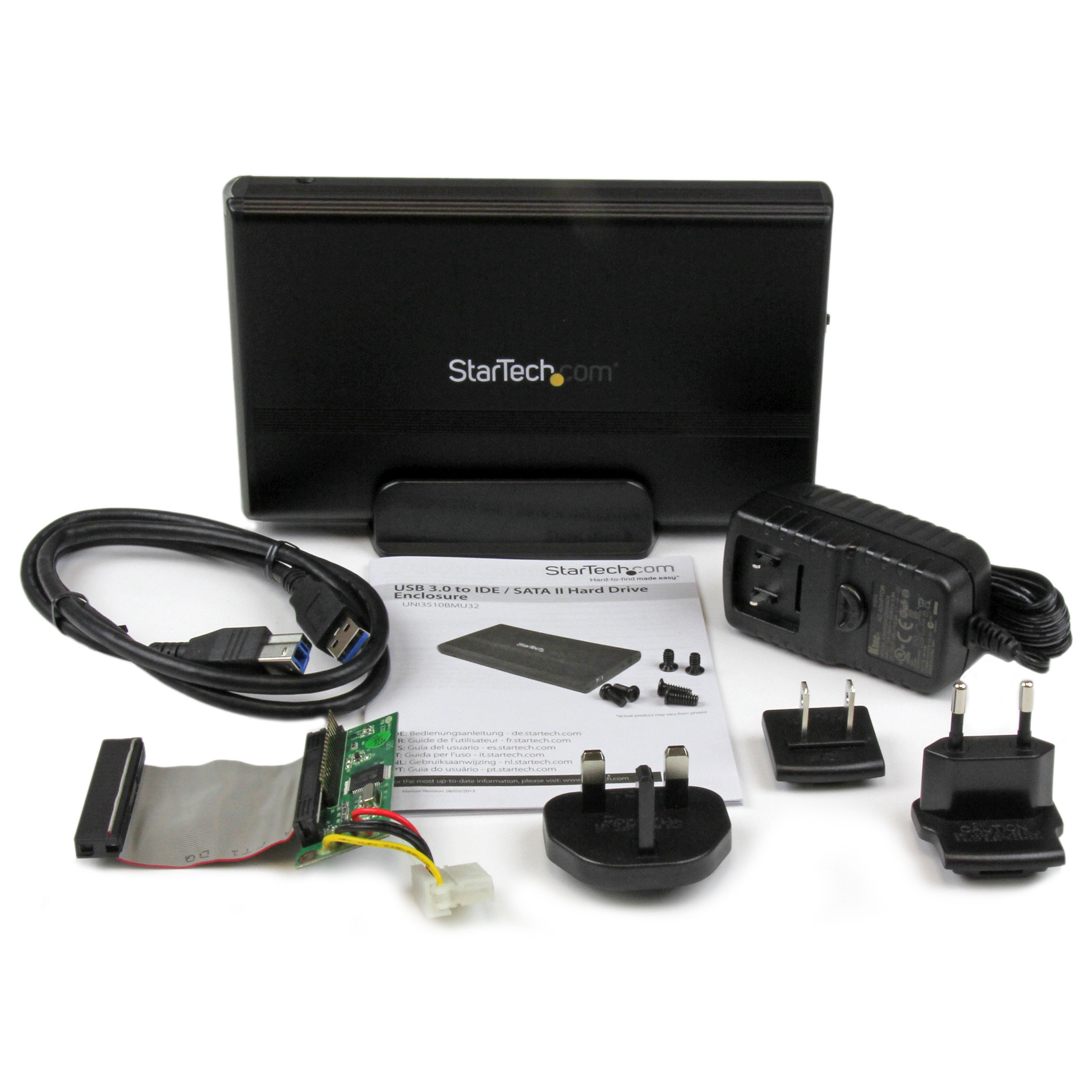

Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 193.09 Product Width (mm) 31 Product Height (mm) 113 Product Weight (g) 320 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drives Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA & IDE Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 2 - Power / Activity Number of Drives 1 Carton Depth (mm) 275 Carton Height (mm) 285 Carton Quantity 10 Carton Weight Gross (g) 92400 Included in Package - 1 - USB 3.0 to IDE / SATA II Hard Drive Enclosure
- 1 - 3 ft USB 3.0 Cable
- 1 - Universal Power Adapter (NA / UK / EU)
- 1 - Product Manual
- 1 - Screw Kit
- 1 - HDD Stand
- 1 - IDE Daughter Board
Package Depth (mm) 132 Package Height (mm) 105 Package Width (mm) 260 Package Quantity 1 Package Weight (g) 863 Packaging Description USB 3.0 to IDE / SATA II Hard Drive Enclosure Packaging Description India USB 3.0 to IDE / SATA II Hard Drive Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin + 15-Pin) Connector 3 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-05-23 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,ES,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
