UNI3510U2

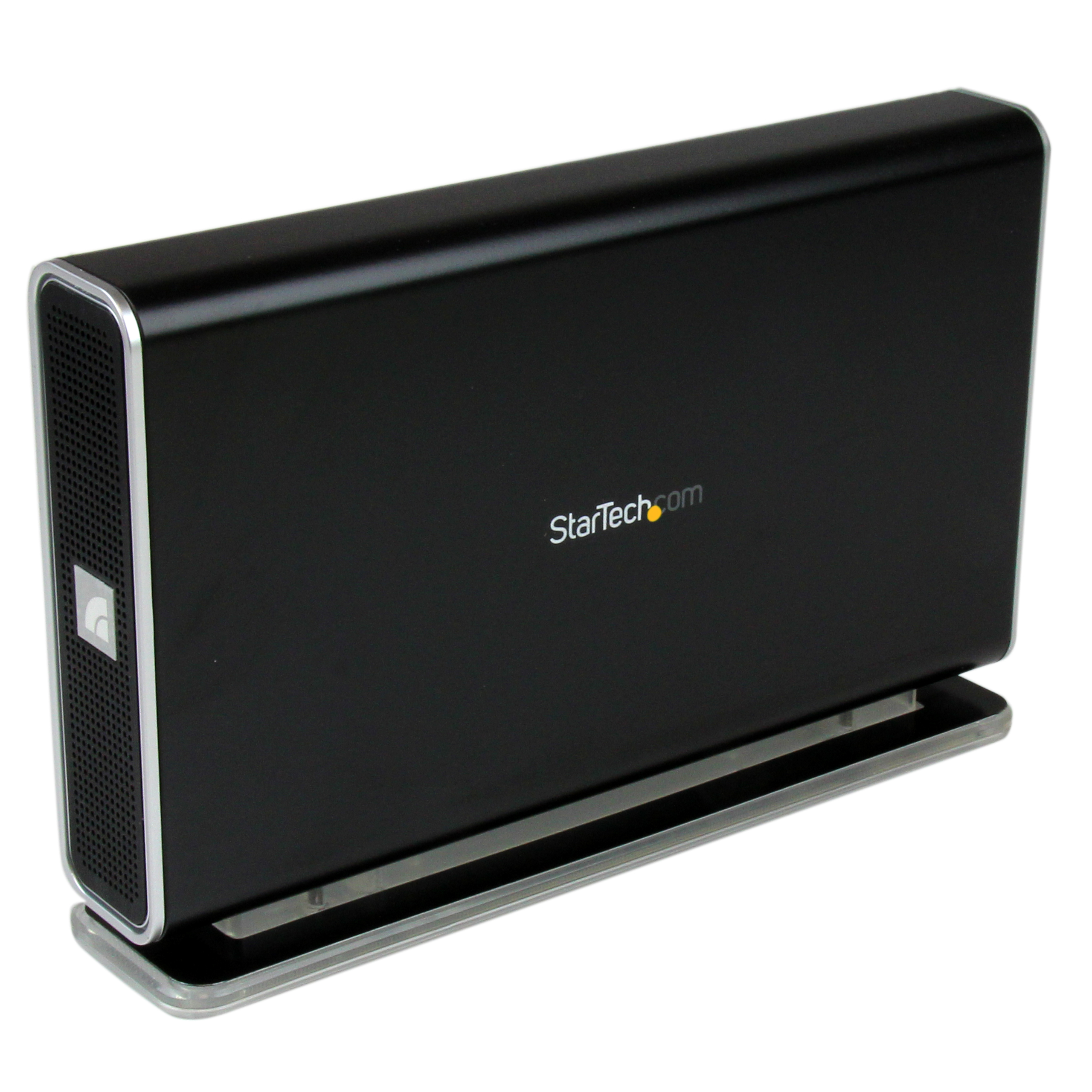

3.5 USB 2.0 IDE SATA External Hard Drive Enclosure
Turn an Internal 3.5" SATA or IDE Hard Drive into an External USB Hard Drive
Main Image
Product Images
Product Images
BOM Image
Product Name 3.5 USB 2.0 IDE SATA External Hard Drive Enclosure Product Number UNI3510U2 UPC 065030827331 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 3.5 USB IDE SATA External HDD Enclosure Product Title (Standard) 3.5in Black USB 2.0 to IDE SATA External Hard Drive Enclosure Product Title (Long) 3.5in Black USB 2.0 to IDE SATA External Hard Drive Enclosure Product Title (AMZ) 3.5in Black USB 2.0 to IDE SATA External Hard Drive Enclosure (UNI3510U2) Title Ingram (Part 1) 3.5in Black USB 2.0 IDE SATA Ext Title Ingram (Part 2) ernal Hard Drive Enclosure Website Product Headline Turn an Internal 3.5" SATA or IDE Hard Drive into an External USB Hard Drive Bullet 1 Accepts either SATA or IDE (PATA) drives Bullet 2 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Bullet 3 Compatible with SATA 1.5/3.0/6.0Gbps or IDE 66/100/133 Mbps hard drives Bullet 4 Supports 3.5" form factor hard drives Bullet 5 Plug-and-Play and Hot-Swap compatible Bullets (Consolidated) Turn an Internal 3.5 SATA or IDE Hard Drive into an External USB Hard Drive - 3.5in Hard Drive Enclosure - 3.5 HDD Enclosure - 3.5 Hard Disk Enclosure - IDE Hard Drive Enclosure - 3.5in External Drive Enclosure - Storage Enclosure - IDE SATA External Hard Drive Enclosure - 3.5" HDD Enclosure Marketing Copy Applications - Turn an unused IDE (PATA) or SATA hard drive into additional external storage
- Technicians who work with and need to access a variety of different drives
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on storage to any USB enabled computer system
- Backup data to an external storage device for archiving or freeing up space
Website Search Keyword - USB 2.0 hybrid Enclosure
- SATA
- IDE
- Aluminum Case
- InfoSafe
- External
- Hard Drive
Accessory Products - CBUSB220
- PCI420USB
- PCI625USB2I
- USB2FAAEXT15
- USB2HAB10
- USB2HAB15
Related Products - IDECASE35U2B
- SAT3510U2E
- SATCASE35U2
- SAT3510U2
- SAT3510U2B

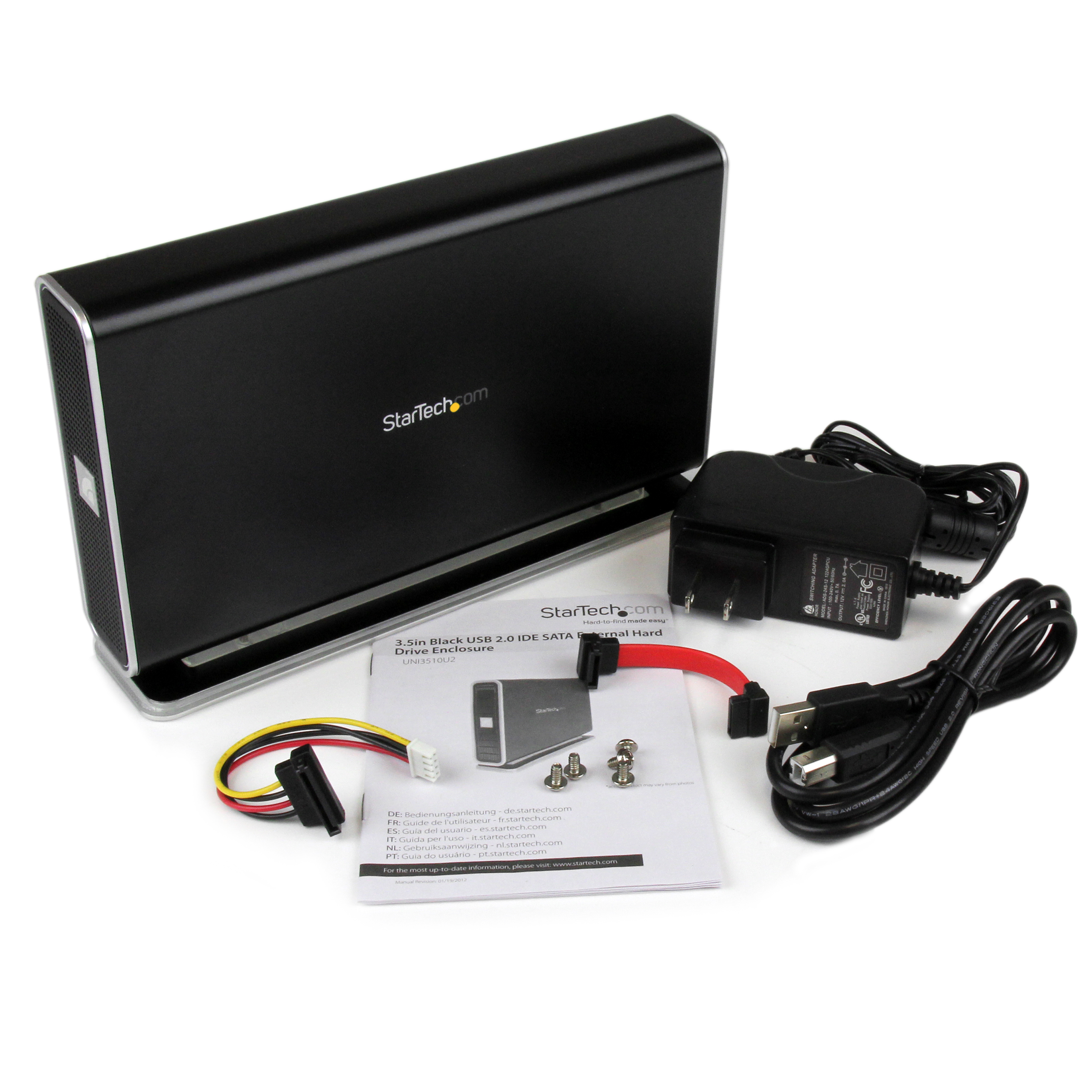

Input Voltage 115V AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type L Center Tip Polarity Positive Color Black Material Aluminum Product Length (mm) 222.25 Product Width (mm) 38 Product Height (mm) 139.7 Product Weight (g) 748.43 TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent RAID No UASP Support No Compatible Drive Types SATA & IDE Fans Included? Yes/No No Interface/Bridge USB 2.0 Number of Drives 1 Carton Depth (mm) 575 Carton Height (mm) 382 Carton Quantity 10 Carton Weight Gross (g) 14800 Included in Package - 1 - SATA/IDE to USB 2.0 External HDD Enclosure
- 1 - USB 2.0 Cable
- 1 - AC Power Adapter
- 1 - Instruction Manual
- 1 - SATA Data Cable (Internal)
- 1 - IDE Cable (Internal)
- 1 - Mounting Screw Kit
- 1 - SATA Power Adapter Cable (Internal)
- 1 - LP4 Power Adapter Cable (Internal)
Package Depth (mm) 112 Package Height (mm) 178 Package Width (mm) 285 Package Weight (g) 1360 Packaging Description USB 2.0 to IDE/SATA HDD Enclosure Packaging Description India USB 2.0 to IDE/SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
