UNI3510U2EB
3.5" USB 2.0/eSATA to IDE/SATA HDD Enclosure
Turn an Internal 3.5" SATA or IDE Hard Drive into an External USB/eSATA Hard Drive
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 3.5" USB 2.0/eSATA to IDE/SATA HDD Enclosure Product Number UNI3510U2EB UPC 065030833219 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 3.5 eSATA USB to IDE SATA HDD Enclosure Product Title (Standard) StarTech.com 3.5 eSATA USB External HDD Enclosure Product Title (Long) 3.5in Black eSATA USB 2.0 to IDE SATA External Hard Drive Enclosure Title Ingram (Part 1) 3.5 eSATA USB 2.0 to IDE SATA Ex Title Ingram (Part 2) ternal Hard Drive Enclosure Website Product Headline Turn an Internal 3.5" SATA or IDE Hard Drive into an External USB/eSATA Hard Drive Bullet 1 High Speed USB 2.0 compliant host interface, with support for data transfer rates up to 480 Mbps Bullet 2 Supports either a SATA or IDE (PATA) hard drive Bullet 3 SATA revision 2 compliant eSATA host interface, with support for data transfer rates up to 3 Gbps Bullet 4 Compatible with SATA 1.5/3.0/6.0 Gbps or IDE 66/100/133 Mbps hard drives Bullet 5 Screwless/tool-less design for assembly Bullets (Consolidated) Turn an Internal 3.5" SATA or IDE Hard Drive into an External USB/eSATA Hard Drive - Compatible with USB-enabled computer systems and 3.5in IDE or SATA hard drives - Universal 3.5in Hard Drive Enclosure/HDD Enclosure/USB to SATA or IDE Hard Drive Enclosure - Re-purpose an unused SATA or IDE Hard Drive as an External Hard Drive Enclosure Marketing Copy Applications - Turn an unused IDE (PATA) or SATA hard drive into additional external storage
- Technicians who work with and need to access a variety of different drives
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on storage to almost any USB enabled system
- Backup data to an external storage device for archiving or freeing up space
Website Search Keyword - External Hard Drive
- 3.5 inch
- SATA hard drive
- IDE SATA
- hard drive enclosure
- aluminum enclosure
- external storage
- usb 2.0
- eSATA
- case
- 1.5 Terabyte
- SAT3510U2E
- TB
- harddrive
- HDD
- USB
- Aluminum
- ATA
- esata and usb
Special Notes The One-Touch-Backup software provided with this unit is only compatible with 32bit operating systems up to Microsoft Windows Vista 32bit. Accessory Products - USB2HAB10
- USB2HAB15
- PCI420USB
- PCI625USB2I
- PEX400USB2
- ESATAPLATE1
- PEXESATA1
- PEXESATA2I
- ESATA3
- ESATA6
- PEXESATA2
- ECESATA254
Related Products - UNI3510U2
- SAT2520U2ER
- SAT5210U2E
- SAT3510BU2E
- SAT2510U2E
- SAT3540ER
- SAT3510U2E
- SATADOCK22UE
- USB2SATAIDE
- USB2SATA
- ICUSB2IDE

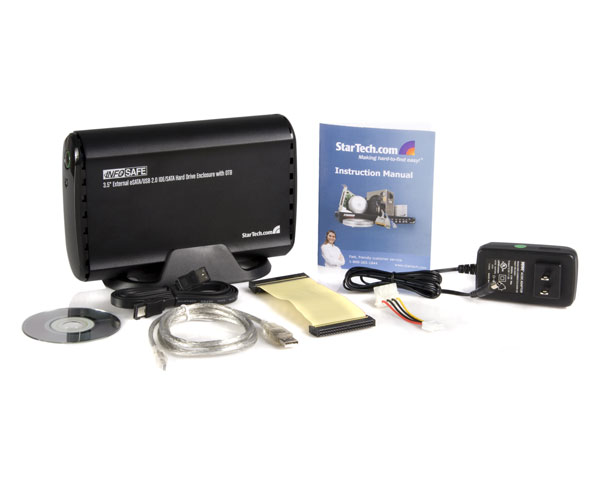

Equivalent Part Number in the EU UNI3510UEBEU Equivalent Part Number in the UK UNI3510UEBGB Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 10% ~ 90% RH Material Aluminum Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 210 Product Width (mm) 52.3 Product Height (mm) 135 Product Weight (g) 537 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives OS Compatibility OS Independent RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JM20337 Compatible Drive Types SATA & IDE Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge USB 2.0 & eSATA LED Indicators 1 - Power Number of Drives 1 Carton Depth (mm) 512 Carton Height (mm) 409 Carton Quantity 10 Carton Weight Gross (g) 12400 Included in Package - 1 - Hard Drive Enclosure
- 1 - USB Cable
- 1 - eSATA Cable
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Enclosure Stand
- 1 - Power Adapter
- 1 - Internal LP4 Molex Cable
- 1 - IDE Cable
Package Depth (mm) 96 Package Height (mm) 189 Package Width (mm) 265 Package Weight (g) 1120 Packaging Description USB 2.0/eSATA to IDE/SATA HDD Enclosure Packaging Description India USB 2.0/eSATA to IDE/SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Host Connector 1 USB Mini-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
