Main Image
UNI3510UEBGB

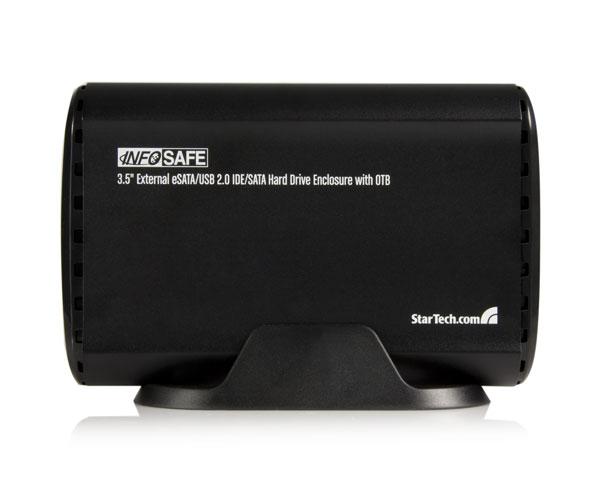

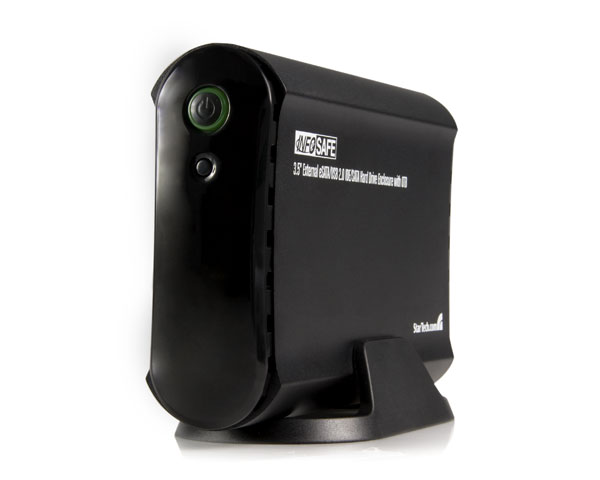

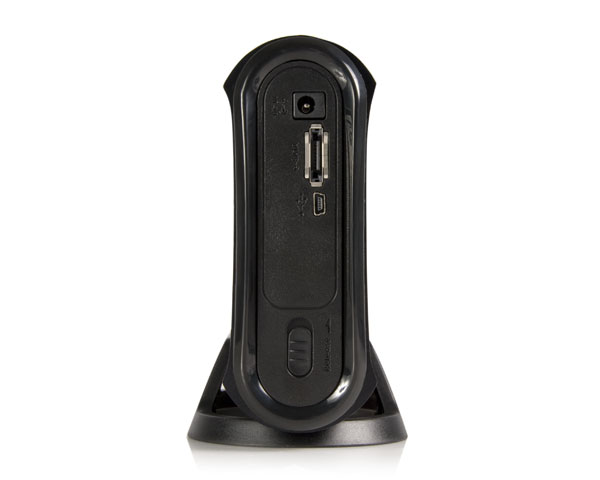

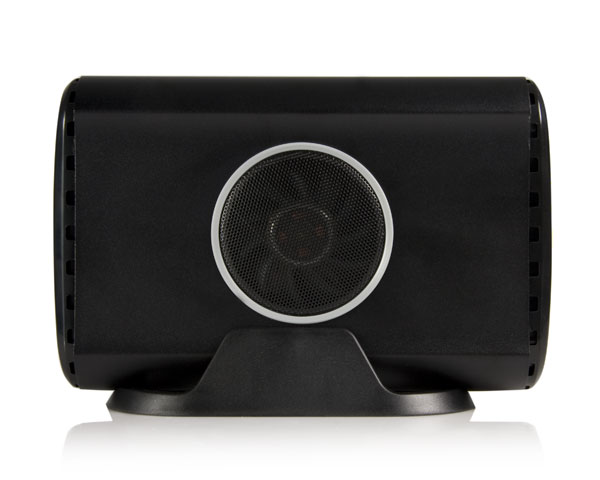

3.5" eSATA/USB 2.0 IDE/SATA HDD Enclosure w. OTB
Turn an Internal 3.5" SATA or IDE Hard Drive into an External USB/eSATA Hard Drive
Main Image
Product Images
Product Images
Product Images
Product Name 3.5" eSATA/USB 2.0 IDE/SATA HDD Enclosure w. OTB Product Number UNI3510UEBGB UPC 065030833417 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 3.5 eSATA USB External HDD Enclosure Product Title (Standard) Startech 3.5 eSATA USB External HDD Enclosure Product Title (Long) 3.5in Black eSATA USB 2.0 to IDE SATA External Hard Drive Enclosure Title Ingram (Part 1) 3.5 eSATA USB 2.0 to IDE SATA Ex Title Ingram (Part 2) ternal Hard Drive Enclosure Website Product Headline Turn an Internal 3.5" SATA or IDE Hard Drive into an External USB/eSATA Hard Drive Bullet 1 Supports either a SATA or IDE (PATA) hard drive Bullet 2 Screwless/tool-less design for assembly Bullet 3 High Speed USB 2.0 compliant host interface, with support for data transfer rates up to 480 Mbps Bullet 4 SATA revision 2 compliant eSATA host interface, with support for data transfer rates up to 3 Gbps Bullet 5 Compatible with SATA 1.5/3.0/6.0 Gbps or IDE 66/100/133 Mbps hard drives Marketing Copy Applications - Turn an unused IDE (PATA) or SATA hard drive into additional external storage
- Technicians who work with and need to access a variety of different drives
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on storage to almost any USB enabled system
- Backup data to an external storage device for archiving or freeing up space
Website Search Keyword - 3.5 inch enclosure
- aluminum enclosure
- eSATA/USB
- external hard drive cases
- External Hard Drive enclosures
- external storage
- hard drive enclosure
- IDE hard drive enclosure
- IDE SATA hard drive enclosure
- SATA hard drive enclosure
- usb 2.0 enclosure
- USB/eSATA
- 1.5 TB terabyte hard drive compatible
Accessory Products - ESATA3
- ESATA6
- ESATAPLATE1
- PCI420USB
- PCI625USB2I
- PEX400USB2
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- USB2HAB10
- USB2HAB15
- ECESATA254
Related Products - SAT2510U2E
- SAT2520U2ER
- SAT3510BU2E
- SAT3510U2E
- SAT3540ER
- SAT5210U2E
- SATADOCK22UE
- UNI3510U2
- IDECAS35UFGB
- IDECASE5U2GB
- USB2SATAIDGB
- ICUSB2IDE
- SAT3510U2BGB
- SAT3510BUEGB
- SAT3510U2VGB
- SAT3510U2REM
- IDECAS35UBGB
Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Aluminum Product Length (mm) 210 Product Width (mm) 52.3 Product Height (mm) 135 Product Weight (g) 537.05 TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives OS Compatibility - Windows 2000
- Windows ME
- Windows XP
- Windows Vista
- Mac OS 9.1
- Mac OS X
- Windows 7
- Windows Server 2008 R2
- Linux
- Mac OS X Mavericks (10.9)
- Windows 8
RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JM20337 Compatible Drive Types SATA & IDE Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge USB 2.0 & eSATA LED Indicators 1 - Power Number of Drives 1 Carton Depth (mm) 512 Carton Height (mm) 109 Carton Quantity 10 Carton Weight Gross (g) 12400 Included in Package - 1 - Driver CD
- 1 - Enclosure
- 1 - Enclosure Stand
- 1 - eSATA Cable
- 1 - Instruction Manual
- 1 - LP4 Cable
- 1 - Power Adapter
- 1 - SATA Power Cable
- 1 - USB Cable
Package Depth (mm) 96 Package Height (mm) 189 Package Width (mm) 265 Package Weight (g) 1120 Packaging Description USB 2.0/eSATA to IDE/SATA HDD Enclosure Packaging Description India USB 2.0/eSATA to IDE/SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 1 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Connector 4 SATA (7-Pin) Connector 4 (Quantity) 2 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB Mini-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
