UNIDOCK2U
USB SATA IDE HDD Docking Station for 2.5/3.5in
Connect both an IDE and SATA hard drive to a computer through USB 2.0
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB SATA IDE HDD Docking Station for 2.5/3.5in Product Number UNIDOCK2U UPC 065030836708 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) Dock HD USB IDE SATA Product Title (Short) USB to SATA IDE HDD Docking Station Product Title (Standard) USB to SATA IDE Hard Docking Station for 2.5/3.5 HDD Dock Product Title (Long) USB to SATA IDE Hard Drive Docking Station for 2.5in or 3.5in HDD Dock Product Title (AMZ) USB to SATA IDE Hard Drive Docking Station for 2.5in or 3.5in Hard Drive / HDD Dock (UNIDOCK2U) Title Ingram (Part 1) USB to SATA IDE Hard Drive Docki Title Ingram (Part 2) ng Station for 2.5/3.5in Website Product Headline Connect both an IDE and SATA hard drive to a computer through USB 2.0 Bullet 1 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 2 Supports 2.5" or 3.5" form factor hard drives (HDD) or solid state drives (SSD) Bullet 3 High Speed USB 2.0 compliant host interface, with transfer rates up to 480 Mbps Bullet 4 Compatible with PATA (IDE) 66/100/133 MBps hard drives Bullet 5 Front panel IDE data and power connectors Bullets (Consolidated) Connect both an IDE and SATA hard drive to a computer through USB 2.0 - Compatible with USB enabled computer systems such as ProBook 450 and 2.5in or 3.5in IDE and SATA hard drives and solid-state drives - HDD Dock/SSD Dock/USB Hard Drive Dock/IDE Hard Drive Dock/SATA Hard Drive Dock/External Hard Drive Docking Staiton/SATA HDD and SSD Dock/IDE HDD DOCK - Save time while backing up data to an external drive for archiving - Copy data from an old legacy IDE HDD to a SATA HDD Marketing Copy Applications - Quick access to 2.5/3.5" drives to retrieve data from
- Transfer files directly between a SATA and IDE hard drive, without having to transfer to the host computer first, or using multiple devices
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who test or benchmark multiple hard drives
Website Search Keyword - 2.5in
- HDD Dock
- Hard Drive Dock
- 3.5in
- Mobile Hard Drive
- Desktop Hard Drive
- USB Dock
- IDE Hard Drive Dock
- Docking Station
- Universal HDD Dock
- IDE to SATA
Accessory Products - HDDSLEV25
- HDDSLEV35
- USB2HAB6
- USB2HAB6T
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- PEX400USB2
- PCI420USB
- PCI330USB2
- CB420USB
- EC400USB
- IDE4044
- SAT2IDEADP
Related Products - SATADOCK22UE
- SATADOCKU2
- SATADOCKU2E
- SATDOCK22R
- SATADOCK525
- UNI3510U2
- UNI3510U2E
- UNI3510U2EB

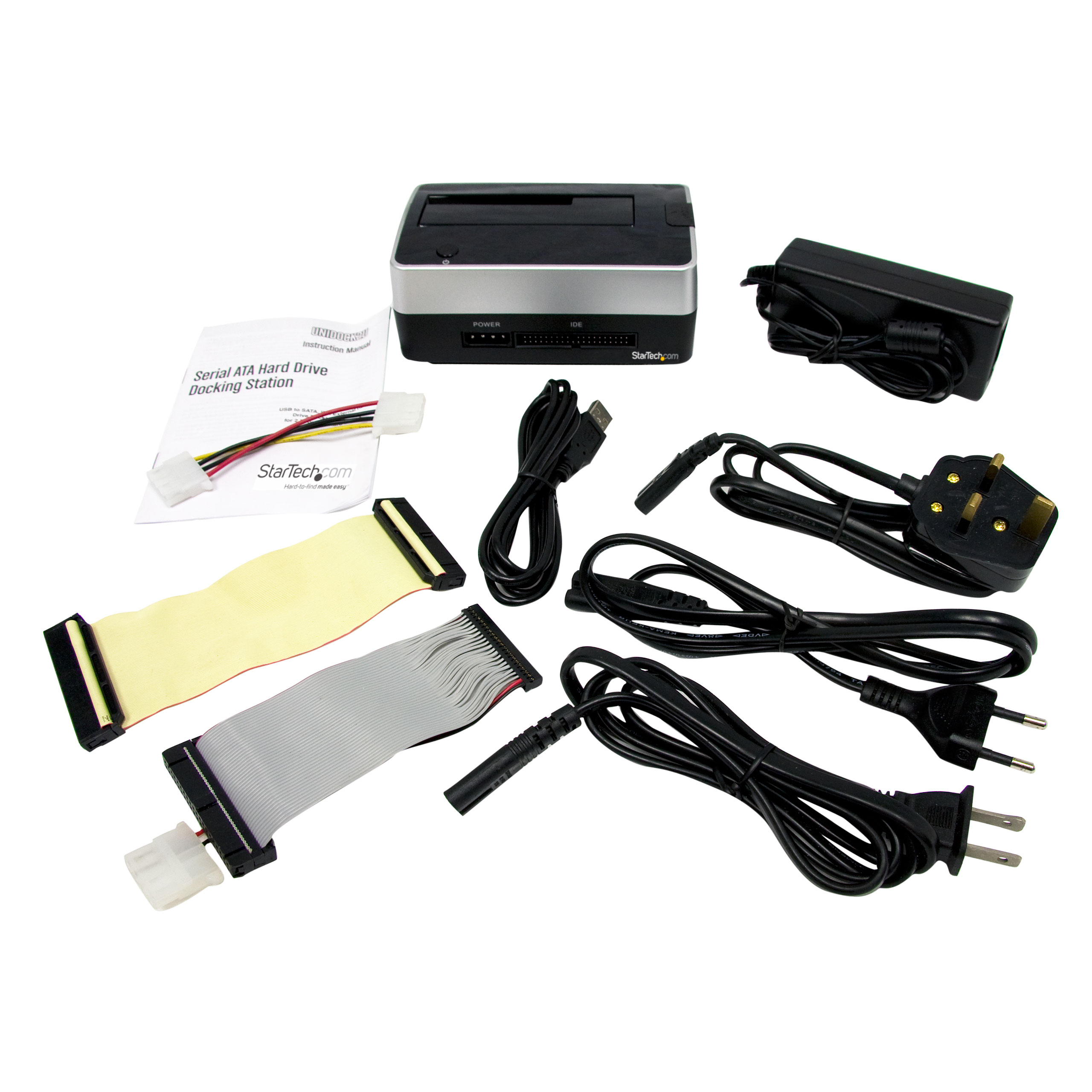

Replacement Product UNIDOCKU33 Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8~90% RH Material Plastic Operating Temperature 5°C to 80° (41°F to 176°F) Product Length (mm) 145 Product Width (mm) 93 Product Height (mm) 65 Product Weight (g) 413 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drive OS Compatibility OS Independent UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JM20337 Compatible Drive Types SATA & IDE Fans Included? Yes/No No Interface/Bridge USB 2.0 LED Indicators 1 - Power and Drive Activity Number of Drives 2 Carton Depth (mm) 635 Carton Height (mm) 370 Carton Quantity 10 Carton Weight Gross (g) 11900 Included in Package - 1 - Universal SATA IDE USB 2.0 Hard Drive Dock
- 1 - Universal Power Adapter
- 1 - USB 2.0 Cable
- 1 - IDE 40 to 40 Pin Cable
- 1 - LP4 Power Cable
- 1 - Instruction Manual
- 3 - Power Cord
- 1 - 40 Pin + LP4 to 44 Pin IDE Cable
Package Depth (mm) 120 Package Height (mm) 165 Package Width (mm) 158 Package Quantity 1 Package Weight (g) 1070 Packaging Description USB to 2.5/3.5 SATA/IDE HDD Dock Packaging Description India USB to 2.5/3.5 SATA/IDE HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Connector 3 IDE / PATA (ATA/133) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Connector 5 IDE / PATA 2.5in (ATA/133, Power) Connector 5 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
