UNIDOCK3UGB

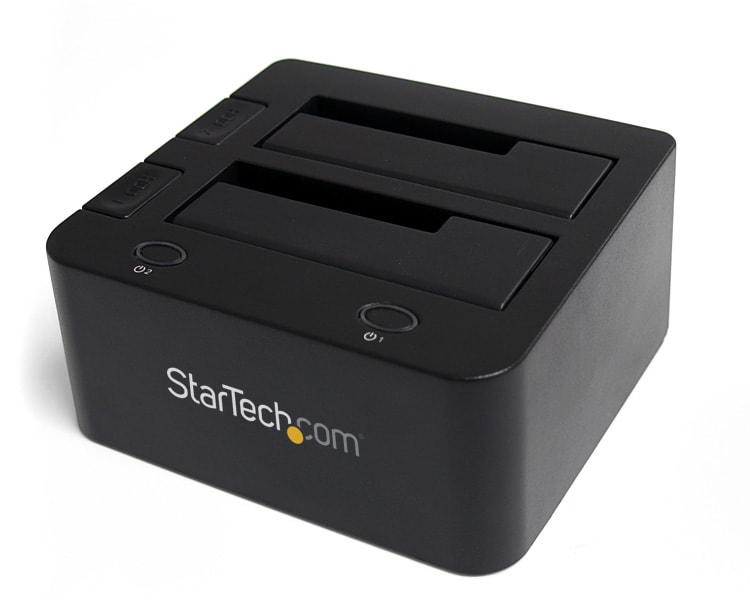

USB 3.0 SATA IDE HDD Docking Station for 2.5/3.5in
Connect both IDE and SATA hard drives using top slot-loading bays through USB 3.0
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name USB 3.0 SATA IDE HDD Docking Station for 2.5/3.5in Product Number UNIDOCK3UGB UPC 065030844857 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) USB 3.0 to SATA IDE HDD Docking Station Product Title (Standard) USB 3.0 to SATA IDE HDD Docking Station for 2.5in or 3.5in Hard Drive Product Title (Long) USB 3.0 to SATA IDE HDD Docking Station for 2.5in or 3.5in Hard Drive Title Ingram (Part 1) USB 3.0 to SATA IDE HDD Docking Title Ingram (Part 2) Station for 2.5in or 3.5in Website Product Headline Connect both IDE and SATA hard drives using top slot-loading bays through USB 3.0 Bullet 1 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 2 Supports 2.5" or 3.5" form factor hard drives (HDD) or solid state drives (SSD) Bullet 3 SuperSpeed USB 3.0 compliant host interface, which supports transfer rates up to 5 Gbps Bullet 4 Compatible with PATA (IDE) 66/100/133 MBps hard drives Bullet 5 Patented drive ejection mechanism for SATA drives Bullets (Consolidated) Replaced by UNIDOCKU33 - Connect both IDE and SATA hard drives using top slot-loading bays through USB 3.0 - hard drive dock - hdd dock - hard drive docking station - sata hard drive dock - ide sata Marketing Copy Applications - Quick access to 2.5/3.5" drives, for simple data retrieval
- Transferring files directly between a SATA and IDE hard drive, without having to transfer to the host computer first, or use multiple devices
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who test or benchmark multiple hard drives
Website Search Keyword - 2.5in
- HDD Dock
- Hard Drive Dock
- 3.5in
- Mobile Hard Drive
- Desktop Hard Drive
- USB Dock
- IDE Hard Drive Dock
- Docking Station
- Universal HDD Dock
- IDE to SATA
- SuperSpeed USB 3.0
- HDD docking station cradle external hard drive storage system
System and Cable Requirements Available USB port Accessory Products - HDDSLEV25
- HDDSLEV35
- PEXUSB3S2
- PEXUSB3S11
- MPEXUSB3S2
- PCIUSB3S2
- ECUSB3S2
- IDE4044
- SAT2IDEADP
- ECUSB3S1
Related Products - SATDOCK2UEGB
- UNIDOCK2U
- SATDOCK2U3GB
- SATDOCK22R
- SATADOCK525
- SATDOCK22RE
- UNIDUPDOCK

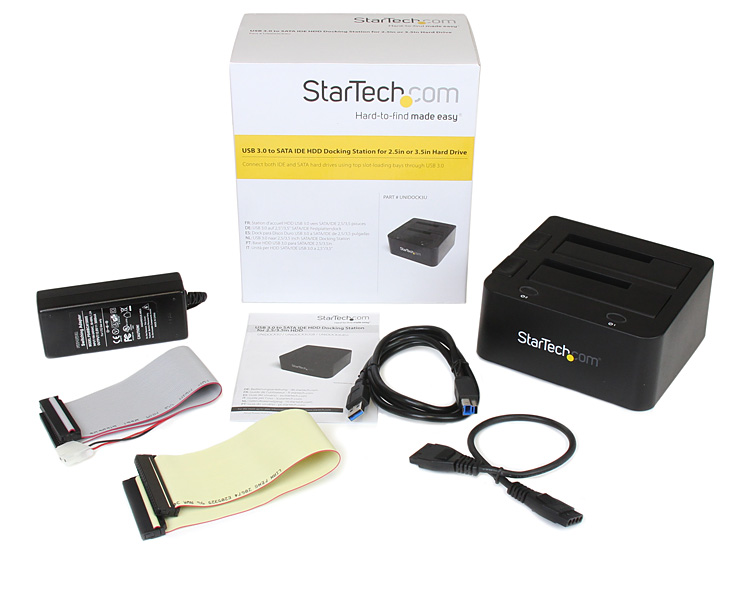

Replacement Product UNIDOCKU33 Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8% ~ 90% RH Material Plastic Operating Temperature 5°C to 80° (41°F to 176°F) Product Length (mm) 140 Product Width (mm) 130 Product Height (mm) 70 Product Weight (g) 610 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 Cycles (SATA) Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drive Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent RAID No UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID JMicron - JMS551 Compatible Drive Types SATA & IDE Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power and Drive Activity Number of Drives 2 Carton Depth (mm) 200 Carton Height (mm) 460 Carton Quantity 10 Carton Weight Gross (g) 12220 Included in Package - 1 - Universal Hard Drive Dock
- 1 - Power Adapter
- 1 - USB 3.0 Cable
- 1 - IDE 40 to 40 Pin Cable
- 1 - LP4 Power Cable
- 1 - Instruction Manual
- 1 - Power Cord
- 1 - 40 Pin + LP4 to 44 Pin IDE Cable

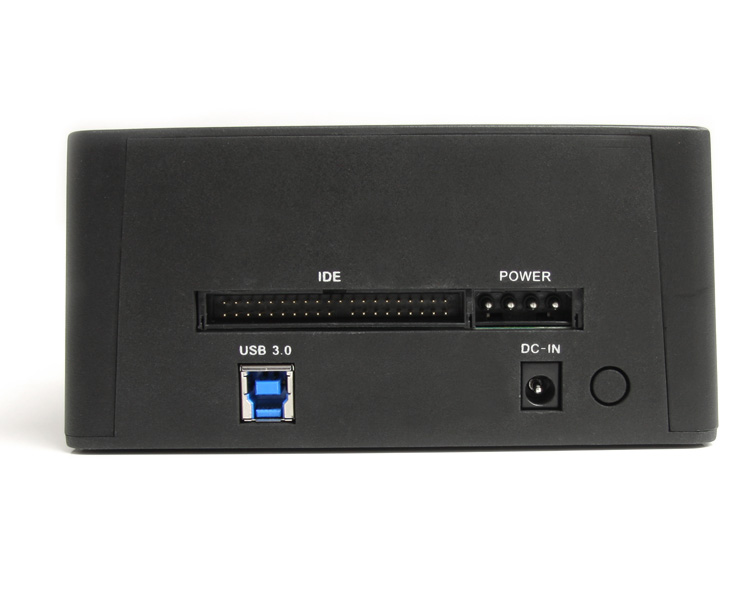

Package Depth (mm) 120 Package Height (mm) 210 Package Width (mm) 185 Package Quantity 1 Package Weight (g) 1120 Packaging Description USB 3.0 to 2.5/3.5in SATA/IDE HDD Dock Packaging Description India USB 3.0 to 2.5/3.5in SATA/IDE HDD Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
