UNIDOCKU33
USB 3 0 SATA IDE HDD Dock for 2 5 or 3 5 drives
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDE
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB 3 0 SATA IDE HDD Dock for 2 5 or 3 5 drives Product Number UNIDOCKU33 UPC 065030859813 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Family Dual Bay SATA Dock 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) 2-Bay SATA/IDE Dock Product Title (Short) 2-Bay USB 3.0 Hard Drive Docking Station Product Title (Medium) 2-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, 2.5/3.5" SSD/HDD Dock Product Title (Standard) Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, 2.5/3.5" SATA III and IDE (40 pin), SSD/HDD Dock, Top-Loading Product Title (Long) Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading Product Title (AMZ) Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA III / IDE, SSD/HDD Docking Station, Hot-Swap Drive Bays, Top-Loading (UNIDOCKU33) Title Ingram (Part 1) 2-Bay Hard Drive Dock - Title Ingram (Part 2) USB 3.0 to SATA and IDE SSD/HDD Website Product Headline External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDE Bullet 1 HARD DRIVE DOCKING STATION: This 2-bay hard drive dock enables access to 2.5/3.5" SATA and IDE hard drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 1 (5 Gbps); Toolless design facilitates quick drive hot-swapping Bullet 2 DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA I/II/III SSDs/HDDs and IDE HDDs (40 pin, EIDE/PATA); OS independent - Includes 4.7" (12cm) IDE, LP4, and 3ft (1m) USB-A cables and universal power adapter Bullet 3 PERFORMANCE: Power and eject buttons for each bay enables hot-swapping of an idle drive while the other bay is in use; Dedicated slots for SATA (slot 1), and IDE (slot 2); Drive bays with 15,000 insertion/removal cycle rating for maximum durability Bullet 4 SPECS: 2-Bay Hard Drive Dock; SATA I/II/III and IDE (40 pin, EIDE/PATA 66/100/133 MBps); USB 3.2 Gen 1 (5 Gbps) Host Connection; Toolless Design; Hot-Swappable Drive Bays; Top-Loading with Eject Button; LED Activity Lights Bullets (Compact) Dual-Bay Hard Drive Dock for 2.5/3.5" SATA and IDE Drives; SATA III and IDE (40 pin, EIDE/PATA) HDD/SSD; USB 3.2 (5 Gbps) Host Connection; Top-Loading Drive Bays w/ Drive Doors and Eject Buttons; Status LEDs; Hot Swap Drive Bays; OS Independent Bullets (Consolidated) Dual-bay hard drive docking station enables access to 2.5/3.5" SATA and IDE drives without having to install the drive - Dedicated hot-swappable drive bays for SATA (slot 1) and IDE (slot 2) | Toolless design and top loading with eject button - SATA I/II/III and IDE (40 pin, EIDE/PATA) | USB 3.2 Gen 1 (5 Gbps) Host Connection | No capacity limit | OS independent - Includes IDE, LP4 and USB-A Cables and Universal Power Adapter Marketing Copy Marketing Copy (No HTML) The dual hard drive docking station with UASP enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray. Enhanced with UASP (USB Attached SCSI Protocol), this external hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid drives. The slot-loading design holds the SATA and IDE drives upright inside the USB 3.0 hard drive docking station, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the SATA HDD/SSD docking station can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables. The universal HDD docking station has a single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dual hard drive docking station with UASP can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives). The external hard drive docking station is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Transfer files directly between a SATA and IDE hard drive, without having to transfer to the host computer first or use multiple devices
- Access 2.5/3.5in IDE or SATA drives, for fast data retrieval
- Recover data from drives on failed computers
- Backup data quickly to an external drive for archiving
- Test or benchmark multiple hard drives
Website Search Keyword - all drive dock
- universal hard drive dock
- 2.5 and 3.5 drive
- docking station
- dock
- hdd dock
- ssd dock
- universal dock
- any drive docking station
- U339-002
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SAT2IDEADP
- IDE4044
- HDDSLEV25
- HDDSLEV35
- PEXUSB3S2
- PEXUSB3S11
- MPEXUSB3S2
- PCIUSB3S2
- ECUSB3S1
- ECUSB3S2
- SVA12M5NA
Related Products - UNIDOCK2U
- SATDOCK22U3S
- SATADOCK22UE
- UNIDUPDOCK
- SATDOCK22R
- SATDOCK22RE
- SATADOCK525
- UNIDOCK3U
Input Current 1.3 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8% ~ 90% RH Material Plastic Operating Temperature 5°C to 80° (41°F to 176°F) Primary Material Plastic Product Length (mm) 147.000 Product Width (mm) 130.000 Product Height (mm) 70.000 Product Weight (g) 494.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Insertion Rating 15,000 Cycles (SATA) Max Drive Capacity Currently tested with up to 6TB 7200 RPM 3.5" hard drives and 2TB 5400 RPM 2.5" hard drive Maximum Data Transfer Rate 5 Gbps MTBF (hours) 30000 hours OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA & IDE Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 2 - Power and Drive Activity Number of Drives 2 Carton Depth (mm) 631 Carton Height (mm) 473 Carton Quantity 10 Carton Weight Gross (g) 11128 Included in Package - 1 - Universal Hard Drive Dock

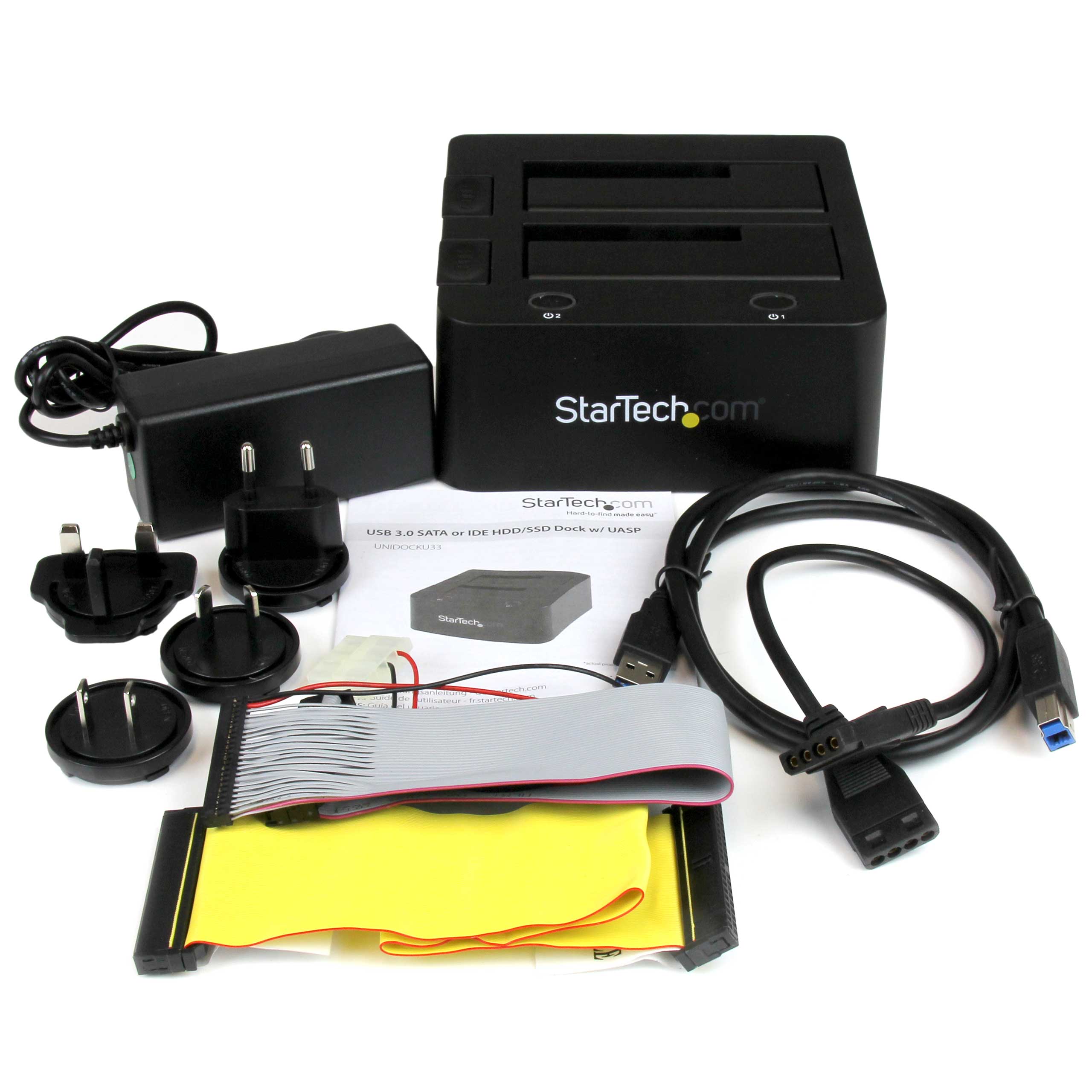

- 1 - USB 3.0 Cable
- 1 - IDE 40 to 40 Pin Cable
- 1 - LP4 Power Cable
- 1 - 40 Pin + LP4 to 44 Pin IDE Cable
- 1 - Universal Power Adapter (NA/UK/EU/AUS)
- 1 - Instruction Manual
Package Depth (mm) 189 Package Height (mm) 122 Package Width (mm) 213 Package Quantity 1 Package Weight (g) 1028 Packaging Description USB 3.0 SATA or IDE HDD/SSD Dock w/ UASP Packaging Description India USB 3.0 SATA or IDE HDD/SSD Dock w/ UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-10-17 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2014-10-27 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
