UNIDUPDOCK
USB External Duplicator Dock for SATA and IDE HDD
Clone any combination of 2.5in or 3.5in IDE or SATA hard drives
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB External Duplicator Dock for SATA and IDE HDD Product Number UNIDUPDOCK UPC 065030836999 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Duplicators and Erasers Category Level 3 Drive Duplicators and Erasers - SATA Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) Clonador SATA IDE Product Title (Short) USB to IDE SATA Hard Drive Duplicator Product Title (Medium) x Product Title (Standard) USB to IDE SATA Standalone HDD Hard Drive Duplicator Dock Product Title (Long) USB to IDE SATA Standalone HDD Hard Drive Duplicator Dock Product Title (AMZ) USB to IDE SATA Standalone HDD Hard Drive Duplicator Dock (UNIDUPDOCK) Title Ingram (Part 1) USB to IDE SATA Standalone Hard Title Ingram (Part 2) Drive Duplicator Dock Website Product Headline Clone any combination of 2.5in or 3.5in IDE or SATA hard drives Bullet 1 Built in RAID 0, 1, and BIG functionality Bullet 2 Sector-by-Sector drive duplication, including the HPA Bullet 3 High-speed USB 2.0 host interface, with support for transfer rates up to 480Mbps Bullet 4 Integrated LCD display for duplication progress and options menu Bullet 5 Compatible with both SATA (1.5/3.0/6.0 Gbps) and IDE (66/100/133 Mbps) drives Bullets (Consolidated) Clone any combination of 2.5in or 3.5in IDE or SATA hard drives - Hard Drive Duplicator - Hard Disk Duplicator - HDD Duplicator - Hard Drive Cloner - USB to IDE SATA Hard Disk Duplicator - Hard Disk Drive Duplicator Marketing Copy Applications - Disk imaging/hard drive cloning - create exact replicas of a source drive onto a new drive - perfect for scenarios/environments where consistency and integrity is crucial (law enforcement and forensics applications)
- Quick, hassle-free hard drive backups, data recovery and drive erasing
- SMB, OEM, System Integrators, IT and service technicians requiring quick access to bare external hard drive contents, or the ability to clone data for data / disk recovery.
- Law Enforcement and Forensics
Website Search Keyword - Duplicator
- duplicator dock
- Hard Drive Cloning
- Hard Drive Duplicator
- Hard Drive Mirroring
- HD duplicator
- SATA Docking Station
- SATA HDD Duplicator
- standalone hd duplicator
- USB to SATA External HDD Dock
- Universal Dock
- IDE Dock
- IDE to SATA
- hard drive hdd copier disk
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes For duplication, the destination drive must be of equal or greater capacity than the source drive. Accessory Products - HDDSLEV25
- HDDSLEV35
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- MCSATAADAP
- SAT2IDEADP
- SVA12M5NA
Related Products - SATADOCK22UE
- SATADOCKU2
- SATDOCK22R
- SATADOCKU2E
- SATADOCK525
- SATDOCKCRH
- UNIDOCK2U
- UNI3510U2
- UNI3510U2E
- UNI3510U2EB
- SATDOCK22RE

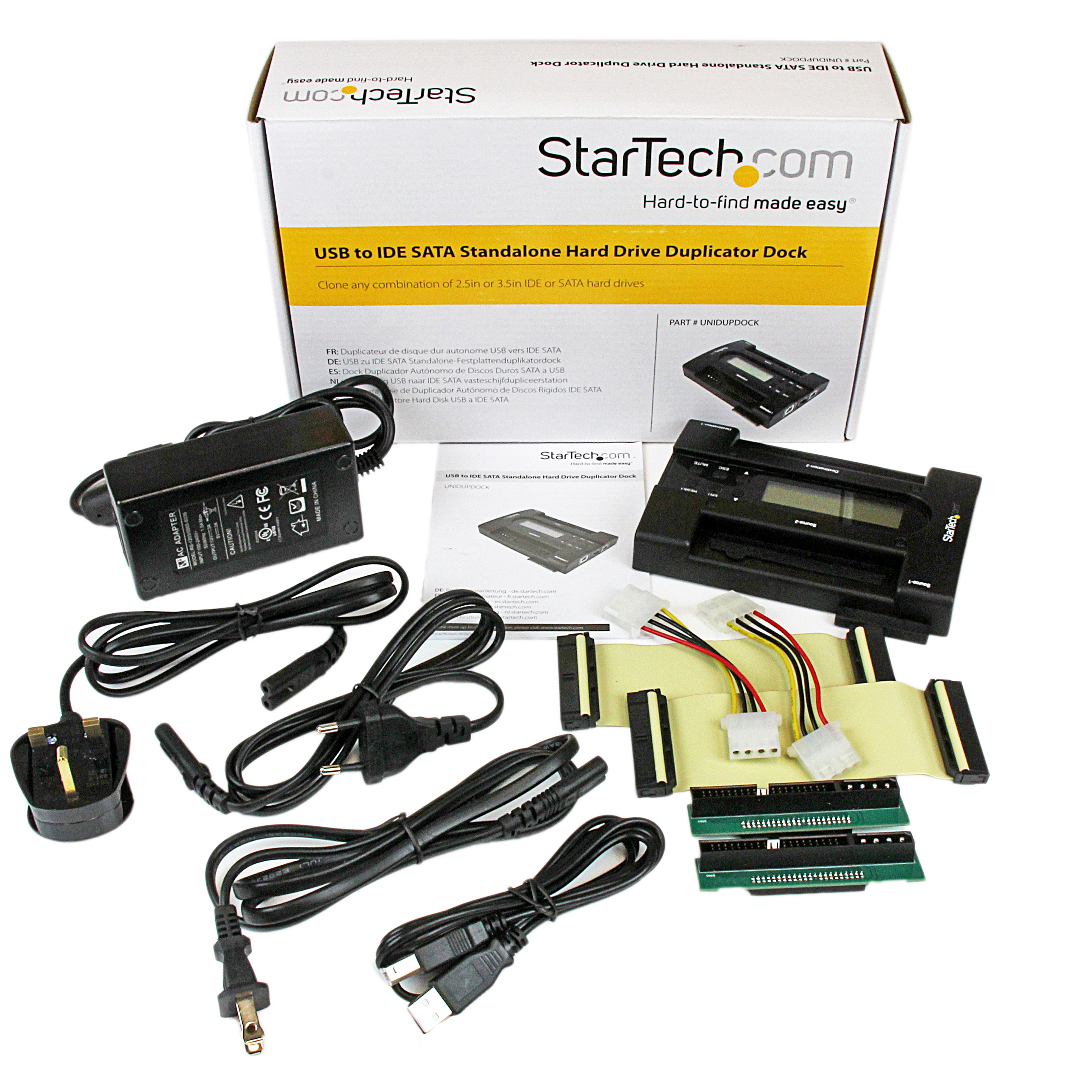

Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12/5V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Color Black Humidity 90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 151.000 Product Width (mm) 110.000 Product Height (mm) 27.000 Product Weight (g) 236.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Duplication Modes Sector by Sector (Whole Drive) Duplication Speed 4.2GBpm Erase Modes Quick Erase Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives per bay (8TB total) and 1TB 5400 RPM 2.5" hard drives (2TB total) Maximum Data Transfer Rate 480Mbps OS Compatibility OS Independent USB Type and Rate USB 2.0 (480Mbps) Chipset ID ACARD - ARC286 Compatible Drive Types SATA & IDE Interface/Bridge USB 2.0 Number of Drives 2 Carton Depth (mm) 374 Carton Height (mm) 300 Carton Quantity 10 Carton Weight Gross (g) 9610 Included in Package - 1 - Universal HDD Duplicator
- 1 - USB 2.0 A B Cable
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 2 - IDE 40 to 40 pin Cables
- 2 - LP4 to LP4 Cables
- 2 - 40 to 44 pin adapters
- 3 - Power Cord (NA/UK/EU)
Package Depth (mm) 193 Package Height (mm) 71 Package Width (mm) 292 Package Quantity 1 Package Weight (g) 854 Packaging Description USB to IDE SATA Standalone Hard Drive Duplicator Dock Packaging Description India USB to IDE SATA Standalone Hard Drive Duplicator Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 2 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,JP,NZ,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
