UNIRAILS1U
Fixed 19 Universal Racks 1U
Mount 19" Servers or Networking Hardware in any Standard Rack
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Quick-Start Guide
Video Link YouTube
Product Name Fixed 19 Universal Racks 1U Product Number UNIRAILS1U UPC 065030845526 Lifecycle status Active Warranty Lifetime Taxonomy Product > Mechanical Products > Rack Shelves and Accessories Category Level 1 Racks and Enclosures Category Level 2 Rack Shelves and Accessories Category Level 3 Rack Shelves Family Adjustable Server Rack Rails Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX115X Product Title (Ultra-Short) . Product Title (Short) 1U Fixed 19" Universal Server Rack Rails Product Title (Standard) 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails Product Title (Long) 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails Product Title (AMZ) 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails Title Ingram (Part 1) 1U Fixed 19" Adjustable Depth Un Title Ingram (Part 2) iversal Server Rack Rails Website Product Headline Mount 19" Servers or Networking Hardware in any Standard Rack Bullet 1 VERSATILE FUNCTIONALITY: These 1U universal rack rails let you mount non-rackmount equipment into your 19" server rack; It is also great for mounting equipment with discontinued OEM equipment Bullet 2 MEETS INDUSTRY STANDARDS: These server mounting rails adhere to the EIA-310 standard for 19" rackmount equipment; The depth of the rack mount rails is also adjustable Bullet 3 STURDY CONSTRUCTION: To ensure your equipment is secure, this network equipment mounting rails feature cold-rolled steel construction; The durable design can support a weight load of up to 55lb (25kg) Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT Professionals, these server-rack rails are backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Consolidated) Mount 19" Servers or Networking Hardware in any Standard Rack - Compatible with non-rack mountable equipment - server rack rails/rack mount rails/universal rack rails/universal rail kit/universal server rails - Weight capacity up to 25kg (55lbs.) - Rack mount servers missing their original rails - Securely install 19" non-rackmount equipment into server racks Marketing Copy Marketing Copy (No HTML) Applications - Use to rackmount OEM equipment such as Dell, IBM, HP or Apple servers that no longer have rack rails available for purchase
- Securely mount non-rackmount equipment into any 19" EIA-310 server rack
- Mount rackmount equipment that’s missing its original rails
Website Search Keyword - universal rack rails
- universal rails
- universal server rack rails
- static rails
- universal rail kit
- rack rail kit
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - CABSCREWM52
- CABSCREWM5
- 4POSTRACKBK
- RK1219WALHM
- RK4242BK
Related Products - UNIRAILS2U
- UNIRAILS3U
- SLIDESHELFD
- ADJSHELF
- UNISLDSHF19

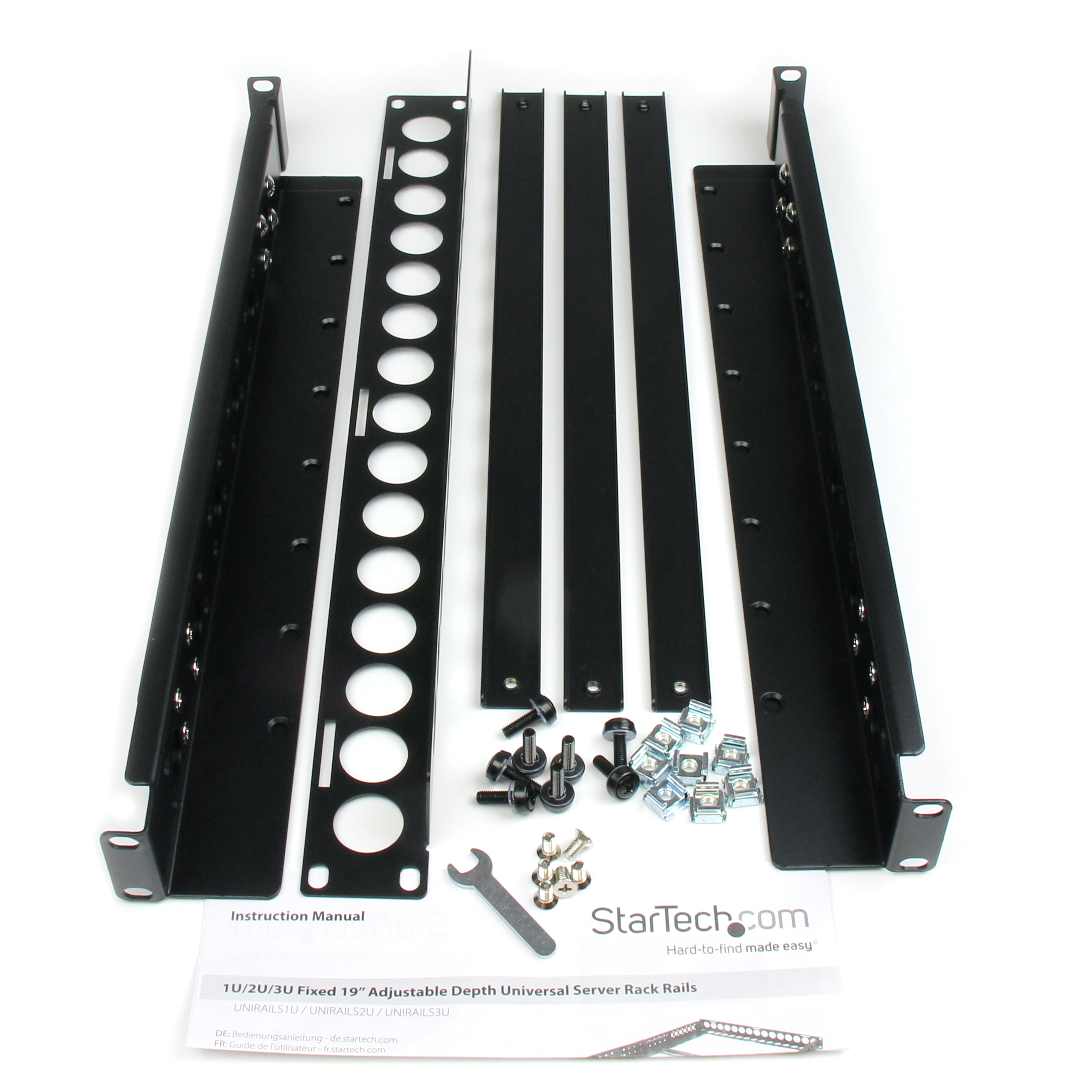

Color Black Depth Capacity (Filter) Adjustable Material Steel Maximum Mounting Depth (mm) 1054 Minimum Mounting Depth (mm) 420 Primary Material Steel Product Length (mm) 109 Product Width (mm) 481.000 Product Height (mm) 42.000 Product Weight (g) 2610 TAA Compliant No Rack Weight Capacity Range 25 - 75 lbs. (11 - 34 kg.) Weight Capacity for Racks (Stationary) (g) 25000 Cable Management Yes Frame Type Steel U Height 1U Carton Depth (mm) 608 Carton Height (mm) 448 Carton Quantity 9 Carton Weight Gross (g) 24266 Included in Package - 1 - Set Universal Rack Rails
- 8 - M5 Panel Screws
- 8 - M5 Cage Nuts
- 1 - M5 Wrench
Included In Package for Label - 1 - Set Universal Rack Rails
- 8 - M5 Panel Screws
- 8 - M5 Cage Nuts
- 1 - M5 Wrench
Package Depth (mm) 107 Package Height (mm) 144 Package Width (mm) 502 Package Quantity 1 Package Weight (g) 2610 Packaging Description 1U 19" Universal Server Rack Rails - Adjustable Depth Packaging Description India 1U 19" Universal Server Rack Rails - Adjustable Depth Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,SG,UK,US Primary Technology None Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
