UNIRAILS3U
Fixed 19 Universal Racks 3U
Mount 19" servers or networking hardware in any standard rack with these universal, adjustable depth 3U rack rails
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Quick-Start Guide
Video Link YouTube
Product Name Fixed 19 Universal Racks 3U Product Number UNIRAILS3U UPC 065030845632 Lifecycle status Active Warranty Lifetime Taxonomy Product > Mechanical Products > Rack Shelves and Accessories Category Level 1 Racks and Enclosures Category Level 2 Rack Shelves and Accessories Category Level 3 Rack Shelves Family Adjustable Server Rack Rails Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX115X Product Title (Ultra-Short) 3U Unvrsl Rack Rails Product Title (Short) 3U Fixed 19" Universal Server Rack Rails Product Title (Standard) 3U Fixed 19" Adjustable Depth Universal Server Rack Rails Product Title (Long) 3U Universal Server Rack Rails - Fixed Mounting Rails - 19" Adjustable Depth Rack Mount Rails Product Title (AMZ) 3U Universal Server Rack Rails - Fixed Mounting Rails - 19" Adjustable Depth Rack Mount Rails (UNIRAILS3U) Title Ingram (Part 1) 3U Fixed 19" Adjustable Depth Un Title Ingram (Part 2) iversal Server Rack Rails Website Product Headline Mount 19" servers or networking hardware in any standard rack with these universal, adjustable depth 3U rack rails Bullet 1 REPLACEMENT MOUNTING SOLUTION: The 3U adjustable rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment that no longer have rack rails available Bullet 2 UNIVERSAL DESIGN: Adhering to the EIA-310 standard for 19" rackmount equipment, these universal server rack rails are universally compatible with 19" server racks Bullet 3 STURDY CONSTRUCTION: To ensure your equipment is secure, these computer equipment rack rails feature cold-rolled steel construction; The durable design can support up to 215lb (97kg) Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT Professionals, these server-rack rails are backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullet 5 HASSLE-FREE INSTALLATION: 3U universal rack-mount rails with an adjustable depth of 16.5-41.5in (42-105.4cm); Includes mounting hardware for quick setup, ensuring secure support for installed devices Bullets (Compact) . Bullets (Consolidated) Easily rack-mount your non rackmount gear - Open frame design that doesn't impede airflow - Universal support for EIA-310 19" server racks - Weight capacity up to 97kg (215 lb) - Adjustable depth from 420 mm (16.5" ) - 1054 mm(41.5") - Removable rear cable management panel Marketing Copy Marketing Copy (No HTML) Applications - Use to rackmount OEM equipment such as Dell, IBM, HP or Apple servers that no longer have rack rails available for purchase
- Securely mount non-rackmount equipment into any 19" EIA-310 server rack
- Mount rackmount equipment that’s missing its original rails
Website Search Keyword - universal rack rails
- universal rails
- universal server rack rails
- static rails
- universal rail kit
- rack rail kit
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - CABSCREWM52
- CABSCREWM5
- 4POSTRACKBK
- RK1219WALHM
- RK4242BK
Related Products - UNIRAILS2U
- UNIRAILS1U
- SLIDESHELFD
- ADJSHELF
- UNISLDSHF19

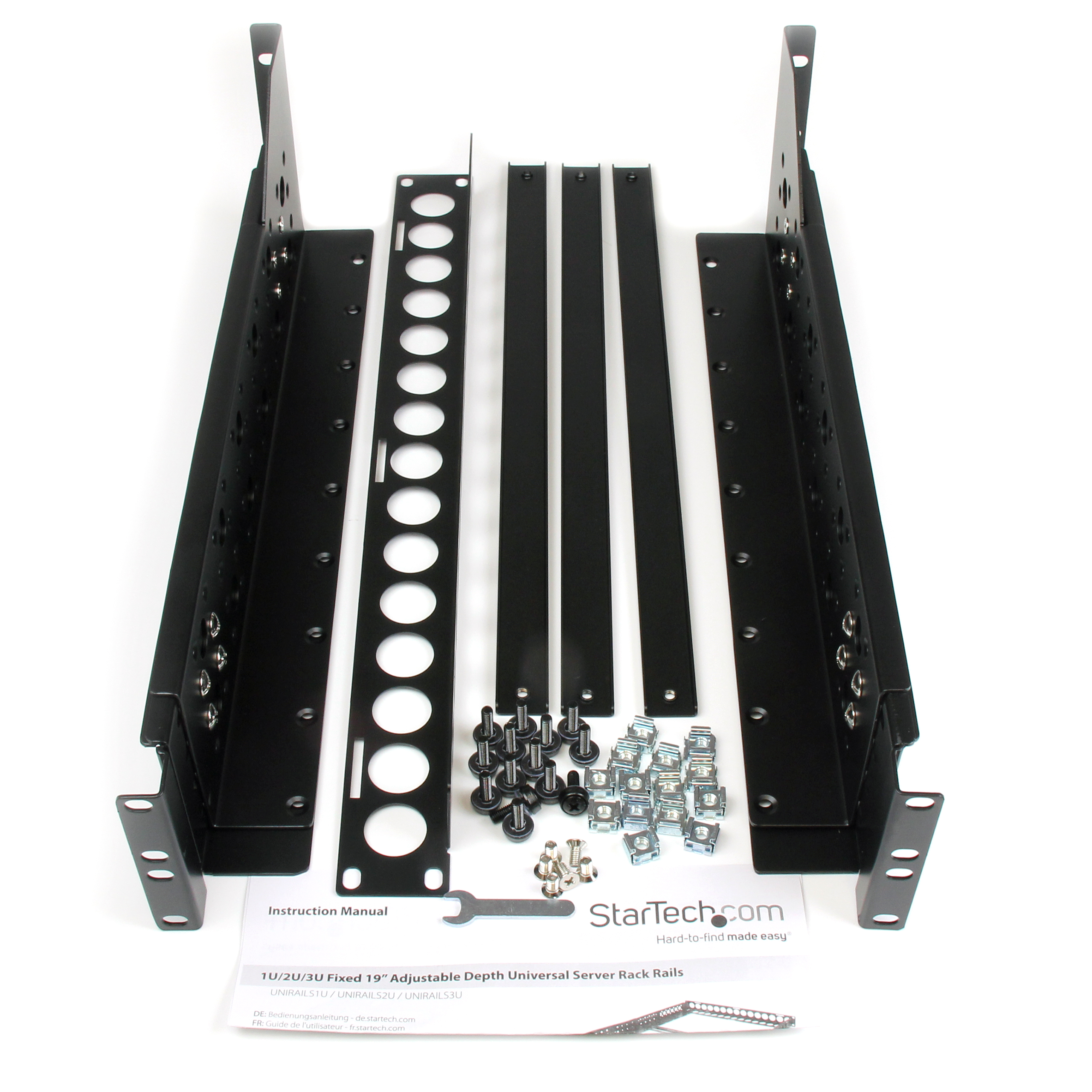

Color Black Depth Capacity (Filter) Adjustable Material Steel Maximum Mounting Depth (mm) 1054 Minimum Mounting Depth (mm) 420 Primary Material Steel Product Length (mm) 495.000 Product Width (mm) 482.000 Product Height (mm) 133.350 Product Weight (g) 3600.000 TAA Compliant No Rack Weight Capacity Range 215 - 250 lbs. (97 - 114 kg.) Weight Capacity for Racks (Stationary) (g) 97285 Cable Management Yes Frame Type Steel U Height 3U Carton Depth (mm) 460 Carton Height (mm) 420 Carton Quantity 6 Carton Weight Gross (g) 26100 Included in Package - 1 - Set Universal Rack Rails
- 14 - M5 Panel Screws
- 14 - M5 Cage Nuts
- 1 - M5 Wrench
Included In Package for Label - 1 - M5 Wrench
- 14 - M5 Cage Nuts
- 14 - M5 Panel Screws
- 1 - Set Universal Rack Rails
Package Depth (mm) 115 Package Height (mm) 157 Package Width (mm) 502 Package Quantity 1 Package Weight (g) 4094 Packaging Description 3U 19" Universal Server Rack Rails - Adjustable Depth Packaging Description India 3U 19" Universal Server Rack Rails - Adjustable Depth Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,IE,IN,IT,JP,NL,UK,US Primary Technology None Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
