UNISLDSHF19M

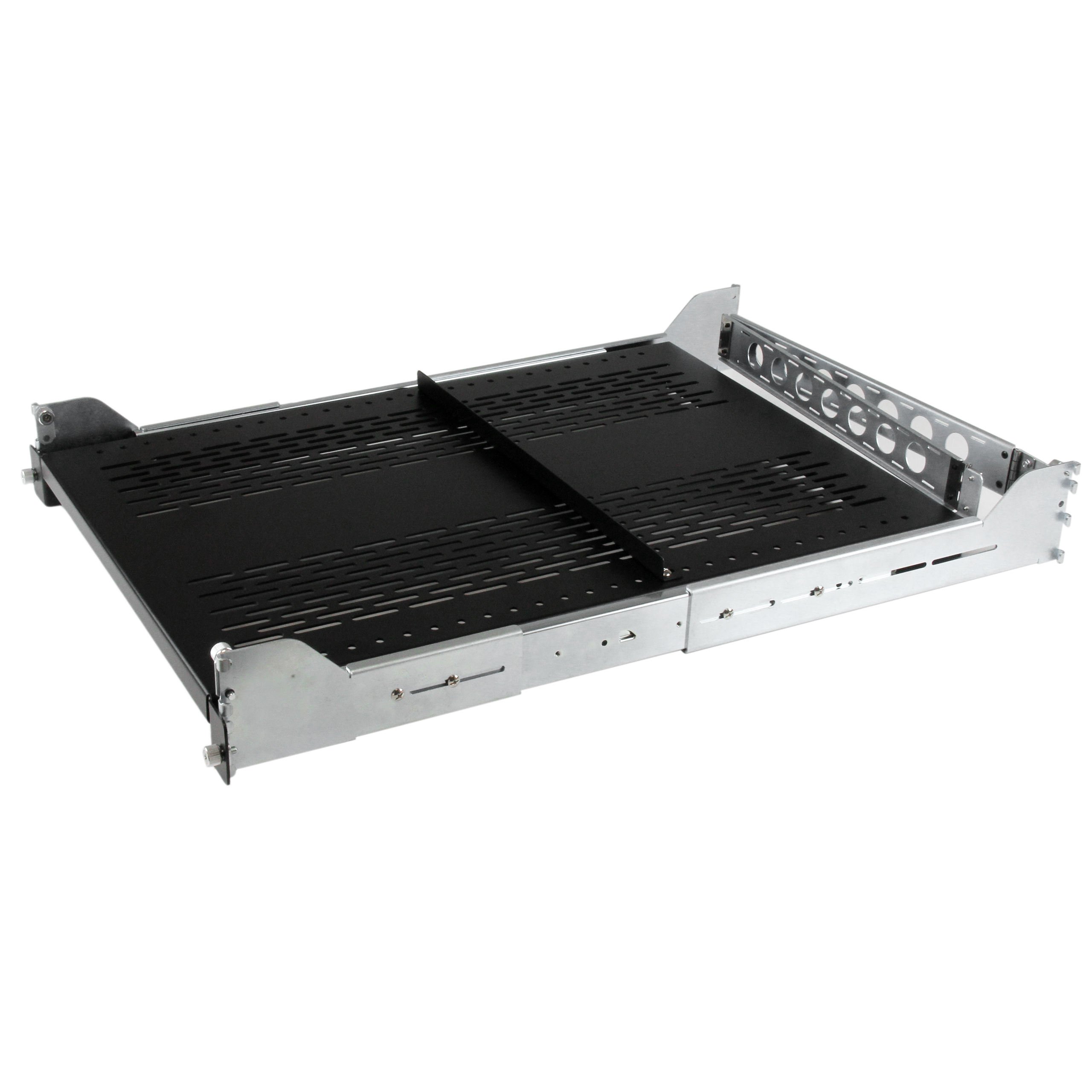

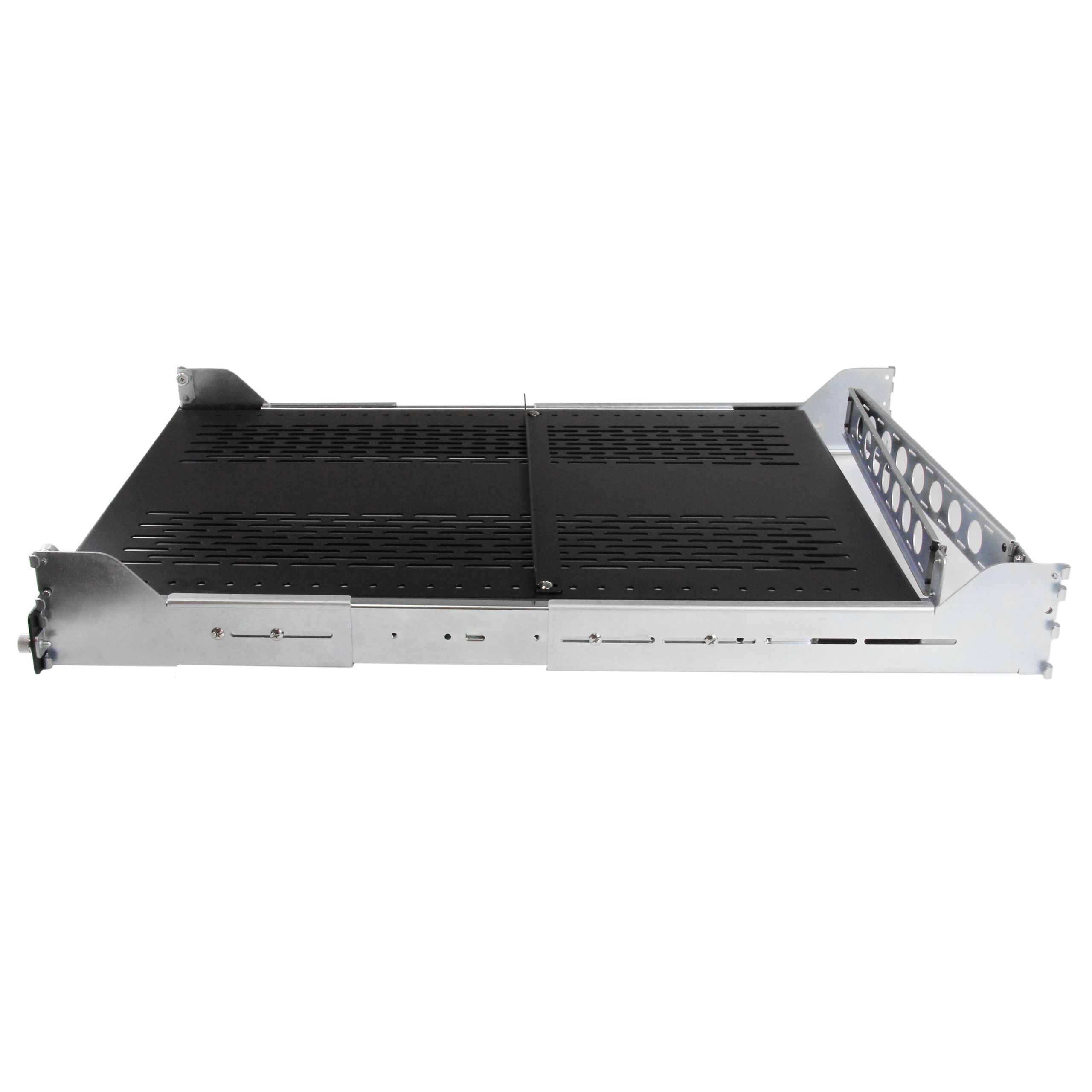

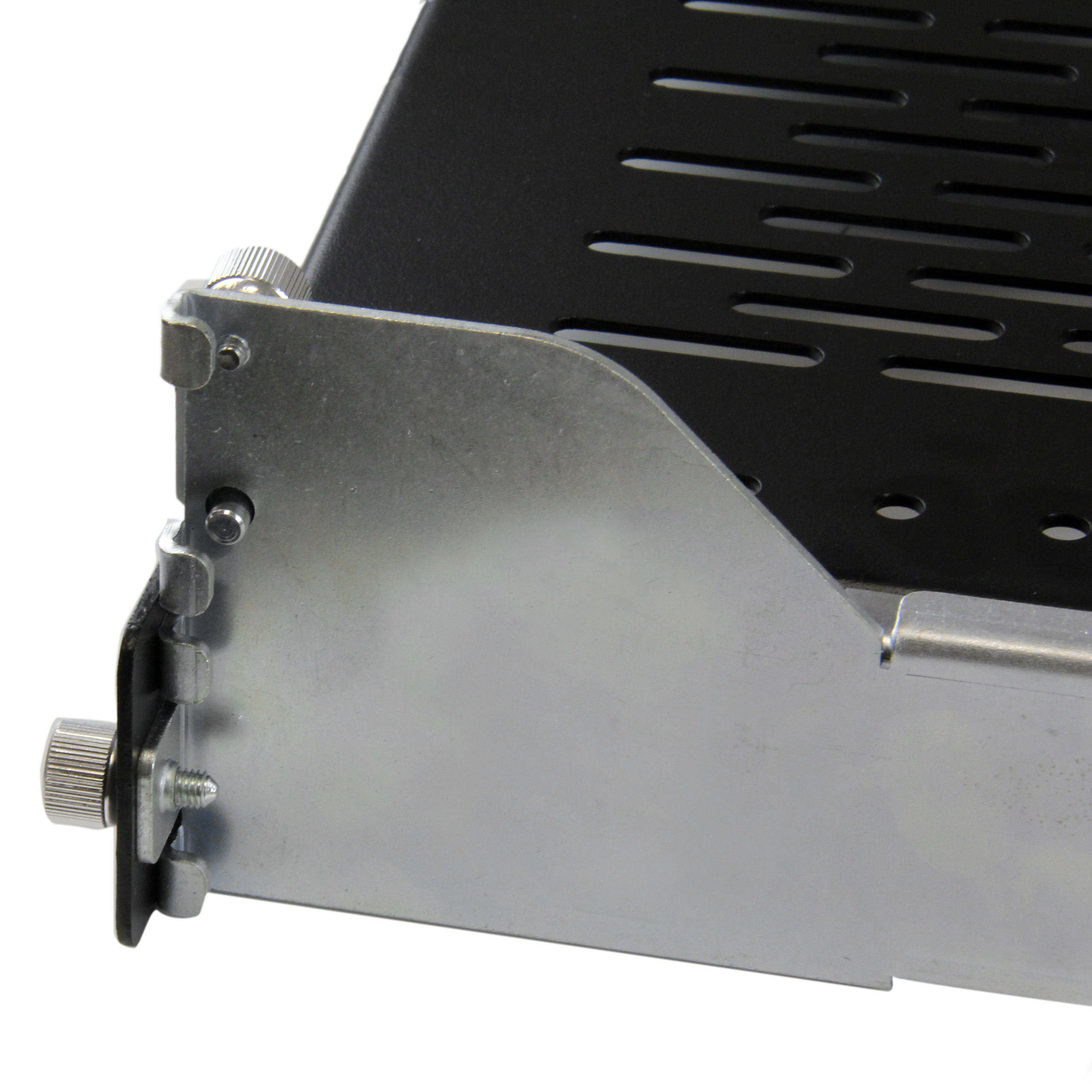

2U Sliding Vented Server Rack Shelf w Cable Mgmt
Add a vented, sliding shelf with integrated cable management into virtually any server rack or cabinet
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Quick-Start Guide
Video Link YouTube
Product Name 2U Sliding Vented Server Rack Shelf w Cable Mgmt Product Number UNISLDSHF19M UPC 065030855983 Lifecycle status Active Warranty 2 Years Taxonomy Product > Mechanical Products > Rack Shelves and Accessories Category Level 1 Racks and Enclosures Category Level 2 Rack Shelves and Accessories Category Level 3 Rack Shelves Family 2U Rack Shelves Sliding Vented Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Ultra-Short) Sliding Rack Shelf Product Title (Short) 2U Adjustable Vented Sliding Rack Shelf Product Title (Medium) 2U Adjustable Mount Depth Vented Sliding Rack Shelf w/ Cable Mgmt - 110lbs Product Title (Standard) 2U Vented Sliding Rack Shelf w/ Cable Management Arm & 27.7 to 31.6in Adjustable Mounting Depth - 110lbs / 50kg - 24in Deep Product Title (Long) 2U Vented Sliding Server Rack Shelf w/ Cable Management Arm - 27.6 to 31.6in Adjustable Mounting Depth - 110lb - 19" Server Tray Shelf for Equipment Rack - 24in Deep Product Title (AMZ) 2U Vented Sliding Rack Shelf w/ Cable Management Arm & Adjustable Mounting Depth - 110lbs / 50kg - 24in Deep Title Ingram (Part 1) 2U Sliding Vented Server Rack Title Ingram (Part 2) Cabinet Shelf w/ Cable Mgmt Website Product Headline Add a vented, sliding shelf with integrated cable management into virtually any server rack or cabinet Bullet 1 UNIVERSAL 19"FIT: Add a sliding shelf to any 4-post server rack or cabinet for easy peripheral and equipment access; This 19in rack mount tray has a locking feature, preventing the shelf from falling out Bullet 2 HEAVY-DUTY & DURABLE DESIGN: Constructed with cold rolled steel, the sturdy IT-grade pull out server rack shelf ensures long term durability and supports a total weight load of 110lb (50kg) Bullet 3 CABLE MANAGEMENT: This sliding cabinet shelf includes integrated cable management & is vented to ensure proper airflow; Ideal for adding additional sliding storage space for your IT / AV accessories Bullet 4 COMPACT DESIGN: The 2U server rack shelf features a compact form factor, making it ideal for non-rackmount equipment, tools and peripherals in your home, studio or office space Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this adjustable rack shelf is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Add a vented, sliding shelf with integrated cable management into virtually any server rack or cabinet - 2U Vented Sliding Rack Shelf w/ Cable Mgmt Arm & Adjustable Mount Depth - 110lbs / 50kg Capacity Vented Rack Shelf - Sliding Server Rack Shelf Bullets (Consolidated) Add a vented sliding shelf with integrated cable management into virtually any server rack or cabinet - 2U Vented Sliding Rack Shelf w/ Cable Management Arm and Adjustable Mounting Depth - 110lbs/50kg Weight Capacity Vented Server Rack Shelf - Sliding Server Rack Shelf - Adjustable mounting depth from 27.7in (702.2mm) to 31.6in (802.2mm) - 24in Deep Marketing Copy Marketing Copy (No HTML) Applications - Supply additional storage space for hardware or non-rackmount equipment and peripherals
- Install into virtually any standard 4-post rack or cabinet
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - ADJSHELFHDV
- ADJSHELFHD
- ADJSHELF
- UNISLDSHF192
- UNISLDSHF19H

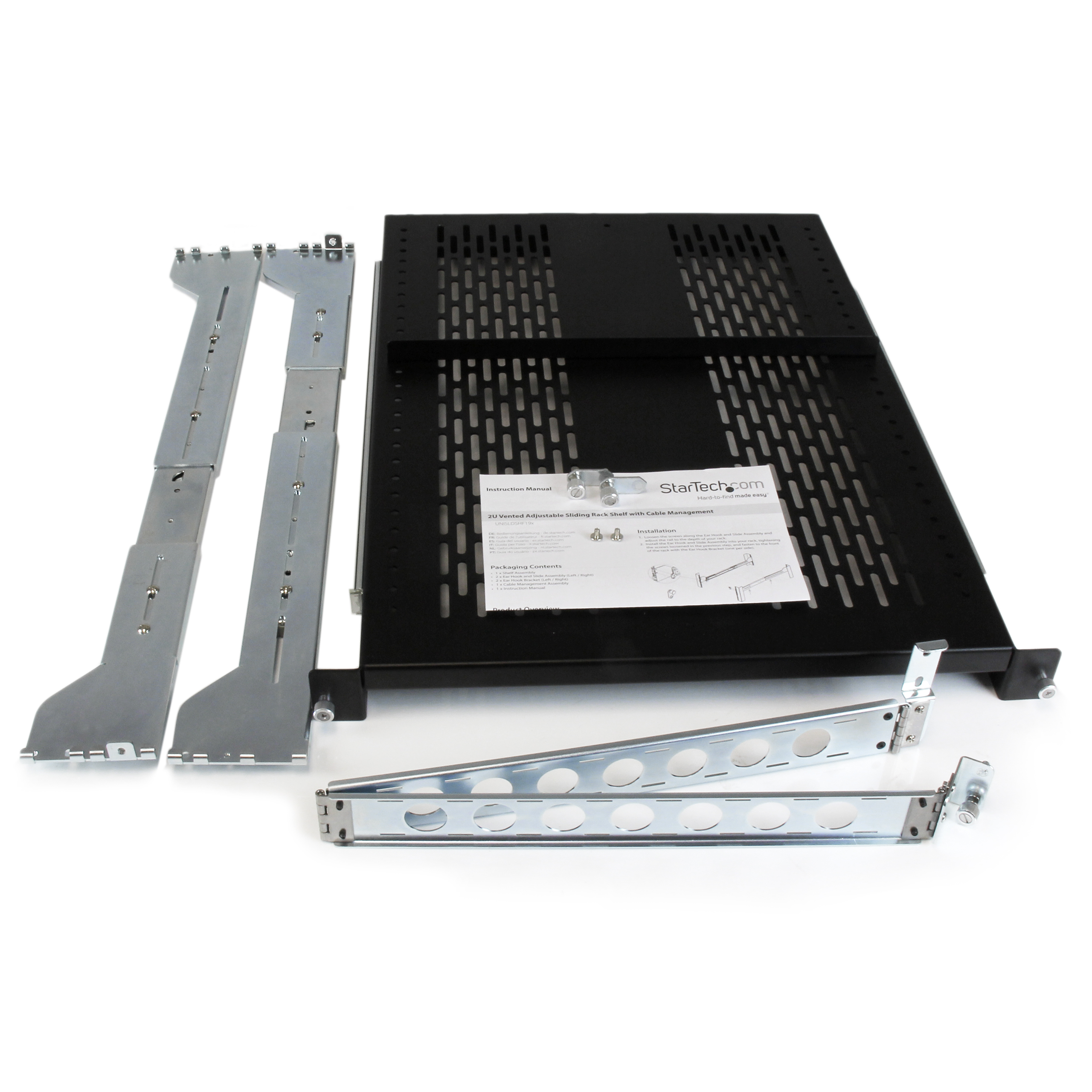

Color Black Depth Capacity (Filter) Adjustable Material Steel Maximum Mounting Depth (mm) 802.2 Minimum Mounting Depth (mm) 702.2 Primary Material Steel Product Length (mm) 700.000 Product Width (mm) 483.000 Product Height (mm) 88.900 Product Weight (g) 10700.000 TAA Compliant No Rack Weight Capacity Range 90 - 150 lbs. (40 - 68 kg.) Weight Capacity for Racks (Stationary) (g) 56699 Cable Management Yes Industry Standards EIA RS310-D Mounting Options Front Mount (Front and Rear) U Height 2U Carton Depth (mm) 585 Carton Height (mm) 600 Carton Quantity 3 Carton Weight Gross (g) 40000 Included in Package - 1 - Shelf Assembly
- 2 - Sliding Rail Assembly
- 3 - Locking Bracket
- 1 - Rear Stop

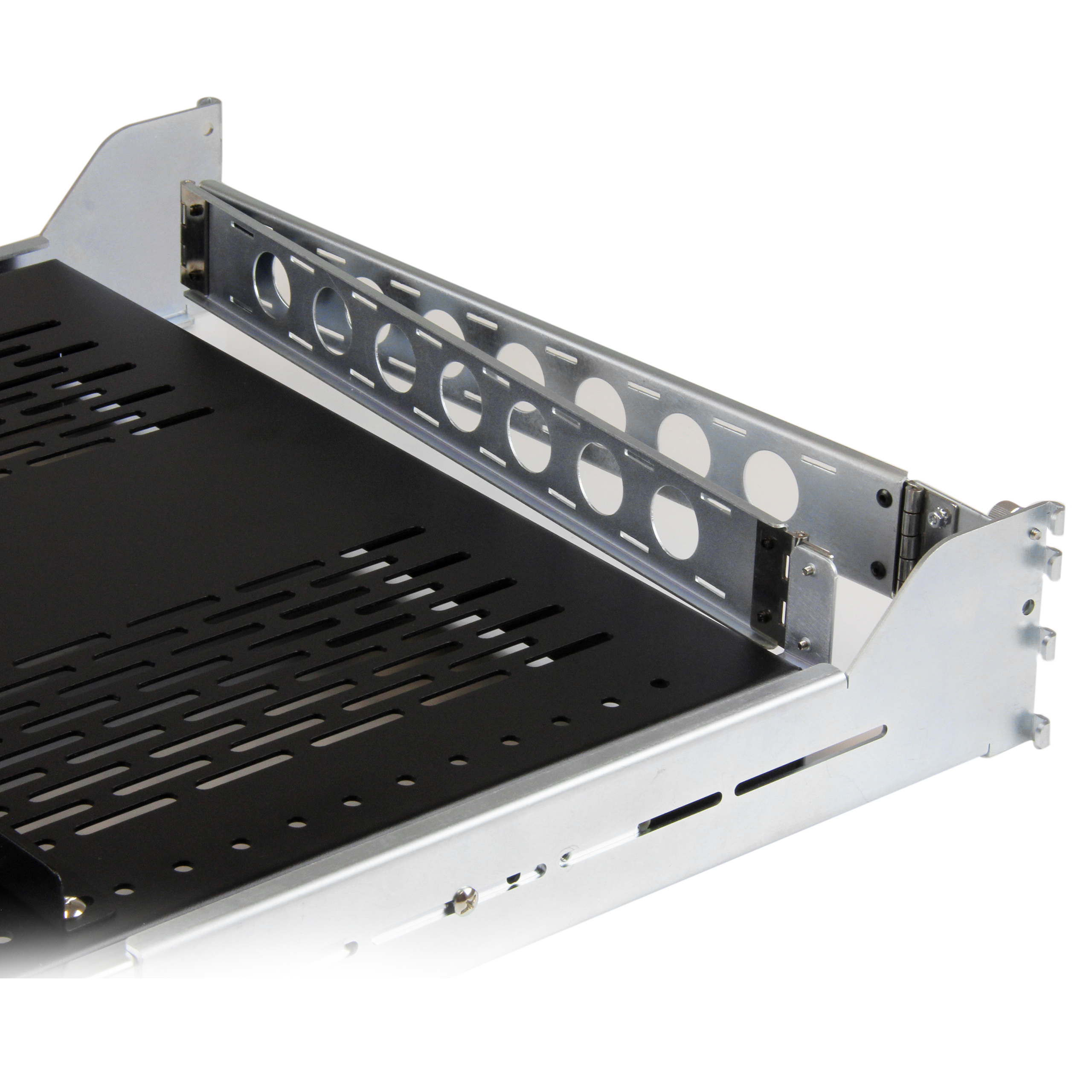

- 1 - Cable Management Assembly
- 1 - Cable Management Locking Bracket
- 2 - M5 x 8mm Screws
- 2 - M5 Nuts
- 2 - M4 x 8mm Screws
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Rack Shelf Assembly
- 1 - Hardware Kit
- 1 - Product Documentation
Package Depth (mm) 570 Package Height (mm) 195 Package Width (mm) 790 Package Quantity 1 Package Weight (g) 12750 Packaging Description 2U Vented Sliding Rack Shelf - 110.2lbs / 50kg Packaging Description India 2U Vented Sliding Rack Shelf - 110.2lbs / 50kg Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-12-17 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
