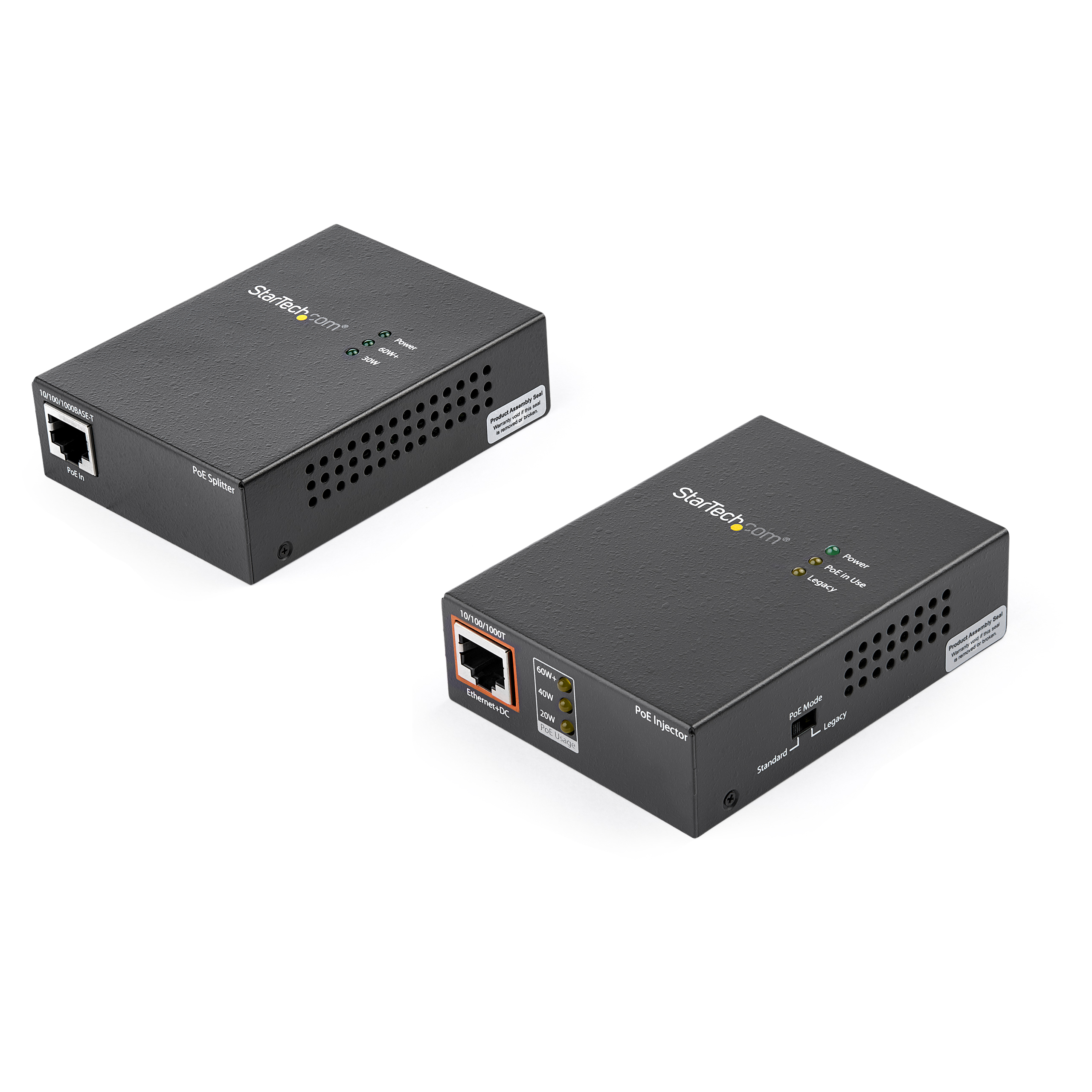

Main Image
UPOESPLT1G
1 Port Gigabit Ultra PoE 802 3at compatible Splitter 60W
60W Ultra PoE Kit | 60W Over 100 m | 802.3af/at/bt Compatible | 10/100/1000Mbps
Main Image

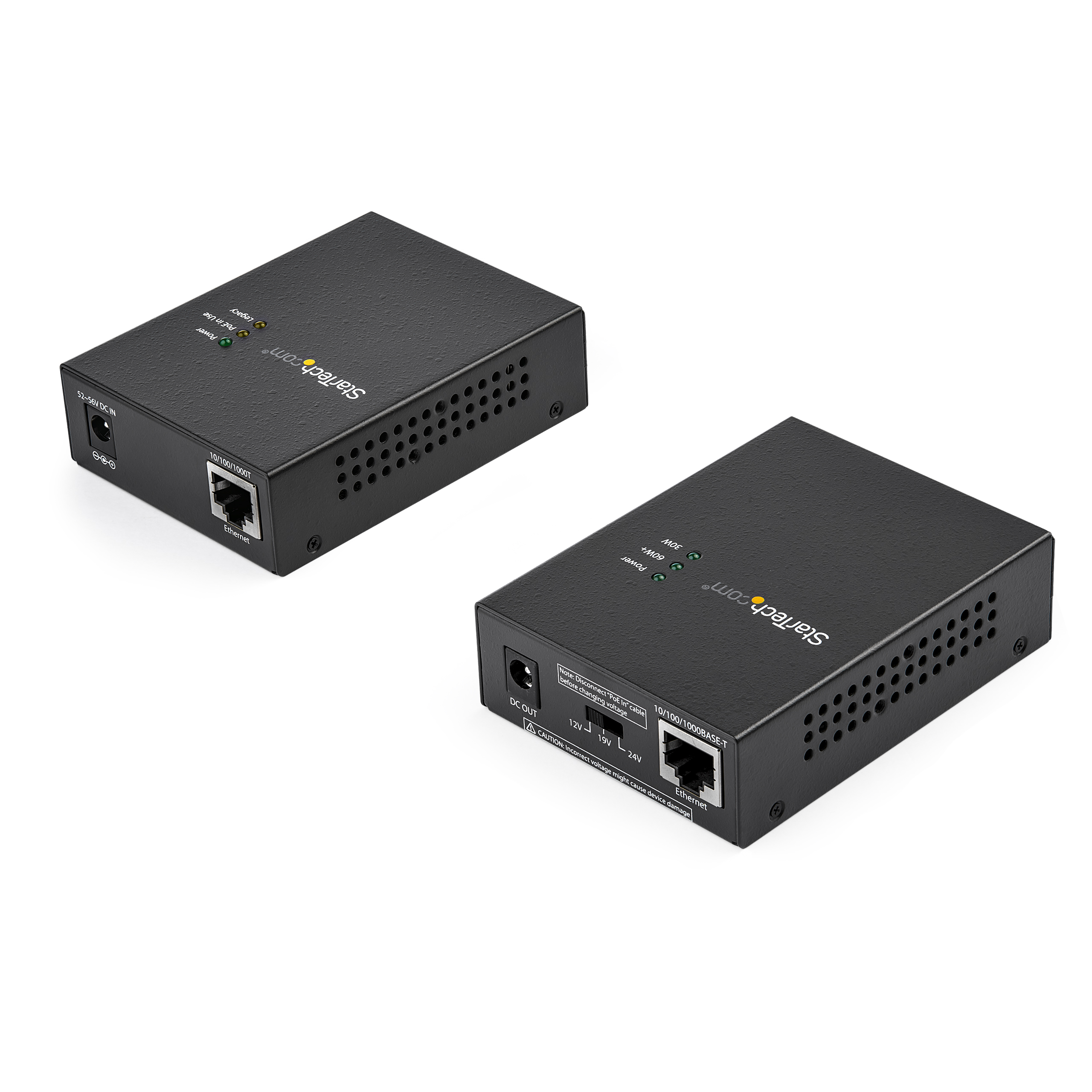

Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port Gigabit Ultra PoE 802 3at compatible Splitter 60W Product Number UPOESPLT1G UPC 065030867542 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Splitters Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) PoE Injctor/Splitter Product Title (Short) 1Port 60W Gigabit PoE Injector +Splitter Product Title (Medium) 1-Port 60W PoE Injector & Splitter Kit - 10/100/1000Mbps - 100 m (330 ft.) Product Title (Standard) 1 Port Gigabit PoE Injector & Splitter Kit - 60W High/Ultra Power over Ethernet Injector 100m - 12V-24VDC Out 802.3bt Midspan Product Title (Long) 1 Port Gigabit PoE Injector & Splitter Kit - 60W High Power over Ethernet Injector 100m/12-24V DC Splitter 802.3bt Midspan Single Port Ultra PoE LAN/RJ45 Security/Monitoring - TAA Product Title (AMZ) 1 Port Gigabit PoE Injector & Splitter Kit - 60W High Power over Ethernet Injector 100m/12-24V DC Splitter 802.3bt Midspan Single Port Ultra PoE LAN/RJ45 Security/Monitoring (UPOESPLT1G) Title Ingram (Part 1) PoE Injector and Splitter Kit Title Ingram (Part 2) 60W PoE Over 100m - 10/100/1000Mbps Website Product Headline 60W Ultra PoE Kit | 60W Over 100 m | 802.3af/at/bt Compatible | 10/100/1000Mbps Bullet 1 HIGH POWER GIGABIT POE INJECTOR + SPLITTER: Power non-PoE devices using network infrastructure where power isn't available; Splits PoE connection (max 60W) into RJ45 data & DC power (Type N Barrel) Bullet 2 TECH SPECS: 1 Gbps Injector / Splitter Kit | Injector: 60W Out | Splitter: 12/19/24VDC Power Output | IEEE 802.3bt/af/at | 328 ft (100 m) | 10/100/1000 Mbps Auto Negotiation | Midspan| Metal Housing Bullet 3 EASY SETUP & DEPLOYMENT: Kit includes Ultra PoE Splitter | PoE Injector | Universal Power Adapter | Power Cords (NA/JP, UK,EU,AU) | 2x DC Plug Cables | RJ45/ LAN Cable | User Manual Bullet 4 EASY INSTALLATION: Minimal configuration needed; Output voltage is selected using a simple switch and features status LED indicators, providing power to equipment like POS kiosks & digital signage Bullet 5 THE STARTECH.COM ADVANTAGE: StarTech.com offers 2-year warranty on this Single Port Ultra Power over Ethernet/ UPoE injector & free lifetime 24/5 multilingual technical support based in North America Bullets (Compact) Single Port 1GbE Gigabit PoE Injector & Splitter Kit - Splits Ultra/High Power over Ethernet/ UPoE connection into data (RJ45/LAN) & DC power (12-24V Type N barrel) /328ft/100m/Midspan/IEEE 802.3bt/af/at & 10/100/1000 Mbps Auto Negotiation-2yr warr Bullets (Consolidated) Single port (1GbE)High Power Gigabit PoE Injector and Splitter Kit to power (12-24V DC output)non-PoE devices using network infrastructure where power is unavailable up to 328 ft/100 m - Splits PoE connection (max 60W)into data (RJ45/LAN)and DC power (Type N barrel) - IEEE 802.3bt/af/at and 10/100/1000 Mbps Auto Negotiation - Kit includes midspan UPoE/Ultra power over Ethernet injector and splitter for compatibility and easy setup - DIP switch to select output voltage and includes status LEDs Marketing Copy Marketing Copy (No HTML) Applications - PoE pan-tilt-zoom cameras
- Thin clients
- All-in-one touchscreen PC
- Remote digital signage display
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - POESPLT100
- MCM110SC2P
- NETRS42348PD
- NETRS2321POE
- AP300WN2X2W
- N6PATCH100BL
- N6PATCH50BL
- N6PATCH25BK
- N6PATCH10OR
- WIRC6PATBLRL
- WIRC6PATBKRL
- WIRC6CMRBL
Related Products - POEINJ1GI
- POEINJ1G
- POEINJ2GI
- POEINJ100
- IES61002POE
- IES81000POE
- IES51000POE
- IES8100POE
- ET1110PSE

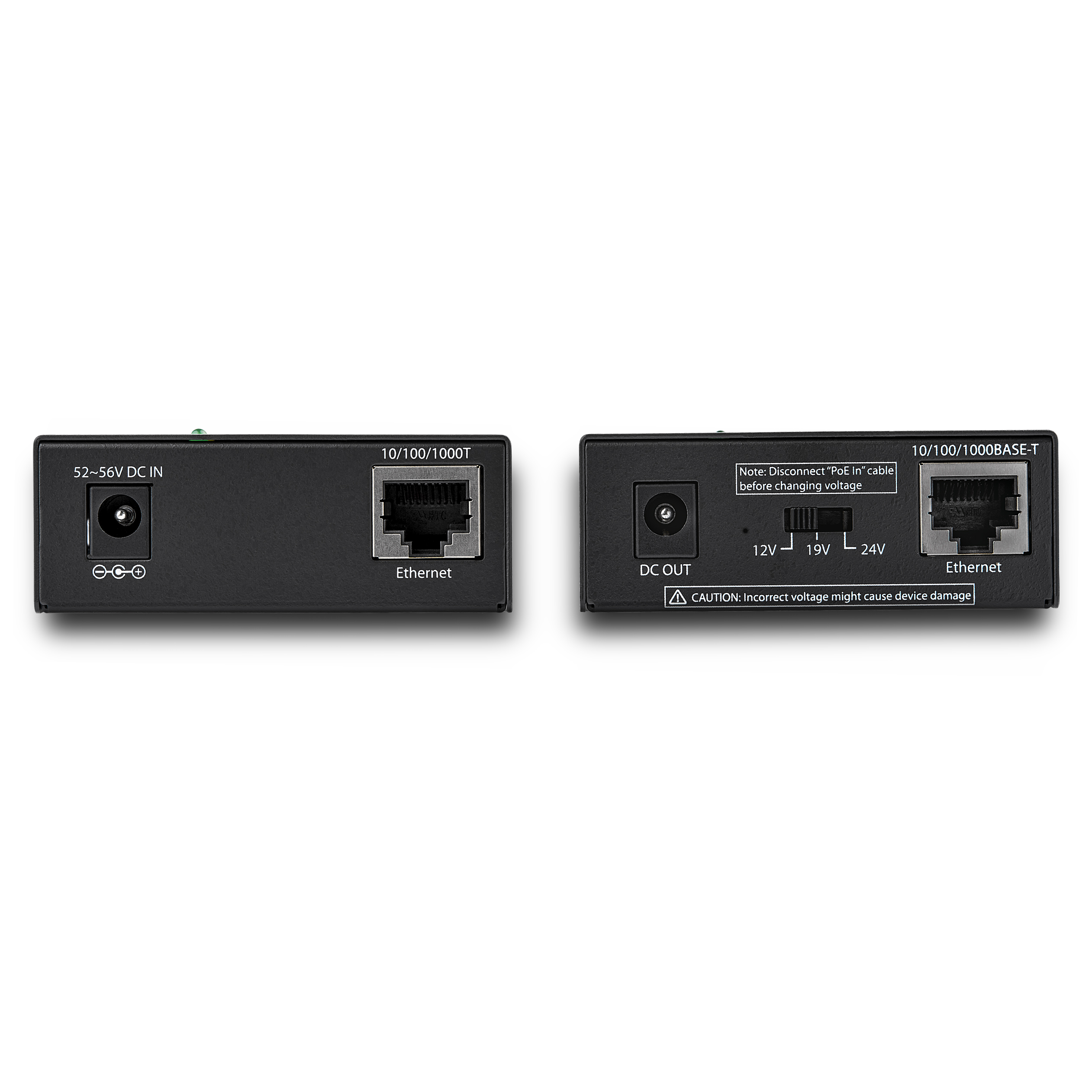

Input Current 2A Input Voltage 100 - 240 AC Output Current - 12VDC @ 5A
- 19VDC @ 3.15A
- 24VDC @ 2.5A
Output Voltage (V) 54 DC Power Consumption (In Watts) 71.82 Center Tip Polarity Positive Color Black & Brown Humidity 5% to 90% Relative Humidity, non-condensing Material Steel Operating Temperature 0 to 50 degrees C Primary Material Steel Product Length (mm) 390.000 Product Width (mm) 233.000 Product Height (mm) 85.000 Product Weight (g) 300.000 Storage Temperature -10 to 70 degrees C TAA Compliant Yes Auto MDIX No Flow Control Full Duplex Support No General Specifications Jumbo Frame Support No Max Distance 100m [328ft] Maximum Cable Length (mm) 100000 MTBF (hours) 50,000 hrs @ 25 degrees C Remote Management Ability No Switching Architecture No support for switching architecture Industry Standards - IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3af PoE
- IEEE 802.3at PoE+
- IEEE 802.3bt PoE++ (4PPoE)

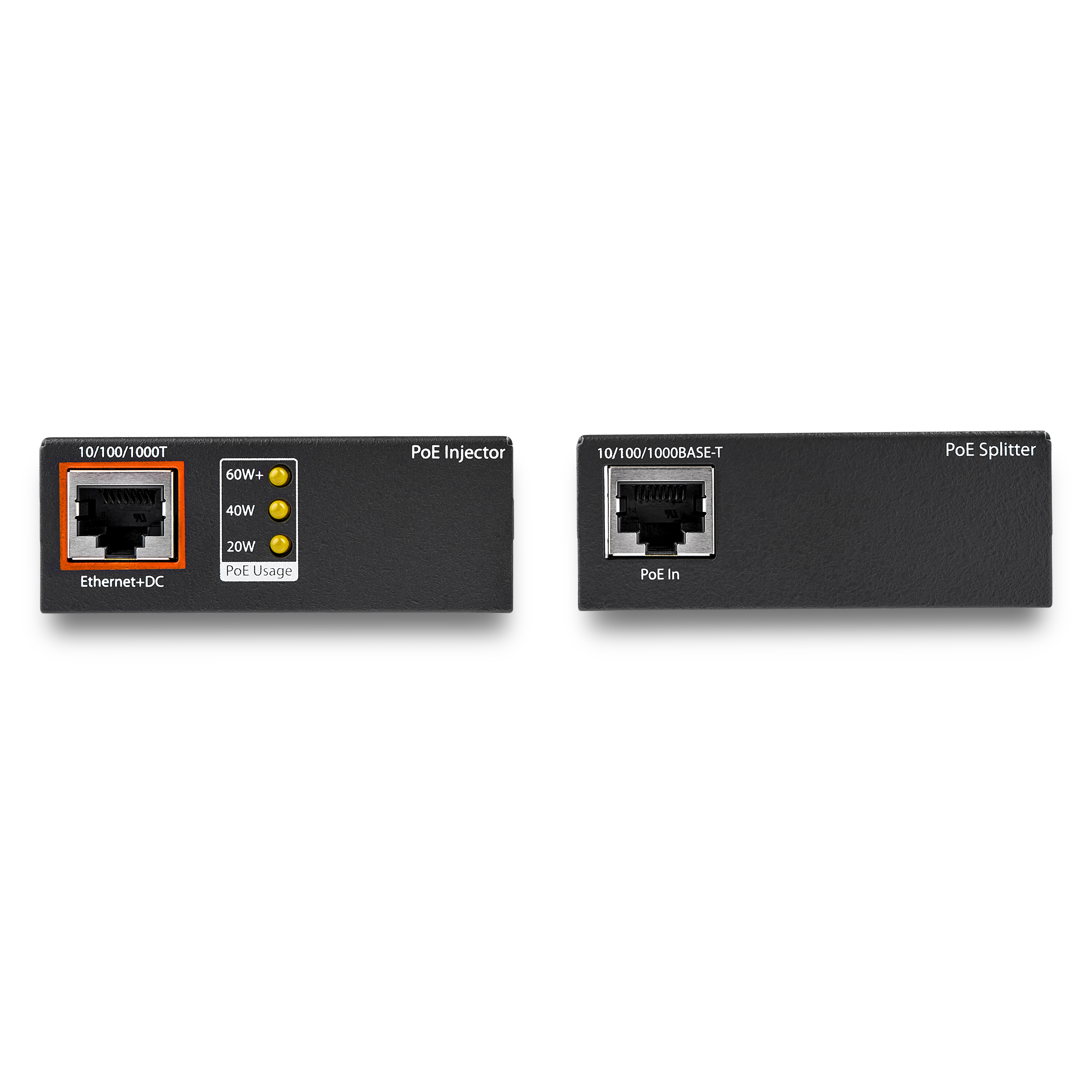

LED Indicators - 1 - System power
- 1 - PoE in use
- 1 - Legacy mode
- 3 - PoE Usage 20W/40W/60W+

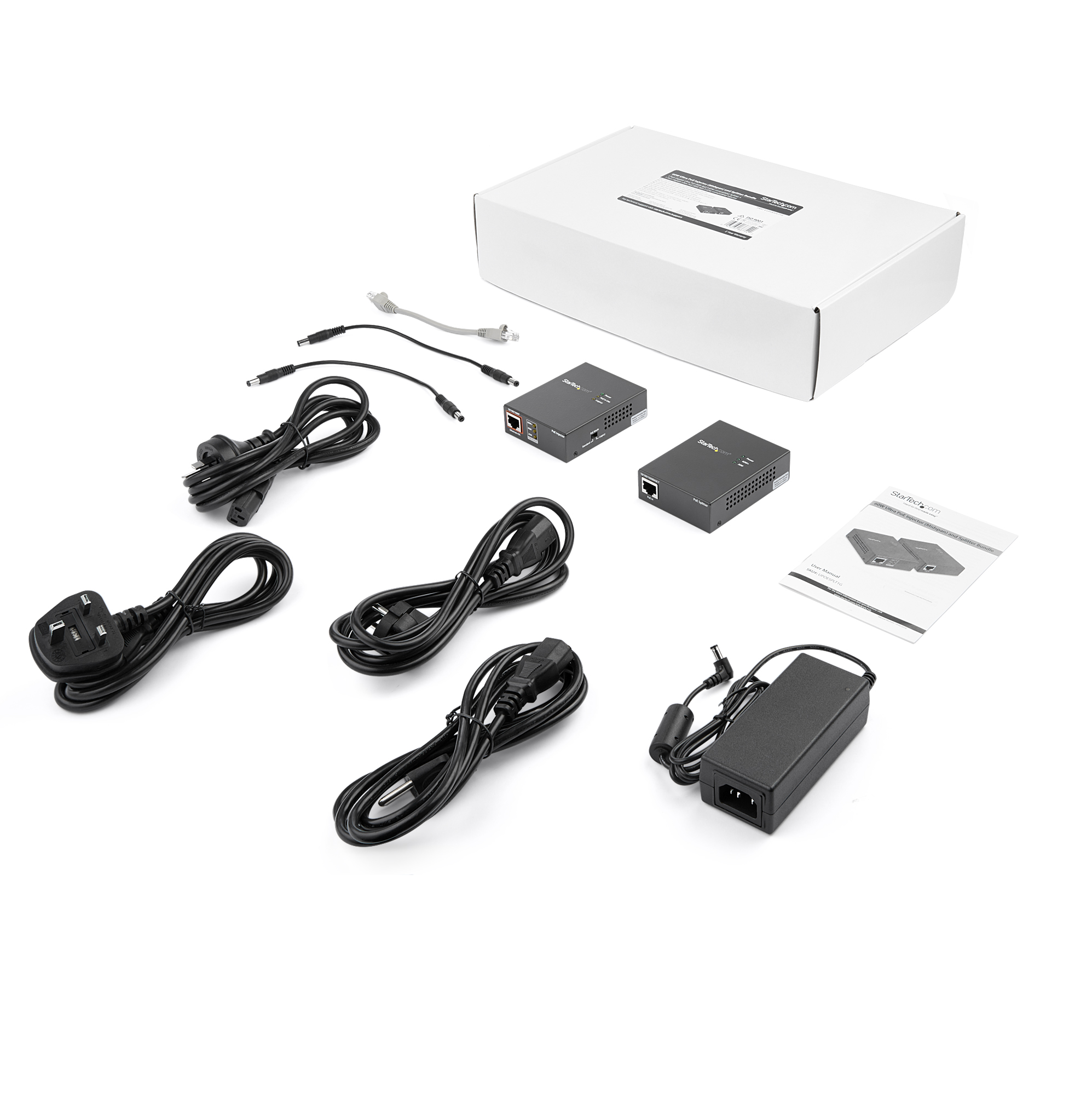

Power over Ethernet Yes Wave Division Multiplexing (WDM) Yes Carton Depth (mm) 420 Carton Height (mm) 266 Carton Quantity 6 Carton Weight Gross (g) 12102 Included in Package - 1 - PoE Splitter
- 1 - PoE Injector
- 1 - Universal Power Adapter
- 4 - Power Cords (NA/JP, UK,EU,AU)
- 1 - RJ45 Network Cable
- 1 - User Manual
- 2 - DC Plug Cables
Package Depth (mm) 236 Package Height (mm) 88 Package Width (mm) 396 Package Quantity 1 Package Weight (g) 1832 Packaging Description 60W Ultra PoE Injector (Midspan) & Splitter Bundle Packaging Description India 60W Ultra PoE Injector (Midspan) & Splitter Bundle Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 4 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-10-19 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2018-11-02 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-07-27 Target Production Release 2018-09-21 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
