US1GC30PD

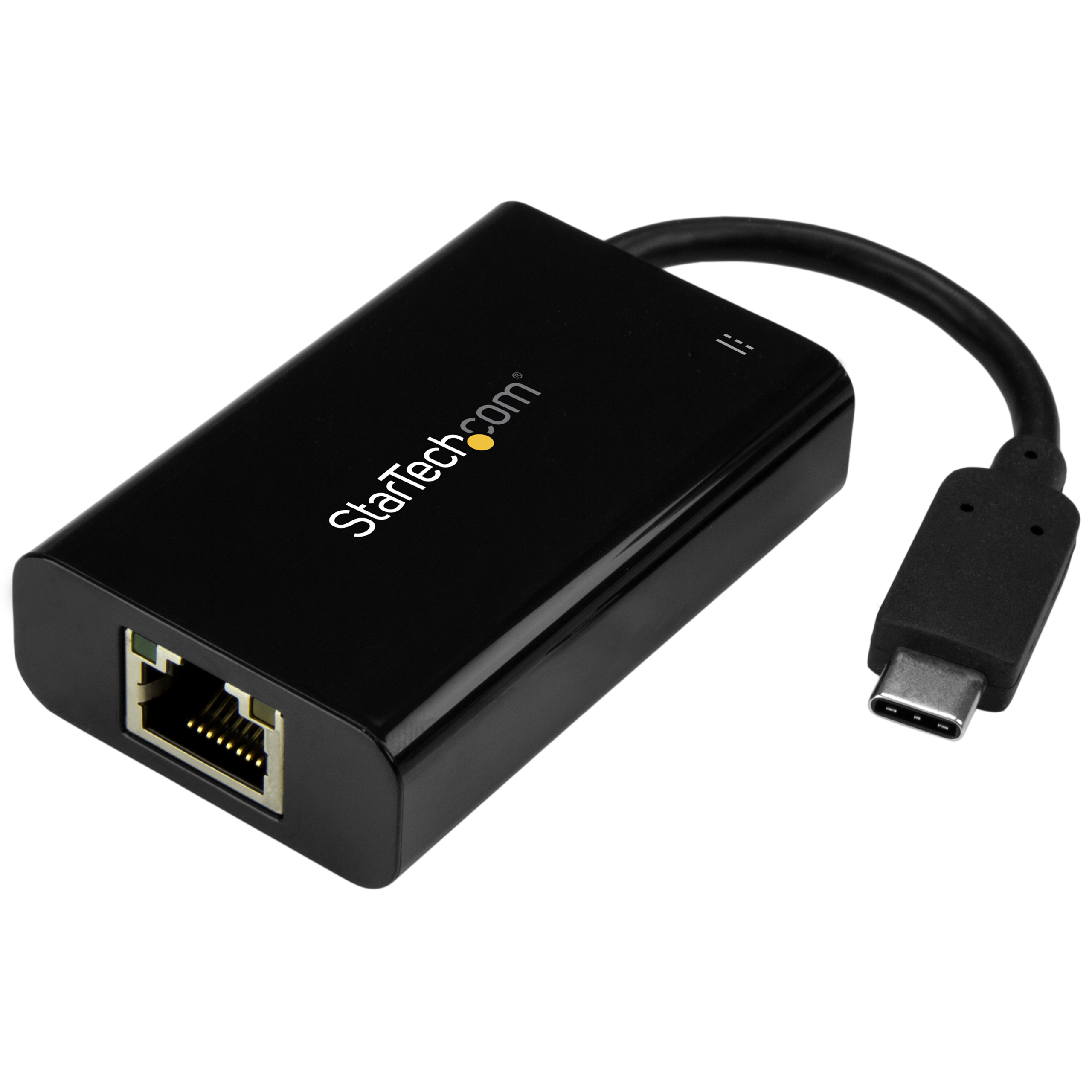

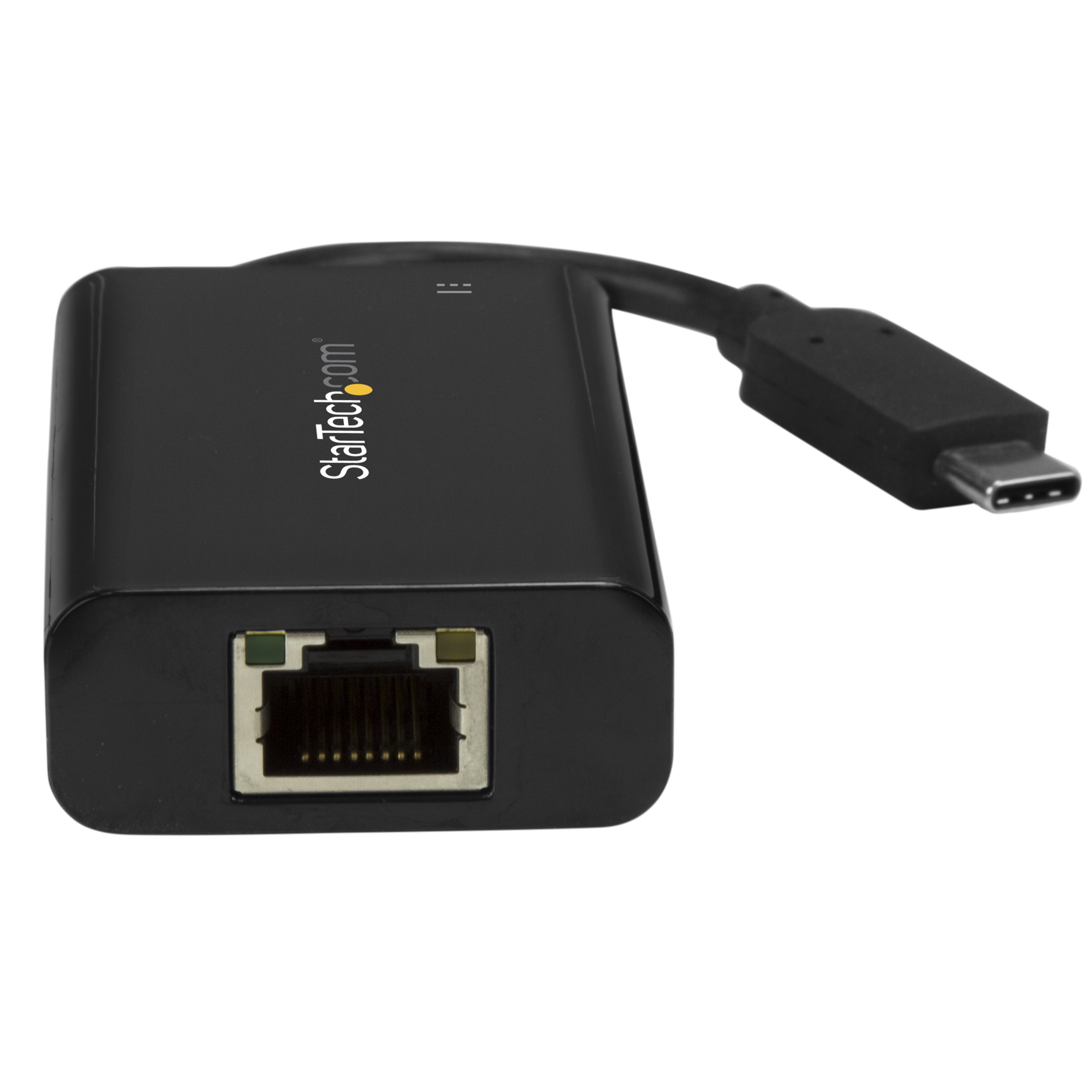

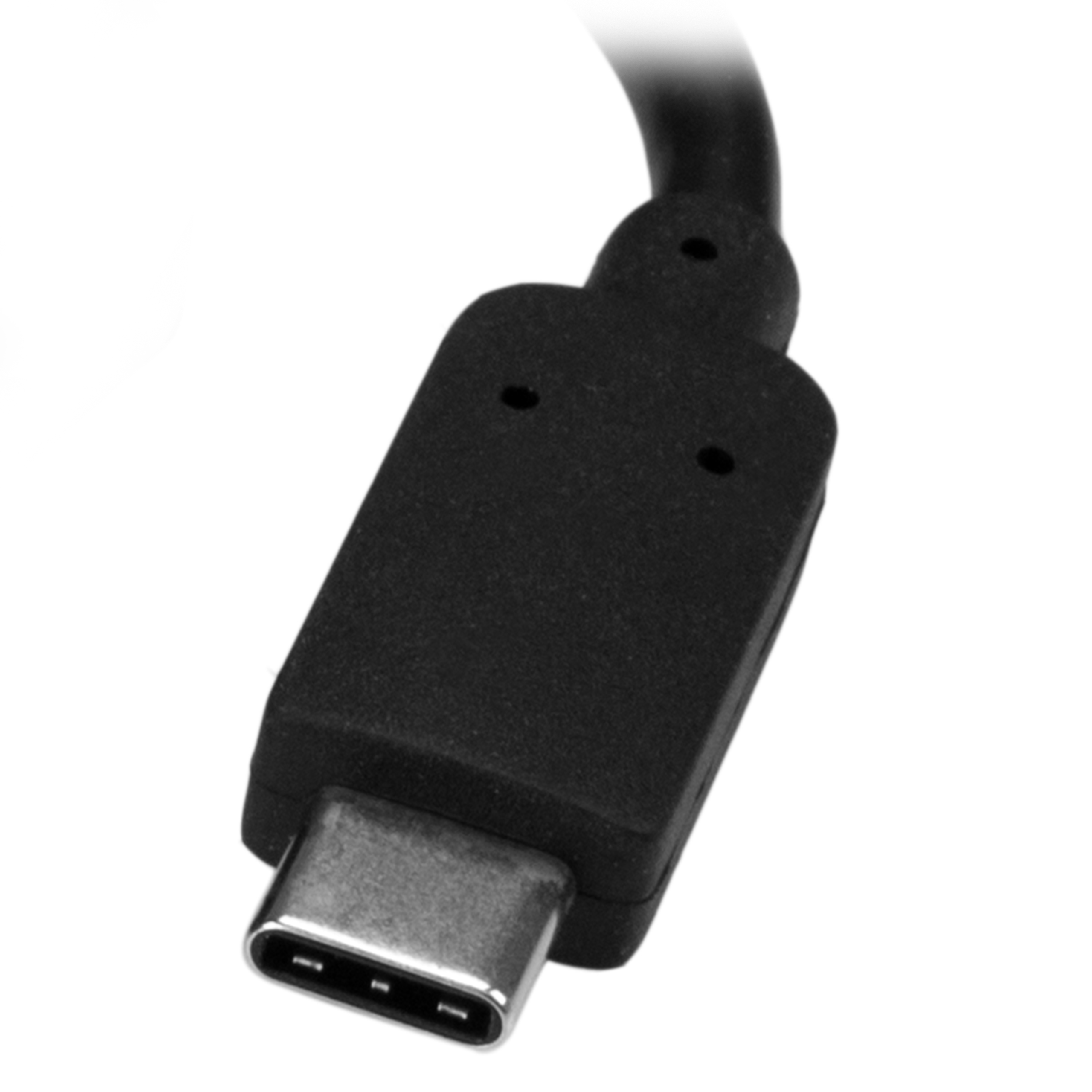

USB-C to Gigabit Ethernet with PD Charging
Connect to a GbE network through your laptop’s USB-C port, and charge while you work with Power Delivery
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB-C to Gigabit Ethernet with PD Charging Product Number US1GC30PD UPC 065030867764 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-C Ethernet Adapters Family USB-C Network Adapters with PD Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Ultra-Short) USB-C to GbE Adapter Product Title (Short) USB C to Gigabit Ethernet LAN Adapter PD Product Title (Medium) USB-C to Ethernet Adapter w/ PD Charging - USB-C GbE Adapter - Power Delivery Product Title (Standard) USB C to Gigabit Ethernet Adapter/Converter w/PD 2.0 - 1Gbps USB 3.1 Type C to RJ45/LAN Network w/Power Delivery Pass Through Product Title (Long) USB C to Gigabit Ethernet Adapter/Converter w/PD 2.0 - 1Gbps USB 3.1 Type C to RJ45/LAN Network w/Power Delivery Pass Through Charging - TB3 Compatible/ MacBook Pro Chromebook Product Title (AMZ) USB C to Gigabit Ethernet Adapter/Converter w/PD 2.0 - 1Gbps USB 3.1 Type C to RJ45/LAN Network w/Power Delivery Pass Through Charging - TB3 Compatible/ MacBook Pro Chromebook (US1GC30PD) Title Ingram (Part 1) USB-C Gigabit Ethernet Network Title Ingram (Part 2) Adapter with PD Charging Website Product Headline Connect to a GbE network through your laptop’s USB-C port, and charge while you work with Power Delivery Bullet 1 WIRED CONNECTIVITY: Use this USB C to Gigabit Ethernet adapter to add wired LAN connectivity to your USB Type-C/Thunderbolt device like Apple MacBook, MacBook Pro, Microsoft Surface, & HP EliteBook Bullet 2 CHARGE WHILE YOU WORK: Power Delivery 2.0 passthrough charging lets you plug a USB-C charger into the USB C Network Adapter to charge your device while connected to wired GbE; For home office/travel Bullet 3 TECH SPECS: USB-C Interface | Thunderbolt 3 | PD 2.0 | 1x RJ45 | 1 Gbps | 1000/100/10 Mbps Auto-Negotiation | Realtek RTL8153 | 9K Jumbo Frame | VLAN | Compact Design | USB Powered | Link&Activity LED Bullet 4 PLUG-AND-PLAY: Quick setup & compatibility with many OS including Windows XP, 7, 8.x, 10, 11, Windows Server 2016/Linux LTS Kernel 3.14/macOS 10.11 to 10.15, 11.0, 12.0 Bullet 5 THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty on this USB-C to Gigabit Ethernet Adapter Converter and free lifetime 24/5 multilingual technical support based in North America Bullets (Compact) USB C to Gigabit Ethernet Adapter to connect to a wired LAN w/RJ45 from USB Type-C/Thunderbolt 3 device - USB C Network Adapter w/ Power Delivery 2.0 passthrough Charging - For Apple MacBook Pro/Microsoft Surface/HP EliteBook - Link LED - 2Yr warr Bullets (Consolidated) USB C to Gigabit Ethernet Adapter adds wired GbE network connectivity to USB Type-C/TB3 devices like MacBook Pro/Microsoft Surface - Charge while you work w/ Power Delivery 2.0 passthrough - USB-C Interface | Thunderbolt 3 | PD 2.0 | RJ45 port | 1 Gbps | 1000/100/10 Mbps | Realtek RTL8153 | 9K Jumbo Frame | VLAN | Compact | USB Powered | Link LED - Plug-and-play w/ Windows XP/7/8.x/10/11 | Windows Server 2016 | Linux LTS Kernel 3.14 | MacOS 10.11-10.15 - StarTech.com 2-year warranty Marketing Copy Marketing Copy (No HTML) Applications - Ideal for mobile professionals who require wired network connections
- Access a wired network in locations where Wi-Fi® is unavailable or unreliable, such as in classrooms, offices, and hotels
- Charge your laptop and your network adapter at the same time, using your laptop’s USB-C power adapter
Website Search Keyword - USB-C to Ethernet Adapter
- USB-C to GbE Adapter
- USB-C Network Adapter
- USB-C Gigabit Ethernet Adapter
- USB-C GbE Adapter
- USB-C GbE network Adapter
- network adapter
- U436-06N-GB-C
Required Regulatory Compliance Marks - Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU

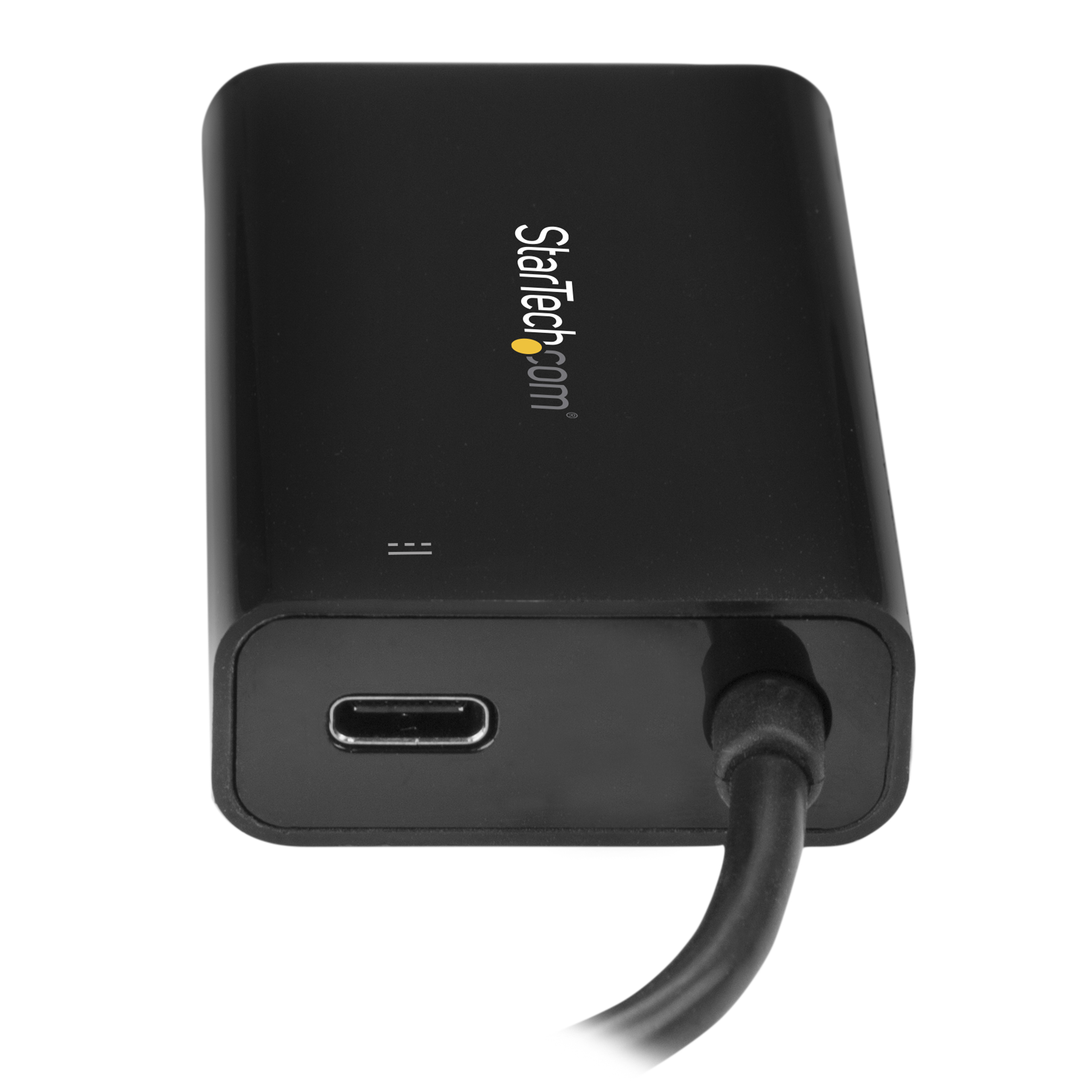

Special Notes - The adapter's USB-C port is for USB Power Delivery only. It does not support DisplayPort alt mode, or data transfers.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host laptop's USB-C port supports USB Power Delivery 2.0
- The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the hub, it will not pass power through to your host laptop.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
- Jumbo Frames are no longer supported in macOS
System and Cable Requirements - Available USB Type-C port - USB 3.0 (5Gbps) (to ensure the network adapter powers and charges your laptop, your host laptop's USB-C port must support USB Power Delivery 2.0)
- Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
Related Products - US1GC303APD
- US1GC30W
Input Voltage 5V DC Output Voltage (V) 5 DC Power Delivery 60W Power Source USB-Powered Cable Length (mm) 95.8 Color Black Humidity 5% ~ 90% RH Material Plastic Network Adapter Form Factor Attached Cable Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 62.500 Product Width (mm) 40.000 Product Height (mm) 17.000 Product Weight (g) 34.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Flow Control Full duplex flow control Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate OS Compatibility - Windows 10
- Chrome OS
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Realtek - RTL8153 Industry Standards IEEE 802.3, 802.3u and 802.3ab Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- RJ45 (Gigabit Ethernet)
Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Link (green)
- 1 - Activity (yellow)

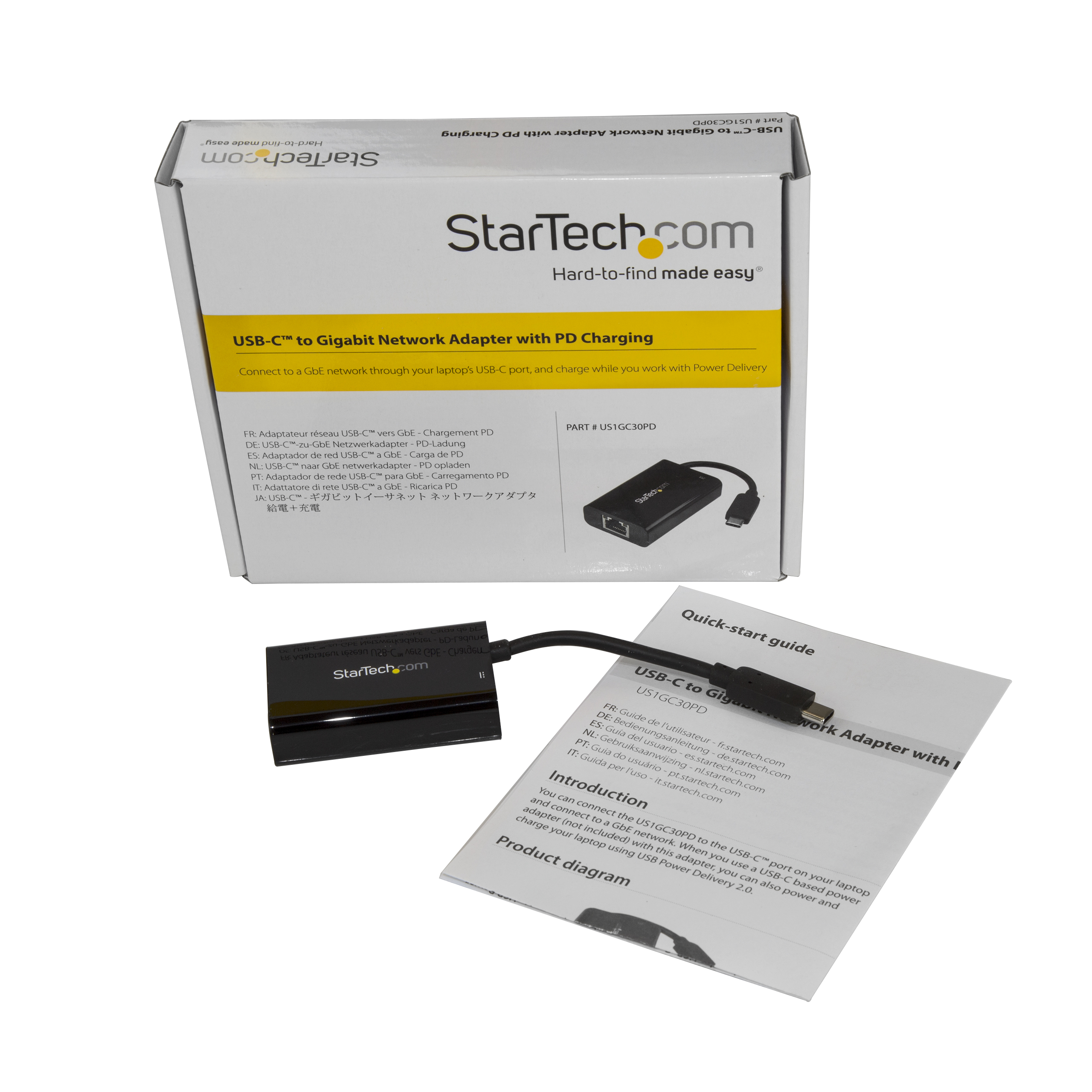

Network Adapter Host USB 3.0 - USB-C Network Adapter LAN Ports 1 USB-C Device Port(s) USB Power Delivery USB-C Host Connection Yes Carton Depth (mm) 333 Carton Height (mm) 319 Carton Quantity 40 Carton Weight Gross (g) 5040 Included in Package - 1 - USB-C adapter
- 1 - quick-start guide
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 122 Packaging Description USB-C™ to GbE Network Adapter - PD Charging Packaging Description India USB-C™ to GbE Network Converter - PD Charging Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB-C (100W PD Only) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-12-20 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-03-17 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-12-16 Target Production Release 2016-12-23 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
