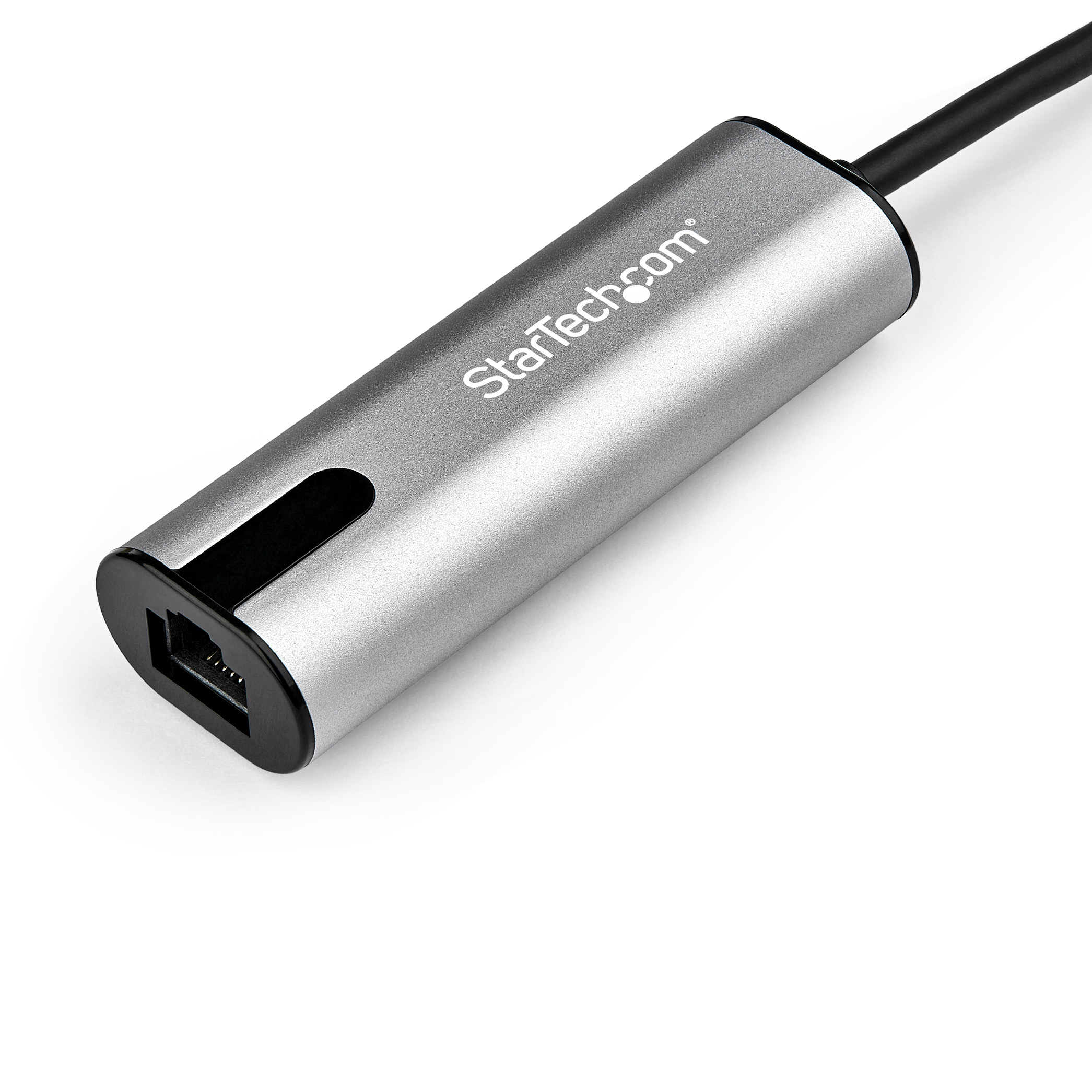

Main Image
US2GC30
USB C to 2 5Gbps NBase T Ethernet Network Adapter Bus Powe
USB LAN Adapter | IEEE 802.3bz | 2.5 Gbps | Mac | Windows® | Linux

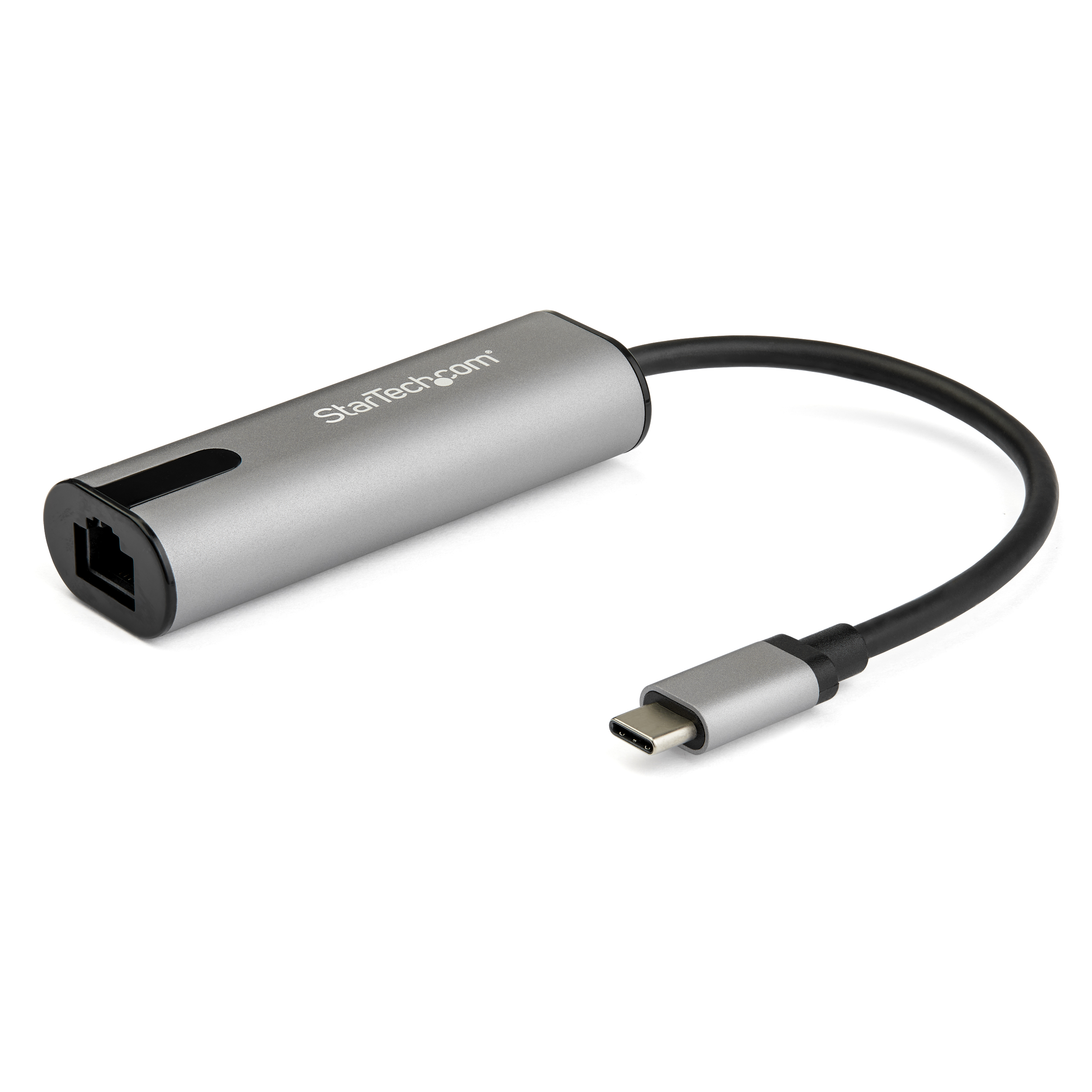

Main Image

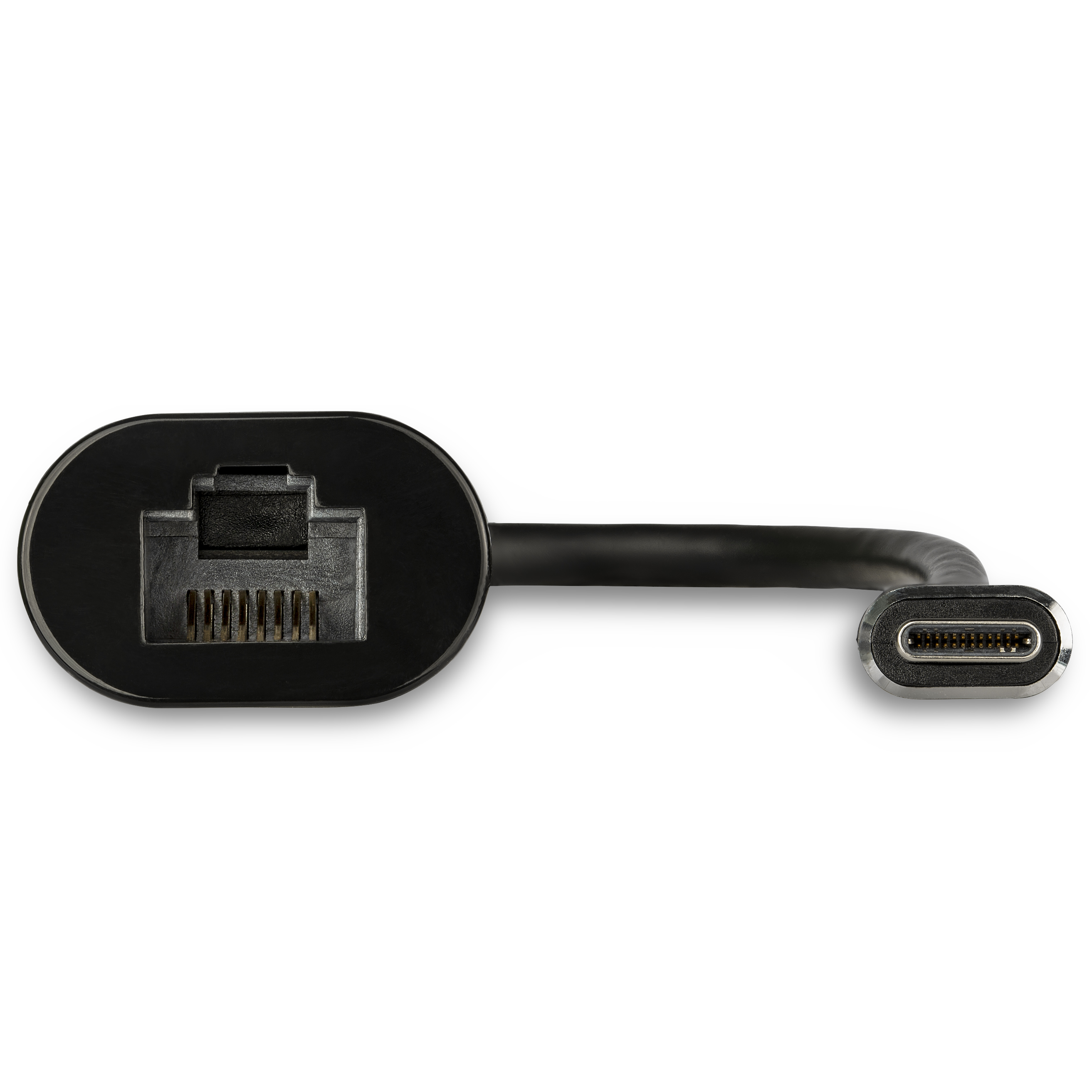

Product Images

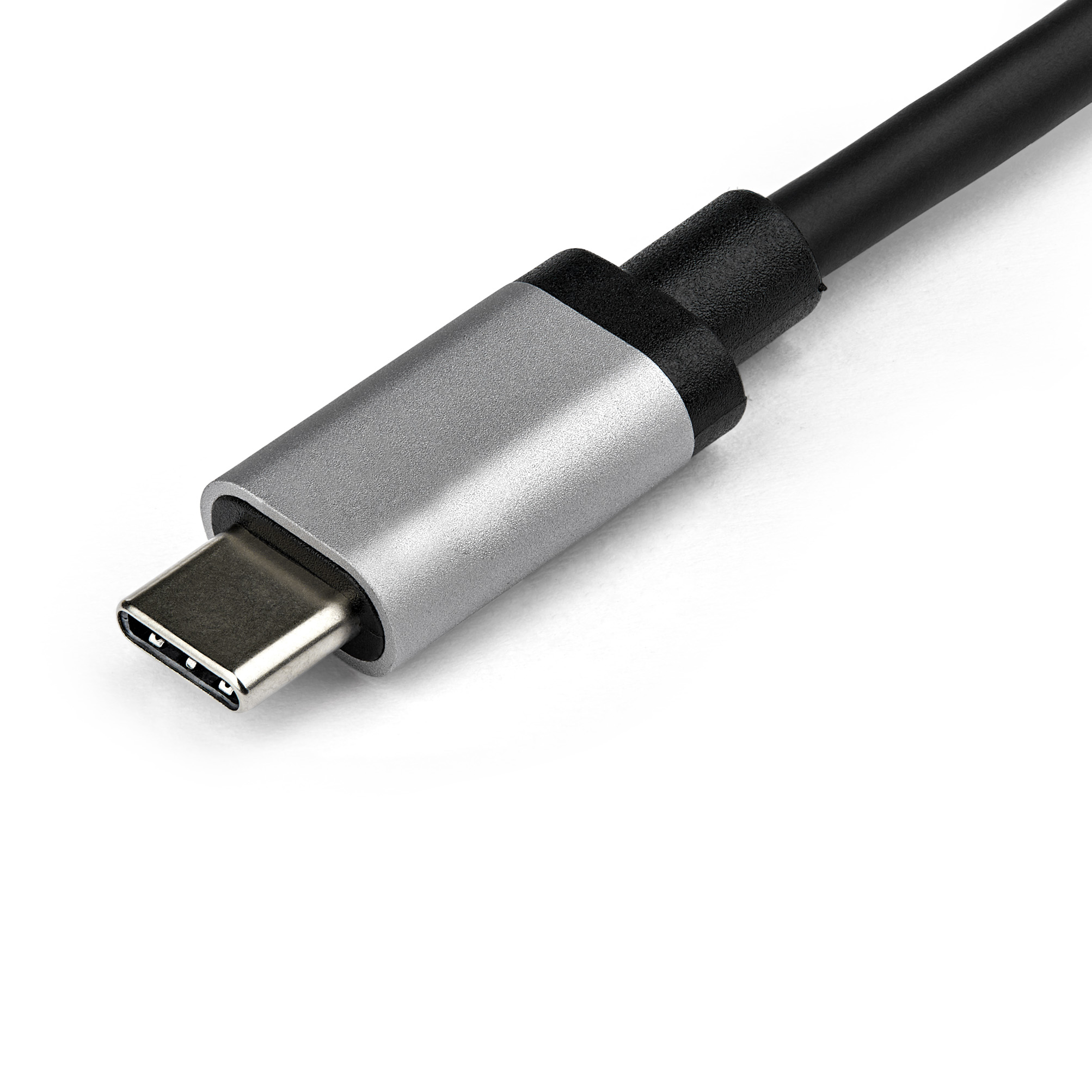

Product Images
Product Images

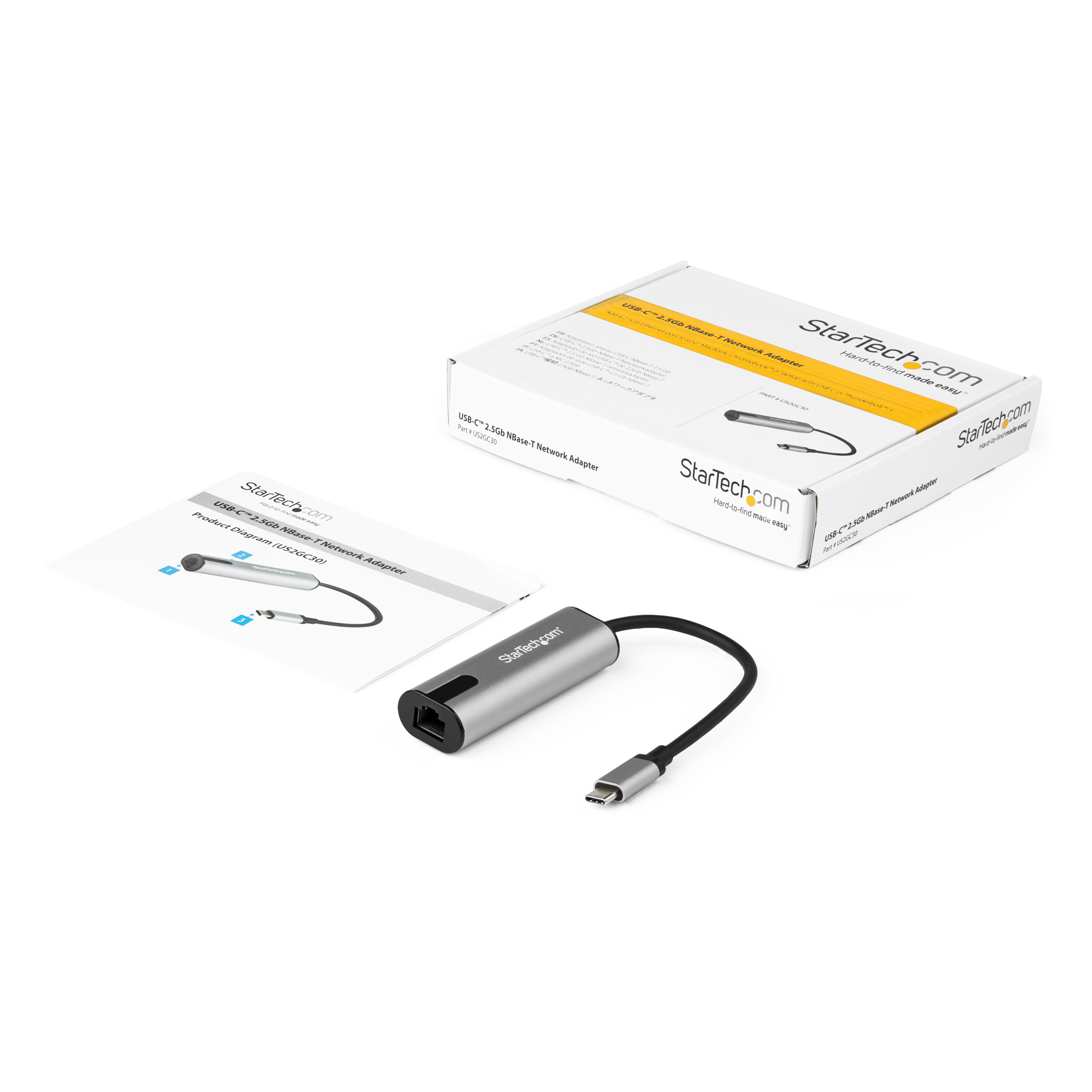

BOM Image
Quick-Start Guide
Product Name USB C to 2 5Gbps NBase T Ethernet Network Adapter Bus Powe Product Number US2GC30 UPC 065030867818 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-C Ethernet Adapters Family Classic Connect Ethernet Country of Origin Europe & Japan China Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) Ethernet Adapter Product Title (Short) 2.5GbE USB C to Ethernet Adapter NBASE-T Product Title (Medium) USB 3.0 Type-C to 2.5 Gigabit Ethernet Adapter - 2.5GBASE-T - USB LAN Adapter Product Title (Standard) 2.5GbE USB C to Ethernet Adapter - NBASE-T NIC - USB 3.0 Type C 2.5/1 Gigabit/100 Mbps Multi Speed Network - USB 3.1 RJ45/LAN Product Title (Long) 2.5GbE USB C to Ethernet Adapter NBASE-T NIC - USB 3.0 Type C 2.5/1 Gigabit/100 Mbps Multi Speed Network/ USB 3.1 Laptop to RJ45/LAN Thunderbolt 3 Compatible/MacBook Pro Surface Product Title (AMZ) 2.5GbE USB C to Ethernet Adapter NBASE-T NIC - USB 3.0 Type C 2.5/1 Gigabit/100 Mbps Multi Speed Network/ USB 3.1 Laptop to RJ45/LAN Thunderbolt 3 Compatible/MacBook Pro Surface (US2GC30) Title Ingram (Part 1) USB 3.0 Type-C to 2.5 Gigabit Title Ingram (Part 2) Ethernet Adapter - 2.5GBASE-T Website Product Headline USB LAN Adapter | IEEE 802.3bz | 2.5 Gbps | Mac | Windows® | Linux Bullet 1 HIGH PERFORMANCE: 2.5GbE USB C to Ethernet Adapter/ USB Type C/Thunderbolt 3 Network Adapter allows you to securely connect to high-speed Networks & is backwards compatible with existing Gigabit LANs Bullet 2 IDEAL FOR CONTENT CREATORS: USB 3.0 NIC provides bandwidth to power users on high performance laptops/workstations incl Mac Pro, MacBook Pro, Surface Book, HP ZBook, Dell Precision, Lenovo P Series Bullet 3 TECH SPECS: USB-C 3.2 Gen 1 (5Gbps); 1x RJ45; 2.5Gbps Multi-Gigabit; 3 speed 2.5G/1G/100 Mbps Auto-negotiation; Realtek RTL8156BG; NBASE-T & 2.5GBASE-T; 9K Jumbo frame (no longer supported in macOS); WoL; VLAN; Bus-Powered Bullet 4 MAXIMUM BANDWIDTH: Leverage NBASE-T for 2.5 Gbps speeds over existing Cat 5e Cables w/o the expense of Cat 6A or Fiber; 3 speed Auto-Negotiation always provides max bandwidth Bullet 5 COMPATIBILITY: Supports many OS and Hypervisors incl. Windows 7 and up, Windows Server 2008 R2 and up, Linux LTS Kernel 4.19+ and up, MacOS 10.11 to 11, iOS (iPhone 15 [Plus/Pro/Max] and up) Bullets (Compact) 2.5GbE NBASE-T USB C to Ethernet adapter/NIC - Securely connects to networks over CAT 5e/RJ45/LAN cable - 3 speed 2.5G/1G/100 Mbps - Auto-Negotiation for max bandwidth - Works w/USB 3.0/3.1 Type C/TB3 /MacBook Pro/Mac Pro/Surface Book/iPhone 15 & up Bullets (Consolidated) - 2.5GbE NBASE-T USB C to Ethernet Adapter allows power users to securely connect to high-speed network/LAN - USB 3.0/3.1 Type C or Thunderbolt 3 (TB3); 1x RJ45; 2.5 Gbps Multi-Gigabit; 3 speed 100Mbps/1G/2.5G - Marvell AQC111U; NBASE-T/2.5GBASE-T; 9K Jumbo Frame; WoL; VLAN; USB Bus-Powered - USB NIC ideal for MacBook Pro/Mac Pro/iPhone 15 (Pro) and up/Surface Book - Supports Windows 7 and up; Windows Server 2008 R2 and up; Linux LTS Kernel 4.19+ and up; MacOS 10.11 to 10.14; iOS Marketing Copy Marketing Copy (No HTML) Website Search Keyword - ethernet adapter
- ethernet to usb
- ethernet to usb adapter
- ethernet to usb c
- ethernet to usb c adapter
- gigabit ethernet adapter
- gigabit ethernet network adapter
- rj45 adapter
- rj45 to usb
- rj-45 to usb
- type c adapter
- type c to type a adapter
- usb c ethernet
- usb c ethernet adapter
- usb c gigabit ethernet adapter
- usb c lan adapter
- usb c network adapter
- usb c nic
- usb c rj45
- usb c to ethernet
- usb c to ethernet adapter
- usb c to gigabit ethernet
- usb c to gigabit ethernet adapter
- usb c to lan adapter
- usb c to rj45
- usb c to rj45 adapter
- usb ethernet
- usb ethernet adapter
- usb gigabit ethernet adapter
- usb lan adapter
- usb network adapter
- usb nic
- usb to ethernet
- usb to ethernet adapter
- usb to internet adapter
- usb to lan adapter
- usb to rj45
- usb type c to ethernet
- usb type c to ethernet adapter
- usb type c to rj45
- usb-c network adapter
- U436-06N-2P5
- U436-06N-2P5-B
Required Regulatory Compliance Marks - REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
Special Notes - Jumbo Frames are no longer supported in macOS Constrained SKU Alternatives (Limited Stock) US2GA30 Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 135 Color Space Gray Humidity 5% to 90 % RH (no condensation) Network Adapter Form Factor Attached Cable Operating Temperature 0 ℃ to 70℃ Primary Material Aluminum Product Length (mm) 245 Product Width (mm) 27.000 Product Height (mm) 17 Product Weight (g) 41 Storage Temperature ‐10 ℃ to ~ 55℃ TAA Compliant No Auto MDIX Yes Compatible Networks 2.5G/1G/100Mbps/10Mbps Fiber Type Copper Full Duplex Support Yes Jumbo Frame Support 9K max. MTBF (hours) 1,233,108 hours OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2008 R2
- Linux
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows 8.1
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
USB Type and Rate USB 5Gbps Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 Chipset ID Realtek - RTL8156BG Industry Standards - IEEE 802.3i 10BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.1q VLAN Tagging
- IEEE 802.3x
- IEEE 802.3u 100Base-TX
- IEEE 802.3bz 2.5GBase-T
Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - Green LED: 1Gbps/100Mbps/10Mbps
- 1 - Blue LED: 2.5Gbps
Network Adapter Host USB 3.0 - USB-C Network Adapter LAN Ports 1 Carton Depth (mm) 479 Carton Height (mm) 447 Carton Quantity 80 Carton Weight Gross (g) 8460 Included in Package - 1 - USB-C Network Adapter
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - USB-C Network Converter
Package Depth (mm) 122 Package Height (mm) 33 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 94 Packaging Description USB-C 2.5Gb NBase-T Network Adapter Packaging Description India USB-C 2.5Gb NBase-T Network Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-05-24 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2019-08-16 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Priority New Product N/A Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-05-10 Target Production Release 2019-05-24 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle Mainstream
