Main Image
USB100EXT
Main Image
Product Images
Product Images
Product Images

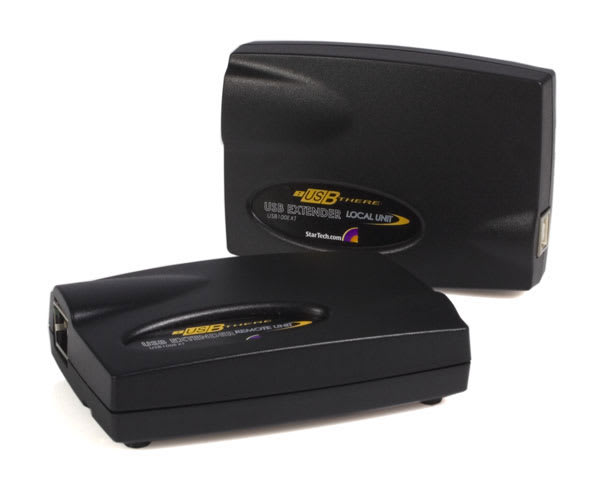

Product Name Bus Powered USB Cat 5 Webcam Extender Product Number USB100EXT UPC 065030801706 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Short) 1 Port Cat5 USB Extender - Up to 330 ft Product Title (Standard) StarTech.com 1 Port Cat5 USB Extender - Bus Powered 100m USB Webcam Extender - USB extender - RJ-45, 4 pin USB Type B - 4 pin USB Type A, RJ-45 - external - up to 330 ft Product Title (Long) 1 Port Cat5 USB Extender - Up to 330 ft (100 Meters) Title Ingram (Part 1) 1 Port Cat5 USB Extender - Up to Title Ingram (Part 2) 330 ft (100 Meters) Bullet 1 Extends the range of one USB device up to 330 feet (100 meters) using standard Cat 5e Ethernet cables Bullet 2 Compliant with USB 1.1 specifications Bullet 3 Data transfer rates of up to 12 Mbits/sec Bullet 4 Requires no external power adapter Bullet 5 Comes complete with a 6 foot USB cable Marketing Copy Applications - Ideal for use with remote digital recorders, USB web cameras, printers, scanners and other full-speed USB devices
- Security/Surveilance
Accessory Products - USBFAB6T
- USBFAB10T
- USBFAB15T
- M45PATCH100B
- M45PATCH75BL
- M45PATCH100G
- M45PATCH75GR
- M45PATCH50GR
- M45PATCH50BL
- ST4200USB
- ST4100USB
- ST4200MINI
- PCI425USB
Related Products - USB110EXT
- USB120EXT
Color Black Material Plastic Operating Temperature 4 to 40 Product Length (mm) 100 Product Width (mm) 70 Product Height (mm) 30 Product Weight (g) 100 TAA Compliant No General Specifications - Extension Distance: 330 feet (100 meters)
- Data Transfer Rate: Up to 12 Mbits/sec
- USB Hub Support: Up to 5 hubs connected to the local unit
- Dimensions: 3.9 x 2.7 x 1.2 Inches (100 x 70 x 30 mm)
- Weight: 0.2 lbs (0.1 kg)
- Maximum power available to USB at the Remote Unit: 300 mA when the Local Unit is supplied with 500 mA

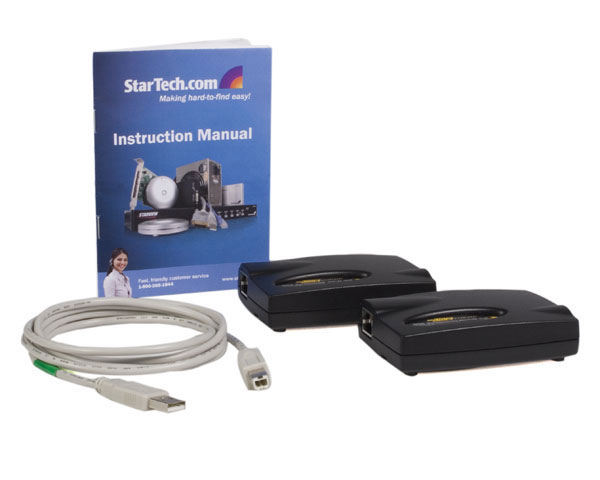

Max Distance 100m [328ft] Maximum Data Transfer Rate 12000000 Mbits/Sec Cabling Cat 5 UTP Industry Standards USB 1.1 Carton Depth (mm) 524 Carton Height (mm) 524 Carton Quantity 70 Carton Weight Gross (g) 12600 Included in Package - 1 - Local Extender unit
- 1 - Remote Extender unit
- 1 - 6 Foot USB Cable
- 1 - User’s Guide
Package Depth (mm) 242 Package Height (mm) 56 Package Width (mm) 152 Package Weight (g) 380 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Carey Cline
