Main Image
USB1100S
Main Image

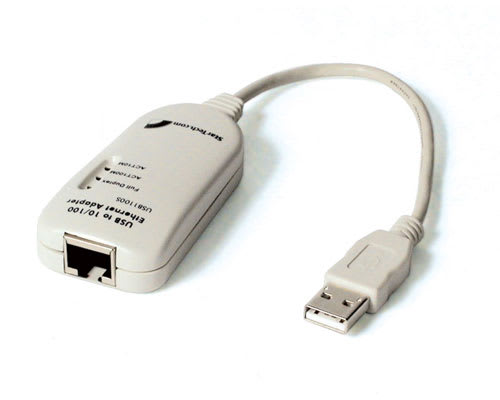

Product Name USB to 10/100 Mini Ethernet Adapter Product Number USB1100S UPC 065030794350 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) USB to 10/100 Mbits/sec. Mini Ethernet Adapter Bullet 1 Automatically detects 10 or 100 Mbps network speed Bullet 2 Easily connects your Notebook or PC to an Ethernet network without inserting additional cards Bullet 3 Built-in LED indicators shows connection speed, link, and activity for easy network diagnostics Bullet 4 Supports Full-Duplex Ethernet connections Bullet 5 Easily swap your network connection from one computer to another without any interruptions Marketing Copy Applications - Connects notebook PC to a network
- Connects PC with no available expansion slots to a network
- Can be a valuable tool when sharing network resources
Website Search Keyword RoHS Accessory Products - M45PATCH3BL
- M45PATCH6BL
Related Products USB100BT Color Beige Operating Temperature 0 ~ 70 Product Length (mm) 70.86 Product Width (mm) 35.81 Product Height (mm) 17.27 TAA Compliant No General Specifications - Weight: 30 grams
- Dimensions (in inches): 2.79 x 1.41 x 0.68
- Operating Temperature: 0 ~ 70 degrees Celsius
- LED: 3 Indicators (10 Mbps, 100Mbps & Full-Duplex)
- Connectors: 1x RJ45 Female & 1x USB type A Male
- System Requirements: Compatible with current Windows and Linux versions with USB Device Support and Drivers
- Data Transfer Speed: Up to 12 Mbps
- Power Consumption: 3.3V
- USB Standards: USB Specification 1.0 & 1.1
- Ethernet Standards: IEEE 802.3 & 802.3u
- Certifications: FCC class - A & CE
- Chipset: RealTek RTL8150
Maximum Data Transfer Rate 12000000 Kbits/Sec LED Indicators - 1 - 10 Mbps
- 1 - 100 Mbps
- 1 - Full Duplex
Carton Depth (mm) 388 Carton Height (mm) 345 Carton Quantity 60 Carton Weight Gross (g) 6000 Included in Package 1 - USB to 10/100 Mini Ethernet Adapter Package Depth (mm) 39 Package Height (mm) 215 Package Width (mm) 102 Package Weight (g) 80 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
