USB110EXT
Bus Powered Cat 5 USB Extender - 50m
Extend a USB connection with power, by up to 50m, over Cat5 cabling
Main Image
Product Images
Product Images
BOM Image
Product Name Bus Powered Cat 5 USB Extender - 50m Product Number USB110EXT UPC 065030803519 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Short) 1 Port Cat5 USB Extender - Up to 165 ft Product Title (Standard) StarTech.com 1 Port Cat5 USB extender - 4 pin USB Type A - 4 pin USB Type A - external - bus powered - up to 164 ft Product Title (Long) 1 Port Cat 5/6 USB Extender - Up to 165 ft (50 Meters) Title Ingram (Part 1) 1 Port Cat5 USB Extender - Up to Title Ingram (Part 2) 165 ft (50 Meters) Website Product Headline Extend a USB connection with power, by up to 50m, over Cat5 cabling Bullet 1 Extends the connection distance of one USB device to up to 165 feet (50 meters) Bullet 2 Easy installation and set up with no software or drivers required Bullet 3 Compliant with USB 1.1 specification with supported data transfer rates up to 12 Mbps Bullet 4 Provides up to 300mA of power at 50m/165ft Bullet 5 Requires no external power adapter Marketing Copy Applications - Connect USB keyboards, mice, printers or scanners to your system in a remote location
- Extend an electronic whiteboard up to 50m without external power for boardrooms or conference rooms
- Extend a high powered USB device like a webcam without extra cabling or external power sources
- Kiosks or dumb terminals where the actual system can be kept in a safe and secure location
Special Notes Maximum power available to USB at the Remote Unit: 300 mA when the Local Unit is supplied with 500 mA Accessory Products - USBFAB6T
- USBFAB10T
- USBFAB15T
- M45PATCH100B
- M45PATCH75BL
- M45PATCH100G
- M45PATCH75GR
- M45PATCH50GR
- M45PATCH50BL
- ST4200USB
- ST4100USB
- ST4200MINI
Related Products - USB100EXT
- USB120EXT
Replacement Product USB110EXT2 Color Black Material Plastic Operating Temperature 4 to 40 Product Length (mm) 100 Product Width (mm) 70 Product Height (mm) 30 Product Weight (g) 100 TAA Compliant No General Specifications USB Hub Support: Up to 5 hubs connected to the local unit Max Distance 50m [164ft] Maximum Cable Length (mm) 50000 Maximum Data Transfer Rate 12 Mbps OS Compatibility - Windows 7
- Linux

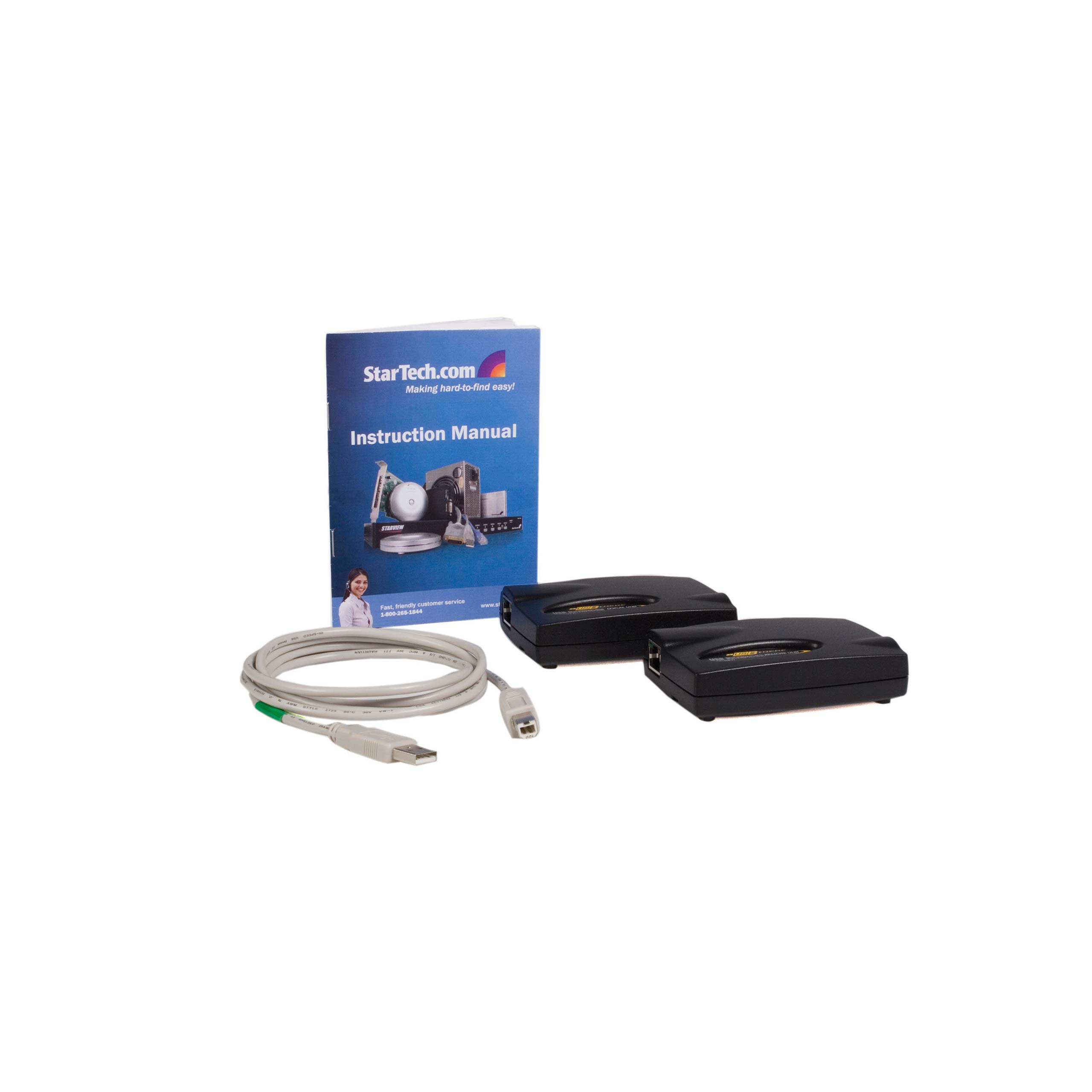

Cabling Cat 5 UTP Industry Standards USB 1.1 Carton Depth (mm) 524 Carton Height (mm) 524 Carton Quantity 70 Carton Weight Gross (g) 29200 Included in Package - 1 - USB Extender Local Unit
- 1 - USB Cable
- 1 - USB Extender Remote Unit
- 1 - Instruction Manual
Package Depth (mm) 55 Package Height (mm) 156 Package Width (mm) 246 Package Weight (g) 400 Packaging Description 1 Port Cat5 USB Extender - Up to 165 ft Packaging Description India 1 Port Cat5 USB Extender - Up to 165 ft Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
