Main Image
USB120EXT
Main Image
Product Images
Product Images
Product Images

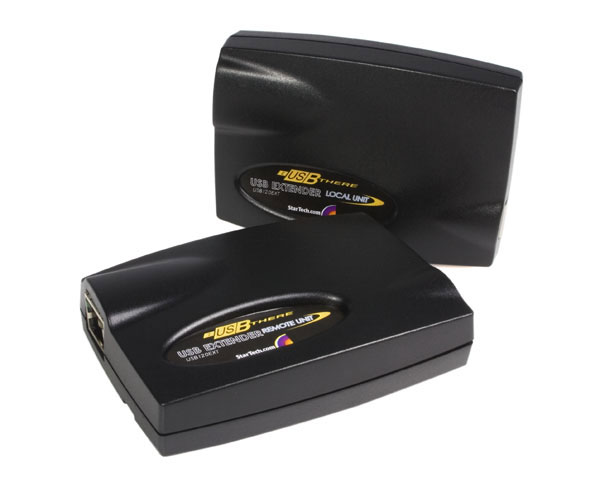

Product Name 2 port Bus Powered Cat5 USB Extender-50m Product Number USB120EXT UPC 065030803526 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Short) 2 Port USB 1.1 over Cat 5 Extender Product Title (Standard) 2 Port Bus Powered USB 1.1 over Cat 5 or Cat 6 Extender - 165 ft /50 m Product Title (Long) 2 Port Bus Powered USB 1.1 over Cat 5 or Cat 6 Extender - 165 ft /50 m Title Ingram (Part 1) 2 Port Bus Powered USB 1.1 over Title Ingram (Part 2) Cat 5 Extender 165 ft / 50 m Bullet 1 Extends the connection distance of two USB devices to up to 165 feet (50 meters) Bullet 2 Easy installation and set up with no software required Bullet 3 Compliant with USB 1.1 specifications Bullet 4 Data transfer rates of up to 12 Mbits/sec Bullet 5 Allows users to make use of existing Ethernet infrastructure for extending USB devices Marketing Copy Applications Ideal for connecting USB keyboards, mice, printers, scanners and other USB devices to your system from a distance Accessory Products - USBFAB6T
- USBFAB10T
- USBFAB15T
- M45PATCH100B
- M45PATCH75BL
- M45PATCH100G
- M45PATCH75GR
- M45PATCH50GR
- M45PATCH50BL
- ST4200USB
- ST4100USB
- ST4200MINI
Related Products - USB100EXT
- USB110EXT
Color Black Material Plastic Operating Temperature 4 to 40 Product Length (mm) 100 Product Width (mm) 70 Product Height (mm) 30 Product Weight (g) 100 TAA Compliant No General Specifications - Extension Distance: 165 ft (50 m)
- Data Transfer Rate: Up to 12 Mbits/sec
- Dimensions: 2.7 x 3.9 x 1.2 Inches (70 x 100 x 30 mm)
- Weight: 0.2 lb (0.1 kg)
- Total Shipping Weight: 0.8 lb (400 grams)
- USB Hub Support: Up to 5 hubs connected to the local unit

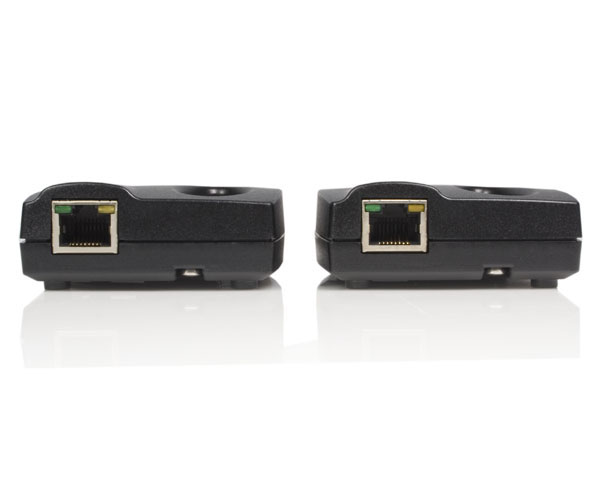

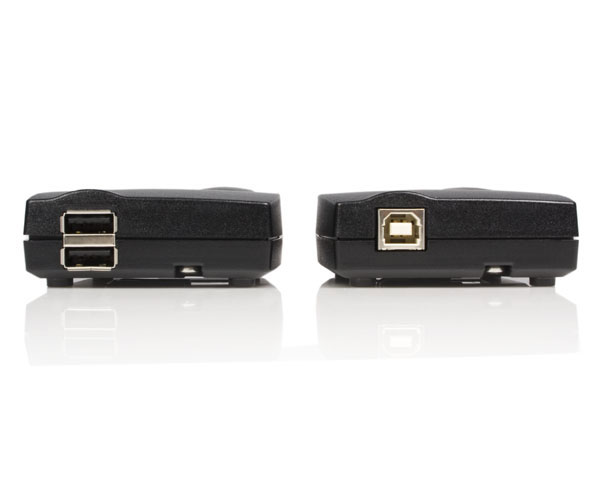

Max Distance 50m [164ft] Maximum Cable Length (mm) 50000 Maximum Data Transfer Rate 12 Mbps Cabling Cat 5 UTP Industry Standards USB 1.1 Carton Depth (mm) 524 Carton Height (mm) 524 Carton Quantity 70 Carton Weight Gross (g) 12300 Package Depth (mm) 240 Package Height (mm) 58 Package Width (mm) 158 Package Weight (g) 370 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
