Main Image
USB150WN1X1W

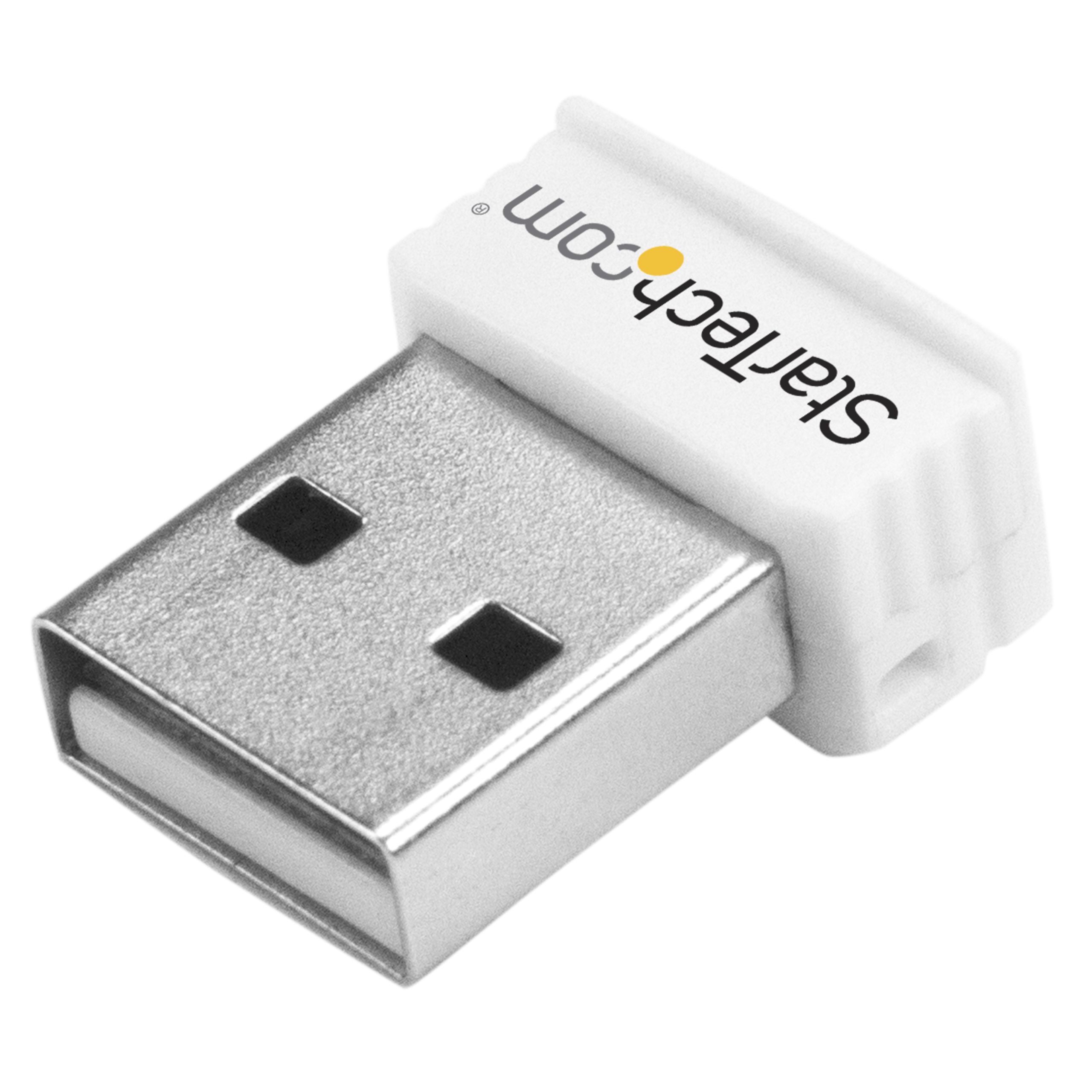

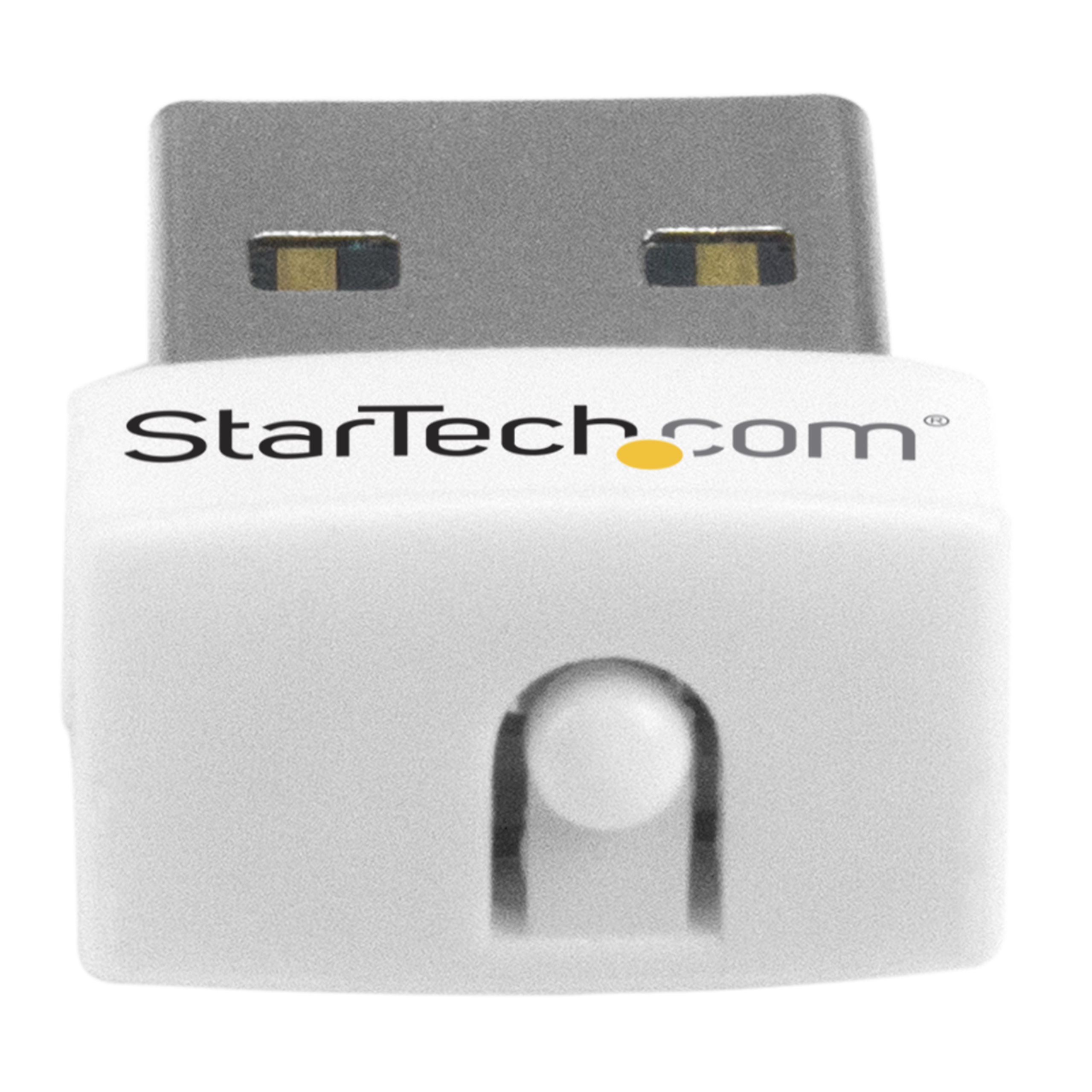

802 11N USB Wireless LAN Card 150 Mbps USB WiFi Dongle
Add high-speed Wireless-N connectivity to a desktop or laptop system through USB
Main Image
Product Images
BOM Image
Quick-Start Guide
Product Name 802 11N USB Wireless LAN Card 150 Mbps USB WiFi Dongle Product Number USB150WN1X1W UPC 065030854269 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 Wireless Network Adapters Family Classic Connect Wireless Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX089X Product Title (Ultra-Short) USB Wireless Adapter Product Title (Short) USB 150Mbps Mini Wireless N Adapter Product Title (Standard) USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R USB WiFi Adapter - White Product Title (Long) USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R USB WiFi Adapter - White Product Title (AMZ) USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R USB WiFi Adapter - White USB Wireless Adapter - Wireless NIC (USB150WN1X1W) Title Ingram (Part 1) 802.11N USB Wireless LAN Card - Title Ingram (Part 2) 150 Mbps USB WiFi Dongle Website Product Headline Add high-speed Wireless-N connectivity to a desktop or laptop system through USB Bullet 1 Extremely compact and lightweight design Bullet 2 1 Transmitter/1 Receiver (1x1:1) antenna configuration Bullet 3 Compliant with IEEE 802.11n standard, with transfer rates up to 150Mbps Bullet 4 Backward compatible with IEEE 802.11b/g standards, for up to 11/54Mbps connections respectively Bullet 5 Broadcast distances up to 100m indoors and 300m outdoors Bullets (Consolidated) Add high-speed Wireless N connectivity to a desktop or laptop system through USB - Compatible with USB equipped MAC OSX devices such as MacBook and MacBook Pro - USB WiFi Network Card/USB Wireless NIC/Wireless USB - Supports Wireless 802.11 N/G (150 Mbps) for high speed wireless Internet applications such as online gaming and Video Streaming - Upgrade your existing Wireless NIC externally via USB - USB Wireless N Adapter/USB WiFi Adapter/USB Wireless LAN/WLAN Adapter/White Marketing Copy Applications - Add wireless networking capabilities, without having to open up your computer case
- Connect to a wireless network hotspot from your laptop while you're on the go, or in locales where cables aren't possible, such as outdoors
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
- FCC - IR - Wireless - United States - FCC Part 15, Subpart C
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements Available USB port Related Products - USB300WN2X2
- PEX300WN2X3
- PEX300WN2X2
- USB150WN1X1
- USB300WN2X2D
Power Source USB-Powered Color White Humidity 10~90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 19 Product Width (mm) 15 Product Height (mm) 8 Product Weight (g) 2 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Frequency 2.4 GHz Full Duplex Support Yes Maximum Data Transfer Rate 150 Mbps MTBF (hours) 44,000 Hours OS Compatibility - Windows Server 2012
- Windows 8
- Linux
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- Windows 11
- Windows Server 2022
Security Features - WEP Data Encryption
- WPA and WPA2-PSK Data Encryption
- TKIP/AES

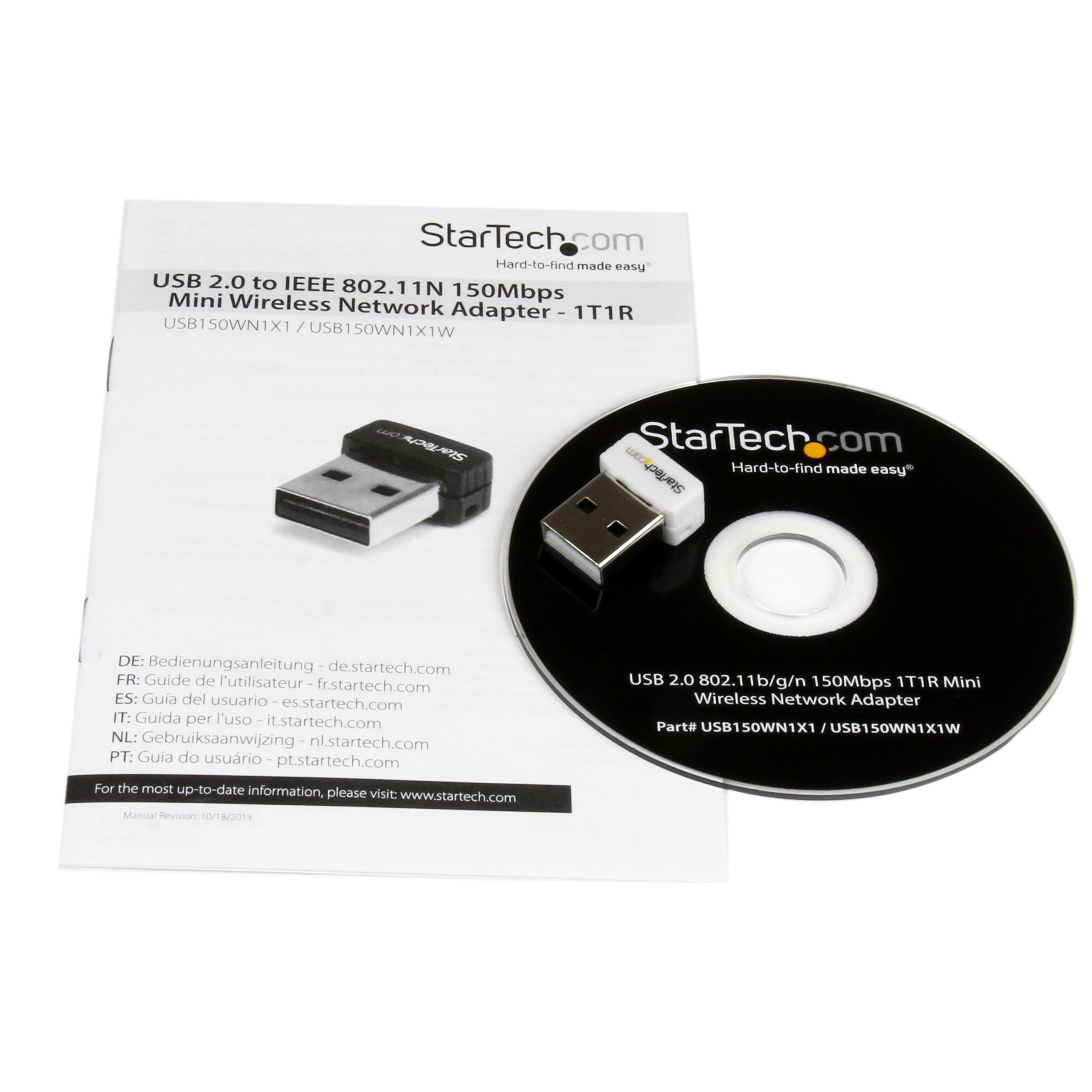

Antenna Configuration 1x1:1 (TxR:S) Bus Type USB 2.0 Chipset ID Realtek - RTL8188EUS Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Interface/Bridge Wireless Ethernet Carton Depth (mm) 375 Carton Height (mm) 251 Carton Quantity 100 Carton Weight Gross (g) 4716 Included in Package - 1 - USB Wireless Adapter
- 1 - Driver CD
- 1 - Instruction Manual
Number of Sub-Cartons 20 Package Depth (mm) 96 Package Height (mm) 22 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 38 Packaging Description USB 802.11b/g/n 150Mbps mini Wireless NIC - White Packaging Description India USB 802.11b/g/n 150Mbps mini Wireless NIC - White Sub-Carton Depth (mm) 173 Sub-Carton Height (mm) 71 Sub-Carton Width (mm) 204 Sub-Carton Quantity 5 Sub-Carton Weight (g) 210 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 Wi-Fi 4 (802.11n, 600Mbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
