Main Image
USB2001EXT2

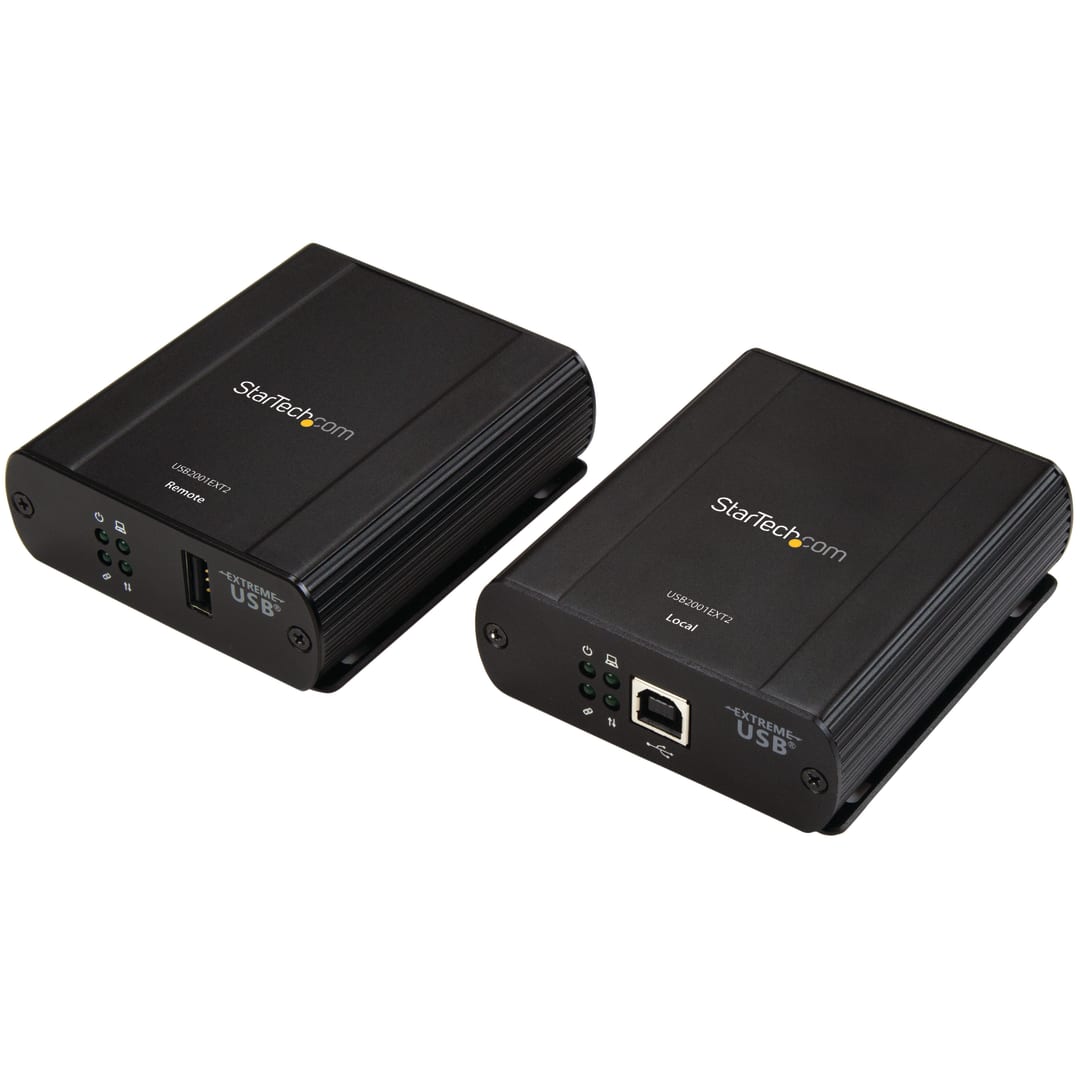

USB Ethernet Extender - USB 2.0 over Cat5 or Cat6
Extend one USB 2.0 connection up to 330ft away from the computer over Cat5 or Cat6 cable
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB Ethernet Extender - USB 2.0 over Cat5 or Cat6 Product Number USB2001EXT2 UPC 065030847780 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - USB 2.0 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX040X Product Title (Short) 1 Port USB 2.0 over Cat5 / Cat6 Extender Product Title (Standard) 1 Port USB 2.0 over Cat5 / Cat6 Ethernet Extender - up to 330ft (100m) Product Title (Long) 1-Port USB 2.0 Ethernet Extender - Up to 330ft(100m) Extension Over Cat5/Cat6 -Industrial USB Over UTP Repeater Product Title (AMZ) 1-Port USB 2.0 Ethernet Extender - Up to 330ft(100m) Extension Over Cat5/Cat6 -Industrial USB Over UTP Repeater (USB2001EXT2) Title Ingram (Part 1) USB Ethernet Extender - USB 2.0 Title Ingram (Part 2) over Cat5 or Cat6 - 330ft (100m) Website Product Headline Extend one USB 2.0 connection up to 330ft away from the computer over Cat5 or Cat6 cable Bullet 1 Maximum extension distance of up to 100m (330ft) over Cat5 or Cat6 cabling Bullet 2 No driver or software installation required Bullet 3 Rugged, metal enclosure with surface-mounting bracket kit included Bullet 4 8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection Bullet 5 Hi-Speed USB 2.0 compliant, with support for data transfer rates up to 480 Mbps Bullets (Compact) Extend one USB 2.0 connection up to 330ft away from the computer over Cat5 or Cat6 cable - usb 2.0 extender - USB extender over cat5 / cat6 - USB 2.0 Ethernet extender lets you place a USB device at remote locations away from the host computer system Bullets (Consolidated) NEW MODEL NOW AVAILABLE: USB2001EXT2NA; Extend one USB 2.0 connection up to 330ft away from the computer over Cat5 or Cat6 cable - USB 2.0 Extender - USB over Cat5 - USB over Cat6 - USB Extender over Cat5 - USB 2.0 Ethernet Extender - up to 100m (330ft) - USB Extender over Cat 5 and Cat 6 Marketing Copy Marketing Copy (No HTML) The USB 2.0 Ethernet extender lets you extend a USB 2.0 connection over distances of up to 100-meters (330-feet), over standard Cat5 or Cat6 ethernet cabling. Backward compatible with USB 1.x devices, the USB 2.0 extender enables almost any kind of USB device to be placed at remote locations away from the host computer system. With data bandwidth of up to 480 Mbps and no software installation required, the USB extender over Cat5/Cat6 offers a fast, easy, and versatile solution for business or industrial applications with durable metal housing, an included surface-mounting bracket kit, and simple plug-and-play installation. Plus, the USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices. This USB 2.0 Ethernet extender is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Secured environments where the host computer must be in a secure, inaccessible location from the the keyboard, mouse, camera or other USB input devices
- Can be used with existing in-wall Cat5/Cat6 ethernet wiring, for extending USB connections between rooms
- Reduce cable clutter and the need for mid-point USB hubs/repeaters by running a single, easy-to-install Cat5/Cat6 cable
- Industrial control environments where the host computer must be located away from interference or contamination
Website Search Keyword - USB extender
- usb over utp
- usb over cat5
- usb over cat6
- usb repeater
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements USB enabled computer system with available USB port Accessory Products - USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
- USB3SEXT6BK
- USB3SEXT1MBK
- USB3SEXT2MBK
- N6PATCH6BL
- N6PATCH10BL
- N6PATCH15BL
- N6PATCH20BL
- N6PATCH25BL
- N6PATCH30BL
- N6PATCH35BL
- N6PATCH50BL
- N6PATCH75BL
- N6PATCH100BL
- N6PATCH125BL
- N6PATCH150BL
- SVA5M4NEUA
Related Products - USB2001EXT2P
- USB2001EXTV
- USB110EXT2
- USB2002EXT2
- USB2G4LEXT2
- USB2004EXTV
- USB2004EXT2
- USB1000IP
Input Current 0.6A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 5 DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type C Color Black Humidity 20~90% RH Material Aluminum Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 100.000 Product Width (mm) 76.000 Product Height (mm) 26.000 Product Weight (g) 315.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Distance 100m [328ft] Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent Cabling Cat 5e UTP or better LED Indicators - 1 - Host Connection
- 1 - Activity
- 1 - USB Link
- 1 - Power
- 1 - Link

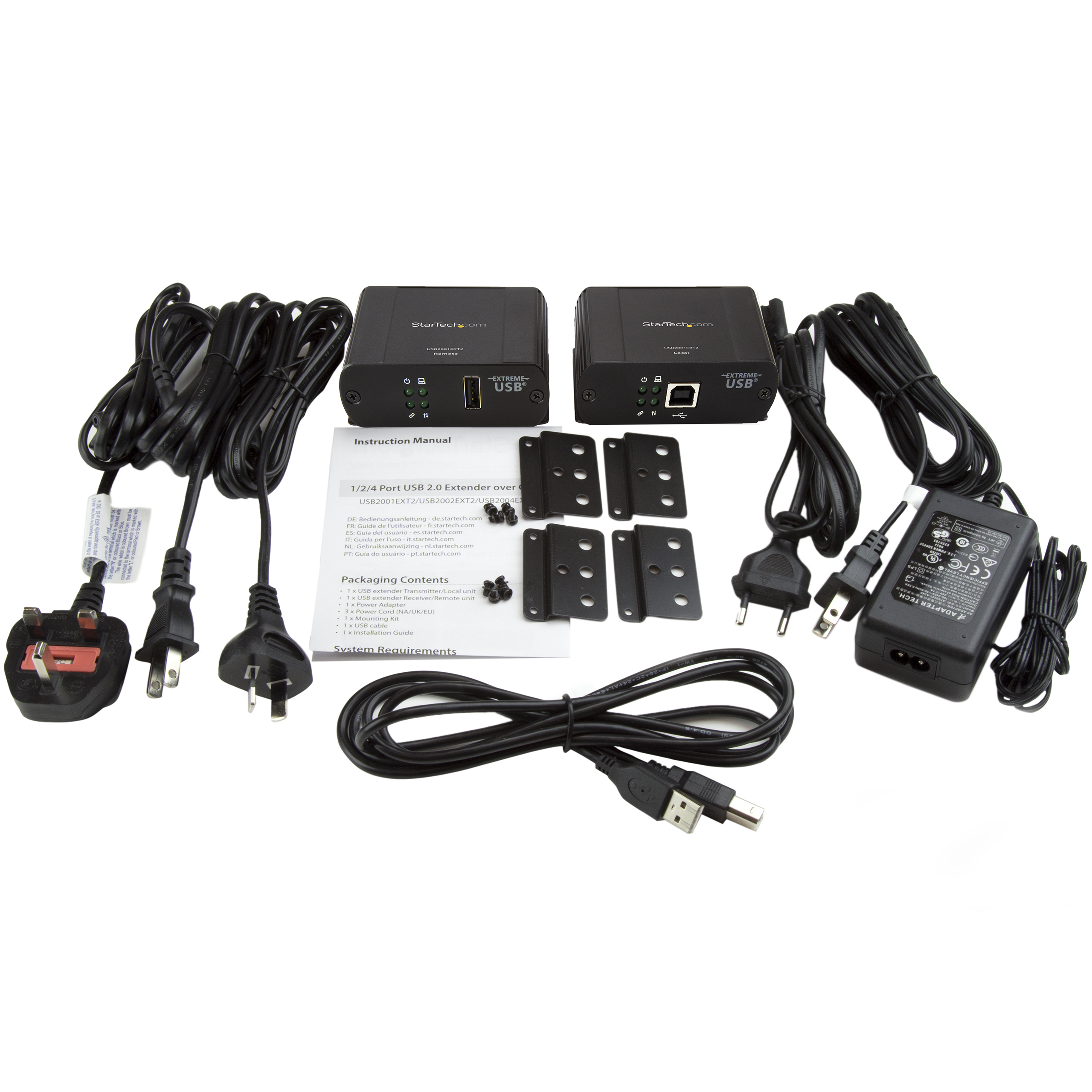

Carton Depth (mm) 520 Carton Height (mm) 400 Carton Quantity 24 Carton Weight Gross (g) 22600 Included in Package - 1 - universal power adapter (NA, JP, EU, UK, ANZ)
- 1 - quick-start guide
- 1 - USB 2.0 local extender unit
- 1 - 6 ft [1.8 m] USB cable
- 1 - mounting kit
- 1 - USB 2.0 remote extender unit
Package Depth (mm) 250 Package Height (mm) 75 Package Width (mm) 200 Package Quantity 1 Package Weight (g) 1160 Packaging Description 1 Port USB 2.0 Extender over Cat5/ Cat6 Packaging Description India 1 Port USB 2.0 Extender over Cat5/ Cat6 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2016-12-28 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
