1 Port USB 2 0 over Cat5 Cat6 Ethernet Extender 100m

Main Image

USB2001EXT2EU

1 Port USB 2 0 over Cat5 Cat6 Ethernet Extender 100m

USB Extender over Cat5e/Cat6/Cat7 | Rugged Enclosure | ESD Protection | 2-Year Warranty

Main Image

Product Images

Product Images

Product Images

BOM Image

Quick-Start Guide

Product Name	1 Port USB 2 0 over Cat5 Cat6 Ethernet Extender 100m
Product Number	USB2001EXT2EU
UPC	065030911597
Lifecycle status	Active
Warranty	2 Years
Weighted Opportunity	0
Taxonomy	Product > Extenders > USB Extenders
Category Level 1	Computer Cards and Adapters
Category Level 2	USB Cards and Extenders
Category Level 3	USB Extenders - USB 2.0
Family	USB Extenders - USB 2.0 - over Cat
Country of Origin Europe & Japan	China
Country of Origin North America	China

Quick-Start Guide https://images.salsify.com/image/upload/s--vZfWCFLJ--/66a98e0a9d902c6043581b9354bf7c3c79a38fec.pdf

Product Title (Ultra-Short)	1 Port USB2.0 Extend
Product Title (Short)	USB 2.0 Extender over Cat5e/Cat6 Kit-ESD
Product Title (Medium)	1 Port USB 2.0 Extender over Ethernet - up to 330 ft. (100m) - Rugged Enclosure
Product Title (Standard)	USB 2.0 Extender over Cat5e or Cat6 Ethernet Cable - 330ft/100m USB 2.0 Extender Adapter Kit w/ ESD & Metal Case - Powered
Product Title (Long)	USB 2.0 Extender over Cat5/Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial USB Extender Adapter Kit w/ ESD Protection & Metal Case - Externally Powered - 480 Mbps
Product Title (AMZ)	USB 2.0 Extender over Cat5/Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial USB Extender Adapter Kit w/ ESD Protection & Metal Case - Externally Powered - 480 Mbps (USB2001EXT2EU)
Title Ingram (Part 1)	1 Port USB 2.0 Extender over
Title Ingram (Part 2)	Ethernet - up to 330 ft. (100 m)
Website Product Headline	USB Extender over Cat5e/Cat6/Cat7 \| Rugged Enclosure \| ESD Protection \| 2-Year Warranty
Bullet 1	USB EXTENDER: Extend 1x USB 2.0 connection up to 100m (330ft) over CAT5/CAT6 cable w/ data transfer rates up to 480Mbps; LEDs monitor connectivity incl Power, Link, Host & Activity status; Newer version of USB2001EXT2
Bullet 2	CONNECT REMOTE USB DEVICES: USB extenders are ideal to remotely access USB devices like printers, cameras, plotters, keyboard/mouse, laser cutters, displays, or CCTV systems from a convenient location
Bullet 3	INDUSTRIAL USB EXTENDER: Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection
Bullet 4	POWERED USB EXTENDER KIT: The USB extender over Cat5/Cat6 cable (RJ45) incl. a power adapter & provides 5V, 500mA to the remote USB port, while powering the local transmitter from the PC USB port
Bullet 5	PLUG-AND-PLAY: The extender features driverless installation & is compatible w/ major operating systems incl. Windows, macOS, Linux; Backwards compatible with USB 1.0 and USB 1.1 devices
Bullets (Compact)	USB 2.0 extender extends 1 USB device 330ft over CAT5e/CAT6 ethernet cable 480Mbps - Industrial USB extender w/ 8kV/16kV Contact/Air ESD protection and metal case - Mounting brackets - Powered 5VDC, 500mA per port w/incl adapter - Windows macOS Linux
Bullets (Consolidated)	Extend 1x USB 2.0 connection up to 330' over CAT5/CAT6 cable w/data transfer rates up to 480Mbps \| Newer version of USB2001EXT2 - 8kV/16kV Contact/Air ESD protection - Durable aluminum construction w/mounting brackets incl. for easy installation - Incl. power supply outputs 5V/500mA of power at the remote end while powering the transmitter via the PC USB port - Driveless installation; Win/macOS/Linux; Compatible w/USB 1.0 - Remotely access USB plotters/laser cutters/3D printers/cameras
Marketing Copy
Applications	Perfect for environments where the host computer is in an inaccessible location No need to run new wiring, you can extend USB connections between rooms using existing direct, in-wall Cat5, Cat6, or Cat7 cable Use as a mid-point repeater to increase the connection distance of your USB peripheral and to reduce cable clutter
Website Search Keyword	100m usb cable 100m usb extender 2 port usb extender aten usb extender c2g usb extender ethernet usb extender extend usb cable with cat5 gefen usb extender how to extend a usb cable using cat5 industrial usb extender iogear usb extender keyboard and mouse extender over cat5 lan usb hub monoprice usb extender network usb hub powered usb extender powered usb over ethernet remote usb hub over ethernet replacement for USB2001EXT2 usb 2.0 cat5 extender USB 2.0 Ethernet extender usb 2.0 extender usb 2.0 extender over cat5 usb 2.0 extender over cat6 USB 2.0 extender over Ethernet usb 2.0 over cat5 usb 2.0 over cat5 6 extenders USB 2.0 over Cat5 extender usb 2.0 over cat6 usb 2.0 over ethernet usb 2.0 to cat5 adapter USB 2.0 to Cat5 extender usb booster extender usb cat 5 extender usb cat5 adapter usb cat5 extender usb cat5e extender usb cat6 extender usb cat6 extender 2.0 USB Ethernet extender usb extender usb extender 100 meters usb extender kit usb extender over cat5 usb extender over cat5e or cat6 usb extender over cat6 usb extender over ethernet usb extension cable usb hub to lan usb lan hub usb over cat usb over cat 5 extender usb over Cat5 USB over Cat5 extender usb over cat5e usb over cat5e extender usb over cat6 usb over cat6 extender usb over ethernet usb over ethernet adapter usb over ethernet cable usb over ethernet extender usb over ethernet hub usb over ethernet rj45 extender adapter cat5 cat6 usb over ip network usb over lan usb over LAN extender usb over network usb over utp usb repeater usb to cat5 adapter usb to cat5e converter usb to cat5e extender usb to ethernet extender

Required Regulatory Compliance Marks

REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
Recycling - Waste - Japan - Paper Recycling Mark
Recycling - Waste - Japan - Plastic Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Triman/Info-Tri - Manual - Waste - European Union - Print Paper
Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard

System and Cable Requirements USB enabled computer system with available USB port

Accessory Products	USB2HAB1 USB2HAB3 USB2HAB6 USB2HAB10 USB2HAB15 USB3SEXT6BK USB3SEXT1MBK USB3SEXT2MBK N6PATCH6BL N6PATCH10BL N6PATCH15BL N6PATCH20BL N6PATCH25BL N6PATCH30BL N6PATCH35BL N6PATCH50BL N6PATCH75BL N6PATCH100BL N6PATCH125BL N6PATCH150BL SVA5M4NEUA
Constrained SKU Alternatives (Limited Stock)	USB2002EXT2NA

Input Current 0.6A
Input Voltage 100 - 240 AC
Output Current 3A
Output Voltage (V) 5 DC
Power Consumption (In Watts) 18
Power Source AC Adapter Included
Plug Type C

Cable Length (mm)	1736
Color	Black
Humidity	20~90% RH
Material	Aluminum
Operating Temperature	0°C to 50°C (32°F to 122°F)
Primary Material	Aluminum
Product Length (mm)	85.000
Product Width (mm)	75.000
Product Height (mm)	26.000
Product Weight (g)	125.000
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
TAA Compliant	No

Max Distance 100m [328ft]
Maximum Data Transfer Rate 480 Mbps
OS Compatibility OS Independent
Cabling Cat 5e UTP or better

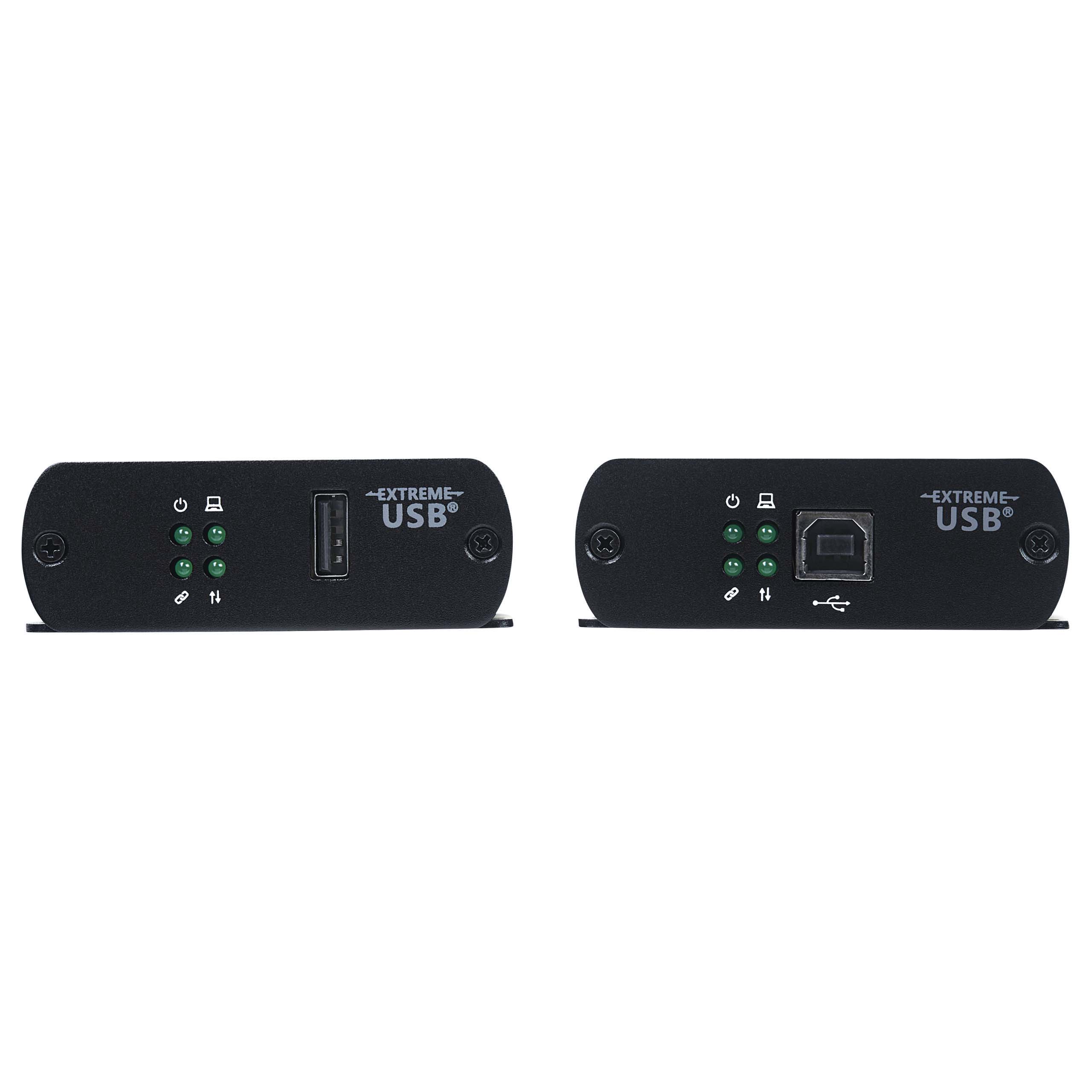

LED Indicators
1 - Host Connection
1 - Activity
1 - USB Link
1 - Power
1 - Link

Carton Depth (mm)	420
Carton Height (mm)	268
Carton Quantity	14
Carton Weight Gross (g)	13740

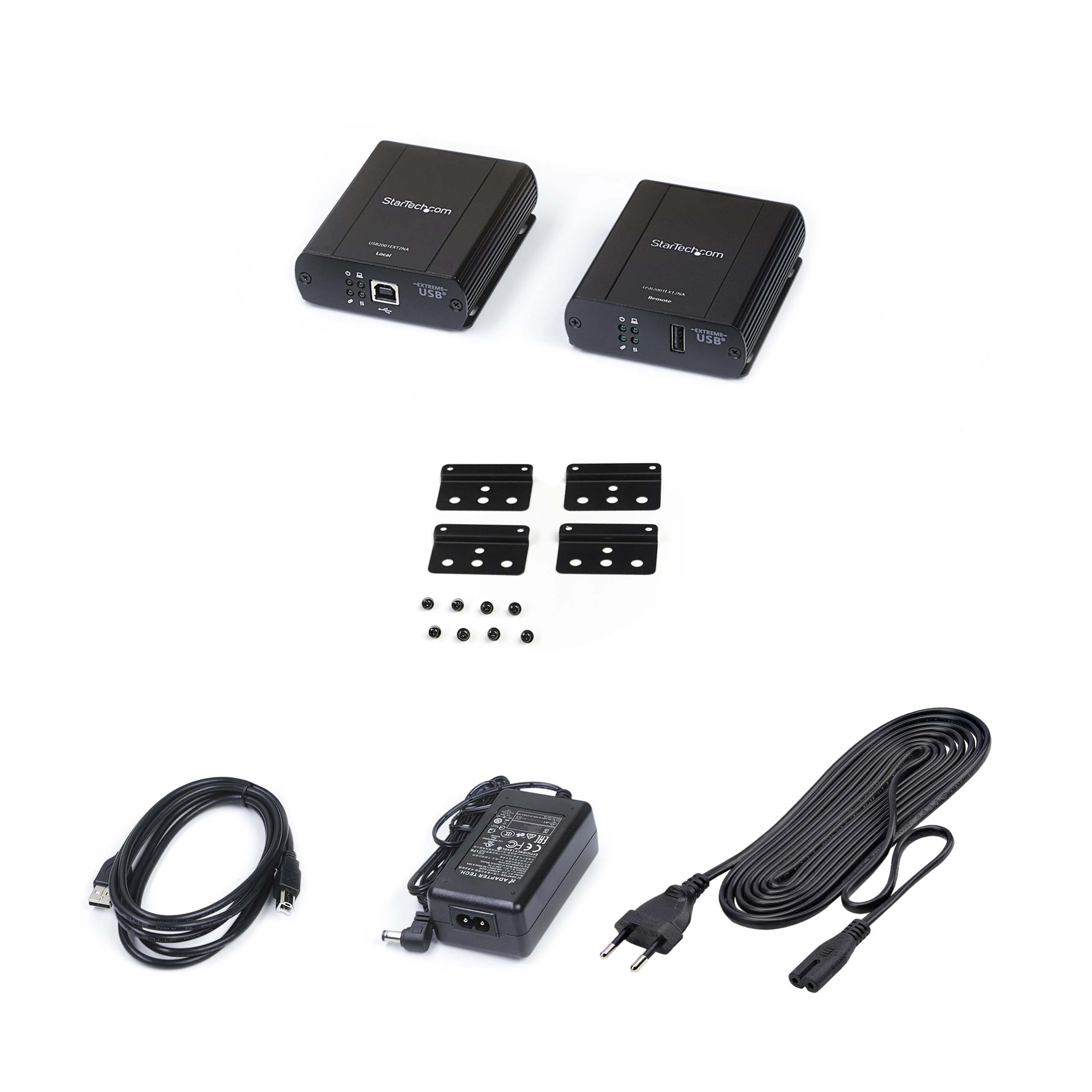

Included in Package	1 - Local Unit 1 - Remote Unit 1 - 5.6 ft [170 cm] USB 2.0 Cable 1 - Mounting Kit 1 - Universal Power Adapter with 5.6 ft [170 cm] Cable 1 - 6 ft [180 cm] North America Power Cord 1 - Quick Start Guide
Package Depth (mm)	198
Package Height (mm)	78
Package Width (mm)	244
Package Weight (g)	862
Packaging Description	1 Port USB 2.0 Extender over Cat5/ Cat6
Packaging Description India	1 Port USB 2.0 Extender over Cat5/ Cat6
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Connector 1	USB-A (480Mbps, 2.5W)
Connector 1 (Quantity)	1
Connector 2	RJ-45
Connector 2 (Quantity)	1
Host Connector 1	USB-B (480Mbps, 2.5W)
Host Connector 1 (Quantity)	1
Host Connector 2	RJ-45
Host Connector 2 (Quantity)	1

A+	Not Required
Actual Inbox Documents Created	QSG in the box
Amazon Merchandising Manager	Veronica Ye
Application Photos	Not Required
Artwork Due Date	2024-09-15
Buying Center - AV & Collaboration	Yes
Buying Center - Data Center	No
Buying Center - End User Compute	No
Buying Center - Networking & Edge	Yes
Enhanced Gallery	Not Required
Enhanced Gallery Designer	Catherine Almeida
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
ID Label Silkscreened or a Label	Sticker label - custom size - requires size population below
Launch Markets (concatenated)	AT,BE,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK
Product Development Specialist	Yipeng Zhang
Product Information Creation Specialist (PICS)	Alex Garcia
Product Manager	Natalie Goodale
Product Performance Specialist	Aaron Bens
Product Photographer	Alejandra Valencia
Target Development Completion Date	2024-03-27
Target Production Release	2024-12-20
Tech Lead	Stefan Tirolese
Technical Writer	Alex Garcia
Technology Lifecycle	Mainstream
Video	Not Required

Input Current	0.6A
Input Voltage	100 - 240 AC
Output Current	3A
Output Voltage (V)	5 DC
Power Consumption (In Watts)	18
Power Source	AC Adapter Included
Plug Type	C

Max Distance	100m [328ft]
Maximum Data Transfer Rate	480 Mbps
OS Compatibility	OS Independent

Cabling	Cat 5e UTP or better
LED Indicators	1 - Host Connection 1 - Activity 1 - USB Link 1 - Power 1 - Link
