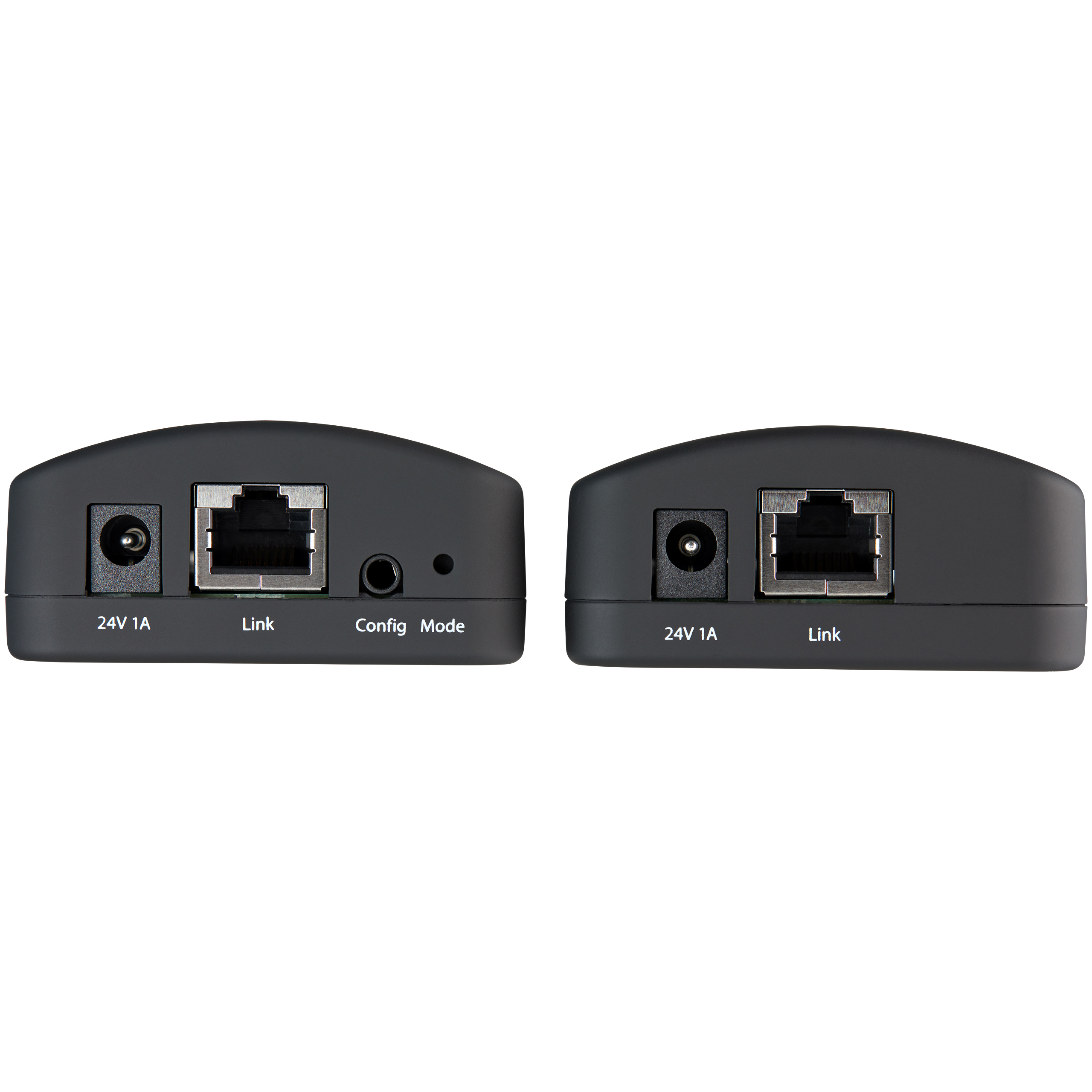

Main Image
USB2001EXT2PNA
1 Port USB 2 0 over Cat5 or Cat6 Extender Kit Locally or R
USB Extender Kit | Locally or Remotely Powered| 2-Year Warranty
Main Image

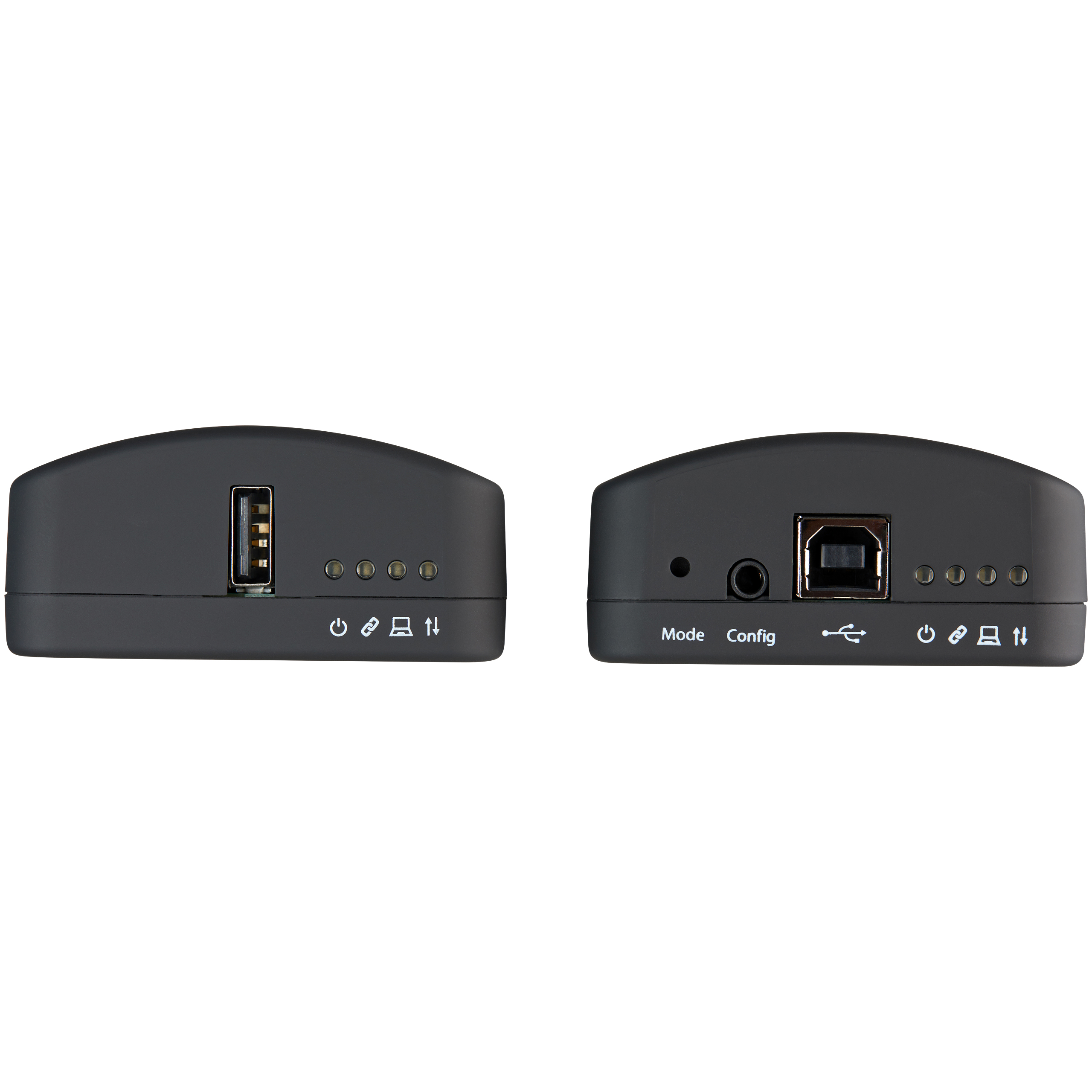

Product Images

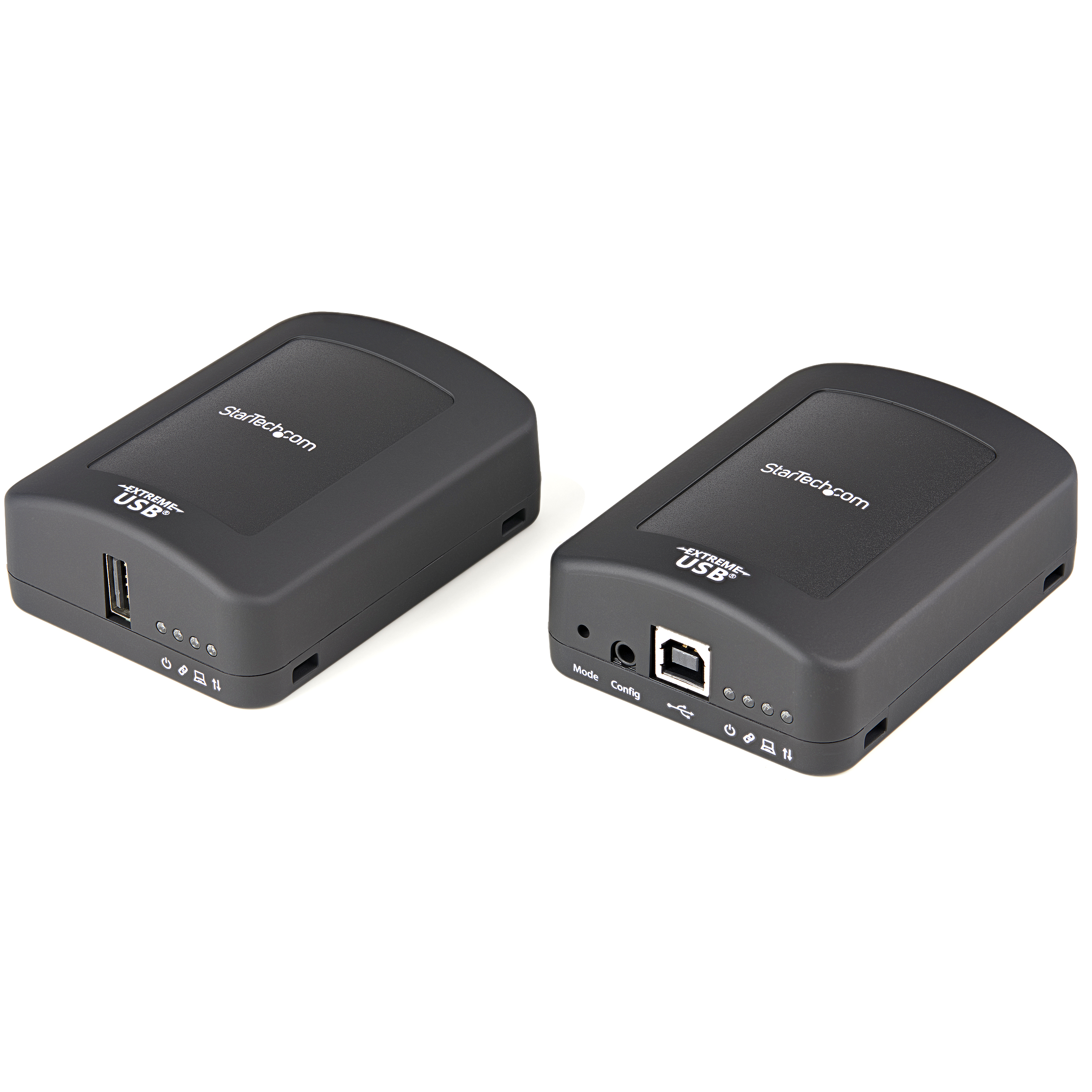

Product Images

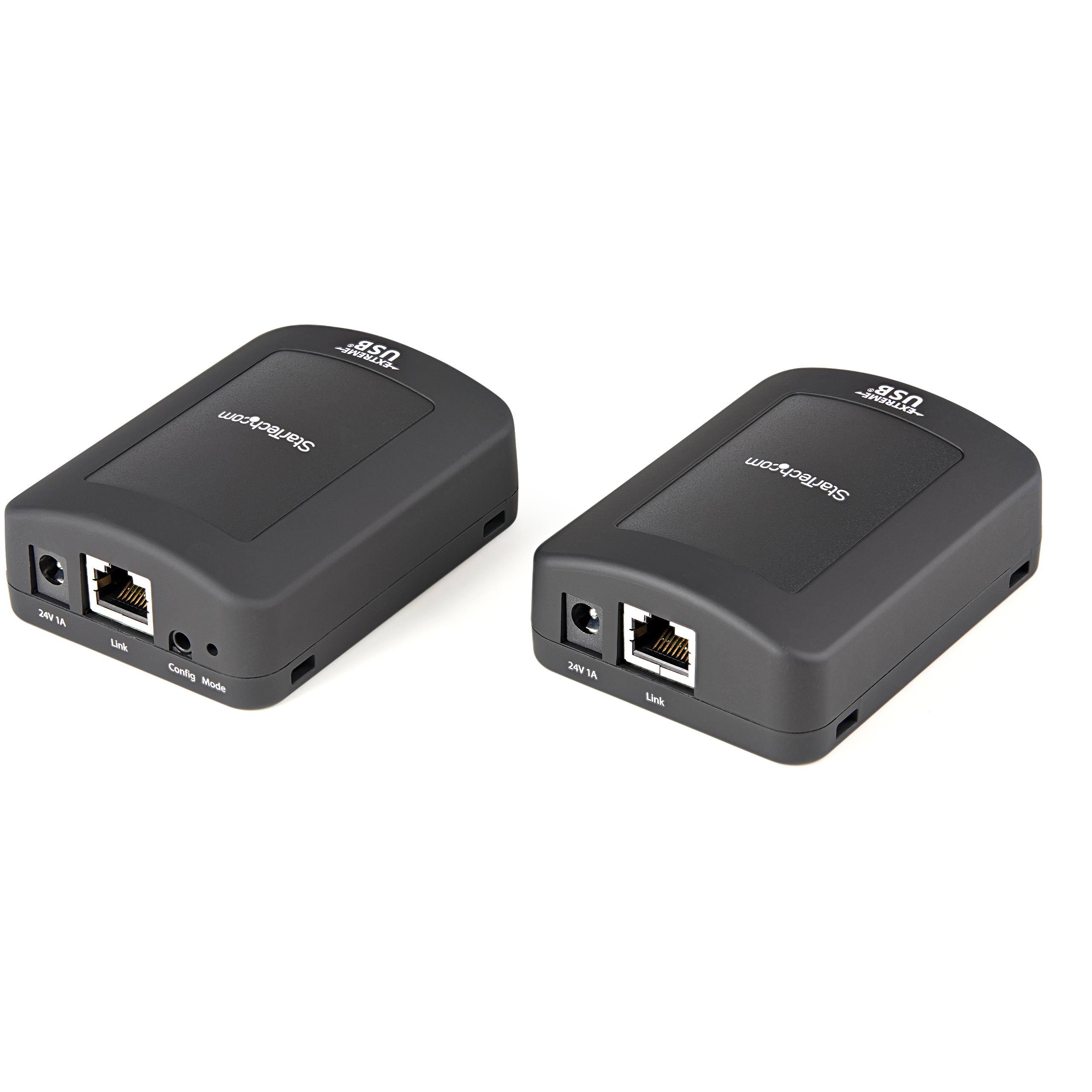

Product Images

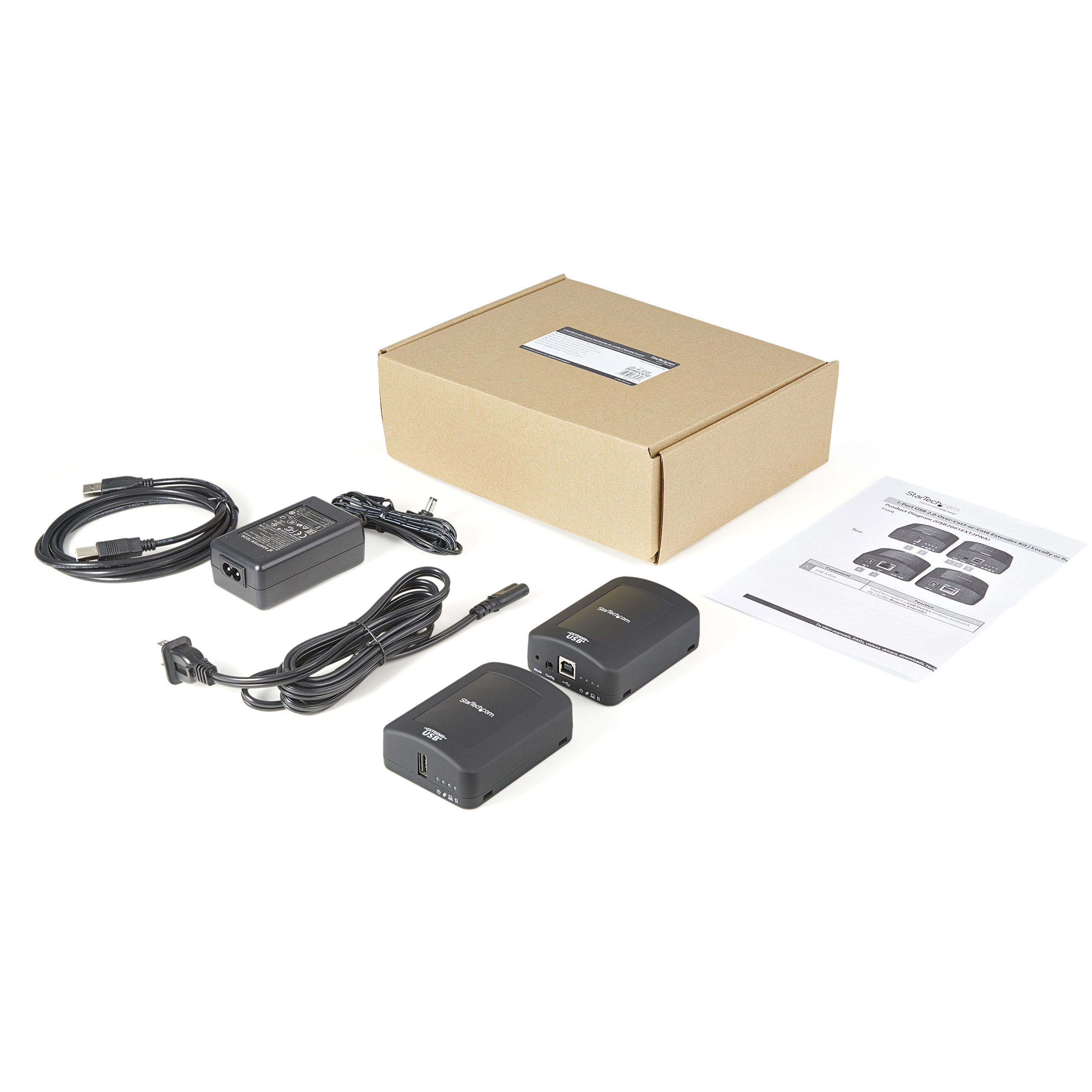

BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 1 Port USB 2 0 over Cat5 or Cat6 Extender Kit Locally or R Product Number USB2001EXT2PNA UPC 065030889728 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > USB Extenders Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - USB 2.0 Family USB Extenders - USB 2.0 - over Cat Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX040X Product Title (Ultra-Short) 1-Port USB Extender Product Title (Short) USB 2.0 Extender over Cat5e/Cat6 Kit-ESD Product Title (Medium) 1-Port USB 2.0 Extender over Ethernet - 330 ft. (100 m) - Local/Remote Power Product Title (Standard) USB 2.0 Extender over Cat5e or Cat6 RJ45 Cable - 330ft/100m USB Extender Adapter Kit w/ ESD - Locally or Remotely Powered Product Title (Long) USB 2.0 Extender over Cat5e/Cat6 Cable (RJ45) - Locally or Remotely Powered Industrial Metal USB Extender Adapter Kit w/ ESD Protection - 330ft/100m - 480 Mbps Product Title (AMZ) USB 2.0 Extender over Cat5e/Cat6 Cable (RJ45) - Locally or Remotely Powered Industrial Metal USB Extender Adapter Kit w/ ESD Protection - 330ft/100m - 480 Mbps (USB2001EXT2PNA) Title Ingram (Part 1) 1-Port USB 2.0 Extender over Title Ingram (Part 2) Ethernet - 330 ft. (100 m) Website Product Headline USB Extender Kit | Locally or Remotely Powered| 2-Year Warranty Bullet 1 USB 2.0 EXTENDER: Extend a USB device up to 100m/330ft over CAT5e/CAT6 RJ45 ethernet network cable w/ data transfer rates up to 480Mbps; LEDs monitor power, activity status, link & host connectivity | Latest version of our extender USB2001EXT2P Bullet 2 CONNECT REMOTE USB DEVICES: The USB extender let's you remotely access USB devices like printers, cameras, plotters, keyboard/mouse, laser cutters, displays, or CCTV systems from a convenient location Bullet 3 INDUSTRIAL USB EXTENDER: Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection Bullet 4 POWERED USB EXTENDER KIT: The included power adapter enables the USB port to provide 5V, 500mA of power, and can be connected to either the local transmitter or the remote receiver Bullet 5 PLUG-AND-PLAY: The extender features driverless installation & is compatible w/ major operating systems incl. Windows, macOS, Linux; Backwards compatible with USB 1.0 and USB 1.1 devices Bullets (Compact) USB 2.0 extender connects a USB device up to 330ft/100m over CAT5e/CAT6 RJ45 cable 480Mbps - Industrial Metal USB extender w/ 8kV/16kV Contact/Air ESD protection, Mounting brackets - Locally or Remotely Powered w/ 5VDC, 500mA - Windows macOS Linux Bullets (Consolidated) USB 2.0 extender kit connects a USB device up to 330ft/100m over CAT5e/CAT6 ethernet cable (RJ45) w/data transfer rates up to 480Mbps | Latest version of our extender USB2001EXT2P - Industrial USB Extender w/ 8kV/16kV Contact/Air ESD protection - Durable aluminum housing w/mounting brackets incl - The extender can be powered at the local transmitter or remote receiver; Incl. power adapter provides 5V/500mA - OS independent - Remotely access USB camera/3D printer/plotter/keyboard/mouse Marketing Copy Applications - Perfect for environments where the host computer is in an inaccessible location
- Place your USB device virtually anywhere, even in locations where a power outlet is unavailable
- No need to run new wiring, you can extend USB connections between rooms using existing direct, in-wall Cat5, Cat6, or Cat7 cable
- Use as a mid-point repeater to increase the connection distance of your USB peripheral and to reduce cable clutter
Website Search Keyword - usb extender over cat5
- usb extender over cat6
- usb to cat5e converter
- 100m usb extender
- usb extender kit
- usb over LAN extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements - A host computer with an available USB-A port (USB Type-A)
- An RJ45-terminated UTP Cat5e or better Ethernet cable
Accessory Products - USB2HABM10
- N6PATCH100BL
- N6PATCH50BK
- N6PATCH25OR
- RJ45PATCH100
- 45PATCH50BK
- 45PATCH25OR
- WIRC5ECMR
- WIR5ECMPHBL
Constrained SKU Alternatives (Limited Stock) C15012-USB-EXTENDER Input Current 0.58 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 24 DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20~80% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 88.000 Product Width (mm) 65.000 Product Height (mm) 30.000 Product Weight (g) 170.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Distance 100m [328ft] Maximum Data Transfer Rate 480Mbps OS Compatibility OS Independent Cabling Cat 5e UTP or better LED Indicators - 1 - Power
- 1 - Link
- 1 - Host
- 1 - Activity
Carton Depth (mm) 422 Carton Height (mm) 272 Carton Quantity 14 Carton Weight Gross (g) 11246 Included in Package - 1 - Local Unit
- 1 - Remote Unit
- 1 - 5.75 ft [175 cm] USB 2.0 cable
- 1 - Mounting Kit
- 1 - Universal Power Adapter with 5.6 ft [170 cm] Cable
- 1 - 6 ft [180 cm] North America Power Cord
- 1 - Quick Start Guide
Package Depth (mm) 198 Package Height (mm) 78 Package Width (mm) 245 Package Quantity 1 Package Weight (g) 714 Packaging Description 1-Port USB 2.0-Over-Cat5-or-Cat6 Extender Packaging Description India 1-Port USB 2.0-Over-Cat5-or-Cat6 Extender Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2020-01-02 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2020-01-16 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) CA,US Primary Technology None Priority New Product N/A Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-12-11 Target Production Release 2020-01-02 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
