USB2002EXT2
Extender over Cat5 or Cat6 2 Port USB Extender
Extend two USB 2.0 connections with power, by up to 330ft over Cat5 or Cat6 cable
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Extender over Cat5 or Cat6 2 Port USB Extender Product Number USB2002EXT2 UPC 065030841566 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - USB 2.0 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX040X Product Title (Ultra-Short) 2 Port USB Extender Product Title (Short) 2 Port USB 2.0 Extender over Cat5/Cat6 Product Title (Medium) 2 Port USB 2.0 over Cat5 or Cat6 Extender Kit - Locally or Remotely Powered 100m Product Title (Standard) 2 Port USB 2.0 over Cat5 or Cat6 Extender Kit - Local / Remote Power - 330 ft - USB Extender Product Title (Long) 2 Port USB 2.0 over Cat5 or Cat6 Extender Kit - Locally or Remotely Powered - 330 ft (100 m) - USB Extender - USB to Ethernet Product Title (AMZ) 2 Port USB 2.0 over Cat5 or Cat6 Extender Kit - Locally or Remotely Powered - 330 ft (100 m) - USB Extender - USB to Ethernet (USB2002EXT2) Title Ingram (Part 1) 2Port USB Extender Kit - Local Title Ingram (Part 2) or Remote Power USB to Ethernet Website Product Headline Extend two USB 2.0 connections with power, by up to 330ft over Cat5 or Cat6 cable Bullet 1 High Speed USB 2.0 compliant with support for data transfer rates up to 480 Mbps Bullet 2 Maximum extension distance of up to 100m (330ft) over Cat5 cabling Bullet 3 Two USB 2.0 ports on remote unit over a single Cat5/Cat6 cable Bullet 4 Plug-and-Play and hot-swap compatible Bullet 5 No driver or software required Bullets (Compact) Connect two USB 2.0 devices to a computer up to 100 m (330 ft) away & power the USB extender from the local or remote side / 2 Port USB 2.0 over Cat5 or Cat6 Extender Kit / Locally or Remotely Powered / 330 ft (100 m) / USB Extender - USB to Ethernet Bullets (Consolidated) NEWER VERSION NOW AVAILABLE: USB2002EXT2NA; Extend two USB 2.0 connections w/power by up to 330 ft over Cat5 or Cat6 cable - Locally or Remotely Powered/330 ft (100 m) - USB 2.0 to Cat5 extender - USB extender provides support for data transfer rates of up to 480 Mbps - Plug-and-Play and hot-swap compatible - Backwards compatible w/USB 1.x devices - Versatile USB 2.0 extender for business or industrial applications w/durable metal housing - Surface-mounting bracket kit included Marketing Copy Applications - Secured environments where the host computer must be in a secure, inaccessible location from the the keyboard, mouse, camera or other USB input devices
- Use existing in-wall Cat5/Cat6 wiring to extend USB connections between rooms
- Reduce cable clutter and the need for mid-point USB hubs/repeaters by running a single, easy-to-install Cat5/Cat6 cable
- Industrial control environments where the host computer must be located away from interference or contamination
Website Search Keyword - usb extender
- usb 2.0 extender
- usb utp extender
- usb cat5 extender
- usb cat6 extender
- high speed usb extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements USB enabled computer system with available USB port Accessory Products - USB2HAB1
- USB2HAB6
- USB2HAB10
- USB2HAB15
- USB2HABM6IN
- USB2HAB6T
- USB2HAB10T
- USB2HAB15T
- USB2HABM10
- USB2HABM3
- UUSBHAUB3RA
Related Products - USB2G4LEXT2
- USB2001EXT2
- USB110EXT2
- USB2004EXT2
- USB110EXT

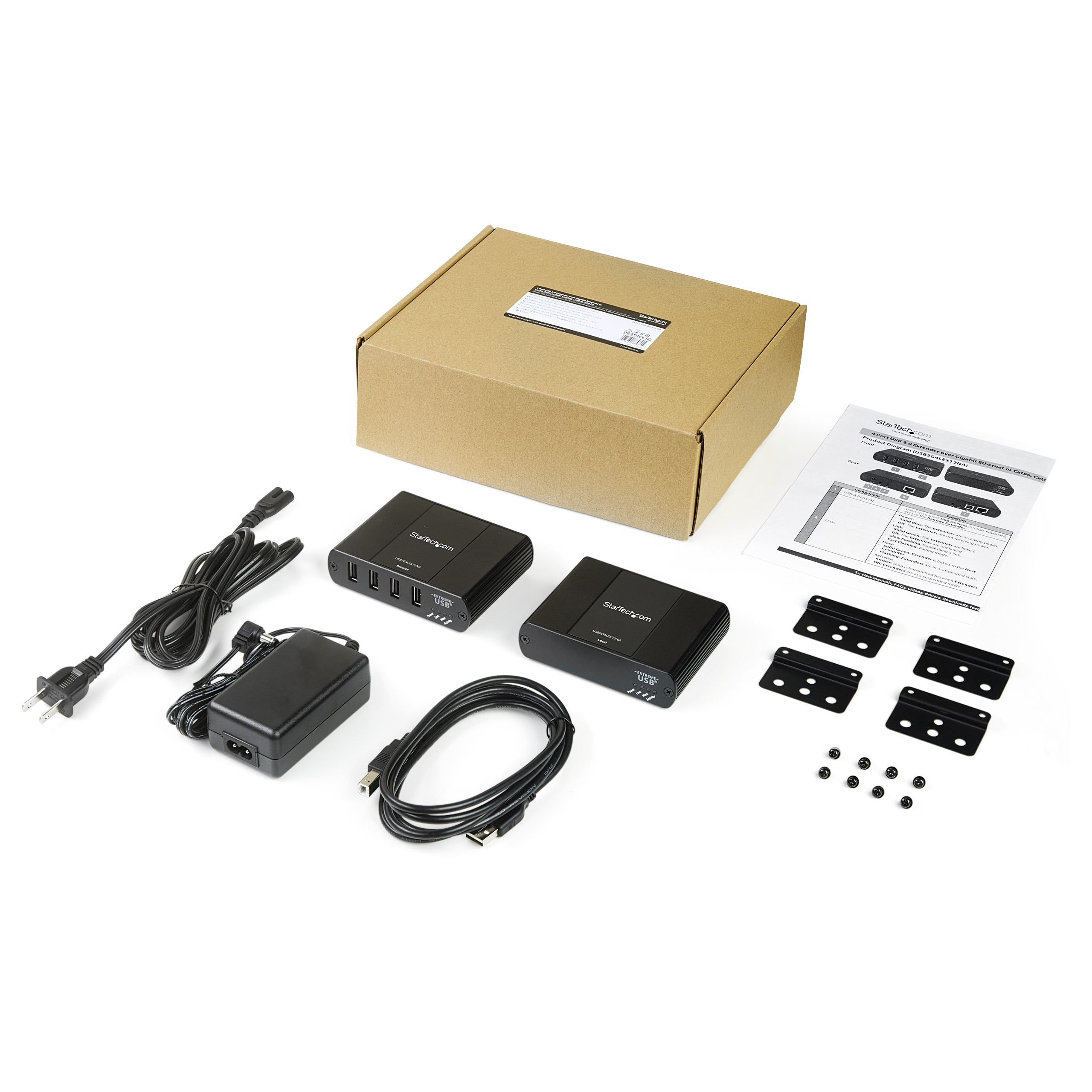

Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.0 A Output Voltage (V) 24 DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Aluminum and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 100.000 Product Width (mm) 76.000 Product Height (mm) 26.000 Product Weight (g) 600.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Distance 100m [328ft] Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent Cabling Cat 5 UTP Carton Depth (mm) 409 Carton Height (mm) 271 Carton Quantity 20 Carton Weight Gross (g) 13870 Included in Package - 1 - USB 2.0 extender local unit
- 1 - USB 2.0 extender remote unit
- 1 - USB cable
- 1 - universal power adapter (NA, JP, EU, UK, ANZ)
- 1 - quick-start guide
- 1 - mounting kit
Package Depth (mm) 195 Package Height (mm) 108 Package Width (mm) 248 Package Quantity 1 Package Weight (g) 1200 Packaging Description 2 Port USB 2.0 Extender over Cat5/Cat6 Packaging Description India 2 Port USB 2.0 Extender over Cat5/Cat6 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2016-12-28 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,JP,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
