Main Image
USB2002EXT2NA
2 Port USB 2 0 over Cat5 or Cat6 Extender Kit Locally or R
USB extender over Cat5e/Cat6/Cat7 | Rugged Enclosure | ESD Protection | 2-Year Warranty
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port USB 2 0 over Cat5 or Cat6 Extender Kit Locally or R Product Number USB2002EXT2NA UPC 065030889698 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > USB Extenders Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - USB 2.0 Family USB Extenders - USB 2.0 - over Cat Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX040X Product Title (Ultra-Short) 2 Port USB2.0 Extend Product Title (Short) 2 Port USB 2.0 Extender Hub over Cat5e/6 Product Title (Medium) 2 Port USB 2.0 Extender over Ethernet - up to 330 ft. (100m) - Rugged Enclosure Product Title (Standard) 2 Port USB 2.0 Extender Hub over Cat5e or Cat6 RJ45 Cable - 330ft/100m Metal USB 2.0 Extender Kit - ESD, Powered, 480mbps Product Title (Long) 2 Port USB 2.0 Extender Hub over Cat5e/Cat6 Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Externally Powered - 480 Mbps Product Title (AMZ) 2 Port USB 2.0 Extender Hub over Cat5e/Cat6 Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Externally Powered - 480 Mbps (USB2002EXT2NA) Title Ingram (Part 1) 2 Port USB 2.0 Extender over Title Ingram (Part 2) Ethernet - up to 330 ft. (100 m) Website Product Headline USB extender over Cat5e/Cat6/Cat7 | Rugged Enclosure | ESD Protection | 2-Year Warranty Bullet 1 USB 2.0 EXTENDER: Connect 2 USB devices up to 330ft/100m over CAT5e/CAT6 RJ45 ethernet network cable w/ data transfer rates up to 480Mbps; Status LEDs for power, activity, link & host connectivity; Newer version of our extender USB2002EXT2 Bullet 2 CONNECT REMOTE USB DEVICES: The USB extender creates a 2 port hub to remotely access USB devices like printers, cameras, plotters, keyboard/mouse, displays, & CCTV systems at a convenient location Bullet 3 INDUSTRIAL USB EXTENDER: Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection Bullet 4 POWERED USB EXTENDER KIT: The included power adapter can be connected to the local transmitter or remote receiver and enables each remote USB port to provide 5V, 500mA of power Bullet 5 PLUG-AND-PLAY: The multi sub extender features driverless installation & is compatible w/ major operating systems incl. Windows, macOS, Linux; Backwards Compatible with USB 1.0 and USB 1.1 devices Bullets (Compact) USB 2.0 extender kit connects 2 remote USB devices up to 330ft over CAT5e/CAT6 RJ45 cable 480Mbps - Industrial Metal hub w/ 8kV/16kV Contact/Air ESD protection - Mounting brackets - Powered 5VDC 500mA per port w/incl adapter - Windows macOS Linux Bullets (Consolidated) 2 Port USB 2.0 extender kit connects 2 USB devices up to 330ft/100m over CAT5e/CAT6 ethernet cable (RJ45) w/data transfer rates up to 480Mbps | Newer version of our extender USB2002EXT2 - Industrial USB Extender Hub w/ 8kV/16kV Contact/Air ESD protection - Durable aluminum housing w/mounting brackets incl. - Powered by incl. adapter (connected to transmitter) providing 5V/500mA per USB port - Driveless installation - Remotely access USB cameras/3D printers/plotters/keyboards/mouse Marketing Copy Website Search Keyword - 100m usb extender
- usb extender over cat5
- usb to cat5e converter
- usb extender over cat6
- usb over ethernet hub
- usb over LAN extender
- usb over network
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements USB enabled computer system with available USB port Accessory Products - USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
- USB3SEXT6BK
- USB3SEXT1MBK
- USB3SEXT2MBK
- N6PATCH6BL
- N6PATCH10BL
- N6PATCH15BL
- N6PATCH20BL
- N6PATCH25BL
- N6PATCH30BL
- N6PATCH35BL
- N6PATCH50BL
- N6PATCH75BL
- N6PATCH100BL
- N6PATCH125BL
- N6PATCH150BL
- SVA5M4NEUA
Related Products - USB2004EXT2NA
- USB2G4LEXT2NA
- USB2001EXT2NA
- USB2001EXT2PNA
Constrained SKU Alternatives (Limited Stock) - USB2004EXT100
- C10043-USB-EXTENDER

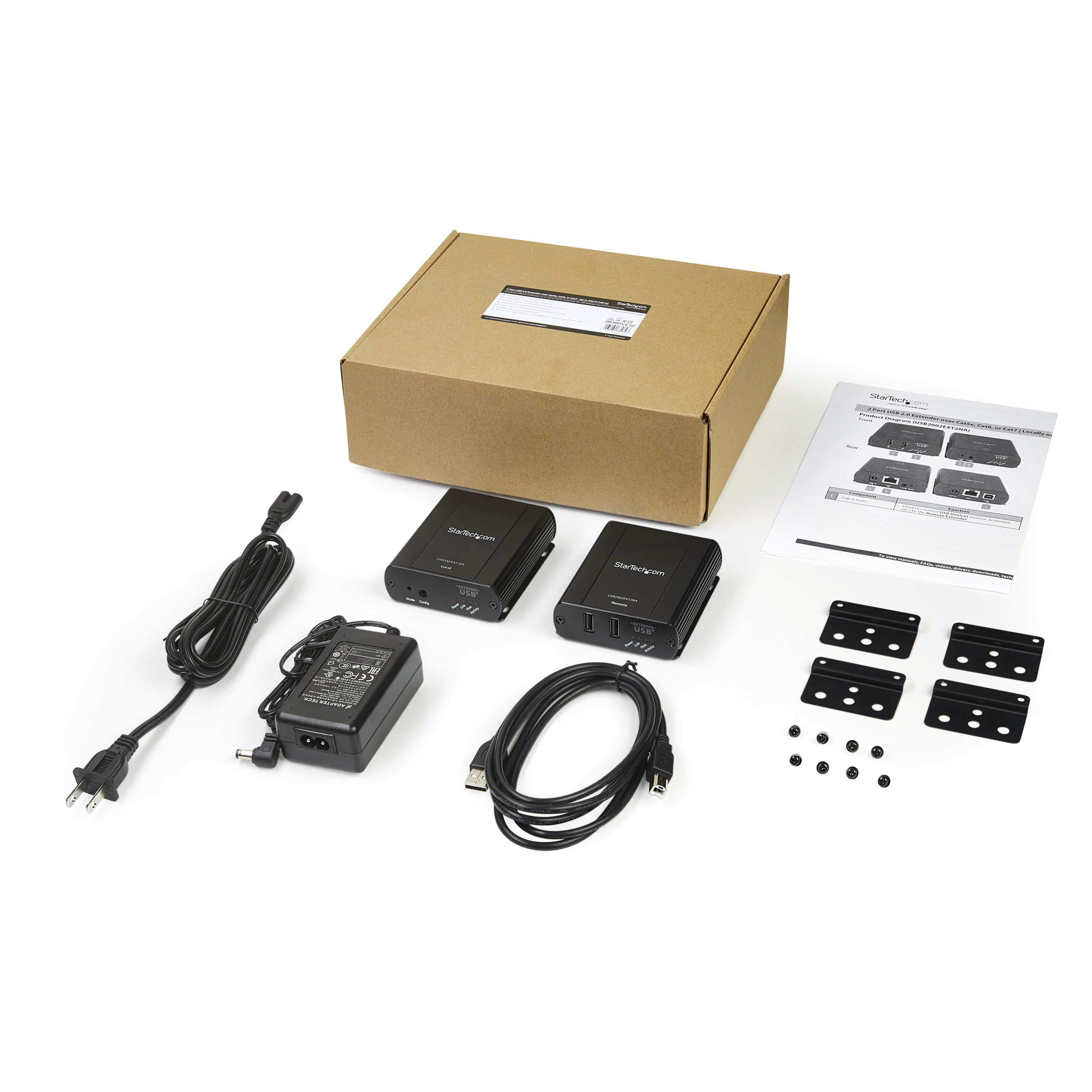

Input Current 0.58 A Input Voltage 100 - 240 AC Output Current 1.0 A Output Voltage (V) 24 DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Aluminum and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Aluminum Product Length (mm) 87.000 Product Width (mm) 76.000 Product Height (mm) 26.000 Product Weight (g) 289.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Distance 100m [328ft] Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent Cabling Cat 5 UTP Carton Depth (mm) 424 Carton Height (mm) 270 Carton Quantity 14 Carton Weight Gross (g) 13724 Included in Package - 1 - Local Unit
- 1 - Remote Unit
- 1 - Mounting Kit
- 1 - Universal Power Adapter with 5.6 ft [170 cm] Cable
- 1 - 6 ft [180 cm] North America Power Cord
- 1 - 5.75 ft [175 cm] USB 2.0 Cable
- 1 - Quick-Start Guide

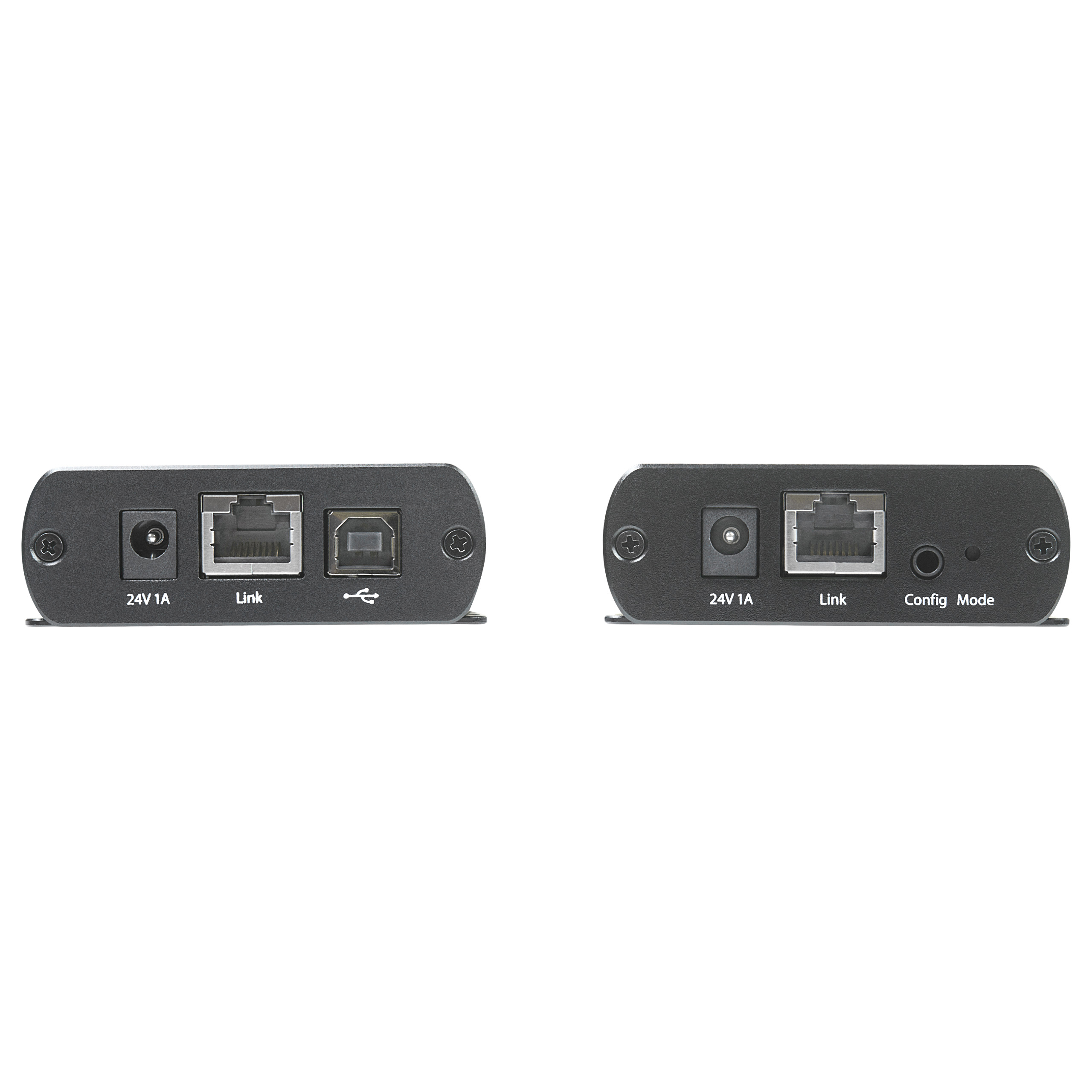

Package Depth (mm) 198 Package Height (mm) 79 Package Width (mm) 243 Package Quantity 1 Package Weight (g) 838 Packaging Description 2 Port USB 2.0 Extender over Cat5/Cat6 Packaging Description India 2 Port USB 2.0 Extender over Cat5/Cat6 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2020-01-02 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2020-01-16 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) CA,US Primary Technology None Priority New Product N/A Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-12-11 Target Production Release 2020-01-02 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
