USB2004EXT

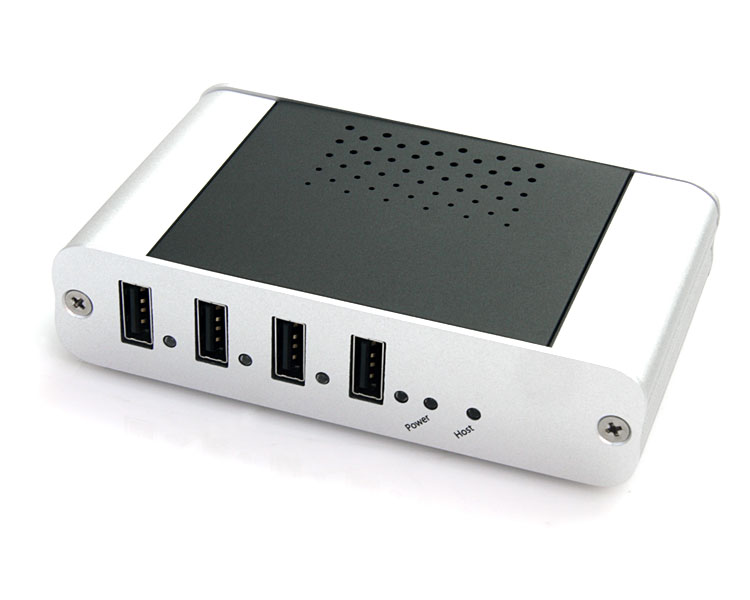

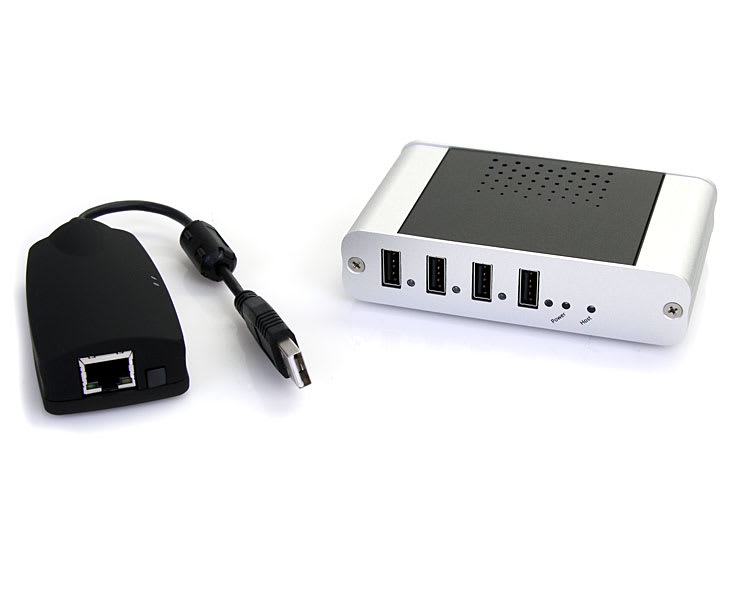

4 Port USB 2.0 Extender over CATx
Extend a USB 2.0 connection up to 330ft (100m) away using standard Ethernet cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 4 Port USB 2.0 Extender over CATx Product Number USB2004EXT UPC 065030838184 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Short) 4 Port USB Extender over Cat5 or Cat6 Product Title (Standard) 4 Port USB 2.0 Extender over Cat5 or Cat6 Product Title (Long) 4 Port USB 2.0 Extender over Cat5 or Cat6 - Up to 330 ft (100m) Title Ingram (Part 1) 4 Port USB 2.0 Extender over Cat Title Ingram (Part 2) 5 or Cat6 Up to 300ft (100m) Website Product Headline Extend a USB 2.0 connection up to 330ft (100m) away using standard Ethernet cable Bullet 1 Compact and lightweight design Bullet 2 Data transfer rates up to 480 Mbps (USB 2.0 High-Speed); backwards compatible with USB 1.1 full speed (12 Mbps) and USB 1.0 low speed (1.5 Mbps) Bullet 3 Extends the range of one USB device up to 100 meters (330 ft) using standard UTP category 5, 5e, or 6 cabling Bullet 4 No drivers or software required; OS independent Bullet 5 USB powered on the local side, power adapter provided for the remote Marketing Copy Applications - Extend the distance of existing USB devices up to 100 meters (330 ft) with standard category 5, 5e, and 6 UTP cables
- Ideal for use with remote digital recorders, security/ surveillance/ monitoring equipment, POS devices, printers, scanners and most other USB devices
- Interactive terminals or remote kiosks
- Remote Industrial/ Lab equipment control
Website Search Keyword - 100 Meter
- 330 feet
- Extension Cable
- Full Speed
- High Speed
- Low Speed
- USB 1.0
- USB 1.1
- USB 2.0
- USB Extender
- USB Extension
Accessory Products - M45PATCH100B
- M45PATCH25BL
- M45PATCH30BL
- M45PATCH35BL
- M45PATCH50BL
- M45PATCH75BL
- PCI220USB
- PCI330USB2
- PCI420USB
- PEX400USB2
- ST4200USBM
- ST4202USB
- ST7202USB
Related Products - USB100EXT
- USB110EXT
- USB120EXT
- USB201EXT
- USB204EXT
- USB204EXTFIB
- USB221EXT
- USB2001EXT
Replacement Product USB2004EXT2 Equivalent Part Number in the UK USB2004EXTGB Input Voltage 115V AC Output Current 3A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type C Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Aluminum and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 110 Product Width (mm) 69 Product Height (mm) 28 Product Weight (g) 200 Storage Temperature -5°C to 60°C (23°F to 140°F) TAA Compliant No Max Distance 100m [328ft] Maximum Data Transfer Rate 480 Mbps USB 2.0 High Speed (Backwards compatible with Full and Low speed devices, 12/1.5 Mbps) LED Indicators - 1 - Blue - Power
- 4 - Green - Activity
- 2 - Green/Yellow - Cat5 Connectivity/Activity
- 1 - Green - Host Connectivity

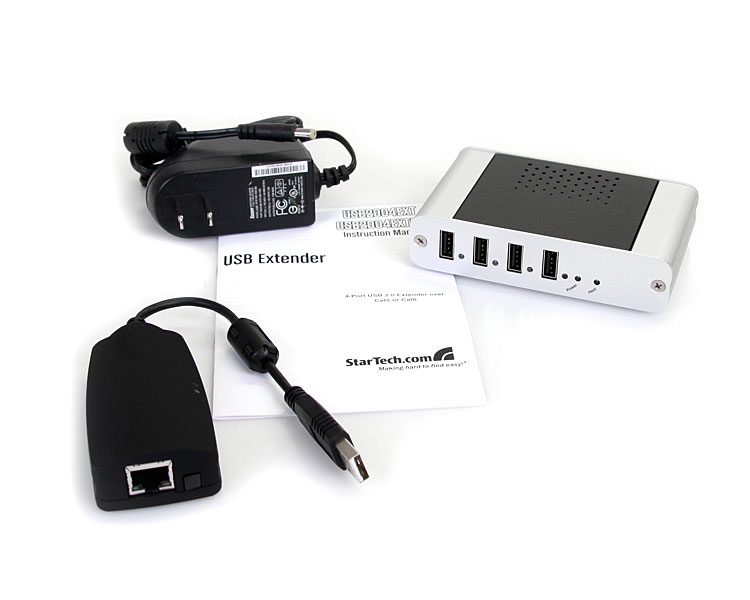

Carton Depth (mm) 508 Carton Height (mm) 508 Carton Quantity 40 Carton Weight Gross (g) 17215 Included in Package - 1 - Installation Guide
- 1 - Local USB 2.0 Extender
- 1 - Power Adapter
- 1 - 4 Port Remote USB 2.0 Receiver
Package Depth (mm) 177.8 Package Height (mm) 63.5 Package Width (mm) 241.3 Package Weight (g) 590 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
