USB2004EXT100

4 Port 100M USB 2 0 Extender over CAT5e

USB Extender Over CAT5e/CAT6/CAT7 | Rugged Enclosure | 2-Year Warranty

Main Image

Product Images

Product Images

Product Images

Product Images

Product Images

BOM Image

Quick-Start Guide

Video Link YouTube

Product Name	4 Port 100M USB 2 0 Extender over CAT5e
Product Number	USB2004EXT100
UPC	065030892971
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Extenders > USB Extenders
Category Level 1	Computer Cards and Adapters
Category Level 2	USB Cards and Extenders
Category Level 3	USB Extenders - USB 2.0
Family	USB Extenders - USB 2.0 - over Cat
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX066X

Quick-Start Guide https://images.salsify.com/image/upload/s--zUDO1qyE--/585cab9af31763c62e2c8baad56921a18eaba47b.pdf

Product Title (Ultra-Short)	USB 2.0 Extender Hub
Product Title (Short)	4-Port USB 2.0 Extender Hub over CAT5/6
Product Title (Medium)	4-Port USB 2.0 Extender Hub over Single CAT5e/CAT6 Ethernet Cable (RJ45) - 330ft
Product Title (Standard)	4 Port USB 2.0 Extender Hub over CAT5e/CAT6 Ethernet Cable (RJ45), 330ft/100m, Metal Housing, USB Extender Kit, 480 Mbps, TAA
Product Title (Long)	4-Port USB 2.0 Extender Hub over Single CAT5e/CAT6 Ethernet Cable (RJ45) - 330ft (100m) - USB Extender Hub Adapter Kit - Metal Housing - Externally Powered - 480 Mbps - TAA
Product Title (AMZ)	4-Port USB 2.0 Extender Hub over Single CAT5e/CAT6 Ethernet Cable (RJ45) - 330ft (100m) - USB Extender Hub Adapter Kit - Metal Housing - Externally Powered - 480 Mbps , TAA
Title Ingram (Part 1)	4-Port USB 2.0 Extender Hub
Title Ingram (Part 2)	CAT5e/CAT6 Ethernet Cable - 100m
Website Product Headline	USB Extender Over CAT5e/CAT6/CAT7 \| Rugged Enclosure \| 2-Year Warranty
Bullet 1	RELIABLE LONG-RANGE PERFORMANCE: Offers extension of 4x USB 2.0 devices up to 330ft (100 meters) over CAT5e/CAT6 RJ45 ethernet network cable with speeds up to 480Mbps; LEDs monitor Power & Link Status
Bullet 2	ROBUST CONSTRUCTION: Featuring an extruded aluminum & metal housing this USB 2.0 extender is ideal for high wear-and-tear, commercial settings; Remotely access USB printers, cameras, plotters, keyboard/mouse, displays & CCTV systems
Bullet 3	ACTIVE USB EXTENDER KIT: With the included power adapter, the receiver hub at remote end shares 10W of total power providing up to 5V, 500mA/2.5W of power per port, while the local transmitter is powered by the PC USB port
Bullet 4	PLUG-AND-PLAY: The extender features driverless installation and is compatible with all major operating systems including Windows, macOS, Linux; Backwards Compatible with USB 1.1 and USB 1.0 devices
Bullet 5	STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 4 Port USB extender hub is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Bullets (Compact)	4 Port USB 2.0 extender kit connects 4 remote USB devices up to 330ft over CAT5e/CAT6 cable - Extruded aluminum/metal commercial USB extender - Incl. power adapter for remote hub providing 500mA/port; transmitter is bus powered - Windows macOS Linux
Bullets (Consolidated)	4 Port USB 2.0 extender kit connects 4 USB devices up to 330ft (100 meters) over CAT5e/CAT6 ethernet cable (RJ45) with data transfer rates up to 480Mbps - USB Extender with durable extruded aluminum and metal housing ideal for commercial applications - Incl. power adapter for remote hub providing 5V/500mA per port \| Transmitter is bus powered by PC USB port - Driverless install Windows/macOS/Linux - Remotely access USB cameras/3D printers/plotters/keyboard/mouse - 2-Year StarTech.com warranty
Marketing Copy
Applications	Perfect for environments where the host computer is in an inaccessible location No need to run new wiring, you can extend USB connections between rooms using existing direct, in-wall Cat5e, Cat6, or Cat7 cable Use as a mid-point repeater to increase the connection distance of your USB peripheral and to reduce cable clutter
Website Search Keyword	100m usb extender 4 port usb extender 4 port usb extension cat5 extender usb ethernet usb extender keyboard and mouse extender over cat5 multi usb extender multi usb extension powered usb extender powered usb over ethernet usb 2 extender usb 2.0 cat 5 extender usb 2.0 cat5 extender USB 2.0 Ethernet extender usb 2.0 extender usb 2.0 extender over cat5 usb 2.0 extender over cat6 usb 2.0 extender rj45 usb 2.0 over cat5 usb 2.0 over cat5 6 extenders USB 2.0 over Cat5 extender usb 2.0 over cat6 usb 2.0 over ethernet USB 2.0 to Cat5 extender usb 4 port extender usb balun usb cat 5 extender usb cat5 adapter usb cat5 extender usb cat5e extender usb cat6 extender usb cat6 extender 2.0 USB Ethernet extender usb extender usb extender 100 meters usb extender by cat5e usb extender cat5 powered usb extender hub usb extender kit usb extender over cat5 usb extender over cat5e or cat6 usb extender over cat6 usb extender over ethernet usb extender rj45 usb extension 4 port USB hub extender usb over cat usb over cat 5 extender usb over Cat5 USB over Cat5 extender usb over cat5e usb over cat5e extender usb over cat6 usb over cat6 extender usb over ethernet usb over ethernet cable usb over ethernet extender usb over ethernet hub usb over ethernet rj45 extender adapter cat5 cat6 usb over internet usb over network hub usb over utp usb to cat5 adapter usb to cat5e converter usb to cat5e extender usb to ethernet extender usb utp extender

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

Accessory Products	WIRRJ45BLRL WIR5ECMRBK WIRC5ECMR WIR5ECMPBL WIR5ECMRWH WIRC5ECMRGRY WIR5ECMPHBL WIRC6CMPBLU WIRC6CMPBLK WIR6CMRBK WIR6CMRBL WIRC6CMPGRY WIRC6PATBLRL WIRC6PATBKRL WIRC6PATGNRL WIRC6PATWHRL WIRC6PATGRRL N6PATCH125BK N6PATCH125BL N6PATCH125GR N6PATCH125GN N6PATCH125OR N6PATCH125PL N6PATCH125RD N6PATCH125WH N6PATCH125YL
Related Products	USB3004EXT2 USB2G4LEXT2 USB2004EXTV USB2002EXT2NA USB2001EXT2PNA USB110EXT2

Input Voltage 110V-240V AC
Output Current 2 A
Output Voltage (V) 5 DC
Power Consumption (In Watts) 10
Power Source AC Adapter Included
Plug Type USB Mini-B (5 pin)

Color	Black
Humidity	0~80% RH
Material	Aluminum
Operating Temperature	0°C to 40°C (32°F to 104°F)
Product Length (mm)	100.000
Product Width (mm)	60.000
Product Height (mm)	22.000
Product Weight (g)	143.000
Storage Temperature	-10°C to 60°C (14°F to 140°F)
TAA Compliant	Yes

Maximum Cable Length (mm) 100000
Maximum Data Transfer Rate 480 Mbps
MTBF (hours) 151,126 hours
OS Compatibility OS Independent
Cabling Cat 5e UTP or better
Chipset ID Valens - VA6000
LED Indicators
1 - Status (Local)
1 - Status (Remote)

Carton Depth (mm)	410
Carton Height (mm)	275
Carton Quantity	12
Carton Weight Gross (g)	8600

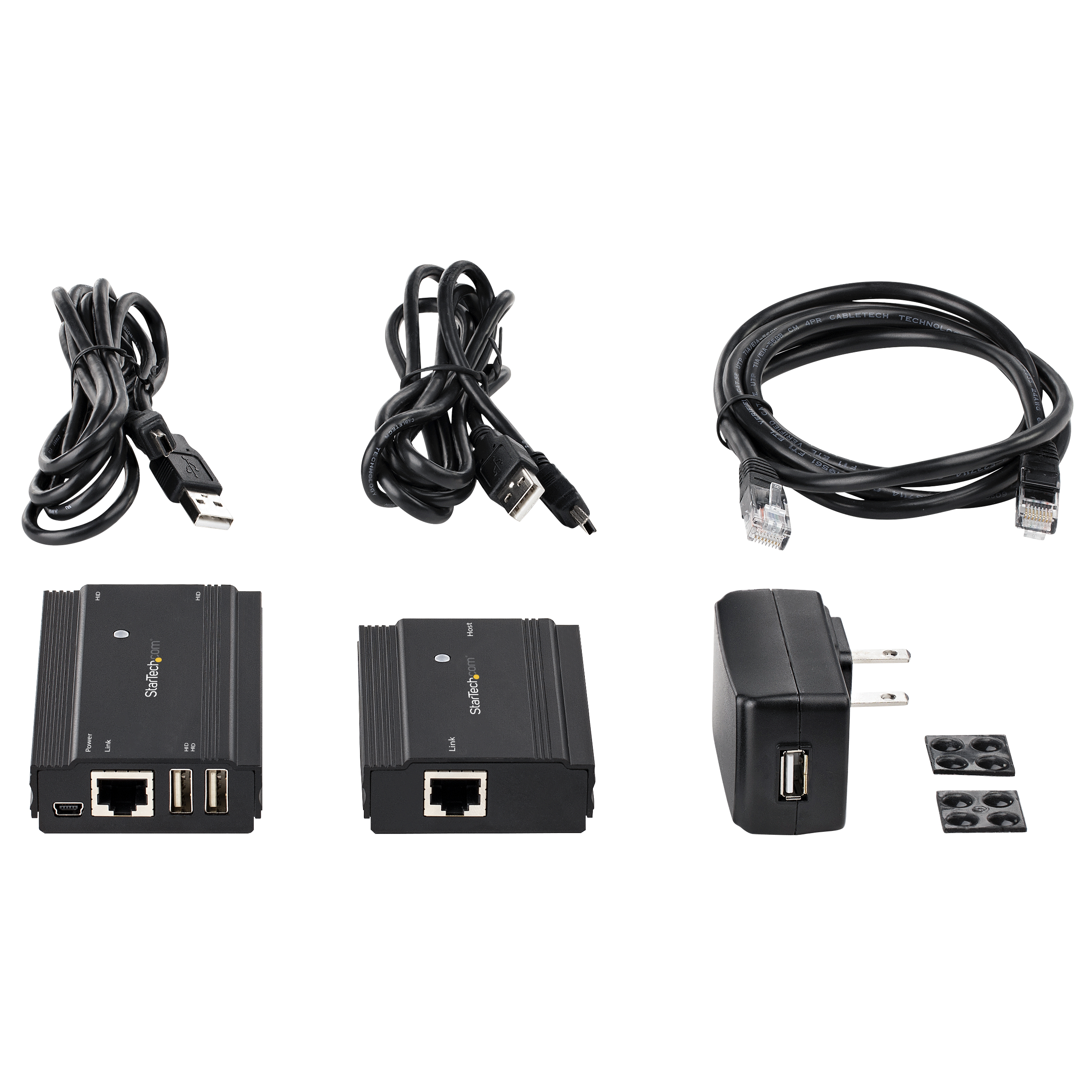

Included in Package	1 - Local Transmitter 1 - Remote Receiver 2 - 5 ft [1.5 m] USB-A to Mini-B Cables 1 - 5 ft [1.5 m] CAT5 Cable 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ) 1 - USB Power Cable 2 - Sets of Rubber Feet (x4) 1 - Quick-Start Guide
Package Depth (mm)	235
Package Height (mm)	65
Package Width (mm)	153
Package Quantity	1
Package Weight (g)	716
Packaging Description	4 Port USB 2.0 Extender over Cat5e/Cat6
Packaging Description India	4 Port USB 2.0 Extender over Cat5e/Cat6
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

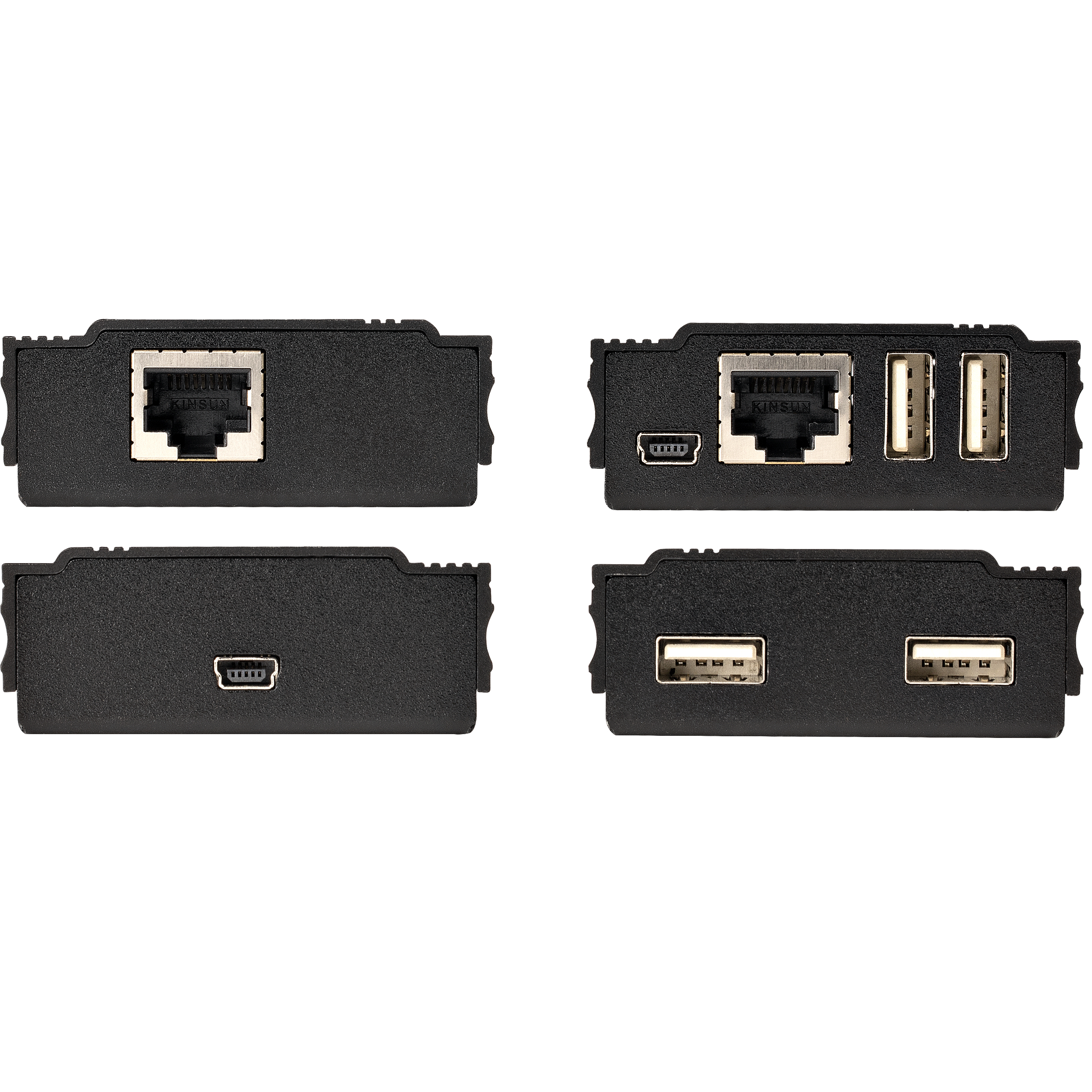

Connector 1	USB-A (480Mbps, 2.5W)
Connector 1 (Quantity)	4
Connector 2	RJ-45
Connector 2 (Quantity)	1
Connector 3	USB Mini-B (480Mbps, 2.5W)
Connector 3 (Quantity)	1
Host Connector 1	USB Mini-B (480Mbps, 2.5W)
Host Connector 1 (Quantity)	1
Host Connector 2	RJ-45
Host Connector 2 (Quantity)	1

Actual Inbox Documents Created	QSG in the box
Amazon Merchandising Manager	Veronica Ye
Artwork Due Date	2021-01-28
Buying Center - AV & Collaboration	Yes
Buying Center - Data Center	No
Buying Center - End User Compute	No
Buying Center - Networking & Edge	Yes
Comparable SKU Comment	Industrial version, obsolete and replaced by NA only version (USB2004EXT2NA)
Comparable SKU 2 Comment	Industrial version (NA only)
Digital Content Due Date	2021-05-19
Enhanced Gallery Designer	Catherine Almeida
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
ID Label Silkscreened or a Label	Silkscreened label - requires dieline showing location
Launch Markets (concatenated)	AT,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IT,NL,PE,SE,UK,US
Primary Technology	None
Product Development Specialist	Scott Dunlop
Product Information Creation Specialist (PICS)	Alex Garcia
Product Manager	Natalie Goodale
Product Performance Specialist	Aaron Bens
Product Photographer	Alejandra Valencia
Target Development Completion Date	2021-01-11
Target Production Release	2021-02-04
Tech Lead	Brian Linseman
Technical Writer	Alex Garcia
Technology Lifecycle	None

Input Voltage	110V-240V AC
Output Current	2 A
Output Voltage (V)	5 DC
Power Consumption (In Watts)	10
Power Source	AC Adapter Included
Plug Type	USB Mini-B (5 pin)

Maximum Cable Length (mm)	100000
Maximum Data Transfer Rate	480 Mbps
MTBF (hours)	151,126 hours
OS Compatibility	OS Independent

Cabling	Cat 5e UTP or better
Chipset ID	Valens - VA6000
LED Indicators	1 - Status (Local) 1 - Status (Remote)
