4 Port USB 2 0 Extender over Cat5 or Cat6 Up to 330 ft 10

Main Image

USB2004EXT2NA

4 Port USB 2 0 Extender over Cat5 or Cat6 Up to 330 ft 10

USB Extender Over CAT5e/CAT6/CAT7 | Rugged Enclosure | ESD Protection | 2-Year Warranty

Main Image

Product Images

Product Images

Product Images

BOM Image

Quick-Start Guide

Video Link YouTube

Product Name	4 Port USB 2 0 Extender over Cat5 or Cat6 Up to 330 ft 10
Product Number	USB2004EXT2NA
UPC	065030889681
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Extenders > USB Extenders
Category Level 1	Computer Cards and Adapters
Category Level 2	USB Cards and Extenders
Category Level 3	USB Extenders - USB 2.0
Family	USB Extenders - USB 2.0 - over Cat
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	XXXXXX040X

Quick-Start Guide	https://images.salsify.com/image/upload/s--YkJHPuTe--/dafef453663a73c1b676eb67f8efe48d7d487828.pdf
Diagram	https://images.salsify.com/image/upload/s--PSPYCC7y--/69ed1ac179c8e8e5fec60ef84b951e7324516097.pdf

Product Title (Ultra-Short)	4 Port USB2.0 Extend
Product Title (Short)	4 Port USB 2.0 Extender Hub over Cat5e/6
Product Title (Medium)	4 Port USB 2.0 Extender over Ethernet - up to 330 ft. (100m) - Rugged Enclosure
Product Title (Standard)	4 Port USB 2.0 Extender Hub over Cat5e or Cat6 Ethernet Cable - 330ft/100m Metal USB 2.0 Extender Kit - ESD, Powered, 480mbps
Product Title (Long)	4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Externally Powered - 480 Mbps
Product Title (AMZ)	4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Externally Powered - 480 Mbps (USB2004EXT2NA)
Title Ingram (Part 1)	4 Port USB 2.0 Extender over
Title Ingram (Part 2)	Ethernet - up to 330 ft. (100 m)
Website Product Headline	USB Extender Over CAT5e/CAT6/CAT7 \| Rugged Enclosure \| ESD Protection \| 2-Year Warranty
Bullet 1	USB 2.0 EXTENDER: Connect 4 USB devices up to 330ft/100m over CAT5e/CAT6 RJ45 ethernet network cable w/speeds up to 480Mbps; LEDs monitor pwr, link & host status; New version/replacement of USB2004EXT2
Bullet 2	CONNECT REMOTE USB DEVICES: The USB extender creates a 4 port hub to remotely access USB devices like printers, cameras, plotters, keyboard/mouse, displays, & CCTV systems at a convenient location
Bullet 3	INDUSTRIAL USB EXTENDER: Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection
Bullet 4	POWERED USB EXTENDER KIT: With the included power adapter, the receiver hub at remote end provides 5V, 500mA of power per port, while the local transmitter is powered by the PC USB port
Bullet 5	PLUG-AND-PLAY: The extender features driverless installation & is compatible w/ major operating systems incl. Windows, macOS, Linux; Backwards Compatible with USB 1.0 and USB 1.1 devices
Bullets (Compact)	USB 2.0 extender kit connects 4 remote USB devices up to 330ft over CAT5e/CAT6 ethernet cable 480Mbps - Industrial metal hub w/ 8kV/16kV Contact/Air ESD protection - Mounting Brackets - Powered 5VDC 500mA per port w/incl adapter - Windows macOS Linux
Bullets (Consolidated)	4 Port USB 2.0 extender 4 USB devices up to 330ft/100m over CAT5e/CAT6 ethernet cable (RJ45) \| Newer version/latest model of USB2004EXT2 - Industrial USB Extender w/ 8kV/16kV Contact/Air ESD protection - Durable aluminum w/mounting brackets incl. - Incl. power adapter provides 5V/500mA per port at the remote hub; transmitter is powered by PC USB port - Driverless installation on Windows/macOS/Linux, compatible w/ USB 1.0 - Remotely access USB cameras/3D printers/plotters/keyboards/mouse
Marketing Copy
Applications	Perfect for environments where the host computer is in an inaccessible location No need to run new wiring, you can extend USB connections between rooms using existing direct, in-wall Cat5, Cat6, or Cat7 cable Use as a mid-point repeater to increase the connection distance of your USB peripheral and to reduce cable clutter
Website Search Keyword	100m usb extender usb extender over cat5 usb to cat5e converter usb extender over cat6 usb over ethernet hub usb over LAN extender usb over network B203-104-IND-ER

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

System and Cable Requirements USB enabled computer system with available USB port

Accessory Products	USB2HAB1 USB2HAB3 USB2HAB6 USB2HAB10 USB2HAB15 USB3SEXT6BK USB3SEXT1MBK USB3SEXT2MBK N6PATCH6BL N6PATCH10BL N6PATCH15BL N6PATCH20BL N6PATCH25BL N6PATCH30BL N6PATCH35BL N6PATCH50BL N6PATCH75BL N6PATCH100BL N6PATCH125BL N6PATCH150BL
Related Products	USB2001EXT2NA USB2002EXT2NA USB2001EXT2PNA USB2G4LEXT2NA
Constrained SKU Alternatives (Limited Stock)	USB2004EXT100 C10043-USB-EXTENDER

Input Current 0.58 A
Input Voltage 100 - 240 AC
Output Current 1 A
Output Voltage (V) 24 DC
Power Consumption (In Watts) 15
Power Source AC Adapter Included
Plug Type M
Center Tip Polarity Positive

Color	Black
Humidity	10~90% RH
Material	Aluminum and Plastic
Operating Temperature	0°C to 50°C (32°F to 122°F)
Primary Material	Aluminum
Product Length (mm)	100.000
Product Width (mm)	76
Product Height (mm)	26
Product Weight (g)	190
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
TAA Compliant	No

Maximum Cable Length (mm) 100000
Maximum Data Transfer Rate 480 Mbps
OS Compatibility OS Independent
Cabling Cat 5 UTP

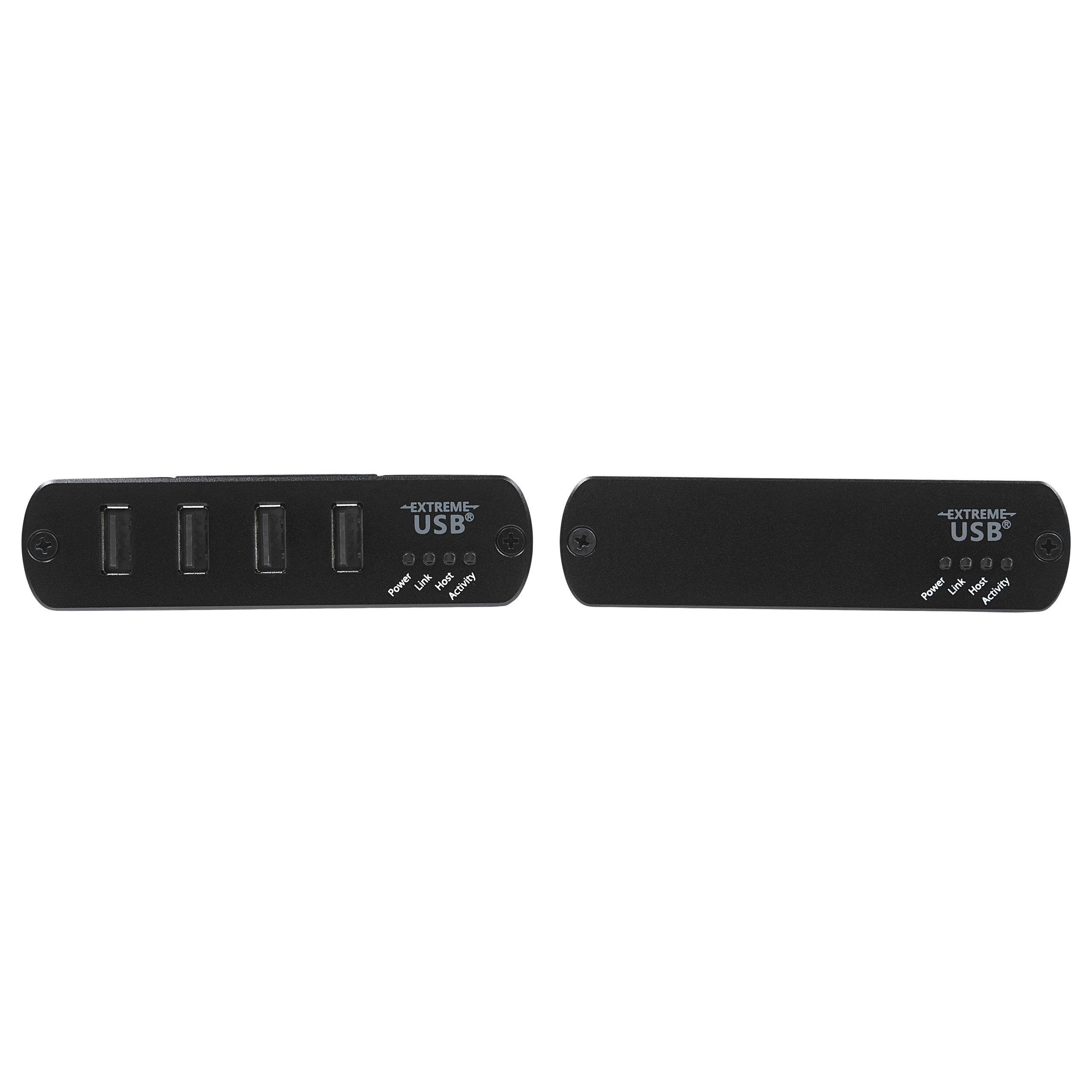

LED Indicators
1 - Link
1 - Host Connection
1 - Activity
1 - Power
4 - USB Link

Carton Depth (mm)	580
Carton Height (mm)	279
Carton Quantity	12
Carton Weight Gross (g)	14758

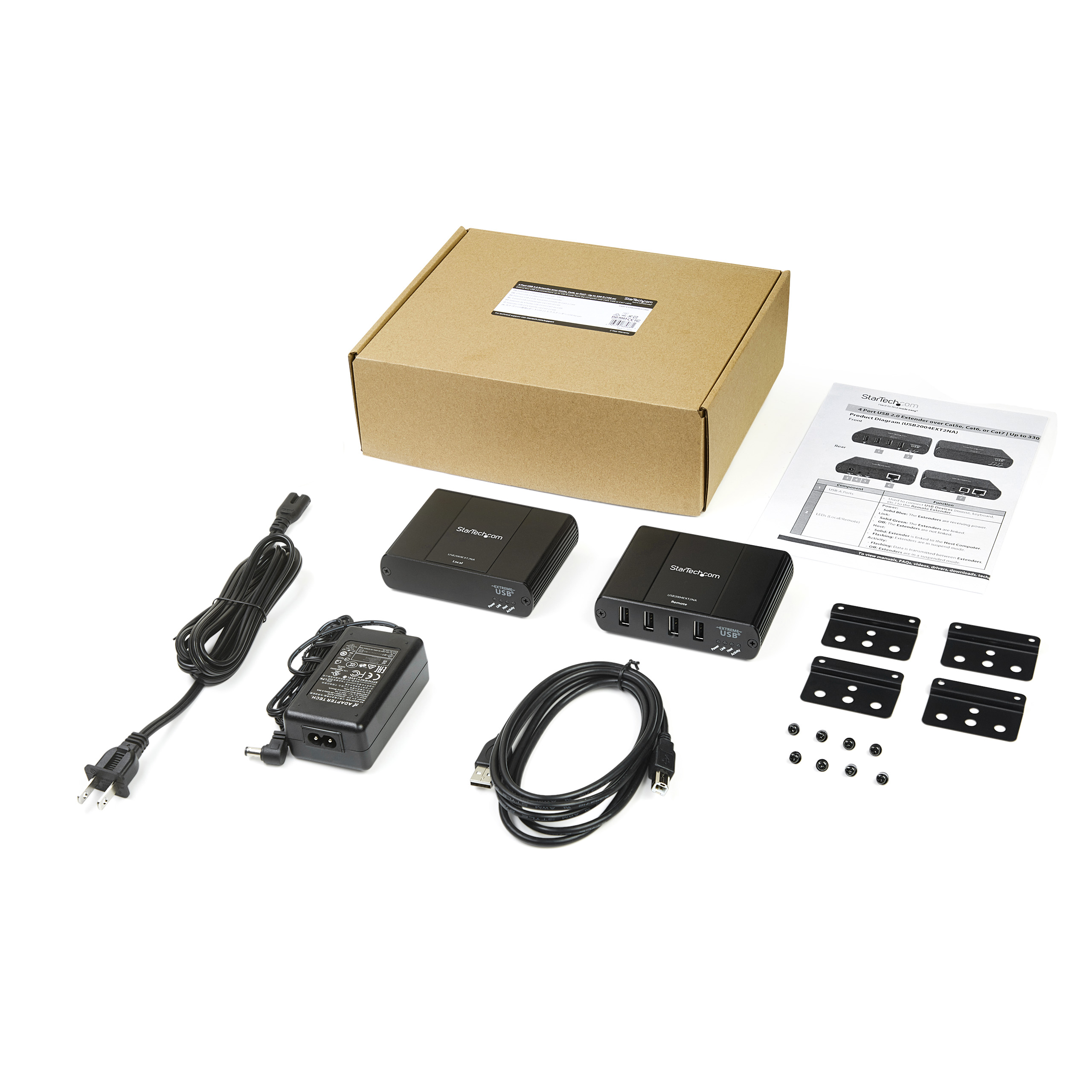

Included in Package	1 - Local Unit 1 - Remote Unit 1 - Mounting Bracket 1 - 5.75 ft [175 cm] USB 2.0 Cable 1 - Universal Power Adapter with 5.6 ft [170 cm] Cable 1 - 6 ft [180 cm] North America Power Cord 1 - Quick Start Guide
Package Depth (mm)	242
Package Height (mm)	79
Package Width (mm)	199
Package Quantity	1
Package Weight (g)	942
Packaging Description	4 Port USB 2.0 Extender over Cat5/Cat6
Packaging Description India	4 Port USB 2.0 Extender over Cat5/Cat6
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

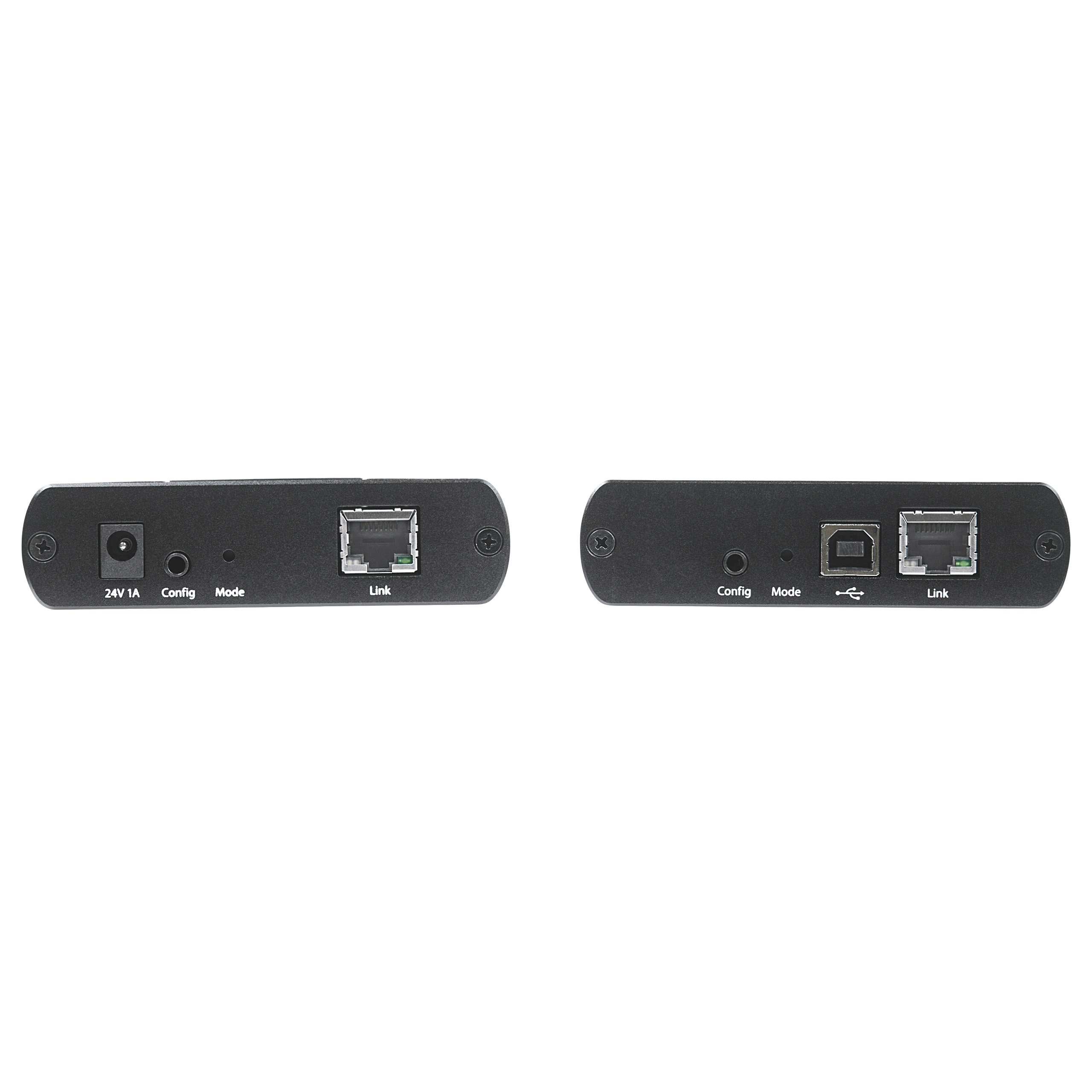

Connector 1	USB-A (480Mbps, 2.5W)
Connector 1 (Quantity)	4
Connector 2	RJ-45
Connector 2 (Quantity)	1
Host Connector 1	USB-B (480Mbps, 2.5W)
Host Connector 1 (Quantity)	1
Host Connector 2	RJ-45
Host Connector 2 (Quantity)	1

Amazon Merchandising Manager	Veronica Ye
Artwork Due Date	2020-01-02
Buying Center - AV & Collaboration	Yes
Buying Center - Data Center	No
Buying Center - End User Compute	No
Buying Center - Networking & Edge	Yes
Digital Content Due Date	2020-01-16
Enhanced Gallery Designer	Catherine Almeida
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
ID Label Silkscreened or a Label	Silkscreened label - requires dieline showing location
Launch Markets (concatenated)	CA,US
Primary Technology	None
Priority New Product	N/A
Product Development Specialist	Scott Dunlop
Product Information Creation Specialist (PICS)	Alex Garcia
Product Manager	Natalie Goodale
Product Performance Specialist	Aaron Bens
Product Photographer	Alejandra Valencia
Target Development Completion Date	2019-12-11
Target Production Release	2020-01-02
Tech Lead	Brian Linseman
Technical Writer	Alex Garcia
Technology Lifecycle	None

Input Current	0.58 A
Input Voltage	100 - 240 AC
Output Current	1 A
Output Voltage (V)	24 DC
Power Consumption (In Watts)	15
Power Source	AC Adapter Included
Plug Type	M
Center Tip Polarity	Positive

Maximum Cable Length (mm)	100000
Maximum Data Transfer Rate	480 Mbps
OS Compatibility	OS Independent

Cabling	Cat 5 UTP
LED Indicators	1 - Link 1 - Host Connection 1 - Activity 1 - Power 4 - USB Link
