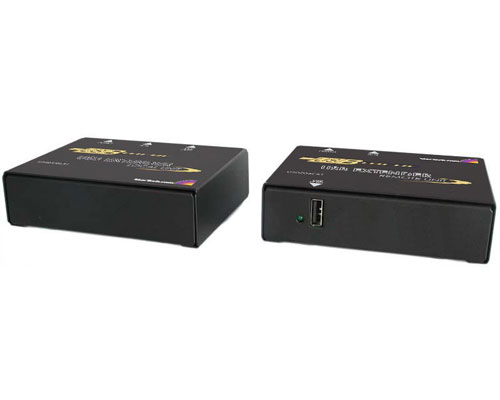

USB201EXT
Main Image
Product Name USB-IF Compliant Cat 5 Extender 1 - 100M Product Number USB201EXT UPC 065030801713 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Long) USBthere - 1 Port 330 Foot (100 Meter) Powered USB Extender Bullet 1 Extends the range of one USB device up to 330 feet (100 meters) using standard Cat 5e Ethernet cables Bullet 2 Compliant with USB 1.1 specifications Bullet 3 Data transfer rates of up to 12 Mbits/sec Bullet 4 Easy installation and set up with no software required Bullet 5 Comes complete with a 6 foot USB cable and an external power adapter Marketing Copy Applications Ideal for use with remote digital recorders, security and surveillance equipment, POS devices, printers, scanners as well as any other USB peripheral Accessory Products - M45PATCH100B
- M45PATCH75BL
- M45PATCH50BL
- M45PATCH100K
- M45PATCH75BK
- M45PATCH50BK
- USBFAB6T
- USBFAB10T
- USBFAB15T
- ST4200USB
- ST4100USB
Related Products - USB204EXT
- USB204EXTFIB
Color Black Material Steel Operating Temperature 4 to 40 °C Product Length (mm) 107 Product Width (mm) 84 Product Height (mm) 34 Product Weight (g) 300 TAA Compliant No General Specifications - Extension Distance: 330 ft (100 m)
- Dimensions: 4.2 x 3.3 x 1.3 Inches (107 x 84 x 34 mm)
- Weight: 1.2 lbs (0.6 kg)
- Total Shipping Weight: 2.4 lbs (0.8 kg)
- Data Transfer Rate: Up to 12 Mbits/sec
- Maximum power available to USB at the Remote Unit: 500 mA
- USB Hub Support: Up to 4 hubs connected to the local unit
- Input Voltage: 15V DC
- USB Compatibility: Supports USB 1.0 and USB 1.1 devices (multi-speed)
Max Distance 100m [328ft] Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 12000000 Mbits/Sec Cabling Cat 5 UTP Industry Standards USB 1.1 LED Indicators - 1 - Power
- 1 - Host
- 1 - Link
Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - Local Extender unit
- 1 - Remote Extender unit
- 1 - 6 ft USB Cable
- 1 - 15V DC (1A) Power Adapter
- 1 - User’s Guide
Package Depth (mm) 254 Package Height (mm) 160 Package Width (mm) 160 Package Weight (g) 1070 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Carey Cline
