USB204EXT
Main Image
Product Images
Product Images
Product Images
Product Images

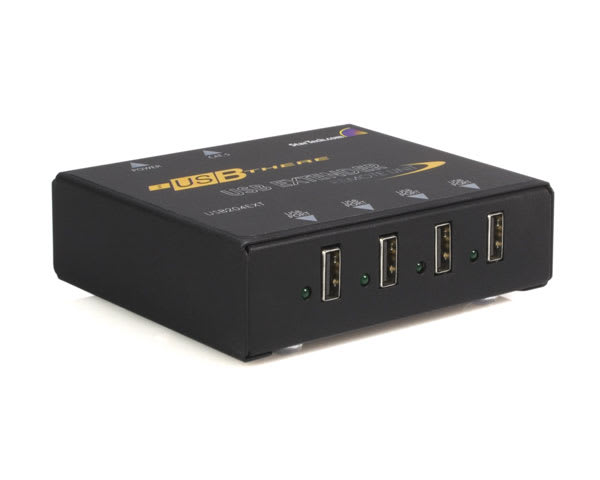

Product Name USB-IF Compliant Cat 5 Extender 1-4 100M Product Number USB204EXT UPC 065030801737 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Short) 4 Port USB 1.1 over Cat 5 Extender Product Title (Standard) StarTech.com 4 Port Bus Powered USB 1.1 over Cat 5 Extender - 165 ft / 50 m - USB Extender - USB extender - RJ-45, 4 pin USB Type B - 4 pin USB Type A, RJ-45 - external - up to 100 m Product Title (Long) 4 Port Bus Powered USB 1.1 over Cat 5 Extender - 165 ft / 50 m Title Ingram (Part 1) 4 Port Bus Powered USB 1.1 over Title Ingram (Part 2) Cat 5 Extender 165 ft / 50 m Bullet 1 Extends the range of one USB device up to 100 meters using ethernet cables Bullet 2 Uses standard Cat 5e UTP Ethernet cables Bullet 3 Compliant with USB 1.1 specifications Bullet 4 Data transfer rate of up to 12 Mbits/sec Bullet 5 Allows you to connect multiple USB devices by cascading up to 4 USB hubs Marketing Copy Applications - Ideal for use with remote digital recorders, security/surveillance/monitoring equipment, POS devices, printers, scanners and most other USB devices
- Allows users to extend the distance of existing USB devices up to 100 meters by using Cat 5 UTP cables
Accessory Products - M45PATCH100B
- M45PATCH75BL
- M45PATCH50BL
- M45PATCH100K
- M45PATCH75BK
- M45PATCH50BK
- USBFAB6T
- USBFAB10T
- USBFAB15T
- ST4100USB
- ST4200USB
Related Products - USB201EXT
- USB204EXTFIB
Replacement Product USB2004EXT2 Power Source AC Adapter Included Color Black Material Steel Product Length (mm) 107 Product Width (mm) 84 Product Height (mm) 34 Product Weight (g) 300 TAA Compliant No General Specifications - Distance: 330 ft (100 m)
- Data Transfer Rate: Up to 12 Mbits/sec
- Standards: USB 1.1
- Connectors:
- Local Unit Connectors:
- : Upstream: 1 x 4 pin USB (Type B)
- : Downstream: 1 x RJ-45
- Remote Unit Connectors:
- : Upstream: 1 x RJ-45
- : Downstream: 4 x 6 pin USB (Type A)
- OS compatibility: 98SE/2000/ME & XP
- USB hub support: up to 4 hubs
- Dimensions:
- : Width: 4.2 Inches (107 mm)
- : Depth: 3.3 Inches (84 mm)
- : Height: 1.3 Inches (34 mm)
- Weight: 0.6 lb (300 grams)
- Safety Standards: FCC & CE

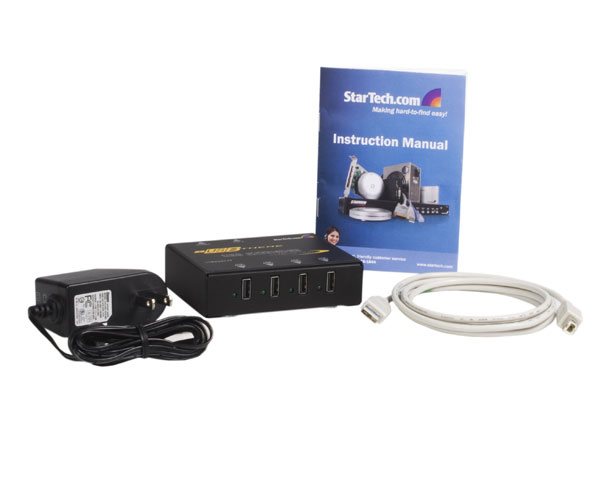

- Package Contents:
- : 1 x Local Extender unit
- : 1 x Remote Extender unit
- : 1 x 6 ft USB Cable
- : 1 x Power Adapter
- : 1 x User’s Guide
Max Distance 100m [328ft] Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 12000000 Mbits/Sec Cabling Cat 5 UTP Industry Standards USB 1.1 Carton Depth (mm) 540 Carton Height (mm) 520 Carton Quantity 30 Carton Weight Gross (g) 33000 Included in Package - 1 - Local Extender unit
- 1 - Remote Extender unit
- 1 - 6 ft USB Cable
- 1 - 15V DC (1A) Power Adapter
- 1 - User’s Guide
Package Depth (mm) 252 Package Height (mm) 162 Package Width (mm) 162 Package Weight (g) 1060 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
