USB204EXTFGB
Main Image

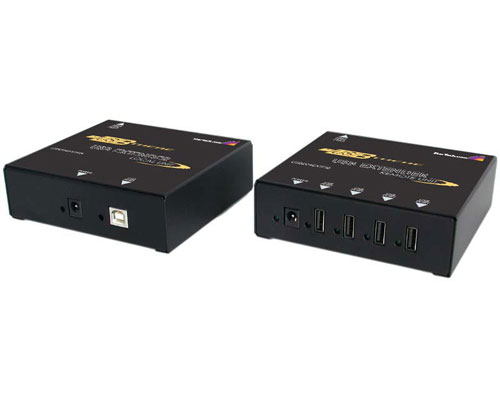

Product Name USBthere - 4 Port 500m USB Extender Using Fiber Optic Cable Product Number USB204EXTFGB UPC 065030809115 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) USBthere - 4 Port 500m USB Extender Using Fiber Optic Cable Bullet 1 Extends the range of USB devices up to 500 meters using fiber optic cables Bullet 2 Compliant with USB 1.1 specifications Bullet 3 Data transfer rates of up to 12 Mbits/sec Bullet 4 Allows you to connect multiple USB devices by cascading up to 4 USB hubs Bullet 5 Uses standard multimode fiber optic cables with MT-RJ connectors Marketing Copy Applications - Ideal for use with remote digital recorders, security/surveillance/monitoring equipment, POS devices, printers, scanners and most other USB devices
- Allows users to extend the distance of existing USB devices up to 500 meters by using Multimode Fiber Optic cables
Accessory Products - FIBLCMT10
- FIBLCMT7
- FIBLCMT15
- USBFAB_6
- USBFAB_10
- USBFAB_15
- USBFAB6T
- USBFAB10T
- USBFAB15T
- ST4200USB
- ST4100USB
Related Products - USB100EXT
- USB201EXT
- USB204EXT
TAA Compliant No General Specifications - Distance: 1,650 ft (500 m)
- Data Transfer Rate: Up to 12 Mbits/sec
- Standards: USB 1.1
- Connectors:
- Local Unit Connectors:
- : Upstream: 1 x 4 pin USB (Type B)
- : Downstream: 1 x MT-RJ
- Remote Unit Connectors:
- : Upstream: 1 x MT-RJ
- : Downstream: 4 x 6 pin USB (Type A)
- Power Adapter: 15V DC (1A)
- OS compatibility: 98SE/2000/ME & XP
- USB hub support: up to 4 hubs
- Dimensions:
- : Width: 4.5 Inches (114 mm)
- : Depth: 4.2 Inches (106 mm)
- : Height: 1.5 Inches (38 mm)
- Weight: 0.6 lb (300 grams)
- Safety Standards: FCC & CE
- Package Contents:
- : 1 x Local Extender unit
- : 1 x Remote Extender unit
- : 1 x 15V DC (1A) Power Adapter
- : 1 x 6 ft USB Cable
- : 1 x User’s Guide
Max Distance 500m [1640ft] Cabling Cat 5 UTP en-US Content Approved Yes
