Main Image
USB204EXTFIB
Main Image

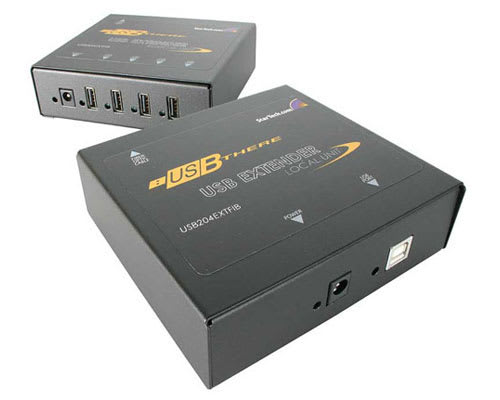

Product Name USB-IF Compliant Fiber Extender 1-4 500M Product Number USB204EXTFIB UPC 065030801928 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Long) USBthere - 4 Port 1640 Foot (500 Meter) Powered USB Extender Bullet 1 Extends the range of USB devices up to 500 meters using fiber optic cables Bullet 2 Compliant with USB 1.1 specifications Bullet 3 Data transfer rates of up to 12 Mbits/sec Bullet 4 Allows you to connect multiple USB devices by cascading up to 4 USB hubs Bullet 5 Uses standard multimode fiber optic cables with MT-RJ connectors Marketing Copy Applications - Ideal for use with remote digital recorders, security/surveillance/monitoring equipment, POS devices, printers, scanners and most other USB devices
- Allows users to extend the distance of existing USB devices up to 500 meters by using Multimode Fiber Optic cables
Accessory Products - FIBLCMT10
- FIBLCMT7
- FIBLCMT15
- USBFAB6T
- USBFAB10T
- USBFAB15T
- ST4200USB
- ST4100USB
Related Products - USB100EXT
- USB201EXT
- USB204EXT
Output Current 1A Output Voltage (V) 15V DC Color Black Material Steel Product Length (mm) 106 Product Width (mm) 114 Product Height (mm) 38 Product Weight (g) 300 TAA Compliant No General Specifications - Distance: 1,650 ft (500 m)
- Data Transfer Rate: Up to 12 Mbits/sec
- OS compatibility: 98SE/2000/ME & XP
- USB hub support: up to 4 hubs
- Package Contents:
- 1 x Local Extender unit
- 1 x Remote Extender unit
- 2 x 15V DC (1A) Power Adapter
- 1 x 6 ft USB Cable
- 1 x User’s Guide
Max Distance 500m [1640ft] Maximum Cable Length (mm) 500000 Maximum Data Transfer Rate 12 Mbps OS Compatibility - Windows 98SE
- Windows 2000
- Windows ME
- Windows XP
- Windows Vista
Cabling Cat 5 UTP Industry Standards USB 1.1 Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - Local Extender unit
- 1 - Remote Extender unit
- 1 - 15V DC (1A) Power Adapt
- 1 - 6 ft USB Cable
- 1 - User’s Guide
Package Depth (mm) 164 Package Height (mm) 162 Package Width (mm) 255 Package Weight (g) 1410 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 4 Connector 2 MT-RJ Fiber Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 MT-RJ Fiber Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
