Main Image
USB2100

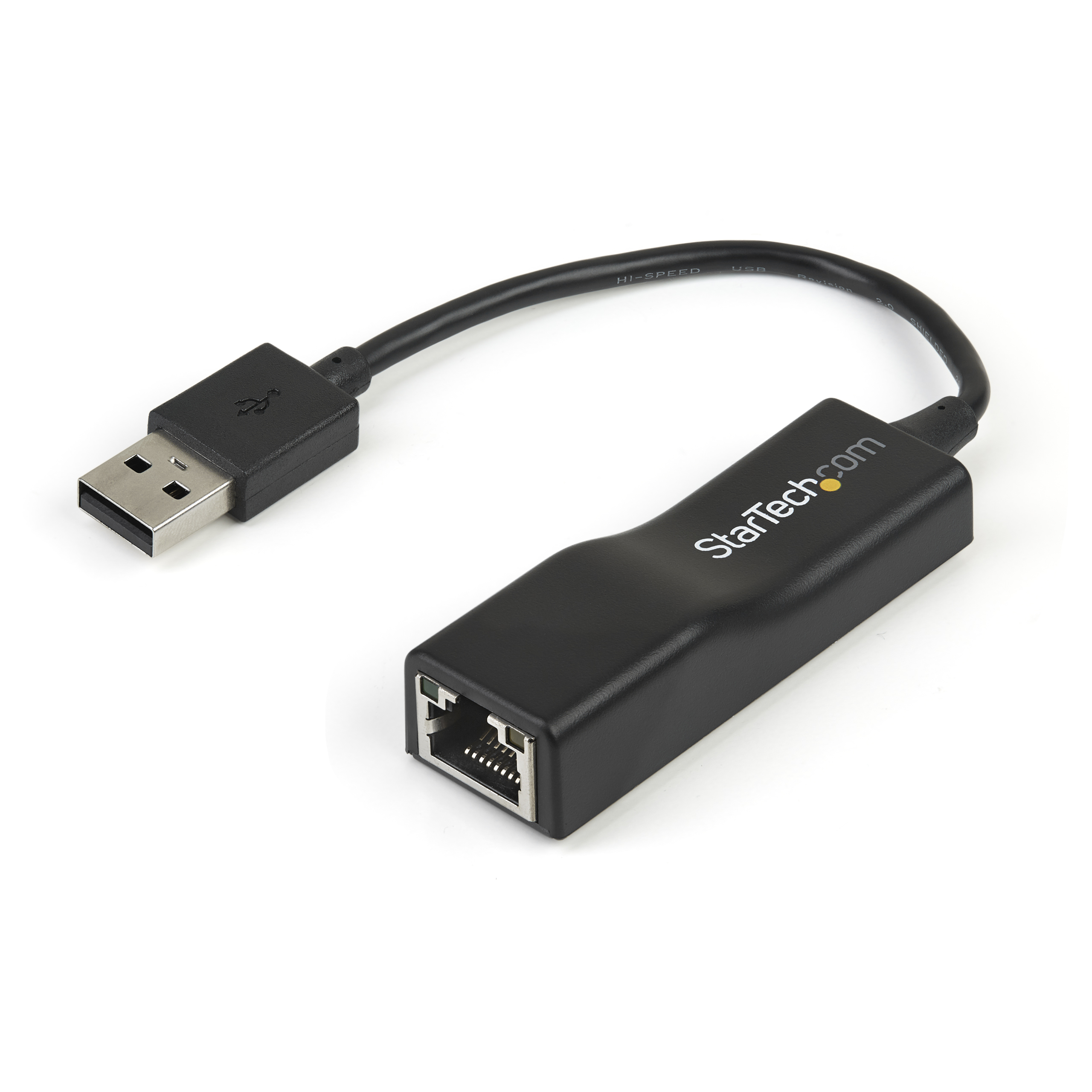

USB 2.0 to 10/100 Fast Ethernet Dongle
Add a 10/100Mbps Ethernet port to your laptop or desktop computer through USB
Main Image
Enhanced Images
Product Images
Product Images
Video Link YouTube
Product Name USB 2.0 to 10/100 Fast Ethernet Dongle Product Number USB2100 UPC 065030856645 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-A Ethernet Adapters Family Classic Connect Ethernet Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX179X Product Title (Ultra-Short) USB 10/100Mbps NIC Product Title (Short) USB 2.0 to 10/100 Mbps Network Adapter Product Title (Medium) USB 2.0 to 10/100 Mbps Ethernet Network Adapter Dongle Product Title (Standard) USB 2.0 to 10/100 Mbps Ethernet Network Adapter Dongle Product Title (Long) USB 2.0 to 10/100 Mbps Ethernet Network Adapter Dongle Product Title (AMZ) USB 2.0 to 10/100 Mbps Ethernet Network Adapter Dongle - USB Network Adapter - USB 2.0 Fast Ethernet Adapter - USB NIC (USB2100) Title Ingram (Part 1) USB 2.0 Fast Ethernet Network Title Ingram (Part 2) Adapter - 10/100Mbps USB NIC Website Product Headline Add a 10/100Mbps Ethernet port to your laptop or desktop computer through USB Bullet 1 IEEE 802.3i and 802.3u (10BASE-T, 100BASE-TX) compatible Bullet 2 10/100 Mbps Ethernet through USB 2.0 Bullet 3 Crossover Detection & Auto-Correction (Auto MDIX) Bullet 4 IEEE 802.1Q VLAN Tagging support Bullet 5 Dongle with integrated USB cable Bullets (Compact) Add a 10/100Mbps Ethernet port to your laptop or desktop computer through USB - USB 2.0 to 10/100 Mbps Ethernet Network Adapter Dongle - USB Network Adapter - USB 2.0 Fast Ethernet Adapter - USB NIC Bullets (Consolidated) Add a 10/100Mbps Ethernet port to your laptop or desktop computer through USB - USB 2.0 to 10/100 Mbps Ethernet Network Adapter Dongle - USB Network Adapter - USB 2.0 Fast Ethernet Adapter - USB NIC Marketing Copy Applications - Replacement for a failed onboard Ethernet port on a desktop or laptop
- Add a 10/100 Mbps Ethernet port to any desktop or laptop without opening the case
Website Search Keyword - USB Network Adapter
- USB NIC
- USB to Ethernet
- USB to RJ45
- USB 2.0 Network Adapter
- USB 2.0 NIC
- U236-000-R
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - Safety - Electrical - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Available USB port Related Products - USB31000SPTB
- USB31000SPTW
- USB31000NDS
- USB21000S2
Constrained SKU Alternatives (Limited Stock) USB31000S Power Source USB-Powered Cable Length (mm) 150 Color Black Humidity 10~90% RH Material Plastic Network Adapter Form Factor Attached Cable Operating Temperature 10°C to 40°C (50°F to 114°F) Primary Material Plastic Product Length (mm) 65.000 Product Width (mm) 20.000 Product Height (mm) 14.000 Product Weight (g) 23.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100 Mbps Full Duplex Support Yes Max Distance 100m [328ft] Maximum Data Transfer Rate 200 Mbps (Ethernet - Full-Duplex) MTBF (hours) 76,600 hours OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Chrome OS
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
USB Type and Rate USB 2.0 (480Mbps) Wake-On-LAN (WOL) Yes Bus Type USB 2.0 Chipset ID ASIX - AX88772C Industry Standards IEEE802.3i, IEEE 802.3u Interface/Bridge RJ45 (10/100 Ethernet) LED Indicators - 1 - Activity
- 1 - Link
Network Adapter Host USB 2.0 - USB-A Network Adapter LAN Ports 1 USB Pass-Through No Carton Depth (mm) 368 Carton Height (mm) 324 Carton Quantity 40 Carton Weight Gross (g) 6016 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB 2.0 Fast Ethernet Adapter
Package Depth (mm) 173 Package Height (mm) 33 Package Width (mm) 146 Package Quantity 1 Package Weight (g) 140 Packaging Description USB 2.0 to 10/100 Fast Ethernet Dongle Packaging Description India USB 2.0 to 10/100 Fast Ethernet Dongle Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-03-04 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
