Main Image
USB21000S2

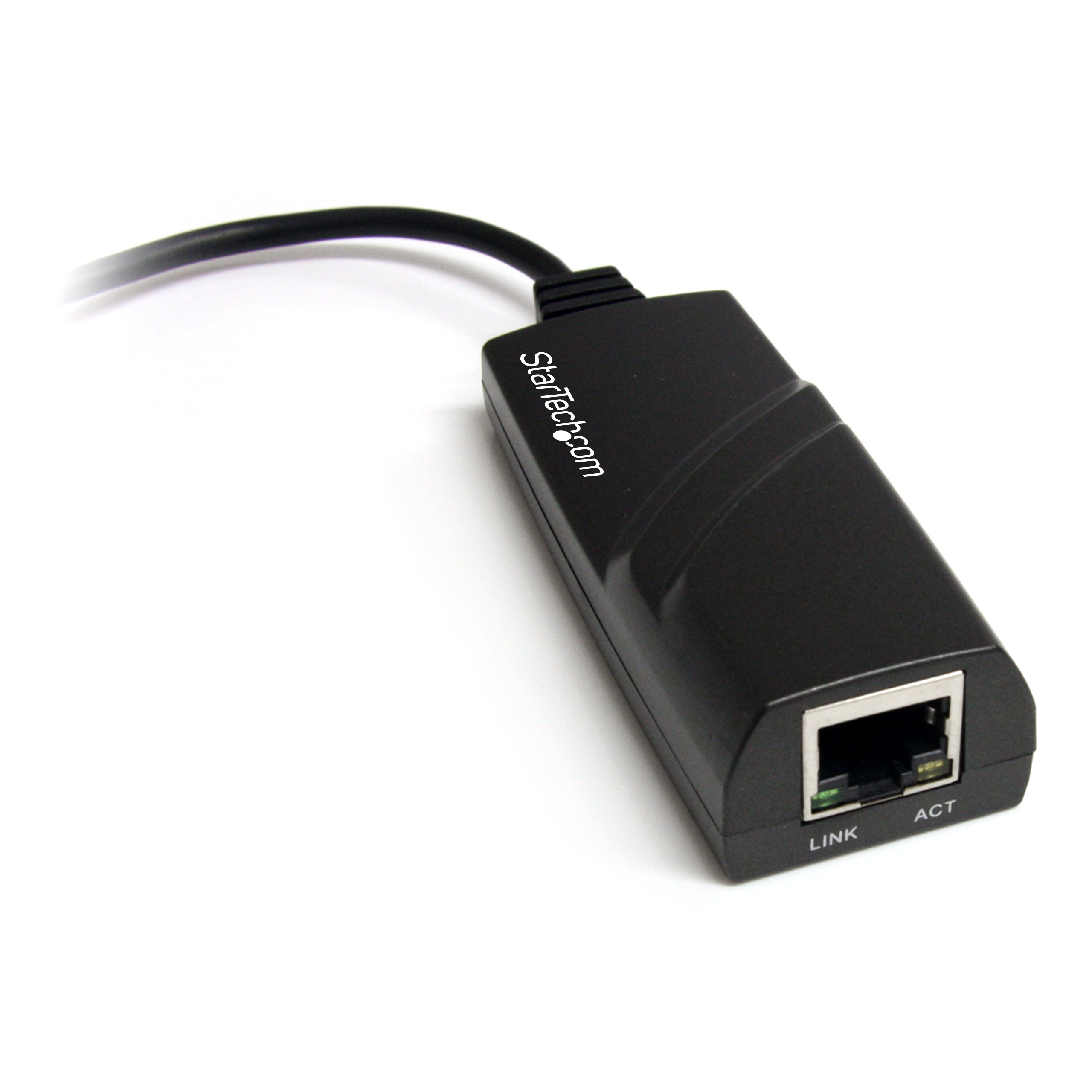

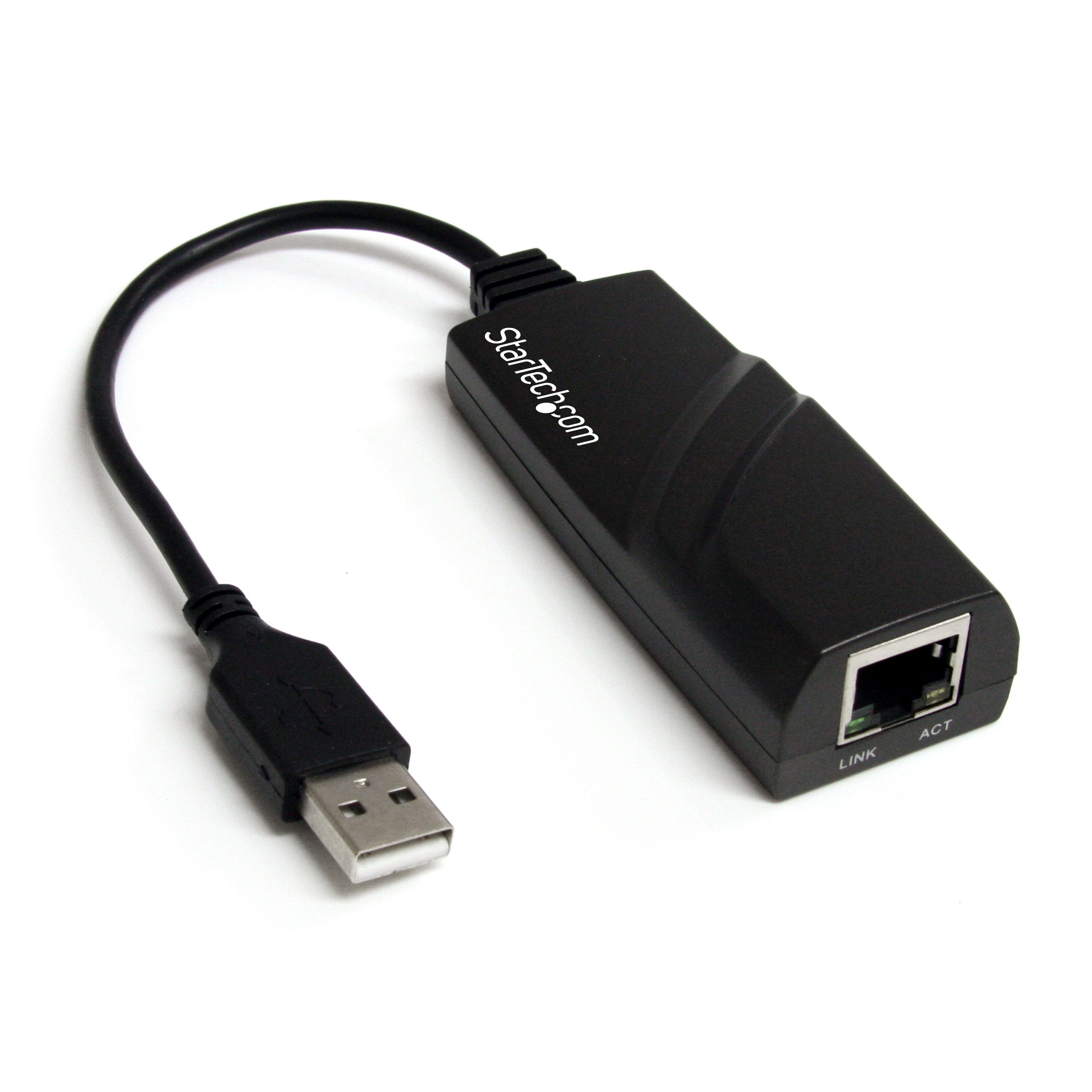

USB 2.0 to Gigabit Ethernet Network Adapter
Add Gigabit Ethernet to any USB 2.0 compatible PC or Laptop computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 2.0 to Gigabit Ethernet Network Adapter Product Number USB21000S2 UPC 065030847445 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-A Ethernet Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX089X Product Title (Short) USB to Gigabit Ethernet Network Adapter Product Title (Medium) x Product Title (Standard) USB 2.0 to Gigabit Ethernet NIC Network Adapter Product Title (Long) USB 2.0 to Gigabit Ethernet NIC Network Adapter Product Title (AMZ) USB 2.0 to Gigabit Ethernet NIC Network Adapter (USB21000S2) Title Ingram (Part 1) USB 2.0 to Gigabit Ethernet NIC Title Ingram (Part 2) Network Adapter Website Product Headline Add Gigabit Ethernet to any USB 2.0 compatible PC or Laptop computer Bullet 1 Powered directly from the USB ports Bullet 2 Jumbo Frame support up to 9 KB Bullet 3 Compact, lightweight design for maximum portability Bullet 4 Supports Microsoft NDIS 6.2 Checksum Offload (IPv4, IPv6, TCP, UDP) and Large send Offload Bullet 5 Crossover Detection & Auto-Correction (Auto MDIX) Bullets (Consolidated) Add Gigabit Ethernet to any USB 2.0 compatible PC or Laptop computer - USB to Gigabit Ethernet - USB 2.0 Gigabit Adapter - USB 2.0 Ethernet Adapter - USB Network Adapter Marketing Copy Applications - Add gigabit Ethernet capabilities to a desktop or laptop without opening the computer or taking up an available expansion slot
- Connects your laptop PC to a Gigabit network or backbone - perfect for small or home offices, departmental network applications and network gaming
- Replace a failed integrated network adapter with an external, USB Ethernet connection, instead of having to open a desktop or laptop computer case
Website Search Keyword - NIC
- usb server adapter
- gigabit card
- network solution
- dongle
- 1000base t
- 10/100/1000
- 100base tx
- mobile networking
- USB21000S
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Available USB port Accessory Products - M45PATCH3BL
- M45PATCH10BL
- USBEXTAA10
- M45PATCH6BL
- M45PATCH15BL
- USB2FAAEXT15
- USBEXTAA5DSK
- USBPNLAFAM1
Related Products - USB2106S
- EC1000BT
- ST1000SPEX
- ST1000SPEXDP
- ST1000SPEX4
- ST1000BT32
- PEX1000MMSC
Power Source USB-Powered Color Black Humidity 5% ~ 95% RH Material Plastic Network Adapter Form Factor Attached Cable Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 270 Product Width (mm) 30 Product Height (mm) 20 Product Weight (g) 39 Storage Temperature -20°C to 75°C (-4°F to 168°F) TAA Compliant No Auto MDIX Yes Buffer Size 20 KB Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 480 Mbps (USB 2.0) MTBF (hours) 70,000 hours OS Compatibility - Windows Server 2012
- Windows 7
- Linux
- Mac OS X Mavericks (10.9)
- Windows 8
- Windows 10
- Windows 11
USB Type and Rate USB 2.0 (480Mbps) Bus Type USB 2.0 Chipset ID SMSC - LAN7500 Industry Standards IEEE 802.3/ 802.3u/ 802.3ab Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - Gigabit Link
- 1 - Activity

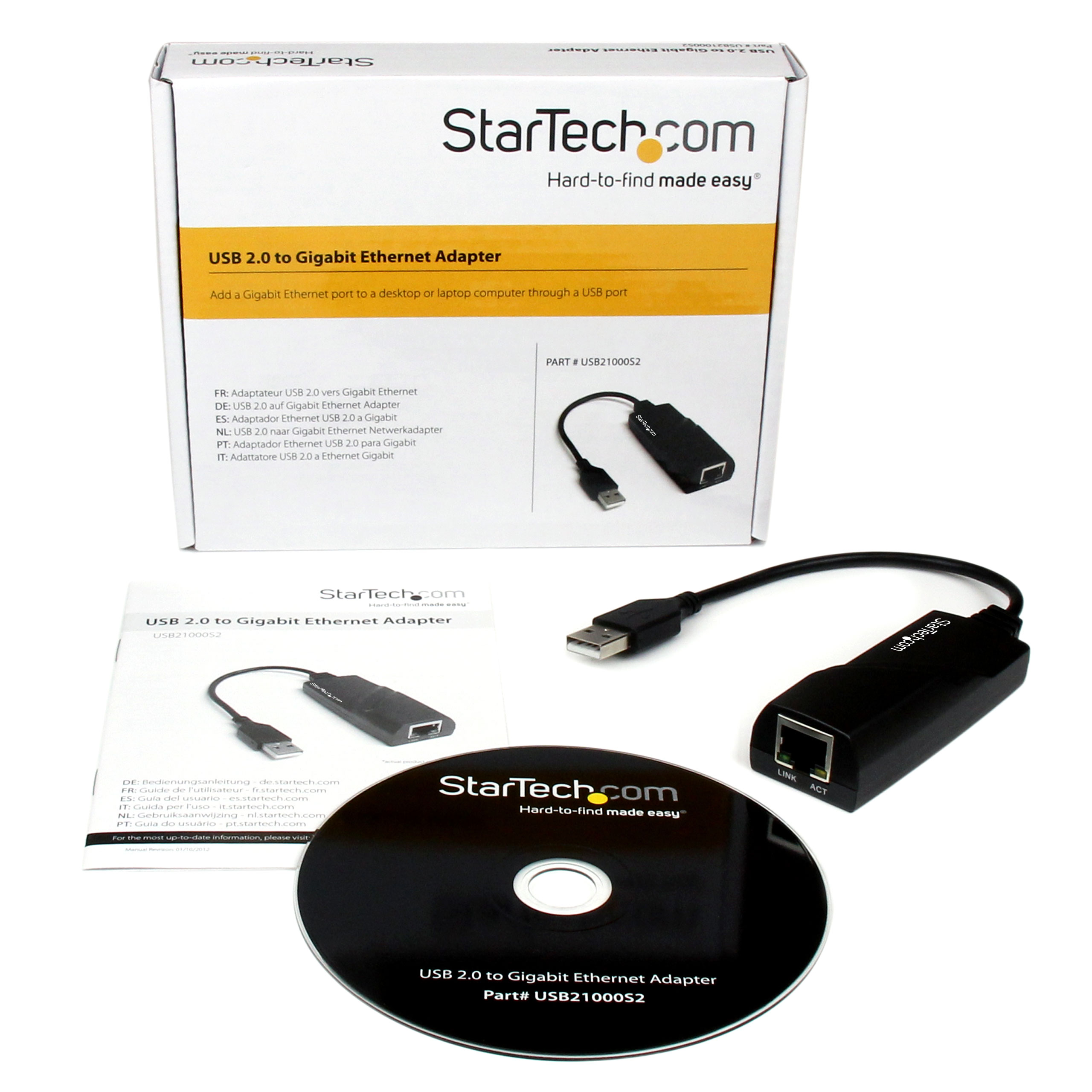

Network Adapter Host USB 2.0 - USB-A Network Adapter LAN Ports 1 Carton Depth (mm) 365 Carton Height (mm) 415 Carton Quantity 100 Carton Weight Gross (g) 14161 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB Gigabit Adapter
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 128 Packaging Description USB 2.0 to Gigabit Ethernet Adapter Packaging Description India USB 2.0 to Gigabit Ethernet Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
