USB2106S
USB 2.0 to 10/100Mbps Ethernet Adapter
Add a 10/100Mbps Ethernet port to a USB enabled computer system
Main Image
Product Images
Product Images
BOM Image
Product Name USB 2.0 to 10/100Mbps Ethernet Adapter Product Number USB2106S UPC 065030832366 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-A Ethernet Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) USB to Ethernet Network Adapter Product Title (Medium) x Product Title (Standard) StarTech.com Black USB 2.0 to Fast Ethernet Network Adapter Product Title (Long) Compact Black USB 2.0 to 10/100 Mbps Ethernet Network Adapter Product Title (AMZ) USB To Ethernet Adapter - 10/100Mbps Ethernet - USB 2.0 - Black - USB Ethernet Adapter (USB2106S) Title Ingram (Part 1) Compact Black USB 2.0 to 10/100 Title Ingram (Part 2) Ethernet Network Adapter Website Product Headline Add a 10/100Mbps Ethernet port to a USB enabled computer system Bullet 1 A single 10/100 Mbps compatible RJ45 Ethernet port Bullet 2 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x Bullet 3 Full and half duplex support Bullet 4 High Speed USB 2.0 compliant host interface, with transfer rates up to 480 Mbps Bullet 5 Network Link/Activity and 10/100 Mbps LED indicators Bullets (Compact) Add a 10/100Mbps Ethernet port to a USB enabled computer system - USB Ethernet adapter - USB Ethernet card - USB Ethernet network adapter - USB 10/100 - USB NIC Bullets (Consolidated) Add a 10/100Mbps Ethernet port to a USB enabled computer system - USB Ethernet Adapter - USB Ethernet Card - USB Ethernet Network Adapter - USB 10/100 - USB NIC - Network Adapter Marketing Copy Applications - Replace a failed Ethernet port in a small form factor or laptop/netbook computer
- Add networking capabilities to an old system with no Ethernet port
Website Search Keyword - USB to 10/100
- USB to Ethernet Adapter
- mobile Networking
- computer networking
- business networking
- types of computer networking
- dongle
- Network Solutions
- USB2105S
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - M45PATCH3BL
- M45PATCH6BL
- M45PATCH10BL
- M45PATCH15BL
Related Products - USB555WG
- ST100S
Color Black Humidity 5% ~ 95% RH Material Plastic Network Adapter Form Factor Dongle Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 67.500 Product Width (mm) 26.000 Product Height (mm) 22.500 Product Weight (g) 21.000 Storage Temperature 0°C to 60°C (32°F to 140°F) TAA Compliant No Compatible Networks 10/100 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex) OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows Server 2012
- Chrome OS
- Windows 10
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Sierra (10.12)
- Windows 11

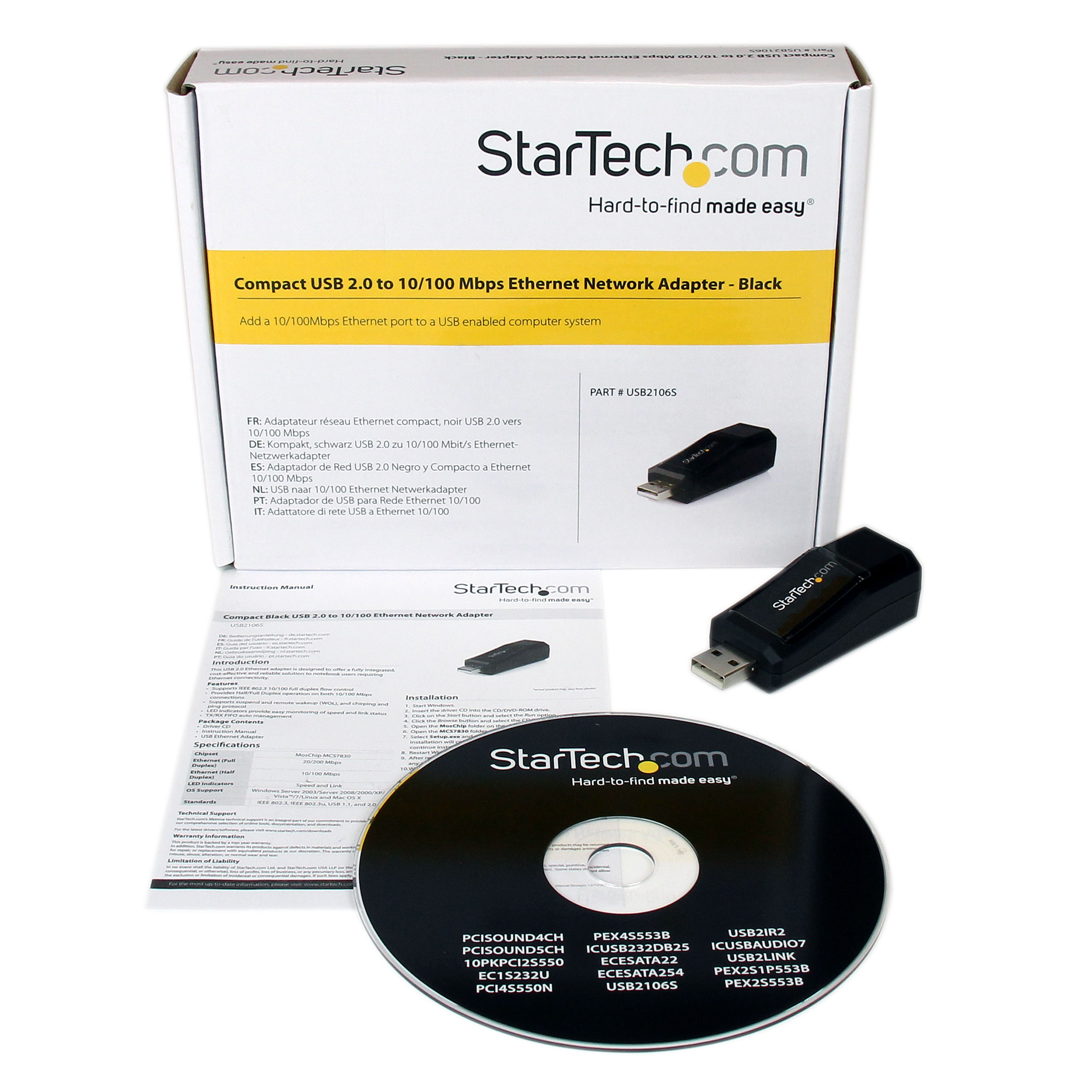

Bus Type USB 2.0 Chipset ID ASIX - MCS7830 Interface/Bridge RJ45 (10/100 Ethernet) LED Indicators 1 - Speed and Link Network Adapter Host USB 2.0 - USB-A Network Adapter LAN Ports 1 Carton Depth (mm) 270 Carton Height (mm) 403 Carton Quantity 50 Carton Weight Gross (g) 5242 Included in Package - 1 - USB Ethernet Adapter
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 89 Packaging Description USB to 10/100 Ethernet Network Adapter Packaging Description India USB to 10/100 Ethernet Network Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,JP,MX,NZ,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
