USB210AIND-USB-A-HUB

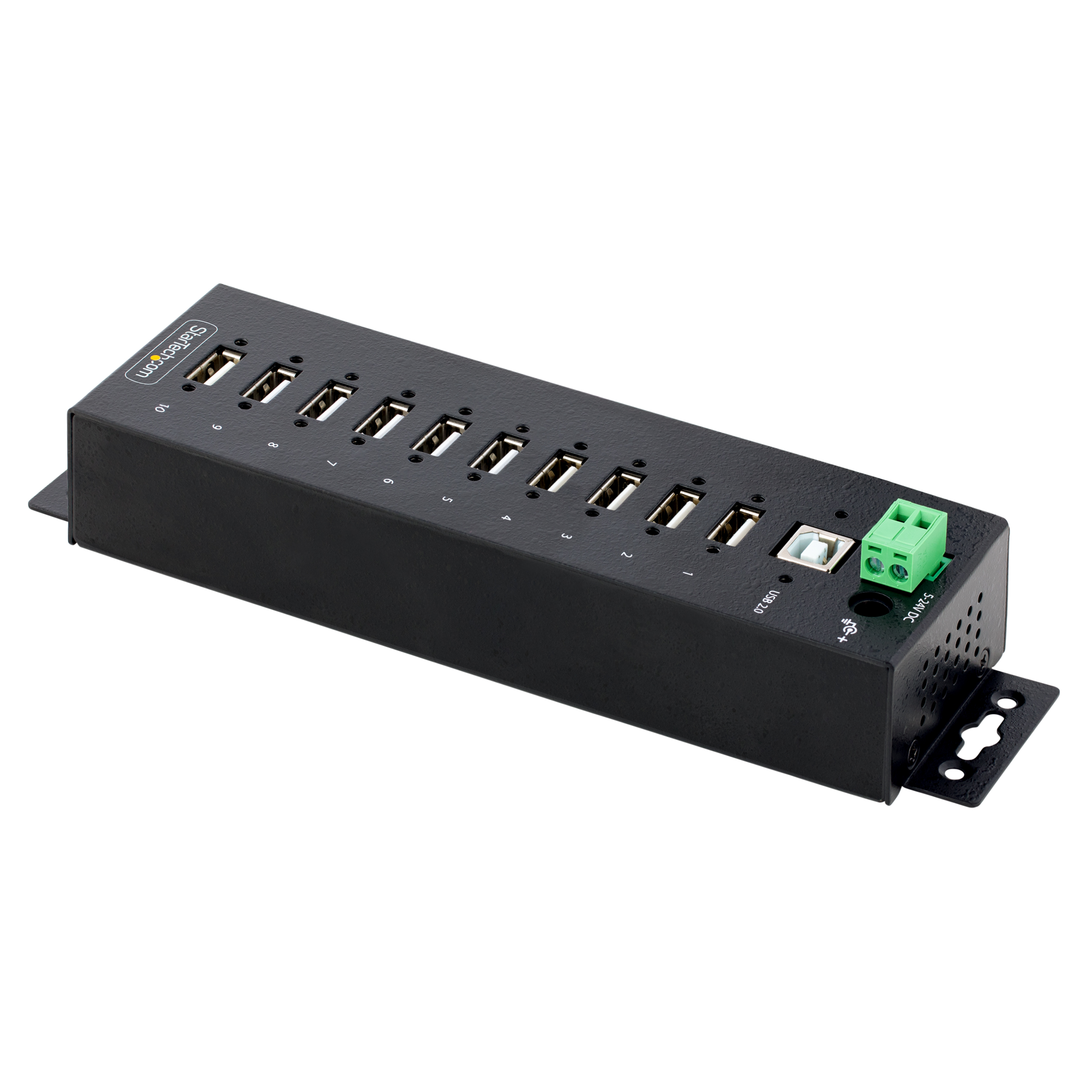

10 Port Industrial USB 2 0 Hub with ESD 350W Surge Protect
Metal Construction | 6ft (1.8m) USB Host Cable Included
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 10 Port Industrial USB 2 0 Hub with ESD 350W Surge Protect Product Number USB210AIND-USB-A-HUB UPC 065030894616 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - USB 2.0 Family Industrial USB Hubs - USB 2.0 - 10-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) Industrial USB-A Hub Product Title (Short) 10-Port Industrial USB 2.0 HUB, Metal Product Title (Medium) 10-Port Industrial USB 2.0 Hub, Rugged Mountable USB-A Expansion Hub Product Title (Standard) 10-Port Industrial USB 2.0 HUB, Rugged USB Hub w/ESD Level 4 Protection, DIN/Wall/Desk Mountable USB-A Expansion Hub, TAA Product Title (Long) 10-Port Industrial USB 2.0 Hub, Rugged USB Hub w/ESD Level 4 Protection, DIN/Wall/Desk-Mountable USB-A HUB, USB Port Expander w/Lockable Ports, USB Expansion Hub - TAA Product Title (AMZ) 10-Port Industrial USB 2.0 Hub, Rugged USB Hub w/ESD Level 4 Protection, DIN/Wall/Desk-Mountable USB-A Hub, USB Port Expander w/Lockable Ports, USB Expansion Hub , TAA Title Ingram (Part 1) Industrial USB 2.0 Hub - Title Ingram (Part 2) USB Expansion Hub, 10-Port Hub Website Product Headline Metal Construction | 6ft (1.8m) USB Host Cable Included Bullet 1 10-PORT INDUSTRIAL USB 2.0 Hub: Cold-rolled steel construction ensures durability in harsh environments (32 to 140°F/0 to 60°C at 95% RH); 10 Locking USB-A downstream ports; USB 2.0 Compliant; 480Mbps shared bandwidth; OS independent Bullet 2 ESD PROTECTION: Level 4 ESD rugged USB Hub features 15kV air and 8kV contact electrostatic protection for the upstream and downstream ports preventing device dropouts or damage; The Hub supplies up to 5V 0.5A per port suitable for most USB peripherals Bullet 3 FLEXIBLE MOUNTING: Multi-port USB Hub features built-in mounting brackets for wall/desk installations; Included DIN rail mounting kit; All the USB ports on the Hub feature screw-lock connectors for preventing accidental disconnection Bullet 4 POWER OPTIONS: Ten-port industrial Hub features power redundancy using the DC barrel plug and Terminal Block port (AC adapter not incl); 5 to 24V DC external power is required; Power the Hub via the 2-wire Terminal Block using ITB20D3250 (sold separately) Bullet 5 CONNECTIVITY TOOLS: Optimize the performance and security of this TAA-compliant mountable USB Hub, using the included USB Event Monitoring utility (available for download) Bullets (Compact) 10-port industrial USB 2.0 Hub is built with a cold-rolled steel housing for temps up to 32-140F (0-60C) - Lockable USB-A ports, USB 2.0/1.1/1.0, Driverless - Multi port USB Hub features 15kV air/8kV contact ESD level 4 protection - DIN rail mount Bullets (Consolidated) 10-port industrial USB 2.0 Hub is built with a cold-rolled steel housing to withstand environments with temps of up to 32 to 140 DEGF (0 to 60 DEGC) - Lockable USB-A ports with ESD protection | USB 2.0/1.1/1.0 | Driverless and OS independent - 15kV Air and 8kV contact ESD level 4 protection - Multiport USB Hub features built-in brackets for wall/desk installation | DIN rail mountable - USB expander features a DC plug and terminal block power inputs (5 to 24V DC) | Power adapter not included Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 10 port industrial hub
- industrial usb 2.0 hub
- industrial usb hub
- metal usb hub
- mountable usb hub
- multi port usb hub
- Rugged USB Hub
- USB Industrial hub
- usb port expander
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements Available USB 2.0 (or higher) Type-A port Accessory Products - RUSB2AC1MB
- USB2HAB15
- USB2HAB15T
- USB2HAB65AC
- USB2HAB6T
- USB2HAB6
- USB2AA1M
- USB2AA2M
- USB2AAEXT20M
- USB2AAEXT35M
- USBEXTAA10BK
- USB2FAAEXT15
- USBEXTAA6IN
- ITB20D3250
Related Products - ST4200USBM
- ST4300USB3
- ST7200USBM
- ST7202USB
- ST4300USBM
- HB31C3A1CB
- HB31C2A1CGB
- HB31C2A2CB
- HB31C3A1CPD3
- HB31C3ASDMB
- HB31C4AB
- HB31C4AS
- HB31C2A1CGS
- HB31C3A1CS
- HB30A10AME
- HB30A7AME
- ST1030USBM
- ST7300USBME
- HB31C3A1CME
Constrained SKU Alternatives (Limited Stock) ST1030USBM Power Source Not Included (DC/Terminal Block) Plug Type M Color Black Extended Temperature Range No Humidity 5% - 95% RH Material Steel Operating Temperature 32°F to 140°F (0°C to 60°C) Primary Material Steel Product Length (mm) 197.700 Product Width (mm) 55.500 Product Height (mm) 31.000 Product Weight (g) 340.000 Storage Temperature -4°F to 167°F (-20°C to 75°C) TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 2.0 (480Mbps) ESD Protection - +/-8kV (Contact)
- +/-15kV (Air)

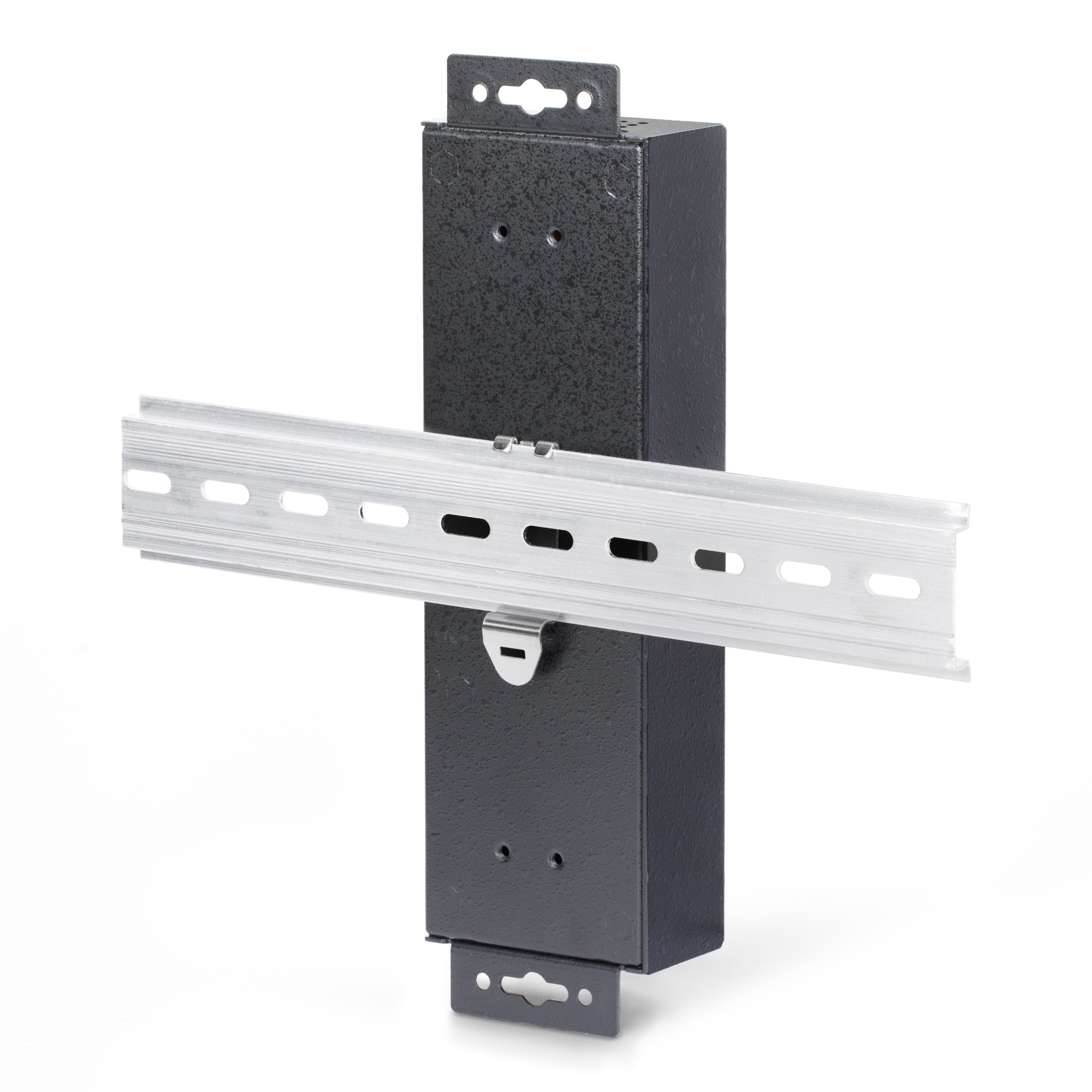

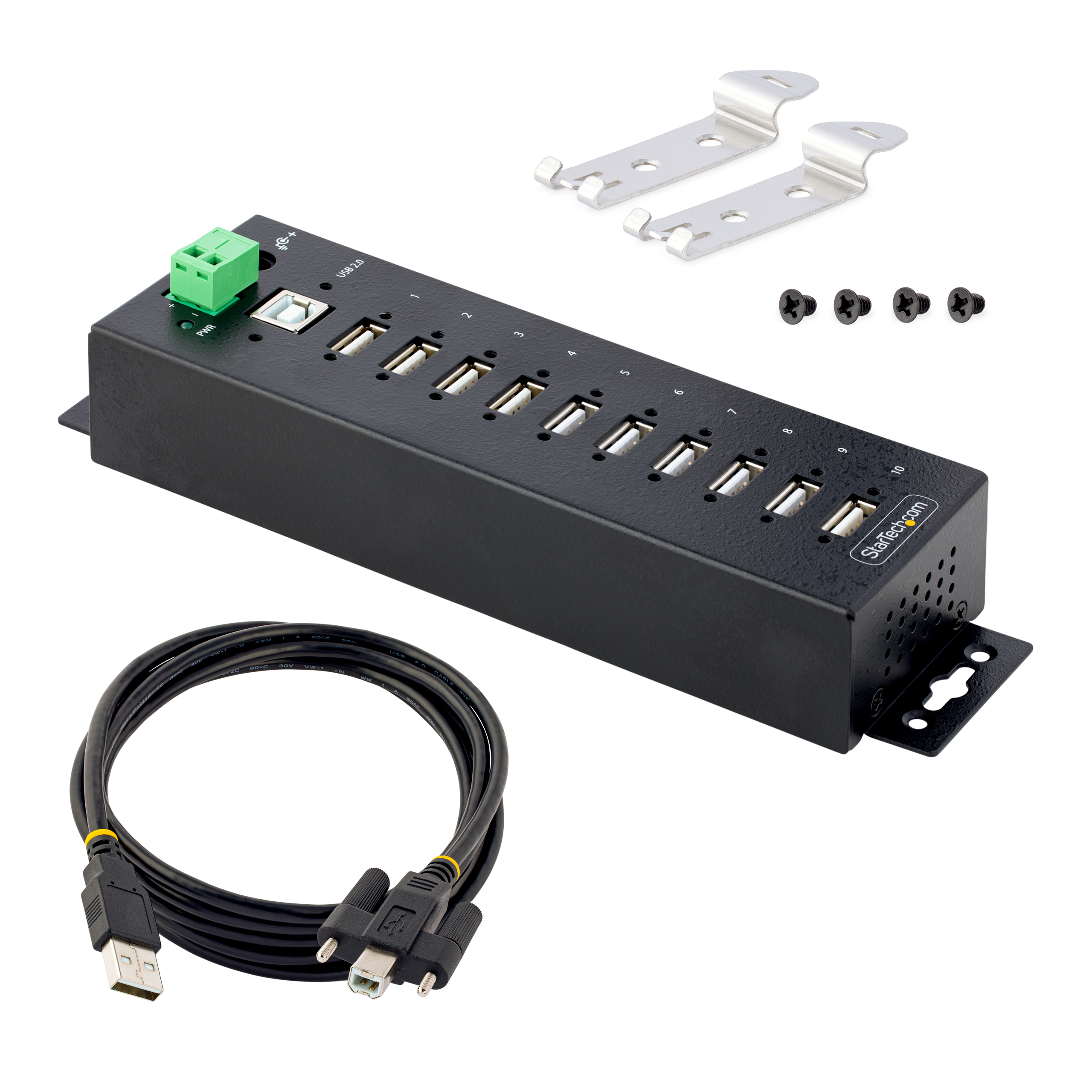

Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent Total Available Power Output (In Watts) 25 Watts UASP Support No USB Speed USB 2.0 (480Mbps) USB Type and Rate USB 2.0 (480Mbps) Bus Type USB 2.0 Chipset ID Terminus Tech - FE2.1 Industry Standards USB 2.0 - Backward compatible with USB 1.1 and 1.0 Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Solid Green = Receiving power from DC power input or DC 2-wire Terminal Block power input </br> Off = No external power Mounting Options DIN Rail USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 542 Carton Height (mm) 337 Carton Quantity 25 Carton Weight Gross (g) 14928 Included in Package - 1 - Industrial USB Hub

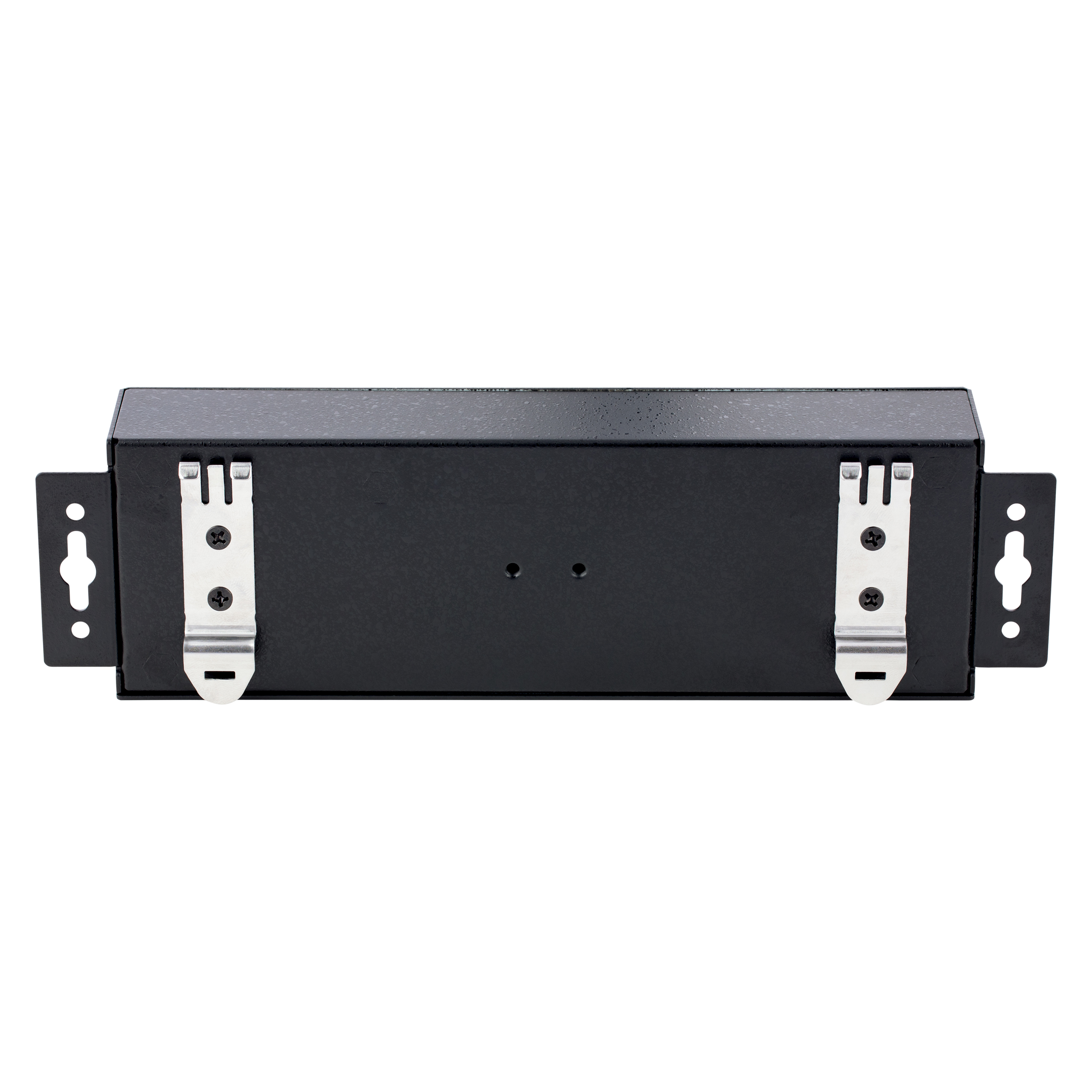

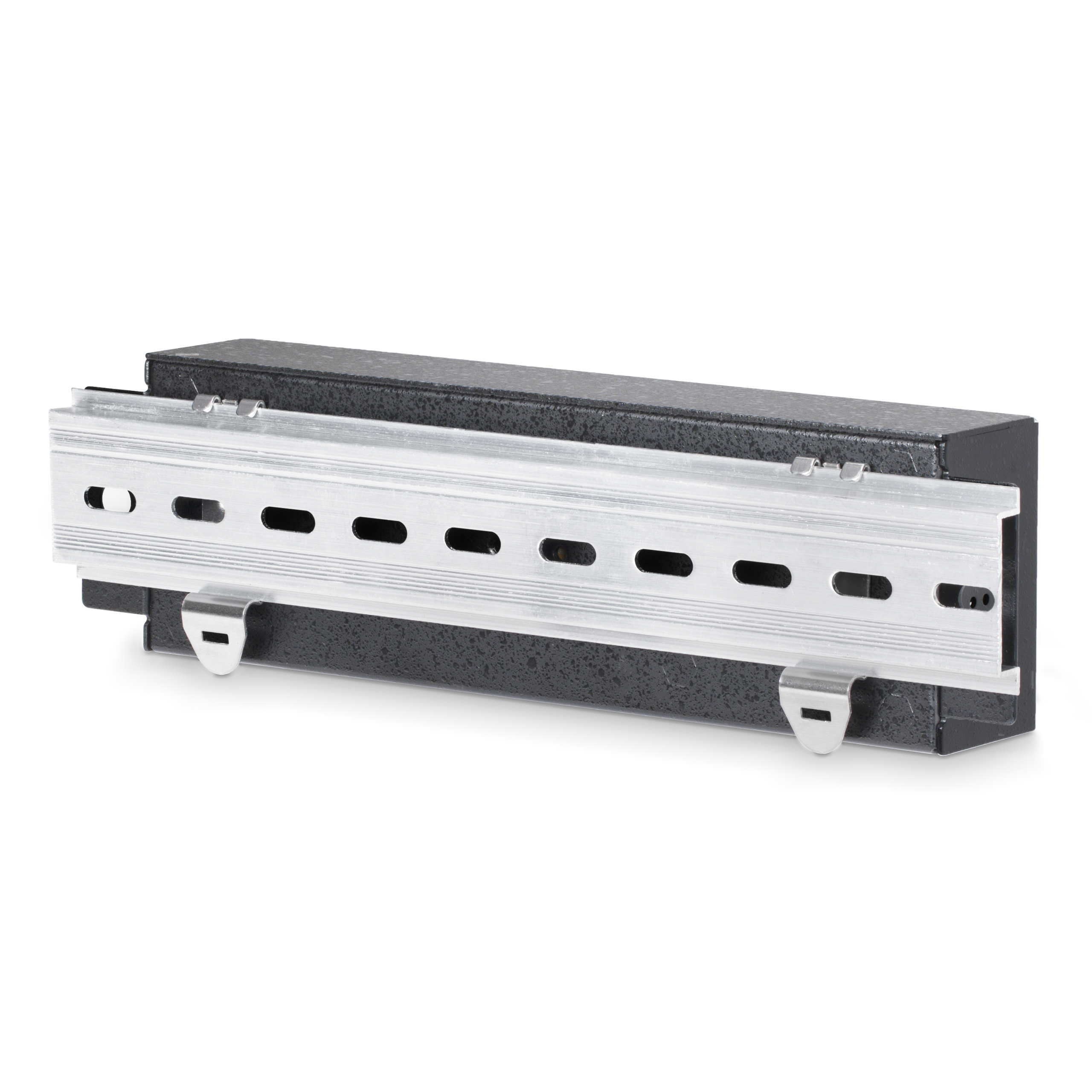

- 2 - DIN Rail Mounting Brackets
- 1 - 6 ft [1.8 m] Screw Locking USB-B to USB-A Cable
- 1 - Screw Kit
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Screw Kit
- 1 - 6 Ft [1.8 M] Screw Locking USB-B To USB-A Cable
- 2 - Din Rail Mounting Brackets
- 1 - Industrial USB Hub

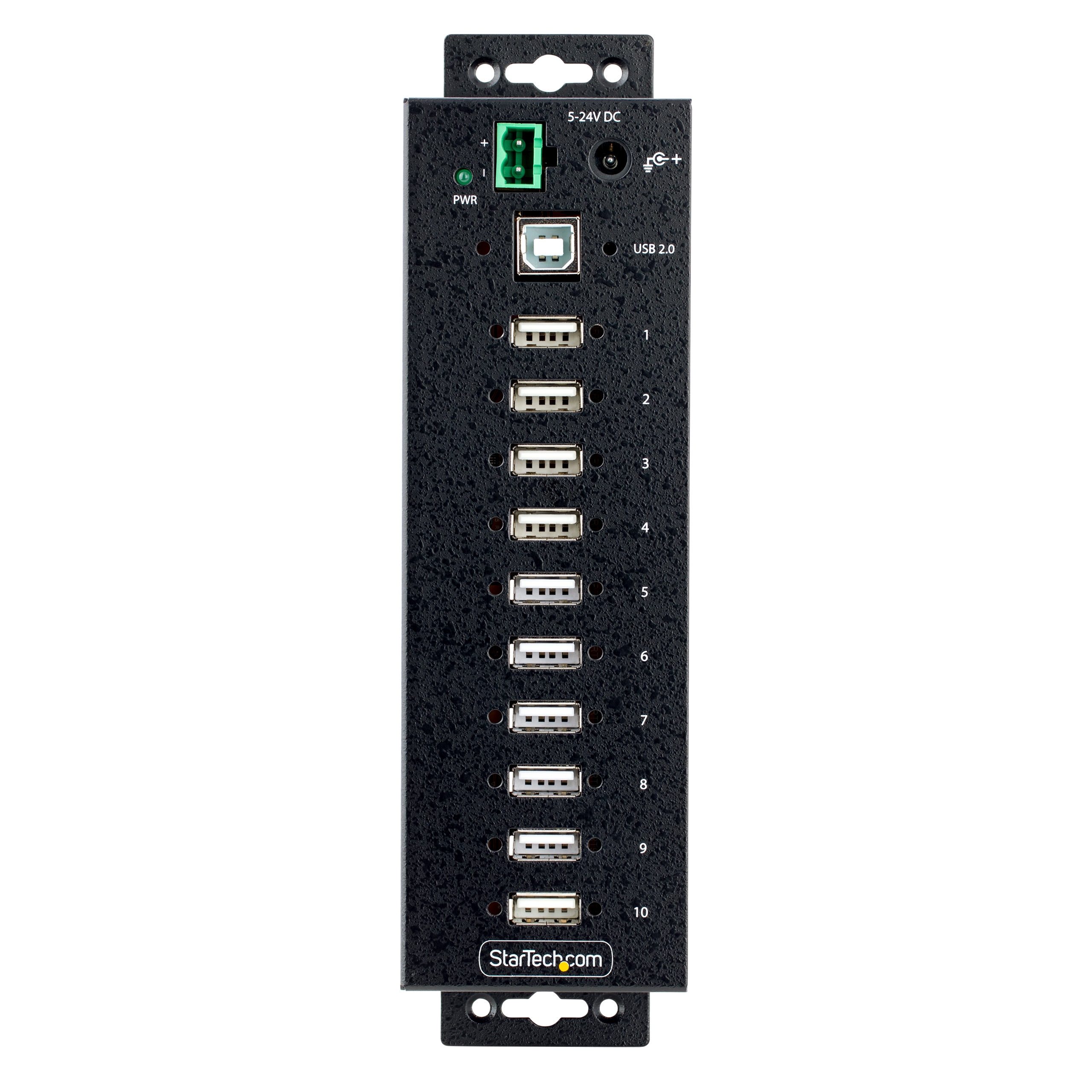

Package Depth (mm) 169 Package Height (mm) 59 Package Width (mm) 246 Package Quantity 1 Package Weight (g) 548 Packaging Description 10Pt Industrial USB Hub - 15kV/8kV Air/Contact ESD Protection - Mountable Packaging Description India 10Pt Industrial USB Hub - 15kV/8kV Air/Contact ESD Protection - Mountable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 10 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Connector 4 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 4 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-10-28 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2022-05-13 Target Production Release 2022-05-20 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Video Required
