USB221SS

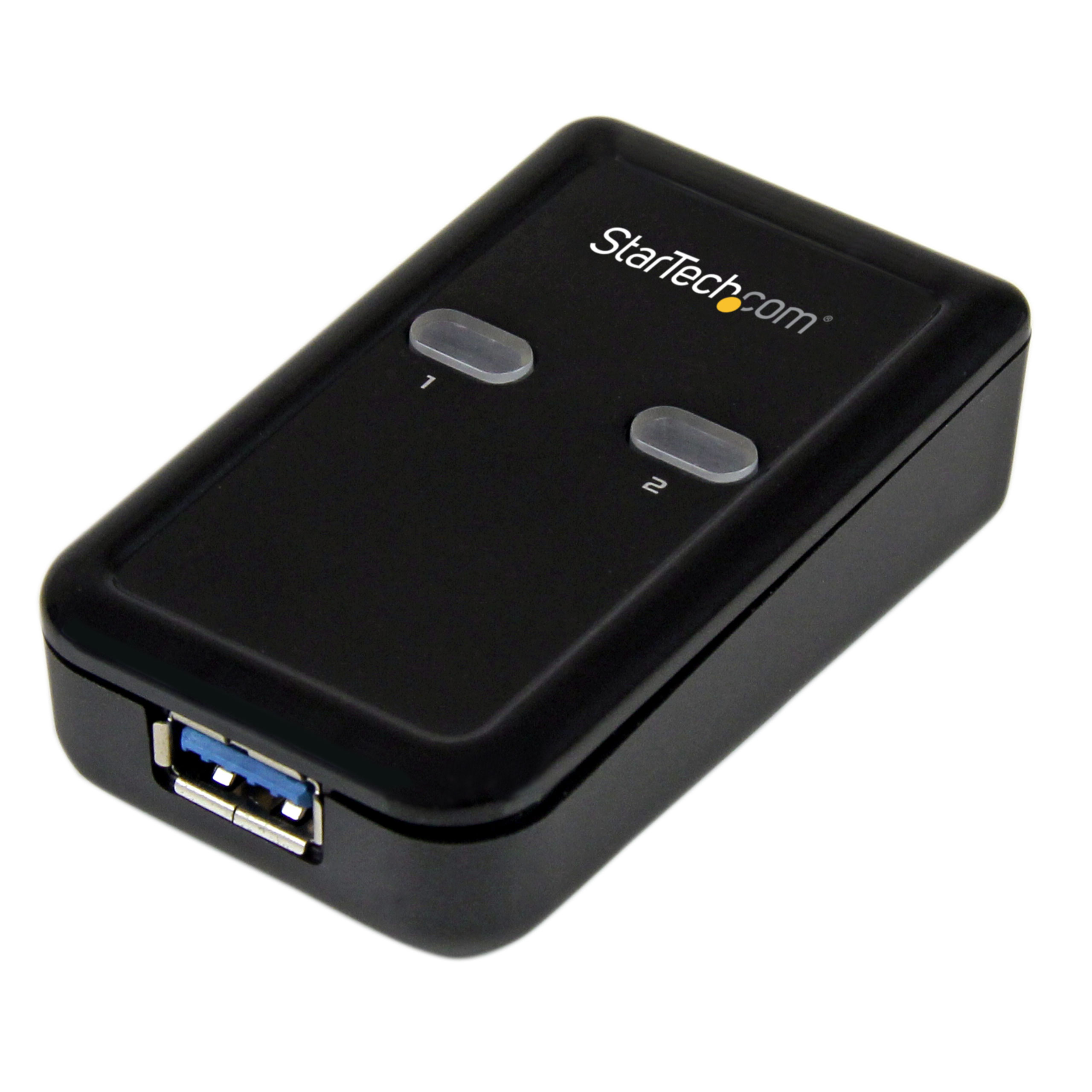

2-to-1 USB 3.0 Peripheral Sharing Switch
Share a single USB 3.0 device between two different computers
Main Image
Product Images
Product Images
BOM Image
Product Name 2-to-1 USB 3.0 Peripheral Sharing Switch Product Number USB221SS UPC 065030850902 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A Bus Powered Hubs - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) 2Pt USB 3.0 Switch Product Title (Short) 2 Port USB 3.0 Peripheral Sharing Switch Product Title (Medium) x Product Title (Standard) 2 Port 2-to-1 USB 3.0 Peripheral Sharing Switch – USB Powered Product Title (Long) 2 Port 2-to-1 USB 3.0 Peripheral Sharing Switch – USB Powered Product Title (AMZ) 2 Port 2-to-1 USB 3.0 Peripheral Sharing Switch – USB Powered - 2x1 USB Peripheral Switch - 2 Port USB Switch (USB221SS) Title Ingram (Part 1) 2x1 USB 3.0 Peripheral Switch - Title Ingram (Part 2) USB 3 Sharing Switch USB Powered Website Product Headline Share a single USB 3.0 device between two different computers Bullet 1 Push-button controls for switching between computers Bullet 2 USB 3.0 data transfer rates up to 5 Gbps Bullet 3 USB-Powered, no additional power adapter or wall outlet required Bullet 4 Compact design Bullet 5 Plug-and-Play, no software or drivers required Bullets (Consolidated) USB peripheral sharing switch - 2 x SuperSpeed USB 3.0 - desktop Marketing Copy Applications - Switch a USB 3.0 peripheral between 2 computers on a work bench
- Share a USB printer or All-in-One between 2 local computers
- Connect an external hard drive between the two systems for merging data to a single shared drive
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes The total cable length from host system to your connected peripheral should not exceed 2.5m (8.2ft) Accessory Products - PCIUSB3S4
- PEXUSB3S4V
- PEXUSB3S2E2I
- ECUSB3S22
- ST7320USBC
- ST4300USB3
- USB3SAB3
- USB3SAUB3BK
Related Products - USB4000IP
- USB1000IP
- USB421HS

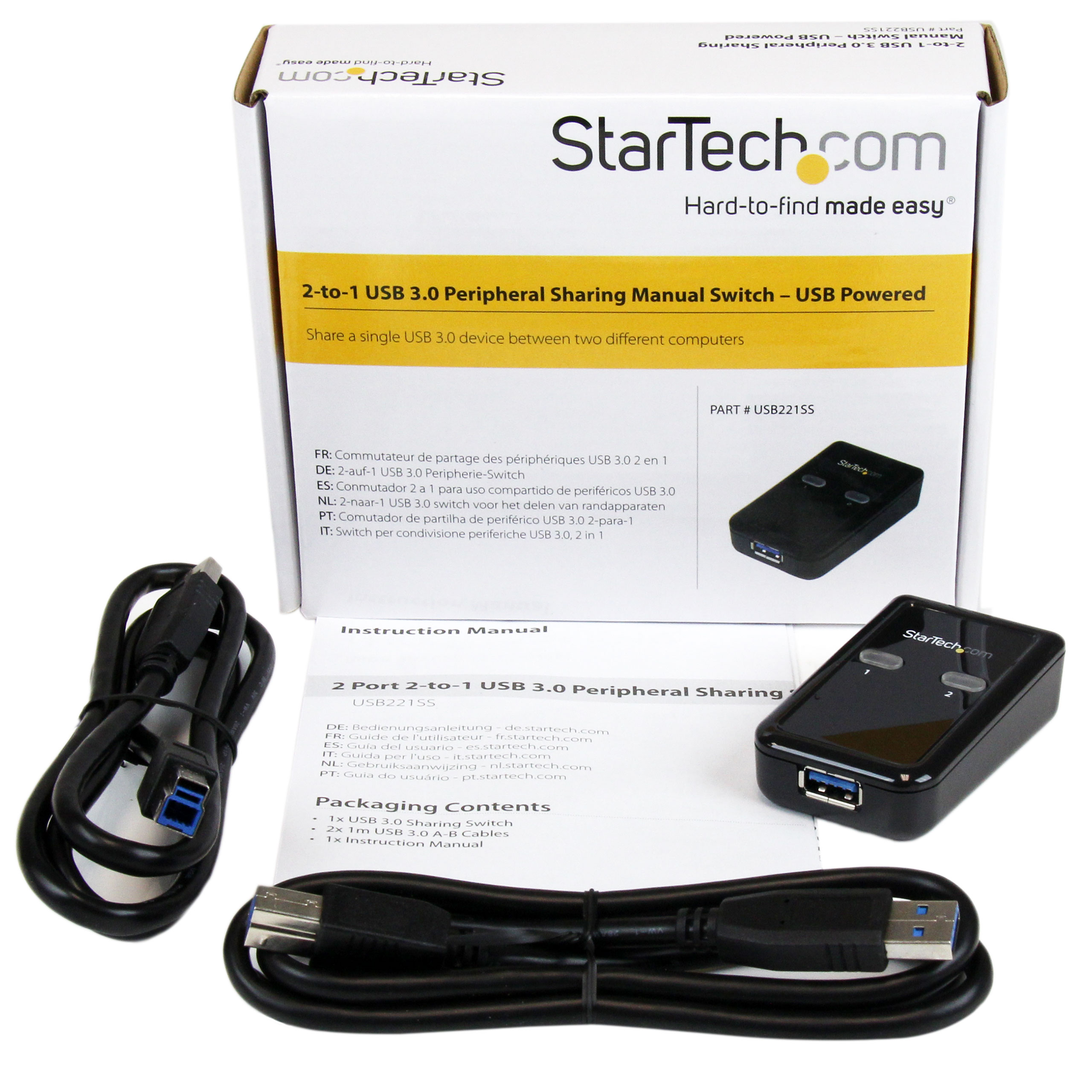

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity 0~80% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 69.000 Product Width (mm) 42.000 Product Height (mm) 22.000 Product Weight (g) 40.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Cable Length (mm) 1500 Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Ethernet Port No Laptop Dock / USB Hub Fast-Charge No LED Indicators 2 - Computer selection indicators USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 308 Carton Height (mm) 236 Carton Quantity 20 Carton Weight Gross (g) 5110 Included in Package - 1 - USB 3.0 Sharing Switch
- 1 - Instruction Manual
- 2 - 1m USB 3.0 A-B Cables
Package Depth (mm) 162 Package Height (mm) 43 Package Width (mm) 131 Package Quantity 1 Package Weight (g) 229 Packaging Description 2-to-1 USB 3.0 Peripheral Sharing Switch Packaging Description India 2-to-1 USB 3.0 Peripheral Sharing Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 2 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-03-05 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,CL,CO,DE,DK,ES,EU,FR,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None
