Main Image
USB2DVIPRO2
USB 2 0 to DVI Display Adapter 1920x1200
USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows®
Main Image
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name USB 2 0 to DVI Display Adapter 1920x1200 Product Number USB2DVIPRO2 UPC 065030848008 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-A Display Adapters Category Level 3 USB 2.0 to DVI Family USB 2.0 to Display Adapters, DisplayLink Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX179X Product Title (Ultra-Short) USB to DVI Adapter Product Title (Short) USB to DVI Adapter - Mac & PC Product Title (Medium) x Product Title (Standard) USB to DVI Adapter - External USB Video Graphics Card for PC and MAC- 1920x1200 Product Title (Long) USB to DVI Adapter - 1920x1200 Product Title (AMZ) USB to DVI Adapter - 1920x1200 - External Video & Graphics Card - Dual Monitor Display Adapter Cable - Supports Mac & Windows (USB2DVIPRO2) Title Ingram (Part 1) USB DVI Adapter - External USB G Title Ingram (Part 2) raphics Card Website Product Headline USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows® Bullet 1 Support for Aero themes in Windows® Bullet 2 Optimal performance at 1920x1200 and ideal for use with 24" to 26" monitors or smaller Bullet 3 USB-Powered operation, no external power adapter required Bullet 4 Works with Mac® OS X Bullet 5 Quick and easy installation Bullets (Consolidated) Connect an additional HDMI display to your MacHDMI or PC with USB 2.0 technology capable of video playback at 1080p - Compatible with Mac OSX and Windows 7/8 USB equipped desktop and laptop computers and HDMI equipped televisions and projectors - USB Video/Multi Monitor Adapter/USB Video Card/USB 2.0 HDMI Video Card - 1080p Video Playback - Dual or Triple monitor for home office or BOYD (Bring your own Device) work stations Marketing Copy Marketing Copy (No HTML) The USB2DVIPRO2 USB to DVI Adapter functions as an external graphics card for Windows® and Mac® (macOS 10.8 to 10.13.3) computers / the perfect solution for turning your desktop or laptop computer into a dual or multi-monitor environment, all through the simplicity and convenience of USB. The USB-DVI Adapter delivers high quality video (up to 1920x1200) for a variety of applications and is capable of simultaneously running up to five additional displays from a single computer (using four USB2DVIPRO2 External Video Adapters). The adapter connects to a host computer through a USB 2.0 port, acting as an external DVI video card to either extend or mirror the desktop shown on the existing display / without having to open the computer case. Featuring driver support for Microsoft Windows® (including Aero themes) and Mac OS X, and with video support for resolutions up to 1920x1200, this USB-DVI video adapter is the ideal solution for a wide rade of operating environments as well as large-screen displays/monitors. The USB2DVIPRO2 USB to DVI Adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Add multiple (up to five) monitors / projectors to your computer setup using one USB2DVIPRO2 device for each additional display
- View large or multiple spreadsheets across multiple displays
- Increase productivity by running multiple applications on different DVI screens; check your email on one display while editing a document on the other
- Use the USB-DVI adapter to connect your PC to your television for showing family pictures and movies
- Connect multiple DVI monitors to a single computer to create engaging multimedia presentations
- Great for researchers and writers offering the ability to have reference material on one display and a working document copy on the other
Website Search Keyword - Adapter
- DVI Adapter
- external video card
- USB Graphics Adapter
- USB to DVI
- DisplayLink
- Display Link
- USB Digital Video
- USB Display Adapter
- multi display
- multi monitor
- USB to HDMI
- U244-001-R
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - Power PC-based Macintosh computers, such as late-model iMacs, PowerBooks and PowerMacs, are not currently supported
- Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
- This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements Accessory Products - DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- DVIDDMM25
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMIDVIMM20
- HDDVIMM25
Related Products - USB32DVIPRO
- USB32HDE
- USB2DVIE2
- USB2DVIE3
- USB32DVIEH
- USB32HDDVII
- USB2DVIMM6
Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 165 Color Black Humidity <85% non-condensing Operating Temperature 10°C to 40°C (50°F to 104°F) Primary Material Plastic Product Length (mm) 90.300 Product Width (mm) 55.000 Product Height (mm) 20.000 Product Weight (g) 70.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Maximum Digital Resolutions 1920x1200 (32-bit color) Maximum Supported Resolution 1080p MTBF (hours) 621,445 Hours OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- Chrome OS
- macOS Sierra (10.12)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

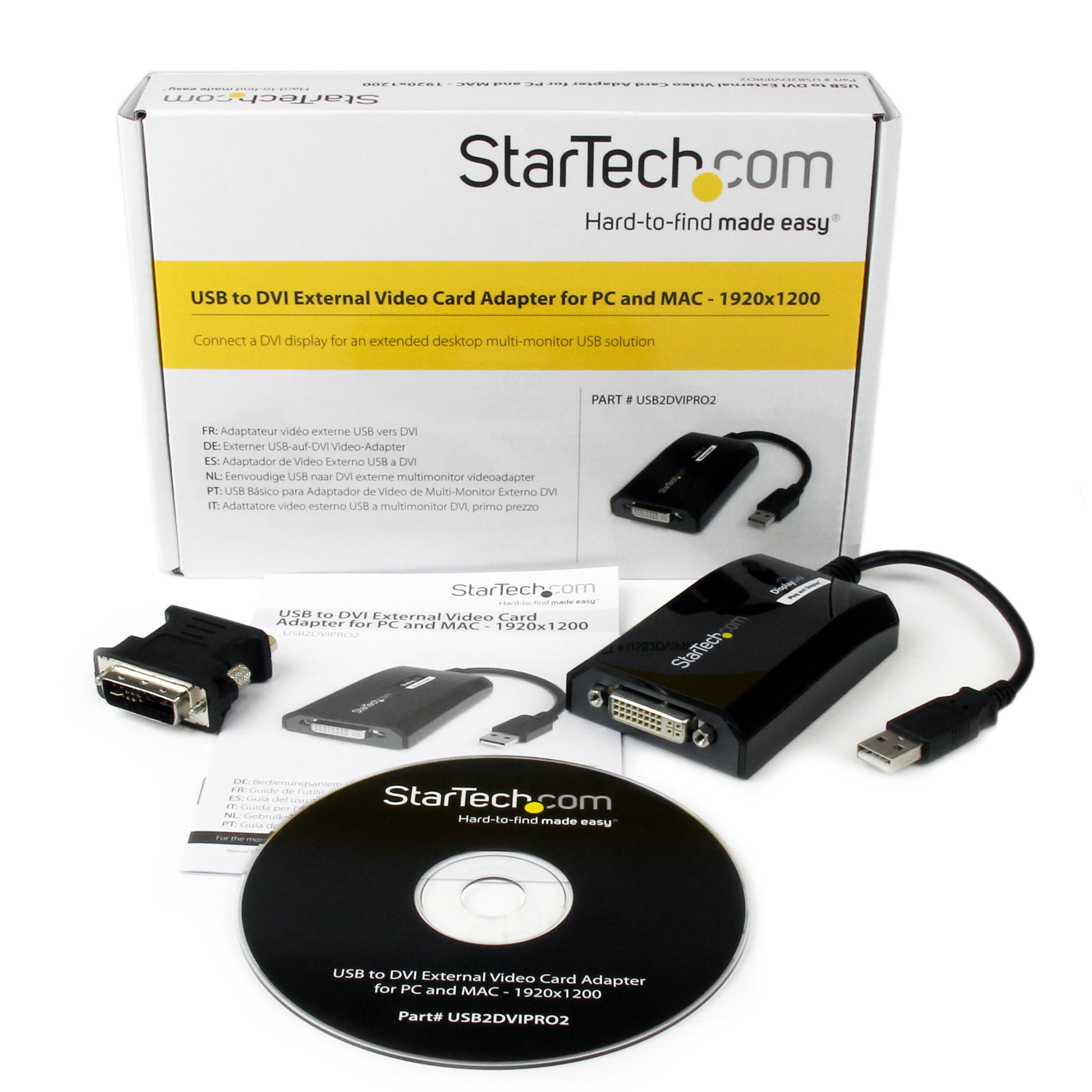

Supported Resolutions Video Output Port DVI AV Input USB 2.0 AV Output DVI Chipset ID DisplayLink - DL-195 LED Indicators 1 - Blue - Power Memory 16MB Number of Displays 1 USB Pass-Through No Carton Depth (mm) 448 Carton Height (mm) 334 Carton Quantity 40 Carton Weight Gross (g) 10192 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB to DVI Adapter
- 1 - DVI to VGA adapter
Included In Package for Label - 1 - USB To DVI Converter
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - DVI To VGA Converter
Package Depth (mm) 211 Package Height (mm) 40 Package Width (mm) 146 Package Quantity 1 Package Weight (g) 232 Packaging Description USB to DVI External Video Adapter Packaging Description India USB to DVI External Video Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
