USB2G4LEXT2NA
4 Port USB 2 0 over Gigabit LAN or Direct Cat5e Cat6 Ether
USB extender over Cat5e, Cat6, Cat7 | Rugged Enclosure | 4 USB Ports| 2-Year Warranty
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 4 Port USB 2 0 over Gigabit LAN or Direct Cat5e Cat6 Ether Product Number USB2G4LEXT2NA UPC 065030889711 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > USB Extenders Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - USB 2.0 Family USB Extenders - USB 2.0 - over Cat Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX040X Product Title (Ultra-Short) 4 Port USB2.0 Extend Product Title (Short) 4 Port USB 2.0 Extender over Ethernet Product Title (Medium) 4 Port USB 2.0 over Ethernet Extender- Gigabit Cat5e/Cat6/Cat7 - 330ft. (100m) Product Title (Standard) 4 Port USB 2.0 Extender over Ethernet/IP Network Hub - up to 330ft (100m) - USB over Gigabit LAN or Direct Cat5e/Cat6 Cable Product Title (Long) 4 Port USB 2.0 Extender over Ethernet/IP Network Hub - Up to 330ft (100m) - USB over Gigabit LAN or Direct Cat5e/Cat6 Cable (RJ45) Extender Adapter - USB Extender Kit Product Title (AMZ) 4 Port USB 2.0 Extender over Ethernet/IP Network Hub - Up to 330ft (100m) - USB over Gigabit LAN or Direct Cat5e/Cat6 Cable (RJ45) Extender Adapter - USB Extender Kit (USB2G4LEXT2NA) Title Ingram (Part 1) 4 Port USB 2.0 over Ethernet Title Ingram (Part 2) Extender - Gigabit Cat5e/Cat6/Cat7 Website Product Headline USB extender over Cat5e, Cat6, Cat7 | Rugged Enclosure | 4 USB Ports| 2-Year Warranty Bullet 1 USB 2.0 EXTENDER: Data transfer up to 480Mbps; Connect 4 USB devices using existing Gigabit Ethernet LAN switch(s)/IP network hardware or connect transmitter/receiver directly over CAT5e/CAT6 RJ45 cable up to 330ft/100m; Newer version of USB2G4LEXT2 Bullet 2 CONNECT REMOTE USB DEVICES: Works as a 4 Port USB Hub at a remote location (receiver) to access devices like a printer, camera, plotter, keyboard/mouse, display, & CCTV system at a convenient location Bullet 3 DURABLE USB EXTENDER: Extruded aluminum construction for high wear & tear industrial environments with mounting brackets incl; LEDs to monitor power, activity status, link/host connectivity Bullet 4 ACTIVE USB EXTENDER KIT: The included power adapter for remote extension receiver enables the four USB ports to provide up to 5V/600mA per port; Local extender (transmitter) is USB Host bus powered Bullet 5 PLUG-AND-PLAY: The extender requires no drivers to install & is compatible w/ major operating systems incl. Windows, macOS, Linux; Backward compatible with USB 1.1 devices Bullets (Compact) USB 2.0 hub over IP network extender kit; connect 4 devices @480Mbps via Gigabit Ethernet LAN for long distances or up to 330ft/100m via CAT5e/CAT6 - 5V/600mA per port - Durable aluminum housing - Mounting brackets/power adapter incl - OS Independent Bullets (Consolidated) USB 2.0 extender kit w/ data rates up to 480Mbps; Connect devices over Gigabit Ethernet LAN hardware | Newer version of USB2G4LEXT2 - Alternatively direct connect via CAT5e/CAT6 RJ45 cable up to 330ft/100m - Works as a 4 port USB hub at a remote location to access devices like cameras/3D printers/plotters via IP Network - Durable aluminum housing w/ mounting brackets - Incl. power adapter for remote receiver; Up to 5V/600mA per port; Local transmitter is USB Host Bus powered - OS Independent Marketing Copy Applications - Extend USB 2.0, and 1.1 peripherals such as flash drives, keyboards, mice, enclosures, and whiteboards across a Gigabit Ethernet LAN
- Extend isochronous devices such as webcams and audio devices
- Secured environments where the host computer must be in an inaccessible location away from the drive enclosure, camera or other USB devices
- Perfect for remote storage, security/monitoring, and industrial control applications
- Use existing in-wall Cat5e, Cat6, or Cat7 wiring to extend USB connections between rooms
Website Search Keyword - usb extender over cat5
- usb extender over cat6
- 4 port usb extender
- 100m usb extender
- usb over ethernet hub
- usb over ip extender
- usb over LAN extender
- usb over network
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements Available USB port Accessory Products - 45PATCH100BK
- RJ45PATCH100
- RJ45PATCH50
- N6PATCH100BL
- N6PATCH25OR
- WIRRJ45BLRL
- WIRC6CMPBLU
Related Products - USB2004EXTV
- USB110EXT2
- USB2001EXT2
- USB2004EXT2
- USB2002EXT2
Constrained SKU Alternatives (Limited Stock) - USB2004EXT100
- C10043-USB-EXTENDER
Input Current 0.58 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 24 DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20~80% RH Material Aluminum Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Aluminum Product Length (mm) 100.000 Product Width (mm) 76.000 Product Height (mm) 26.000 Product Weight (g) 192.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant No Max Distance 100m [328ft] Maximum Data Transfer Rate OS Compatibility OS Independent Cabling Cat 5e UTP or better LED Indicators - 1 - Power
- 1 - Link
- 1 - Host
- 1 - Activity
- 1 - RJ45 Link
- 1 - RJ45 Activity

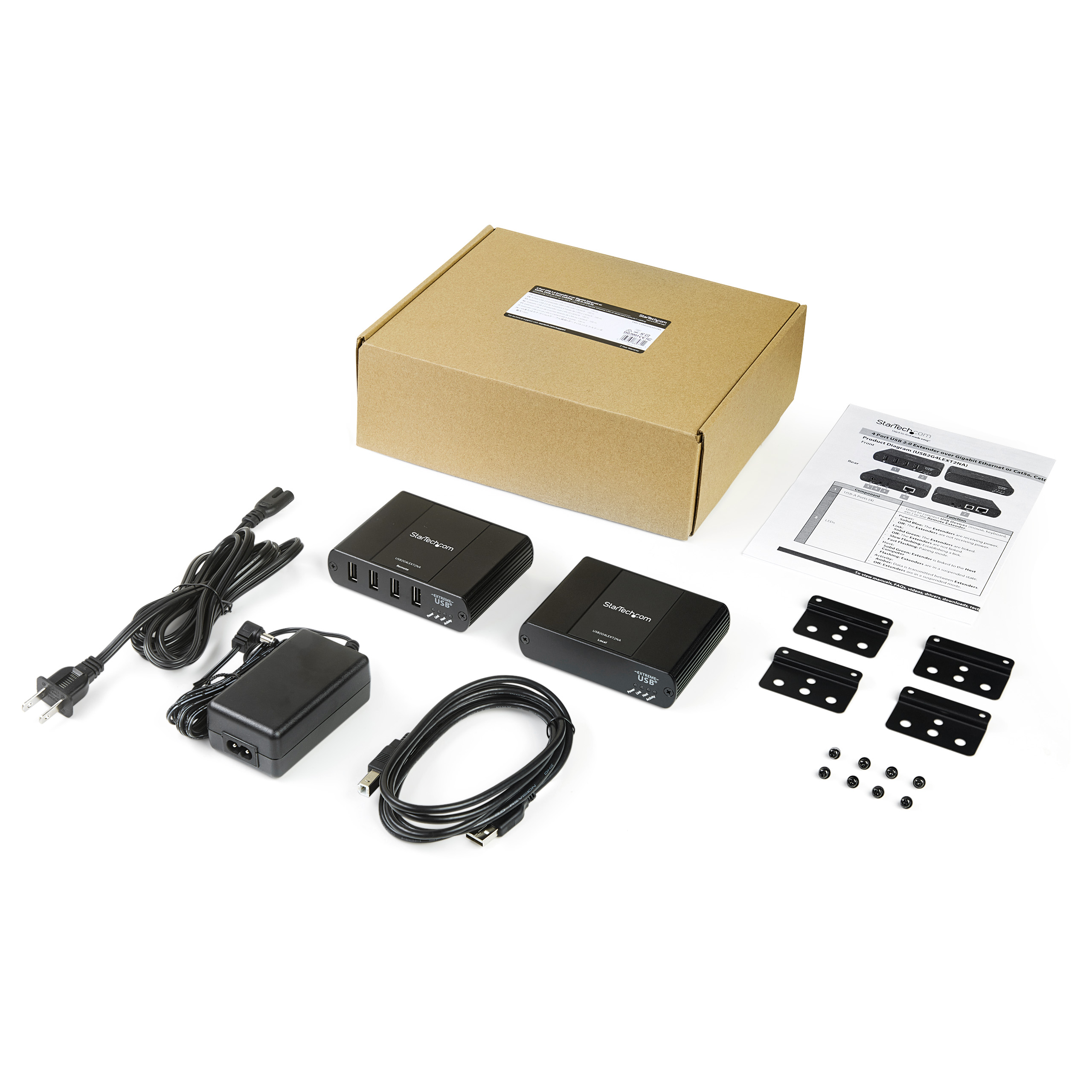

Carton Depth (mm) 420 Carton Height (mm) 270 Carton Quantity 14 Carton Weight Gross (g) 14924 Included in Package - 1 - Local Unit
- 1 - Remote Unit
- 1 - 6 ft [180 cm] USB Cable
- 1 - Mounting Kit
- 1 - Universal Power Adapter with 5.6 ft [170 cm] Cable
- 1 - 6 ft [180 cm] Power Cord (North America)
- 1 - Quick-Start Guide
Package Depth (mm) 201 Package Height (mm) 79 Package Width (mm) 245 Package Quantity 1 Package Weight (g) 954 Packaging Description 4 Port USB 2.0 Extender over LAN or Cat5e/6 - 100m Packaging Description India 4 Port USB 2.0 Extender over LAN or Cat5e/6 - 100m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 4 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2020-01-02 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2020-01-16 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) CA,JP,US Primary Technology None Priority New Product N/A Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-12-11 Target Production Release 2020-01-02 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
