Main Image
USB2HDCAPS
Standalone Video Capture & Streaming - HDMI - CPNT
Capture high-definition video to a PC, or to an SD card without a computer, and stream live video over the Internet in real time
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Standalone Video Capture & Streaming - HDMI - CPNT Product Number USB2HDCAPS UPC 065030858366 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-A Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX053X Product Title (Ultra-Short) Standalone Capture Product Title (Short) Standalone Capture and Streaming - HDMI Product Title (Medium) Standalone Video Capture and Streaming - HDMI or Component - 1080p - USB 2.0 Product Title (Standard) USB Video Capture Card – Standalone – 1080p Game Capture Card – USB Video Capture Card – HDMI Capture Card Product Title (Long) Standalone Video Capture and Streaming - HDMI or Component, 1080p - USB 2.0 Product Title (AMZ) USB 2.0 HD PVR Gaming and Video Capture Card - 1080p HDMI / Component Capture Card (USB2HDCAPS) Title Ingram (Part 1) Standalone Video Capture and Title Ingram (Part 2) Streaming - HDMI or Component Website Product Headline Capture high-definition video to a PC, or to an SD card without a computer, and stream live video over the Internet in real time Bullet 1 Standalone video capture using SD storage Bullet 2 Standalone video streaming using the built-in LAN port Bullet 3 Capture video to your computer through USB Bullet 4 Hassle-free operation Bullet 5 Easy-to-use software included Bullets (Compact) Capture high-definition video to a PC, or to an SD card without a computer and stream live video over the Internet in real-time - Compatible with HDMI & component video source devices - Standalone HDMI capture - Captures HDMI resolutions up to 1080p Bullets (Consolidated) Capture high-definition video to a PC, or to an SD card without a computer and stream live video over the Internet in real-time - Compatible with HDMI and component video source devices - Standalone video capture/standalone video streaming/1080p capture card/USB video capture/HDMI capture card Marketing Copy Marketing Copy (No HTML) The USB 2.0 HD Video Capture Device lets you record high-definition (1080p) video and stereo audio from an HDMI, S-Video or Component source to your computer, through an available USB 2.0 port - the perfect solution for recording video game play, or home videos for editing and compiling. This versatile component capture device supports both NTSC and PAL systems and includes an easy-to-use video capture software suite which lets you record video or take still screenshots and save them to your PC. The standalone capture card also offers video pass-through, so you can watch the same source on an external display. The HDMI video capture device features on-board hardware H.264 encoding, which manages the video conversion process independently of your computer and in turn saves valuable system resources. Please Note: This HD PVR game capture device will not record digitally encrypted content. This personal video recorder is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Archive videos in a digital library
- Create walkthroughs and how-to tutorial videos
- Capture video for screencasts, product demonstrations, online tutorials, classroom lectures, presentations, or conferences
Website Search Keyword - HDMI capture
- video capture
- component capture
- USB capture
- standalone video capture
- standalone twitch capture
- standalone streaming
- standalone video streaming
- video streaming
- PVR
- DVR
- svideo capture
- s-video capture
- capture card
- video recording
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - CPNTHQ6
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMM6
- HDMM10
- HDMM15
- RJ45PATCH10
- RJ45PATCH25
- USB2HAB15
- AUDIORCA15
- MU6MMRCA
Related Products - ECHDCAP
- SVID2USB23
- SVID2USB2NS
- PEXHDCAP
- SVID2USBM
- USB2HDCAP
Power Source USB-Powered Humidity 20%~80% Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 138.000 Product Width (mm) 86.000 Product Height (mm) 27.000 Product Weight (g) 160.000 Storage Temperature -5°C to 60°C (23°F to 140°F) TAA Compliant Yes General Specifications Maximum Data Transfer Rate 100 Mbps Maximum Digital Resolutions OS Compatibility - Windows 8
- Windows 7
- Windows Vista
- Windows XP
- Windows 10
- Windows 11
Supported Resolutions 1080i/p, 720p, 576i/p, 480i/p Audio Yes AV Input - HDMI
- Component
AV Output - USB
- HDMI
- Component
Chipset ID Analog Devices - ADV7513 Converter Type Format Converter Industry Standards - NTSC, PAL-M, PAL-60, PAL
- Video Encoding: MPEG4/H.264
LED Indicators - 1 - Video Source
- 1 - USB (Power)

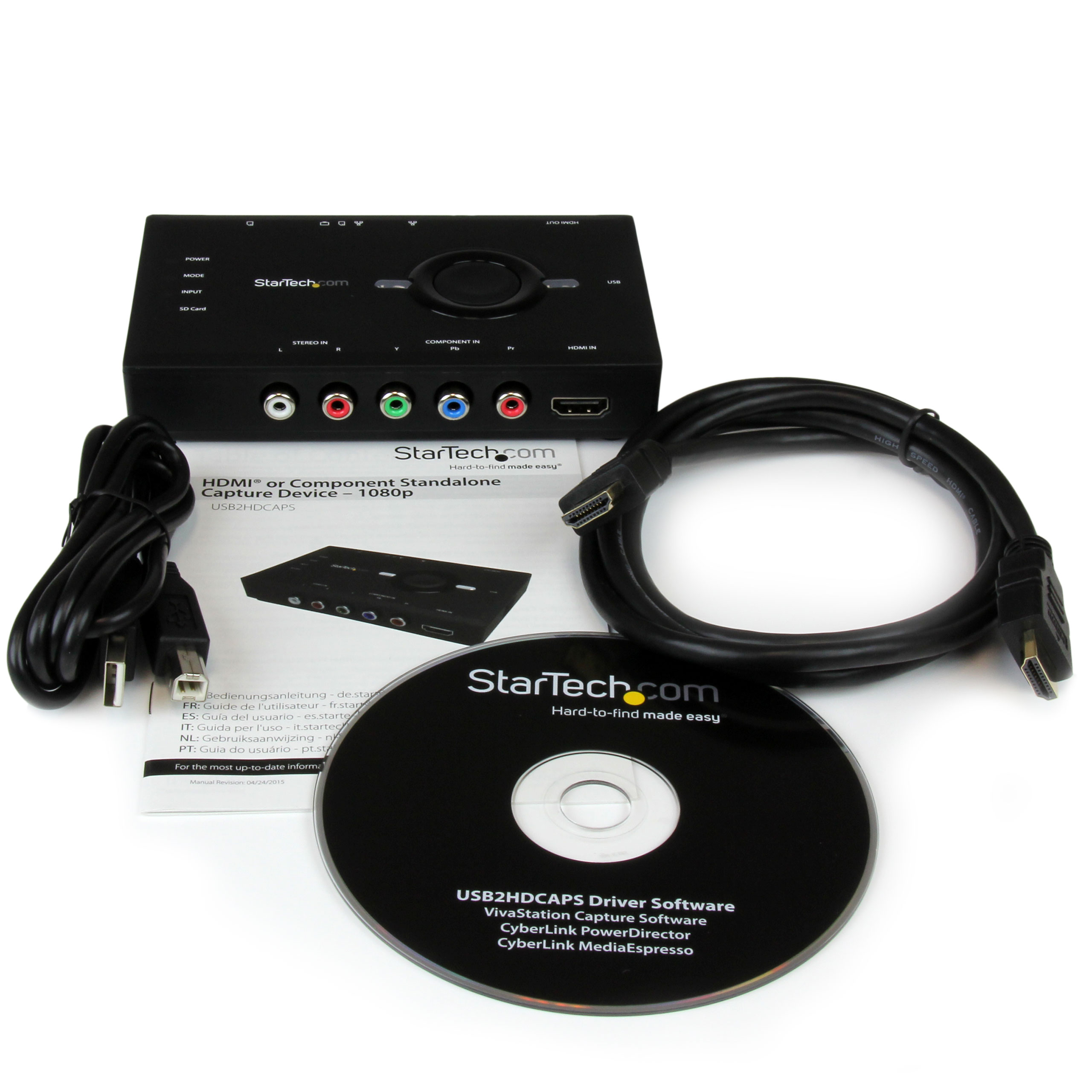

Carton Depth (mm) 405 Carton Height (mm) 325 Carton Quantity 12 Carton Weight Gross (g) 7740 Included in Package - 1 - Capture Device
- 1 - USB 2.0 Cable
- 1 - Instruction Manual
- 1 - HDMI Cable
Package Depth (mm) 192 Package Height (mm) 71 Package Width (mm) 293 Package Quantity 1 Package Weight (g) 535 Packaging Description HDMI® or Component Standalone Capture Device – 1080p Packaging Description India HDMI® or Component Standalone Capture Device – 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RCA (Component Video, YPbPr) Connector 2 (Quantity) 1 Connector 3 RCA (Stereo Audio) Connector 3 (Quantity) 1 Connector 4 USB-B (480Mbps, 2.5W) Connector 4 (Quantity) 1 Connector 5 HDMI Connector 5 (Quantity) 1 Connector 6 SD Card Slot Connector 6 (Quantity) 1 Connector 7 RJ-45 Connector 7 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-05-23 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,CL,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-03-16 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
