USB2SATA25

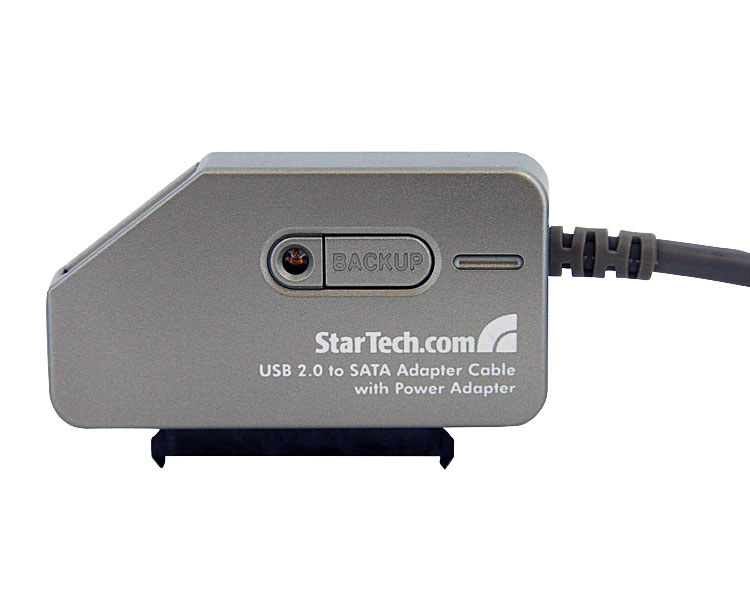

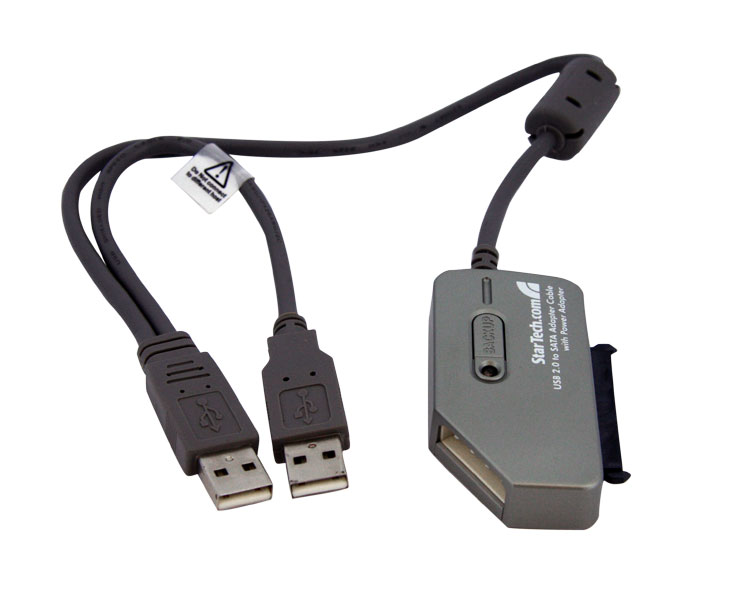

USB 2.0 to SATA USB Adapter
Run your 2.5in and 3.5in SATA drives through a USB port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name USB 2.0 to SATA USB Adapter Product Number USB2SATA25 UPC 065030834612 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) SATA USB Adapter Cable w/ Power Adapter Product Title (Standard) USB to SATA Adapter Cable with Power Adapter Product Title (Long) SATA USB Adapter Cable with Power Adapter Title Ingram (Part 1) SATA USB Adapter Cable with Powe Title Ingram (Part 2) r Adapter Website Product Headline Run your 2.5in and 3.5in SATA drives through a USB port Bullet 1 Includes all necessary interface and power connectors for your drives making it an all-in-one solution Bullet 2 Included software for Windows enables cloning and one button backup feature for backing up and syncing files Bullet 3 External power adapter included for connecting 3.5in SATA drives Marketing Copy Applications - Testing and quickly swapping SATA hard drives
- Plug in a Serial ATA hard drive quickly and easily without taking your case apart
- Use your 2.5" and 3.5" SATA hard drives externally, with a laptop or desktop computer
- Connect a 2.5 inch or 3.5 inch SATA drive to a USB 2.0 port
Website Search Keyword - Adapter Cable
- SATA Adapter Cable
- USB to SATA
- USB 2.0 to SATA
- SATA Power Adapter
- HDD Adapter
Accessory Products - SATA18
- SATA24

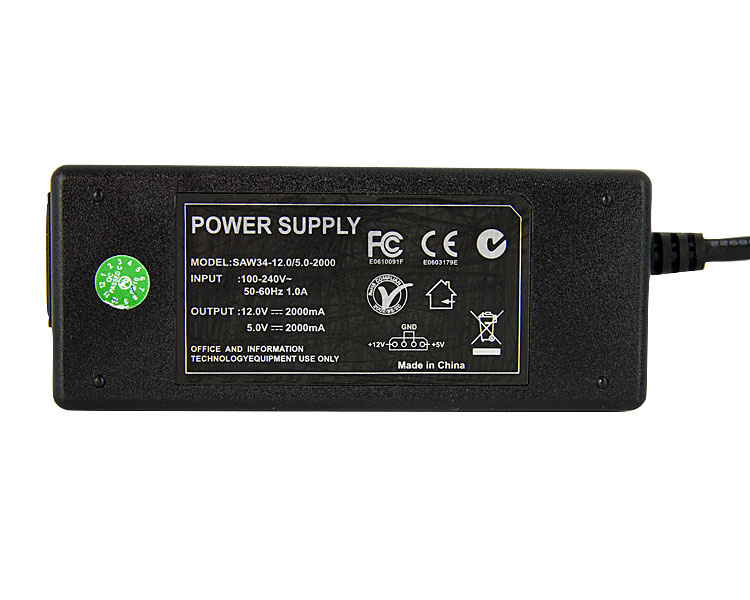

Related Products USB2SATAIDE Equivalent Part Number in the EU USB2SATA25EU Equivalent Part Number in the UK USB2SATA25GB Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Operating Temperature 10°C to 40°C (50°F to 104°F) Product Length (mm) 266 Product Width (mm) 55 Product Height (mm) 18 Product Weight (g) 45 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No General Specifications - Maximum Data Transfer Rate: 480 Mbits/Sec
- NOTE: USB2SATA25 is backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate.
- Power Mode: USB bus powered for 2.5 inch hard drive. Requires included power adapter for 3.5 inch hard drives and 5.25 inch optical drives.
OS Compatibility - Windows 2000
- Windows Vista
- Windows XP
- Mac OS X
- Linux
- Windows 7
- Windows Server 2008 R2

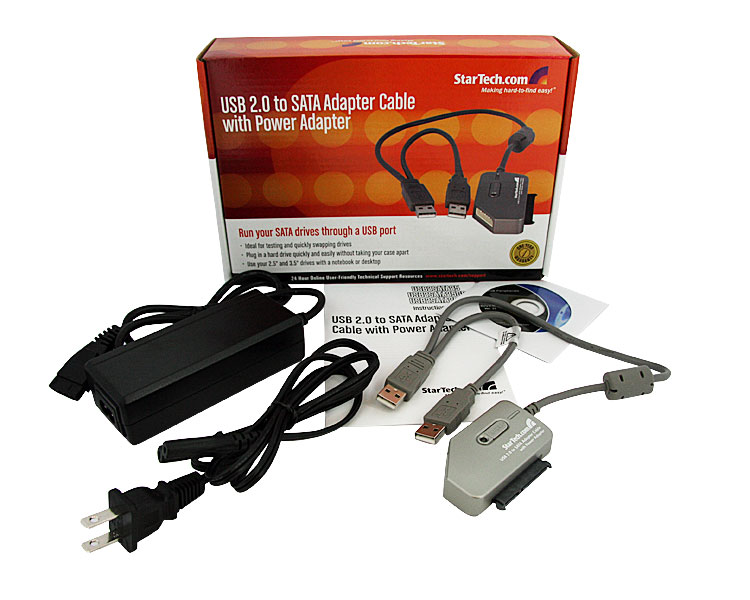

Carton Depth (mm) 390 Carton Height (mm) 245 Carton Quantity 10 Carton Weight Gross (g) 5500 Included in Package - 1 - USB to SATA Adapter

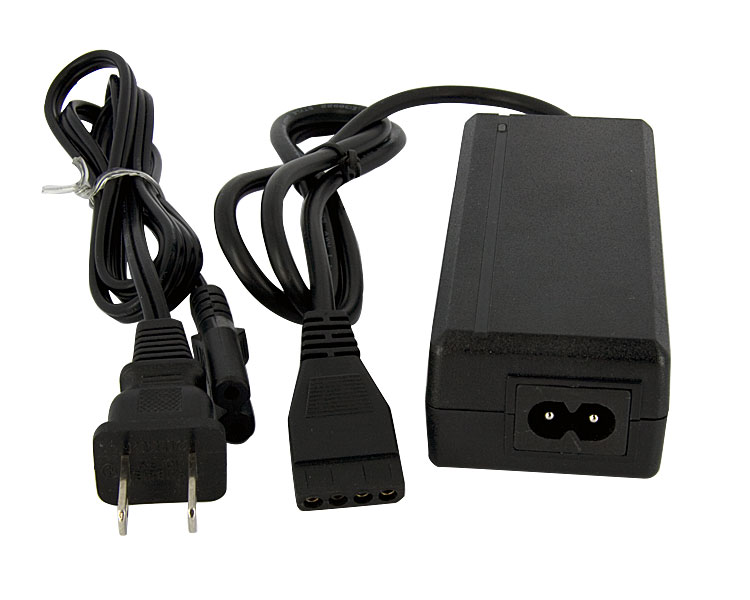

- 1 - Power Adapter and Cable
- 1 - Instruction Manual
- 1 - Driver/Software CD
Package Depth (mm) 148 Package Height (mm) 61 Package Width (mm) 211 Package Weight (g) 450 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 SATA (7-Pin + 15-Pin) Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
