USB2SATAIDE

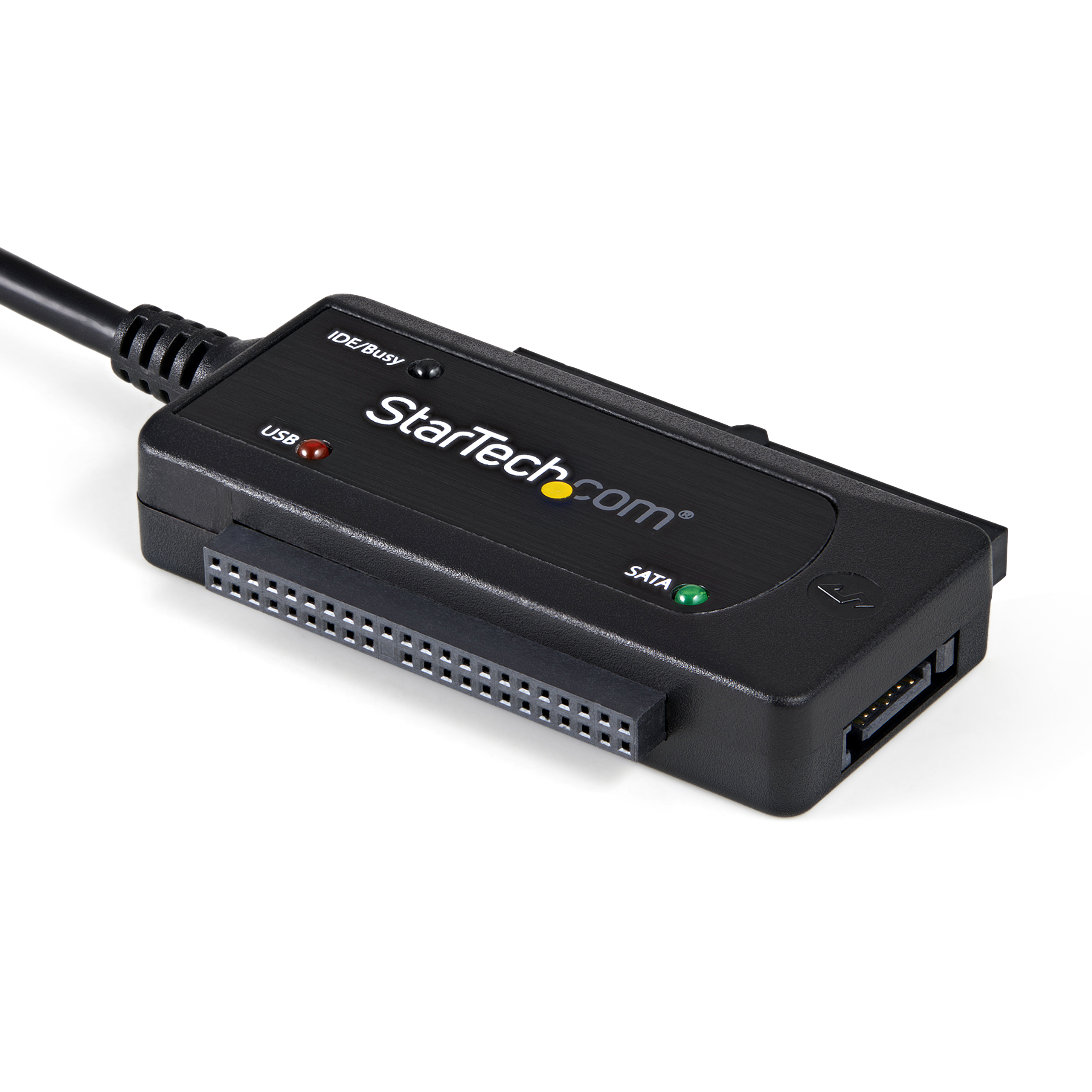

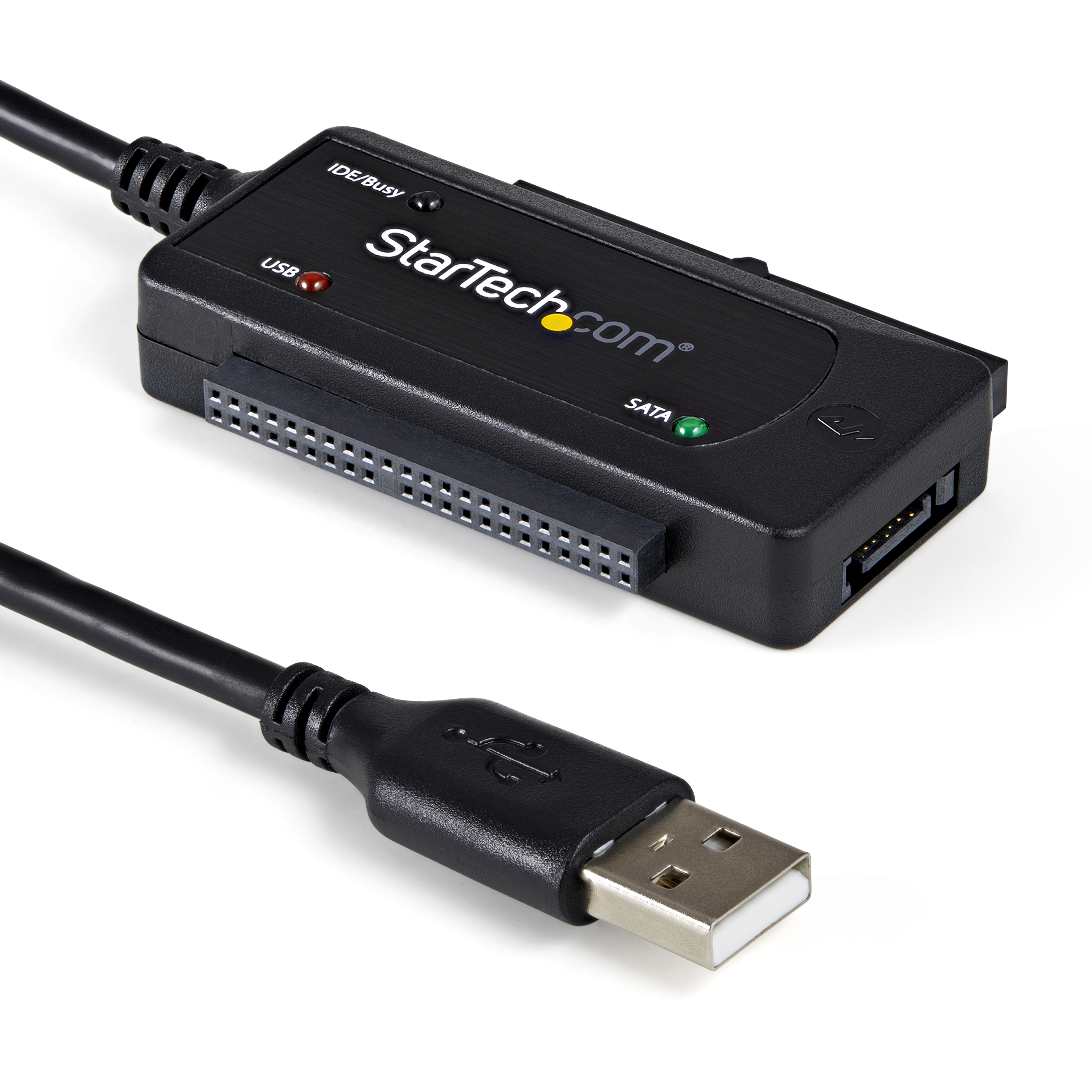

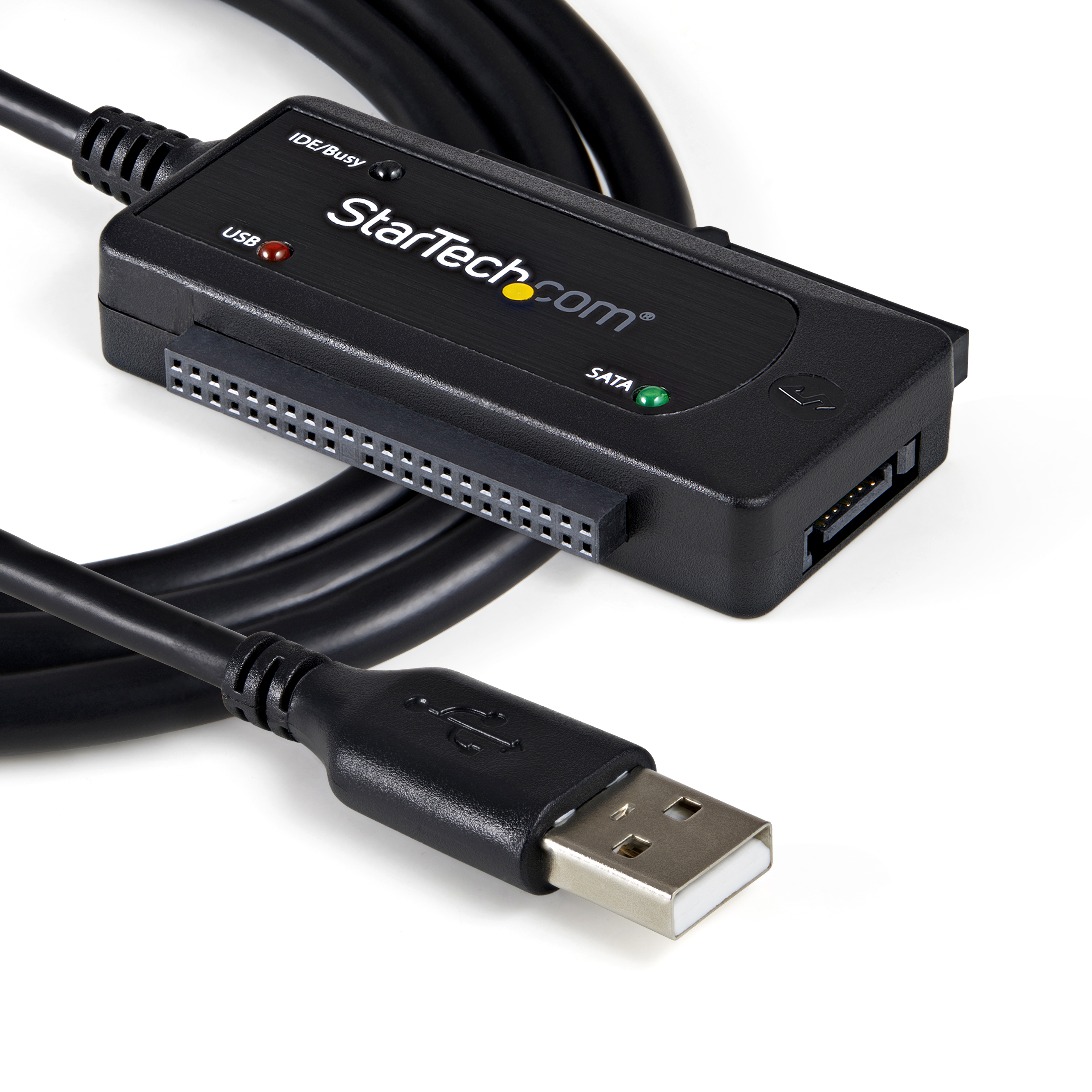

USB 2 0 to IDE or SATA Adapter Cable
Quickly and easily connect SATA and/or IDE hard drives through USB 2.0
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 2 0 to IDE or SATA Adapter Cable Product Number USB2SATAIDE UPC 065030824767 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA USB-A Adapters Family USB to SATA/IDE Cable Adapter Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) USB 2.0 to SATA IDE Adapter Product Title (Medium) x Product Title (Standard) USB 2.0 to SATA/IDE Combo Adapter for 2.5/3.5" SSD/HDD - Replaced by USB3SSATAIDE Product Title (Long) USB 2.0 to SATA/IDE Combo Adapter for 2.5/3.5" SSD/HDD Product Title (AMZ) USB 2.0 to IDE SATA Adapter, 2.5/3.5" SSD/HDD, USB to IDE & SATA Converter Cable - Replaced by USB3SSATAIDE Title Ingram (Part 1) USB 2.0 to SATA IDE Adapter Website Product Headline Quickly and easily connect SATA and/or IDE hard drives through USB 2.0 Bullet 1 Built in connectors for both 2.5in and 3.5in SATA and IDE hard drives Bullet 2 LED indicators provide status and activity updates Bullet 3 High Speed USB 2.0 host interface, with support for transfer rates up to 480 Mbps Bullet 4 Compact, portable form factor Bullets (Consolidated) Quickly and easily connect SATA and/or IDE Hard Drives through USB 2.0 - USB to IDE Adapter - USB to SATA Converter - USB to SATA Adaptor - USB to SATA Dongle - USB to SATA HDD - USB 2.0 to SATA IDE Combo Adapter for 2.5/3.5" SSD/HDD Marketing Copy Marketing Copy (No HTML) Applications - Service technicians who need to test or retrieve data from old hard drives
- Technicians who travel and deal with many different types of hard drives
- Connect your 2.5" and 3.5" drives to almost any notebook or desktop
- Ideal for testing and quickly swapping drives
Website Search Keyword - USB 2.0 to IDE
- SATA Adapter Cable
- Adapter Cable
- USB 2.0 to SATA
- USB2SATAIDGB
- U238-000-1
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Accessory Products - SATA6
- SATA8
- SATA12
- SATA18
- SATA24
- SATA36
- SATA6LA1
- SATA12LA1
- SATA18LA1
- SATA18LSA1
- SATARA36
- SATA24RA1
- SATA36RA1
- SATA6RA1
- SATA8RA1
- LSATA12RA1
- LSATA18RA1
- LSATA6
- LSATA8
- LSATA12
- LSATA18
- LSATA24
- LSATARND6R1
- LSATARND18R1
- LSATA18RA2
- LSATARND6
- LSATARND12
- LSATARND12R1
- LSATARND18
- LSATARND24
- IDE_
- IDE66_36
- IDE66
Related Products - USB3S2SAT3CB
- USB3SSATAIDE
- USB312SAT3CB
- USB31CSAT3CB
- USB31C2SAT3
- USB312SAT3
- USB3S2ESATA
- USB3S2ESATA3
- UNIDUPDOCK
Input Current 1A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 12/5V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type Innovative Color Black Material Plastic Primary Material Plastic Product Length (mm) 869.500 Product Width (mm) 43.000 Product Height (mm) 15.000 Product Weight (g) 51.000 TAA Compliant No 4Kn Support Yes Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent RAID No USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JM20337 Compatible Drive Types SATA & IDE LED Indicators - 1 - USB Link
- 1 - IDE Detect/Activity
- 1 - SATA Detect/Activity

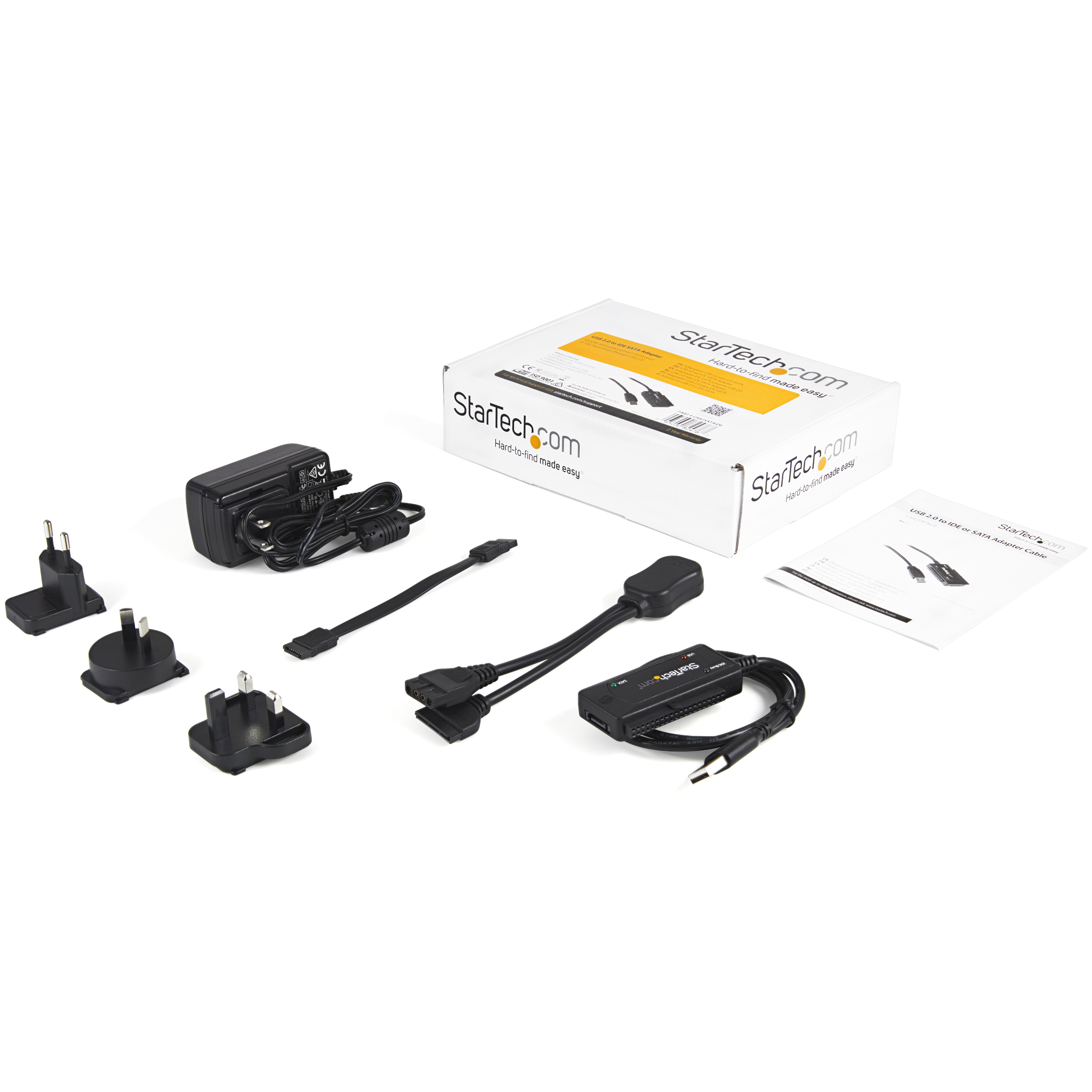

Number of Drives 1 Carton Depth (mm) 442 Carton Height (mm) 284 Carton Quantity 30 Carton Weight Gross (g) 13326 Included in Package - 1 - instruction manual
- 1 - USB 2.0 to SATA/IDE converter
- 1 - SATA data cable
- 1 - power adapter breakout cable
- 1 - universal power adapter (NA/JP, UK, EU, AU)
Package Depth (mm) 150 Package Height (mm) 52 Package Width (mm) 214 Package Quantity 1 Package Weight (g) 410 Packaging Description USB 2.0 to 2.5/3.5in SATA/IDE Converter Packaging Description India USB 2.0 to 2.5/3.5in SATA/IDE Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA 2.5in (ATA/133, Power) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (7-Pin) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 1 Host Connector 1 USB-A (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
