USB2SATAIDGB

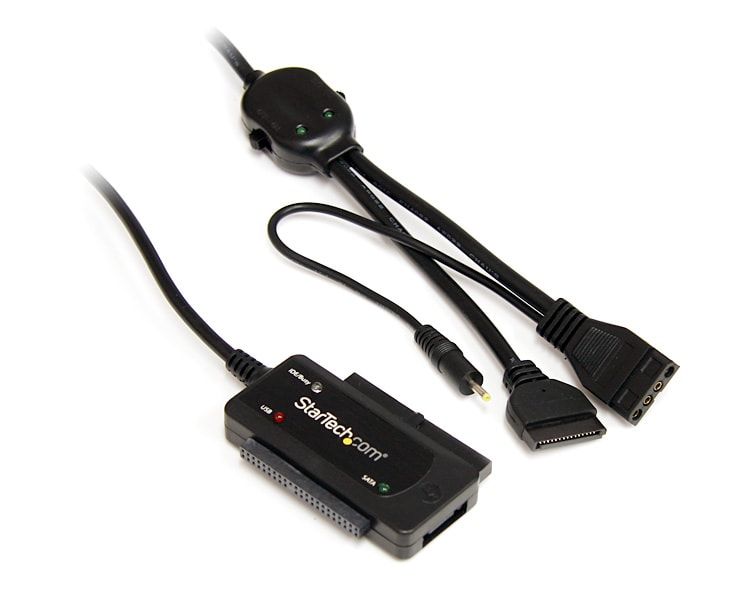

USB 2.0 - IDE or SATA Adapter Cable
Quickly and easily connect SATA and/or IDE hard drives through USB 2.0
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name USB 2.0 - IDE or SATA Adapter Cable Product Number USB2SATAIDGB UPC 065030831963 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) USB 2.0 to IDE SATA Adapter Product Title (Standard) StarTech.com USB 2.0 to IDE or SATA Adapter Cable Product Title (Long) USB 2.0 to IDE SATA Adapter Title Ingram (Part 1) USB 2.0 to IDE SATA Adapter Website Product Headline Quickly and easily connect SATA and/or IDE hard drives through USB 2.0 Bullet 1 Connect 2.5" or 3.5" SATA/IDE drives to a USB 2.0 port Bullet 2 LED indicators provide status and activity updates Bullet 3 USB2SATAIDE include all necessary interface and power connectors for your drives making it an all-in-one solution Marketing Copy Applications - Ideal for testing and quickly swapping drives
- Plug in a hard drive quickly and easily without taking your case apart.
- Save yourself time by connecting your IDE and SATA drives to a USB adapter.
- Use your 2.5" and 3.5" drives with a notebook or desktop.
Website Search Keyword - IDE SATA
- USB
- IDE
- SATA
- Convert
- extend
Special Notes Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate. Accessory Products - IDE44
- IDE66
- SATA18
- SATA24
Related Products - ICUSB2IDE
- UNI3510UEBGB
Replacement Product USB2SATAIDE Input Voltage 115V-230V AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Color Black Material Plastic Product Length (mm) 830 Product Width (mm) 45 Product Height (mm) 13 Product Weight (g) 57 TAA Compliant No Maximum Data Transfer Rate 480 Mbps OS Compatibility - Mac OS 8.6
- Mac OS 9.1
- Windows 2000
- Windows 98SE
- Windows ME
- Windows Vista
- Windows XP
- Windows 7
- Windows Server 2003
- Windows Server 2008 R2
- Mac OS X
- Linux

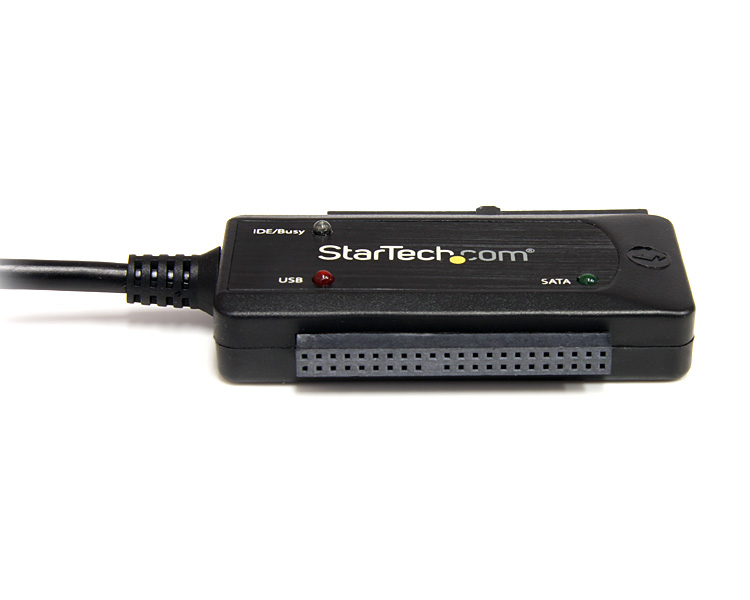

USB Type and Rate USB 2.0 (480Mbps) Compatible Drive Types SATA & IDE LED Indicators - 1 - IDE Detect/Activity
- 1 - SATA Detect/Activity
- 1 - USB Link

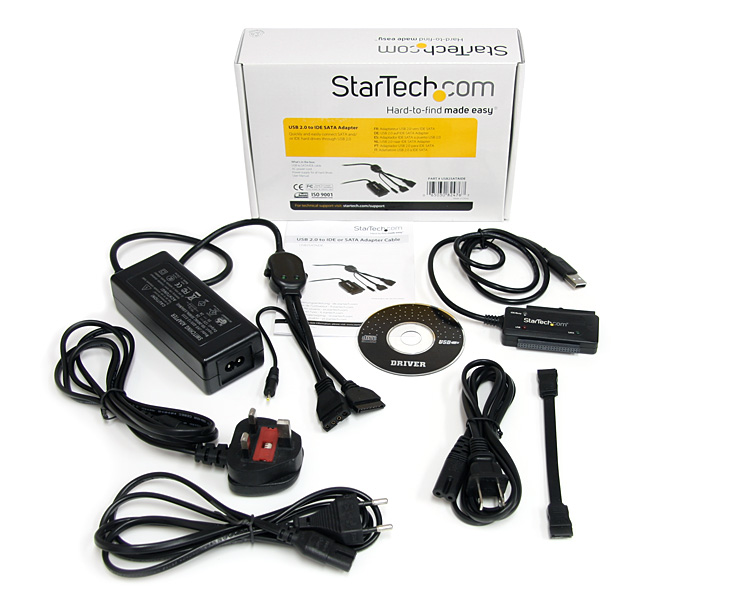

Carton Depth (mm) 500 Carton Height (mm) 400 Carton Quantity 40 Carton Weight Gross (g) 18780 Included in Package - 1 - AC power cord

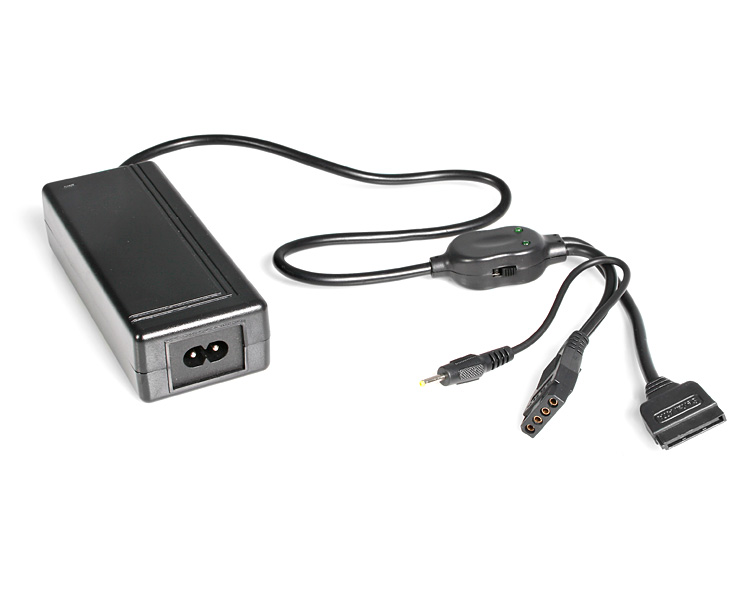

- 1 - Power Supply
- 1 - USB to SATA/IDE Converter
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - SATA Cable
Package Depth (mm) 140 Package Height (mm) 50 Package Width (mm) 190 Package Weight (g) 420 Packaging Description USB 2.0 to 2.5/3.5in SATA/IDE Converter Packaging Description India USB 2.0 to 2.5/3.5in SATA/IDE Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA 2.5in (ATA/133, Power) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (7-Pin) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 1 Host Connector 1 USB-A (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
