Main Image
USB2SLSATINT
Internal USB to Slim SATA Adapter
Convert a Slimline SATA optical drive to use an internal USB 2.0 connection
Main Image
Product Images
Product Images
BOM Image
Product Name Internal USB to Slim SATA Adapter Product Number USB2SLSATINT UPC 065030839419 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX021X Product Title (Short) USB 2.0 to Slimline Optical SATA Adapter Product Title (Standard) USB Header to Slimline CD/DVD Optical SATA Adapter Product Title (Long) Internal USB 2.0 to Slim CD/DVD Optical SATA Adapter w/ SP4 Power Product Title (AMZ) Internal USB 2.0 to Slim CD/DVD Optical SATA Adapter w/ SP4 Power (USB2SLSATINT) Title Ingram (Part 1) Internal USB 2.0 to Slimline CD/ Title Ingram (Part 2) DVD Optical SATA Adapter Website Product Headline Convert a Slimline SATA optical drive to use an internal USB 2.0 connection Bullet 1 Mounts directly and securely to the slim optical drive Bullet 2 Powered directly from the internal USB port Bullet 3 Optional additional power from an SP4 floppy power connector Bullet 4 Connects to any standard internal USB header connect Bullet 5 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Marketing Copy Applications - Install a Slim SATA optical drive without having to use up the SATA ports
- Install an optical drive into a small form factor or embedded systems with limited space
- Turn an unused slim SATA optical drive from a laptop into a desktop optical drive
Website Search Keyword - Slim SATA
- Slimline SATA
- USB 2.0
- Motherboard header
- USB Header
- Slim Optical Drive
- SATA Optical Drive
Accessory Products - USBMBADAPT
- USBINT5PIN
Related Products - OPT2IDE
- OPT2SATA
- SLSATACDADAP
- USB2SATA25
- 2CF2SATAR

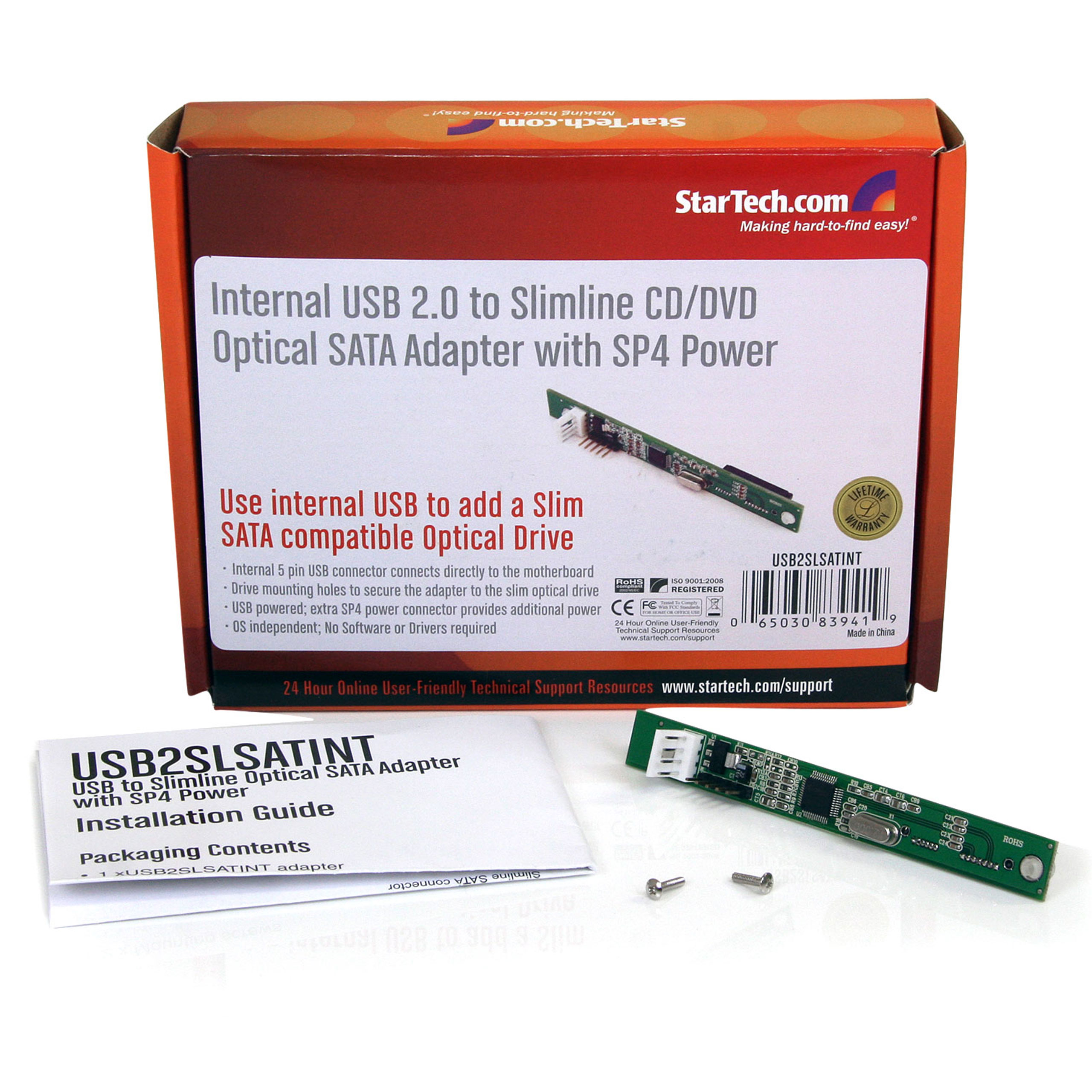

Color Green Humidity 0~75% RH Operating Temperature -10°C to 50°C (14°F to 122°F) Product Length (mm) 102.28 Product Width (mm) 25 Product Height (mm) 12.14 Product Weight (g) 25 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No OS Compatibility OS Independent USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JM20329 Compatible Drive Types Slimline SATA Carton Depth (mm) 403 Carton Height (mm) 308 Carton Quantity 45 Carton Weight Gross (g) 3900 Included in Package - 1 - USB to Slimline SATA adapter
- 2 - Mounting Screws
- 1 - Instruction Manual
Package Depth (mm) 30 Package Height (mm) 131 Package Width (mm) 168 Package Weight (g) 60 Packaging Description USB 2.0 to Slimline SATA Adapter Packaging Description India USB 2.0 to Slimline SATA Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Slimline SATA (13-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Mini-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 Host Connector 3 IDC (5-Pin) Host Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
