Main Image
USB2TYPEM

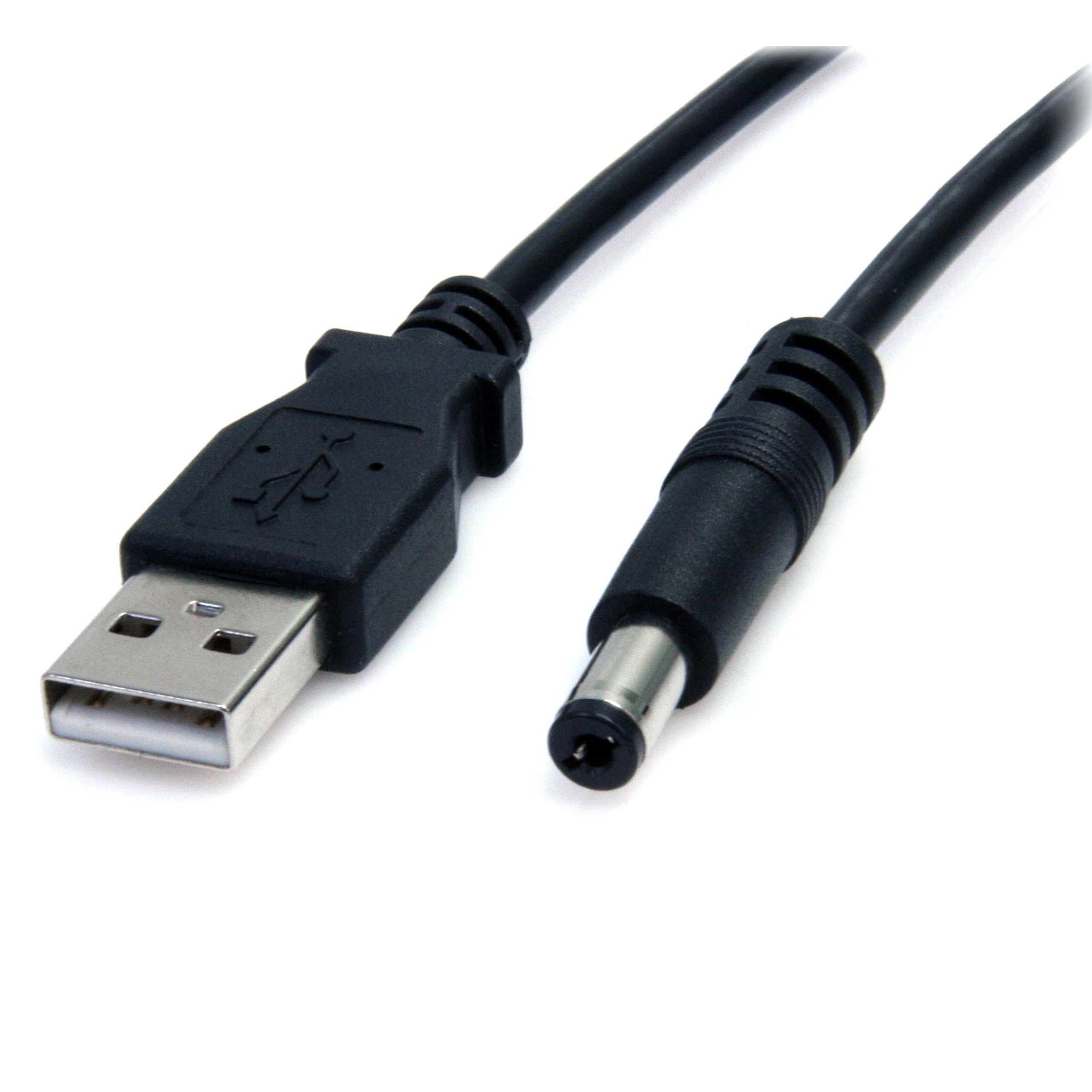

3 ft USB A to Barrel Power Type M
Power your 5V DC devices from your computer through a USB port
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Name 3 ft USB A to Barrel Power Type M Product Number USB2TYPEM UPC 065030839723 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Power Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-A Cables Category Level 3 USB-A Barrel Cables Family USB A to A Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX100X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX100X Country of Origin History (3) China Country of Origin Revision (3) XXXXXX021X Country of Origin History (4) Vietnam Country of Origin Revision (4) XXXXXX147X Product Title (Ultra-Short) . Product Title (Short) 3ft USB to Type M Barrel DC Power Cable Product Title (Medium) x Product Title (Standard) 3 ft USB to Type M Barrel 5V DC Power Cable Product Title (Long) USB to 5.5mm Power Cable - Type M Barrel - 3 ft Product Title (AMZ) 3ft (91cm) USB to Type M Barrel Cable, USB to 5.5mm 5V DC Power Cable, Molded USB to Barrel Jack 5V DC Plug Title Ingram (Part 1) 3 ft USB to Type M Barrel 5V DC Title Ingram (Part 2) Power Cable Website Product Headline Power your 5V DC devices from your computer through a USB port Bullet 1 SPECS: 3ft (91cm); USB-A; Type M coaxial power (Barrel Power Connector OD:5.50, ID: 2.10); Jacket: PVC; Outer Diam (OD): 4.5mm; 5V at up to 0.9A supplied by a USB port; Aluminum-mylar foil with braided shielding Bullet 2 USB-A TO PLUG TYPE-M: 3ft (91cm) USB-A to Type M (5.5mm outer diameter, 2.1mm inner diameter, center pin positive) coaxial barrel connector cable; This power cable can be used to power any M barrel device at 5V from a standard USB supplying up to 0.9A Bullet 3 COMPATIBILITY: Only works with M barrel connections measuring 5.5 OD by 2.1 ID with a positive center pin; The connected device must use 5V, and a max current of 0.9A; Current supplied is determined by the USB port this cable is plugged into Bullet 4 DURABLE: This type-M coaxial power barrel connector (fully molded) with durable PVC jacket for high strength and reliability; Flexible PVC strain relief prevents fraying/damage due to repetitive bending or rough usage Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB to Type M 5.5MM power cable is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Charge your 5V DC devices using your computer USB port - usb to 5.5mm - usb to 5v dc cable - usb to dc plug -usb to type m barrel Bullets (Consolidated) Charge your 5V DC devices using your computer USB port - usb to 5.5mm - 3ft usb to 5v dc cable - usb to dc plug - 3 ft usb to type m barrel - power 5V DC devices that have a Type M (OD: 5.5mm, ID:2.1mm) barrel power connector - Black - Molded Marketing Copy Applications - Power your external hard drive or other devices that are equipped with a Type-M power connector through an available USB port on your computer
- Charge your Bluetooth speakers and other chargeable devices through an available USB port on your computer
Website Search Keyword - USB Power
- USB to Barrel
- Barrel Power
- Type M
- 5V DC power
- U152-003-M
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
Related Products - USB2HABMY3
- USB2HABMY6
- USB2HABM1
- USB2HABM3
- USB2HABM6
- USB2HABM10
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15

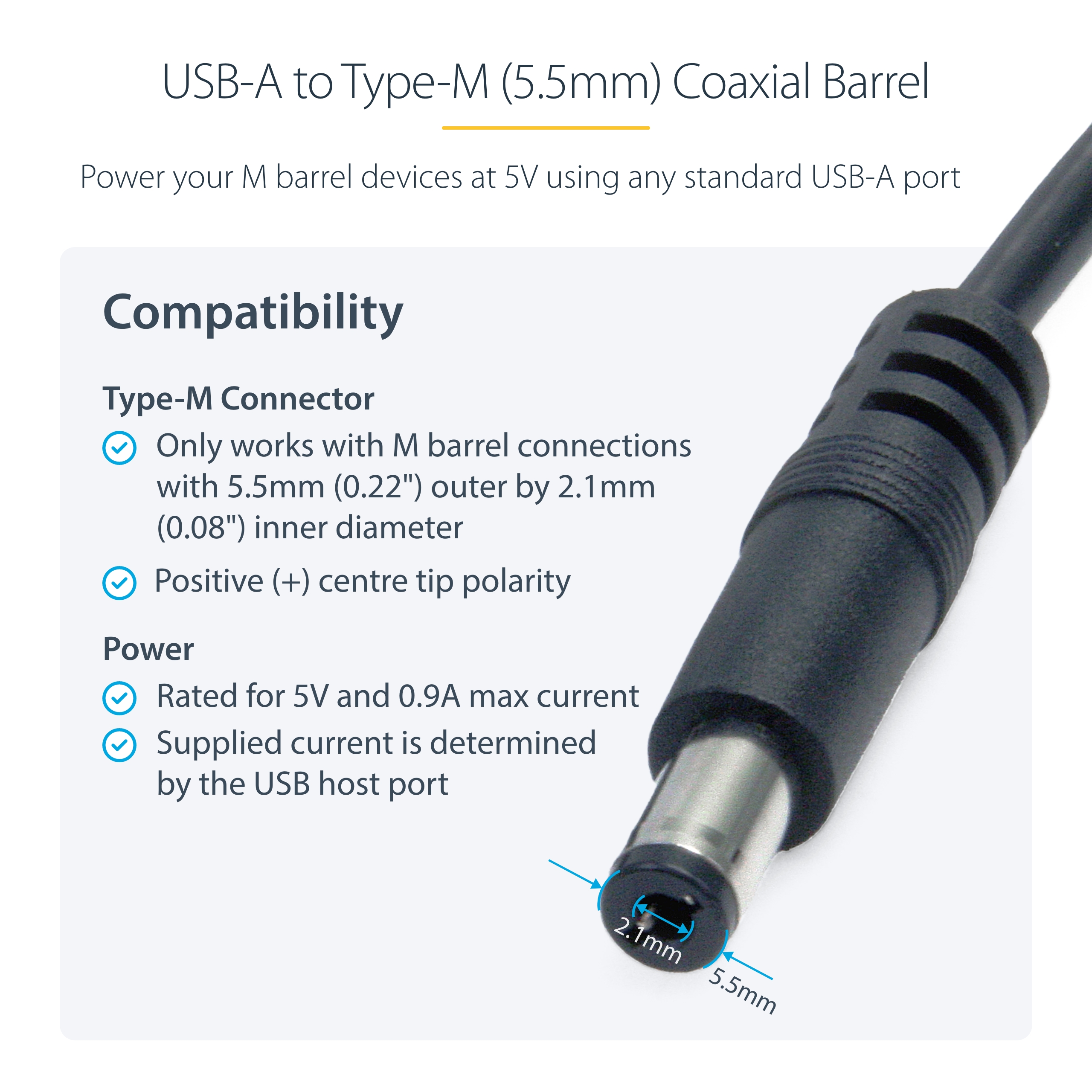

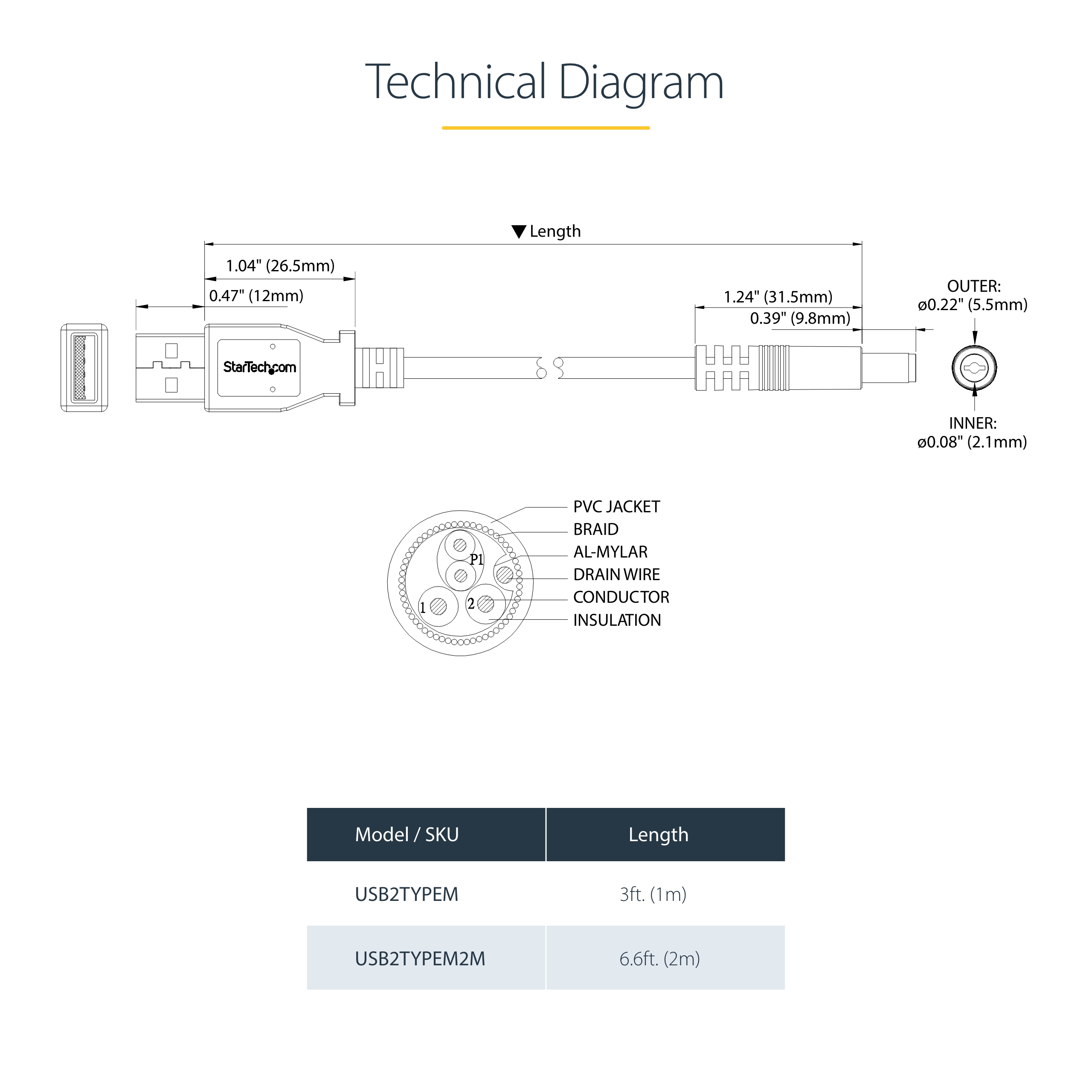

Plug Type M Center Tip Polarity Positive Cable Length (mm) 914.4 Color Black Humidity 30%-75% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Primary Material Plastic Product Length (mm) 915 Product Width (mm) 15.3 Product Height (mm) 7.500 Product Weight (g) 24 Storage Temperature -10°C to 30°C (14°F to 86°F) TAA Compliant No Cable Jacket Material PVC - Polyvinyl Chloride Carton Depth (mm) 399 Carton Height (mm) 323 Carton Quantity 300 Carton Weight Gross (g) 10236 Included in Package 1 - 3 ft USB to Type M Barrel 5V DC Power Cable Included In Package for Label 1 - 3 Ft USB To Type M Barrel 5V DC Cable Number of Sub-Cartons 30 Package Depth (mm) 130 Package Height (mm) 7.8 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 31 Packaging Description USB to Type M Barrel 5V DC Power Cable Packaging Description India USB to Type M Barrel 5V DC Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 323 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
