USB2TYPEN1M

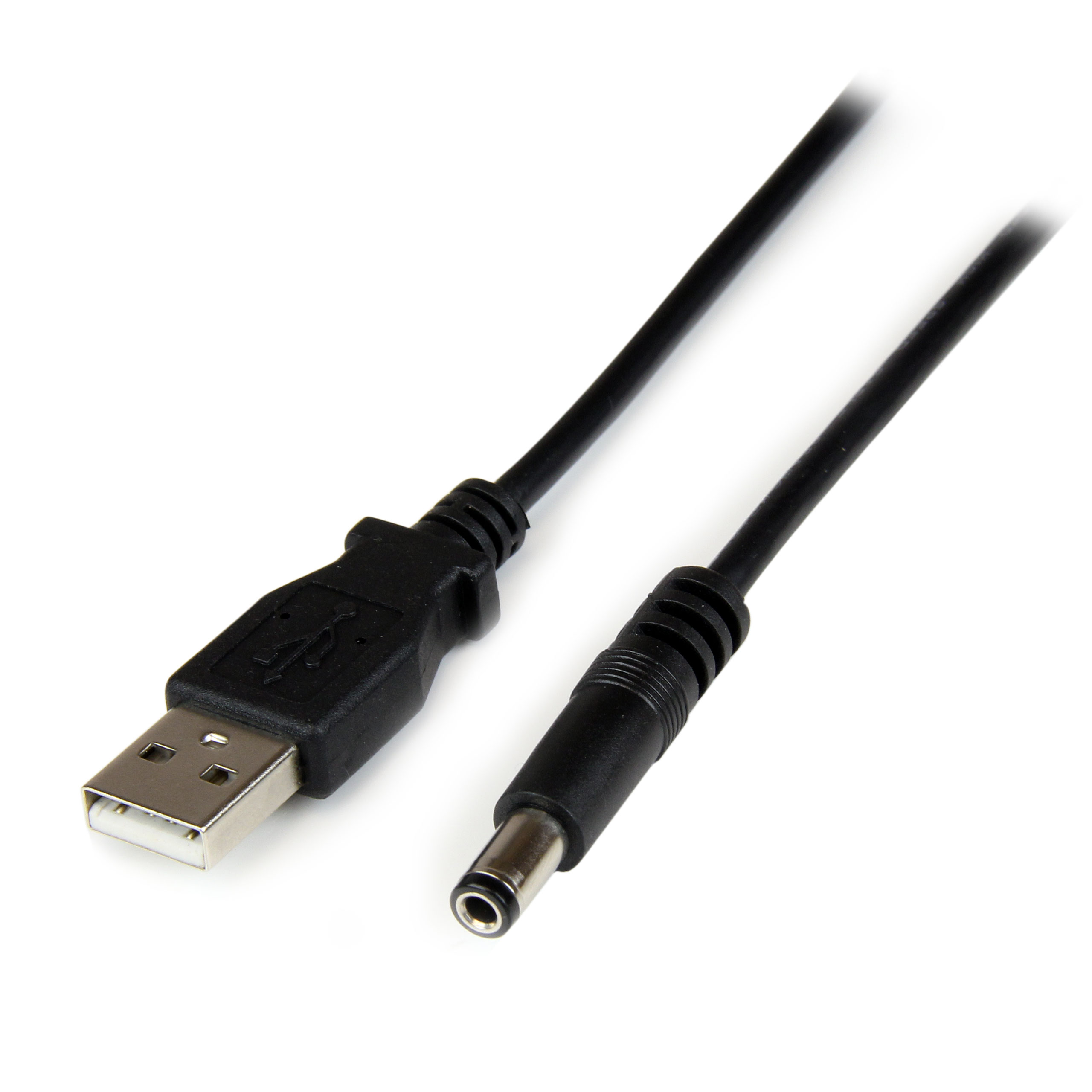

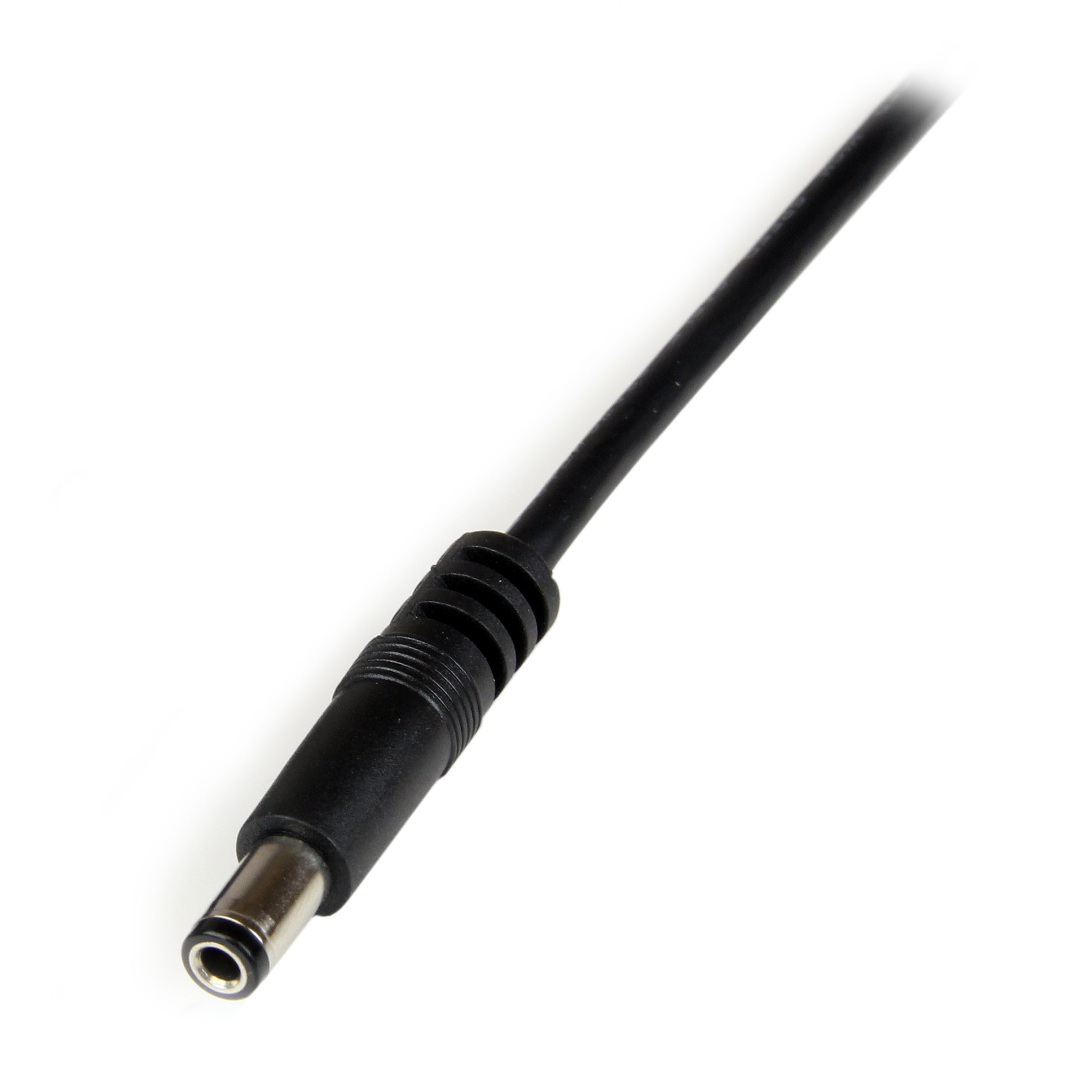

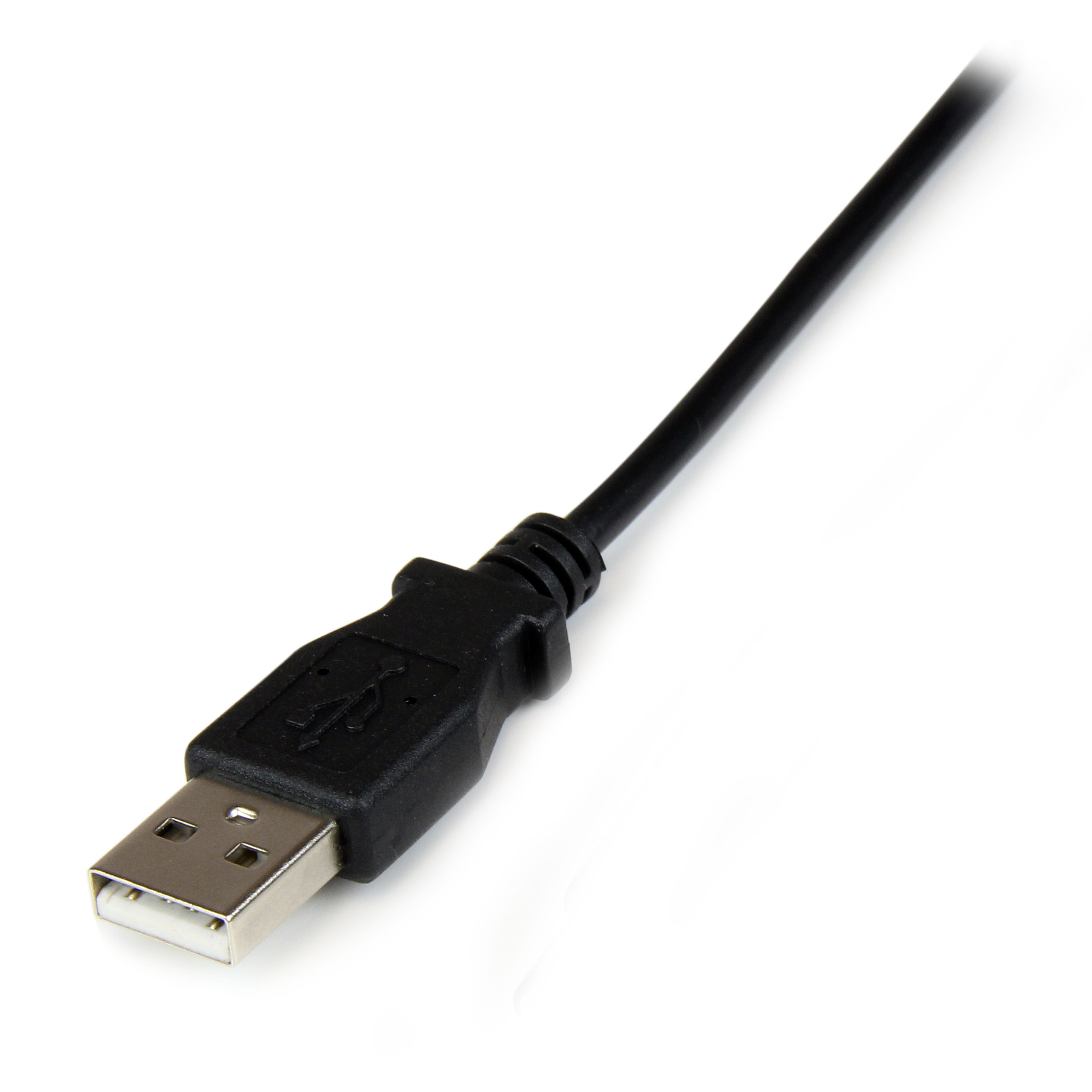

1 m USB to Type N Barrel 5V DC Power Cable
Power your 5V DC devices from your computer through a USB port
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Name 1 m USB to Type N Barrel 5V DC Power Cable Product Number USB2TYPEN1M UPC 065030848664 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Power Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-A Cables Category Level 3 USB-A Barrel Cables Family USB A to A Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX100X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX100X Country of Origin History (3) China Country of Origin Revision (3) XXXXXX021X Country of Origin History (4) Vietnam Country of Origin Revision (4) XXXXXX147X Product Title (Short) 1m USB to 5V DC Power Cable Product Title (Medium) x Product Title (Standard) 1m USB to Type N Barrel 5V DC Power Cable - USB A to 5.5mm DC Product Title (Long) USB to 5.5mm Power Cable - Type N Barrel - 1m Product Title (AMZ) 1m USB to Type N Barrel 5V DC Power Cable - USB A to 5.5mm DC - 1 Meter USB to 5.5mm DC Plug (USB2TYPEN1M) Title Ingram (Part 1) 1m USB to 5.5mm DC Barrel Connec Title Ingram (Part 2) tor - USB to 5V Power Cable Plug Website Product Headline Power your 5V DC devices from your computer through a USB port Bullet 1 DURABLE: This type-N coaxial power barrel connector (fully molded) with durable PVC jacket for high strength and reliability; Flexible PVC strain relief prevents fraying/damage due to repetitive bending or rough usage Bullet 2 USB-A TO PLUG TYPE-N: 3.3ft (1m) USB-A to Type M (5.5mm outer diameter, 2.5mm inner diameter, center pin positive) coaxial barrel connector cable; This power cable can be used to power any N barrel device at 5V from a standard USB supplying up to 0.9A Bullet 3 COMPATIBILITY: Only works with N barrel connections measuring 5.5 OD by 2.5 ID with a positive center pin; The connected device must use 5V, and a max current of 0.9A; Current supplied is determined by the USB port this cable is plugged into Bullet 4 SPECS: 3.3ft (1m); USB-A; Type N coaxial power (Barrel Power Connector OD:5.50, ID: 2.50); Jacket: PVC; 5V at up to 0.9A supplied by a USB port; Aluminum-mylar foil with braided shielding Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB to Type M 5.5MM power cable is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Consolidated) Charge your 5V DC devices from your computer through a USB port - USV to 5v DC Power Cable - USB to 5.5mm - USB to DC Plug - USB to Type N Barrel 5V DC Power Cable - USB A to 5.5mm DC Marketing Copy Marketing Copy (No HTML) Tired of having to carry around a separate wall adapter in order to power or charge your 5V devices, such as certain external hard drives, streaming media players, and Bluetooth speakers? This 1m USB power cable makes it easier to power 5V DC devices that have a Type N (OD: 5.5mm, ID:2.5mm) barrel power connector. You can power or charge the devices through an available USB port on your laptop or desktop computer. Expertly designed and constructed of high-quality materials, the StarTech.com USB2TYPEN1M power cable is backed by our lifetime warranty. Applications - Power your external hard drive or other devices that are equipped with a Type N power connector through an available USB port on your computer
- Charge your Bluetooth speakers and other chargeable devices through an available USB port on your computer
Website Search Keyword - usb to 5v dc power cable
- usb to 5.5mm
- usb to dc plug
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
Related Products - USB2TYPEM
- USB2TYPEM2M
- USB2TYPEN2M
- USB2TYPEH2M

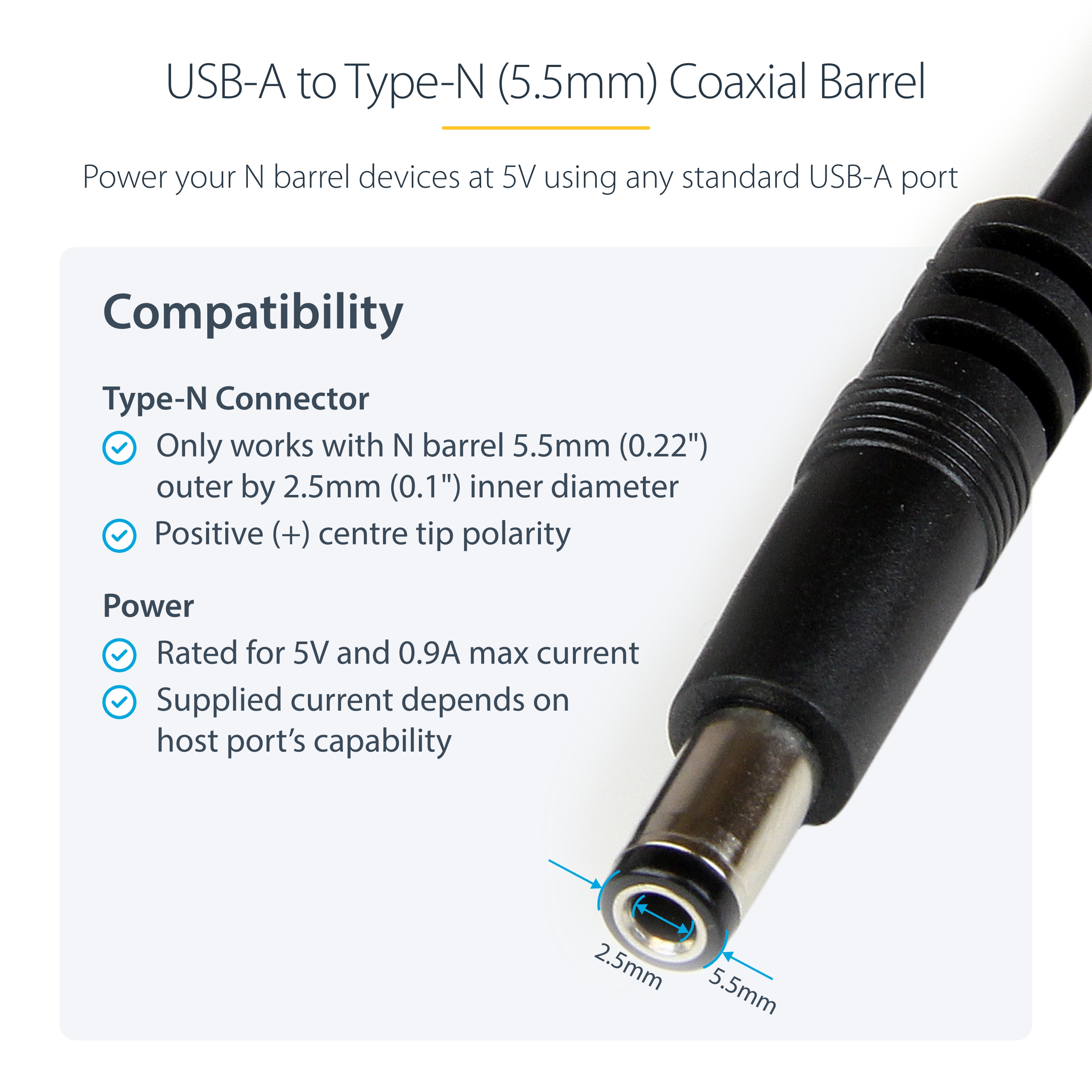

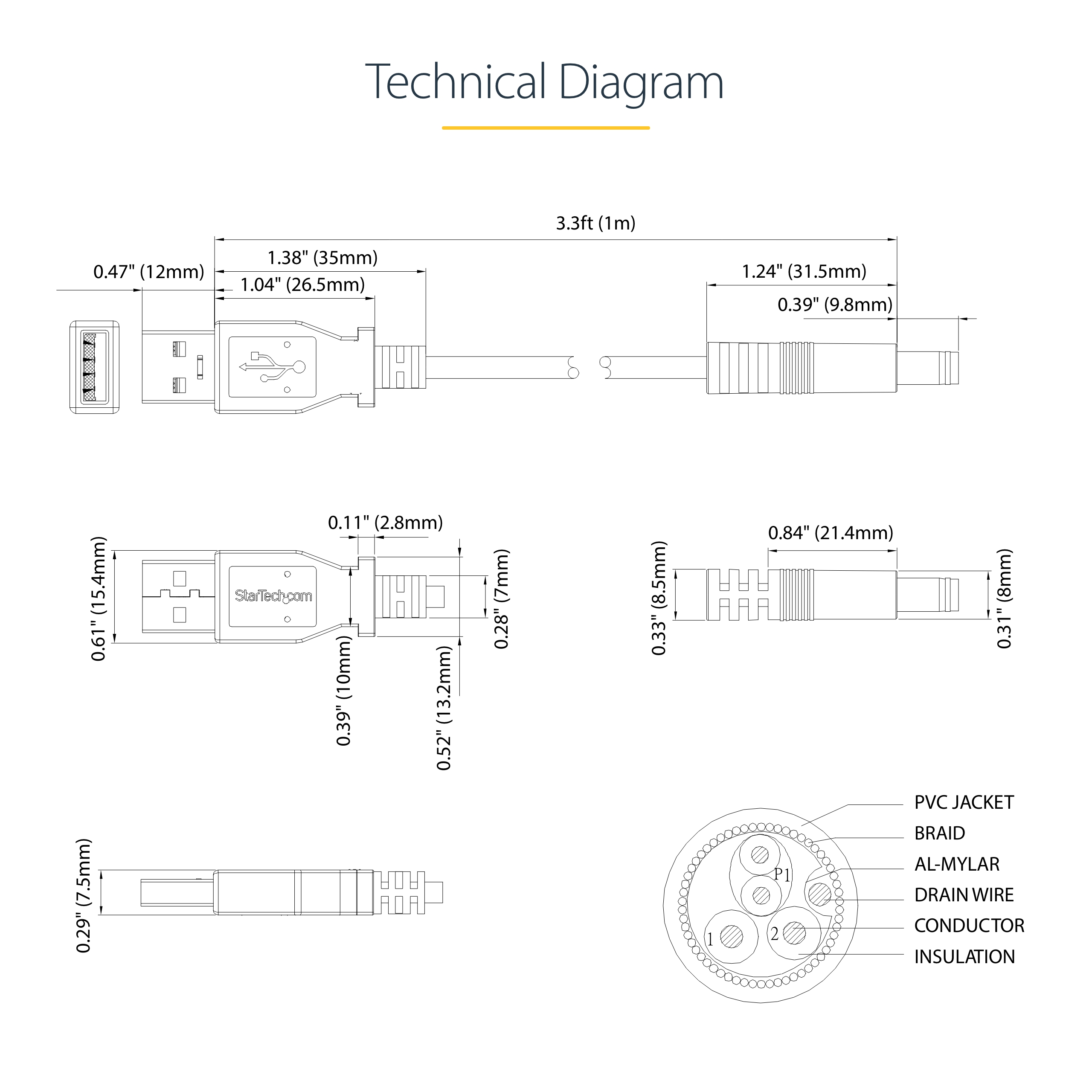

Center Tip Polarity Positive Cable Length (mm) 1000 Color Black Humidity 30%-75% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Primary Material Plastic Product Length (mm) 1000.000 Product Width (mm) 15.000 Product Height (mm) 8.000 Product Weight (g) 27.000 Storage Temperature -10°C to 30°C (14°F to 86°F) TAA Compliant No Wire Gauge 28 AWG Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Nickel Carton Depth (mm) 340 Carton Height (mm) 310 Carton Quantity 300 Carton Weight Gross (g) 10600 Included in Package 1 - 1 m USB to Type N Barrel 5V DC Power Cable Included In Package for Label 1 - 1 M USB To Type N Barrel 5V DC Cable Number of Sub-Cartons 30 Package Depth (mm) 125 Package Height (mm) 14 Package Width (mm) 148 Package Quantity 1 Package Weight (g) 32 Packaging Description USB to Type N Barrel 5V DC Power Cable Packaging Description India USB to Type N Barrel 5V DC DC Cable Sub-Carton Depth (mm) 148 Sub-Carton Height (mm) 67 Sub-Carton Width (mm) 189 Sub-Carton Quantity 10 Sub-Carton Weight (g) 326 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 Barrel Power (N-Type, OD 5.5mm / ID 2.5mm) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
