USB2VGADVI

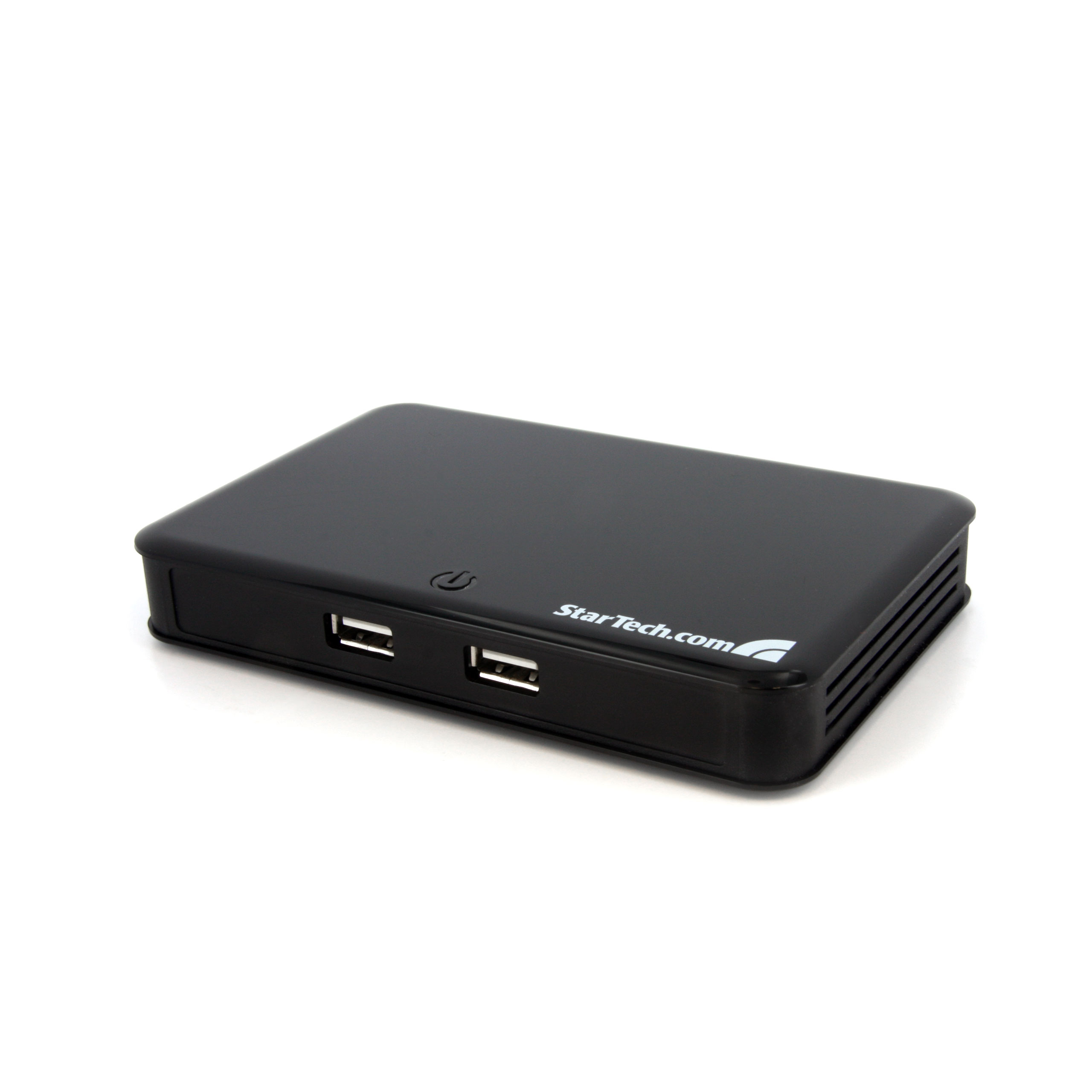

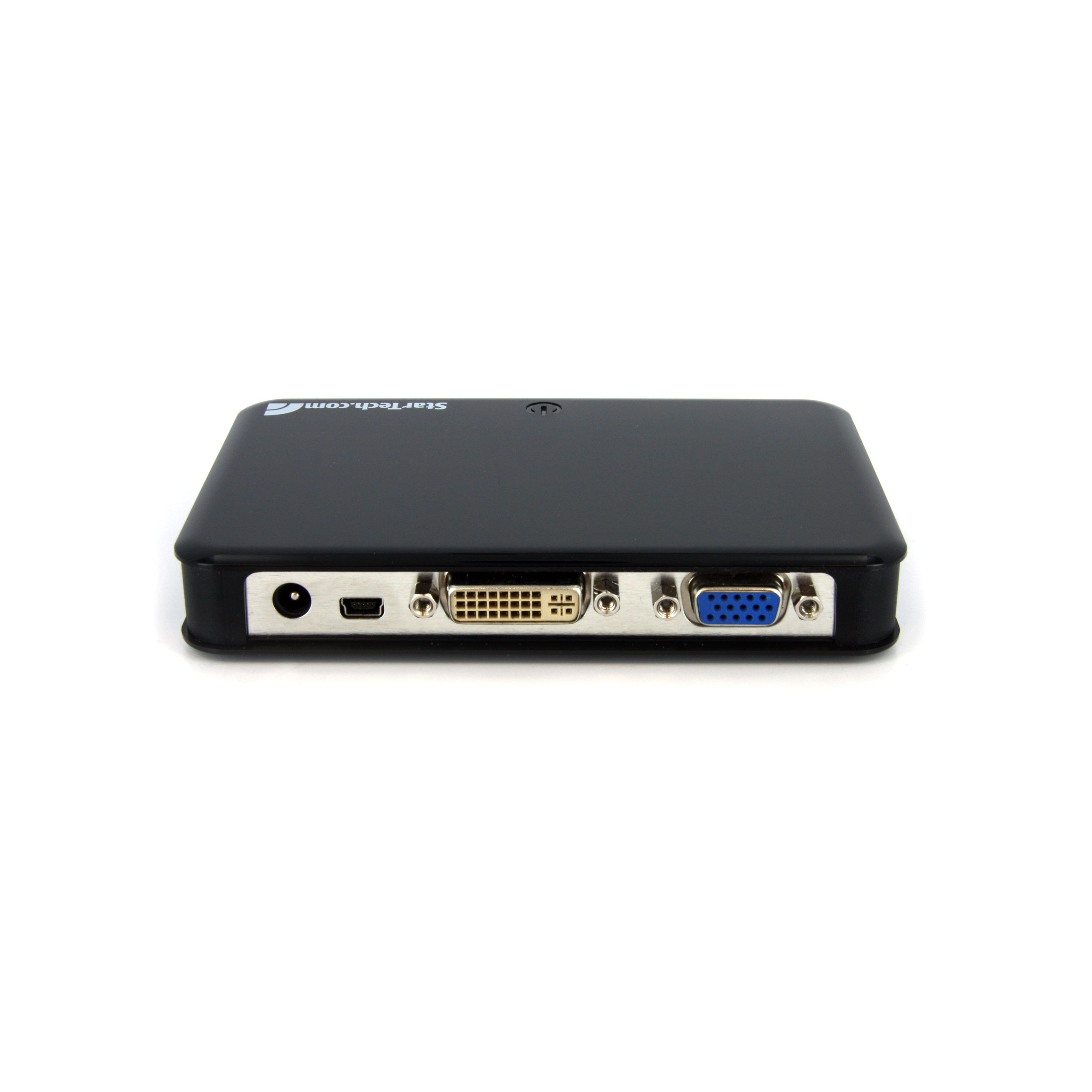

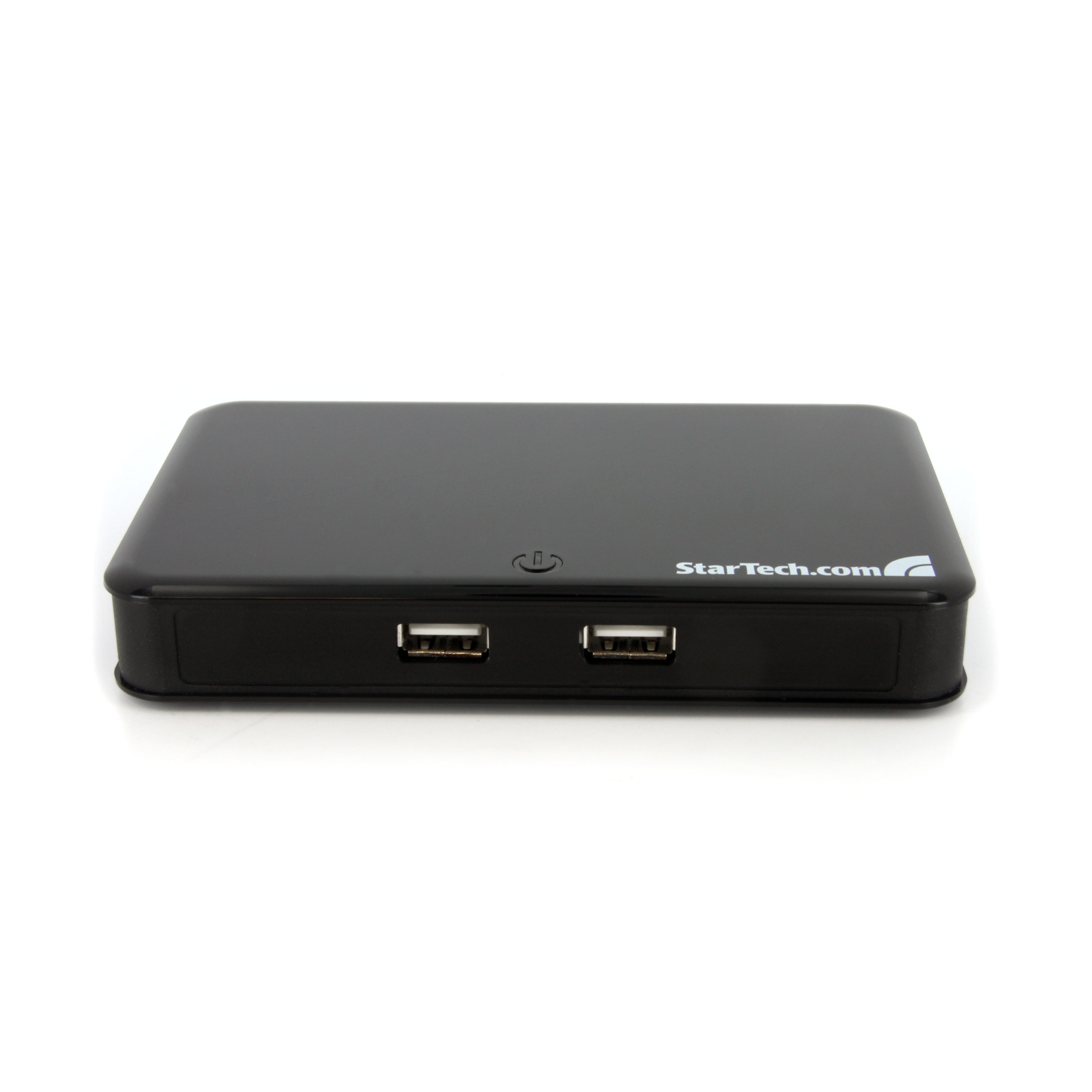

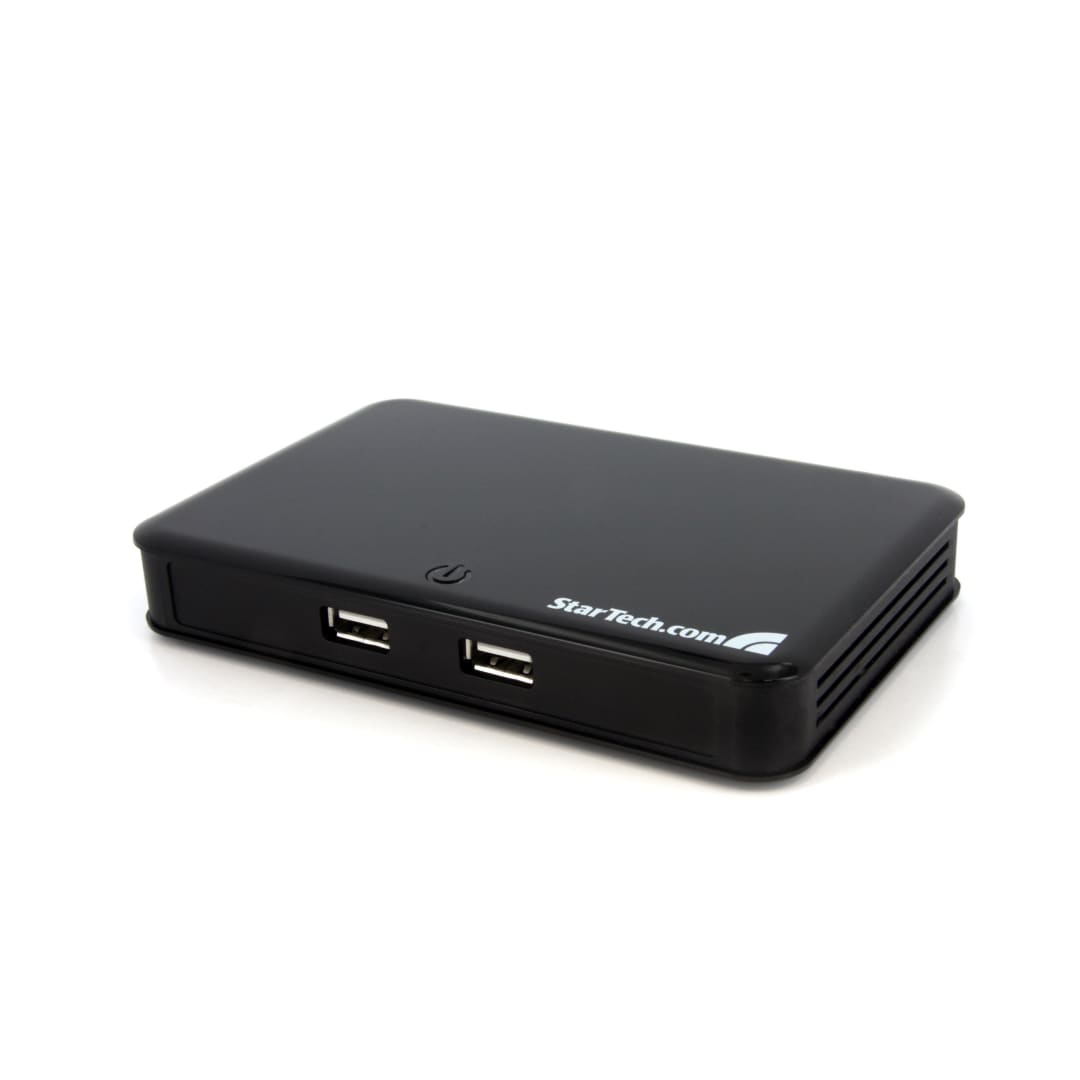

USB to VGA DVI Adapter Hub
Connect a VGA and a DVI-I display simultaneously using this dual monitor USB display adapter
Main Image
Product Images
Product Images
BOM Image
Product Name USB to VGA DVI Adapter Hub Product Number USB2VGADVI UPC 065030837064 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Product Title (Short) USB VGA & DVI Dual Port Video Adapter Product Title (Standard) USB VGA and DVI Dual Port External Video Adapter Product Title (Long) USB VGA and DVI Dual Port External Video Adapter Title Ingram (Part 1) USB VGA and DVI Dual Port Extern Title Ingram (Part 2) al Video Adapter Website Product Headline Connect a VGA and a DVI-I display simultaneously using this dual monitor USB display adapter Bullet 1 Offers a VGA and DVI-I (analog or digital) port for a dual monitor solution right out of the box. Bullet 2 Supports resolutions up to 1680x1050 in 32bits. Bullet 3 Works as a dual display hub and a 2 port USB hub. Bullet 4 Works with laptops and desktop computers. Bullet 5 Easy to use drivers and software enabling dual display applications Marketing Copy Applications - Add multiple monitors / projectors to your computer without the hassle of upgrading to a new video card
- In the office: View large or multiple spreadsheets across two screens
Website Search Keyword - Dual Port
- Dual Head
- USB
- VGA
- DVI
- External
- Video
- Adapter
- Display
- Card
- USB Hub
- Display Hub
- Monitor Hub
- peanut butter
- papeles
Special Notes - This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink® or Fresco Logic®
- Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
- This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- DVIVGAMM6
- DVIVGAMM10
- DVIIDMM10
- DVIIDMM15
Related Products - USB2VGAE2
- USB2DVI
- USB2VGAMM6
- USBVGADOCK
Input Voltage 110V-240V AC Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Operating Temperature 0-70 degrees C Product Length (mm) 86 Product Width (mm) 135 Product Height (mm) 18 Product Weight (g) 172 Storage Temperature 15-30 degrees C TAA Compliant No OS Compatibility - Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Windows 8
Supported Resolutions 1600x1200, 1680x1050, 1440x900, 1400x1050, 1360x768, 1280x1024, 1280x960, 1280x768, 1280x720, 1152x864, 1024x768 @ 16/32 bit AV Input USB 2.0 AV Output - VGA
- DVI

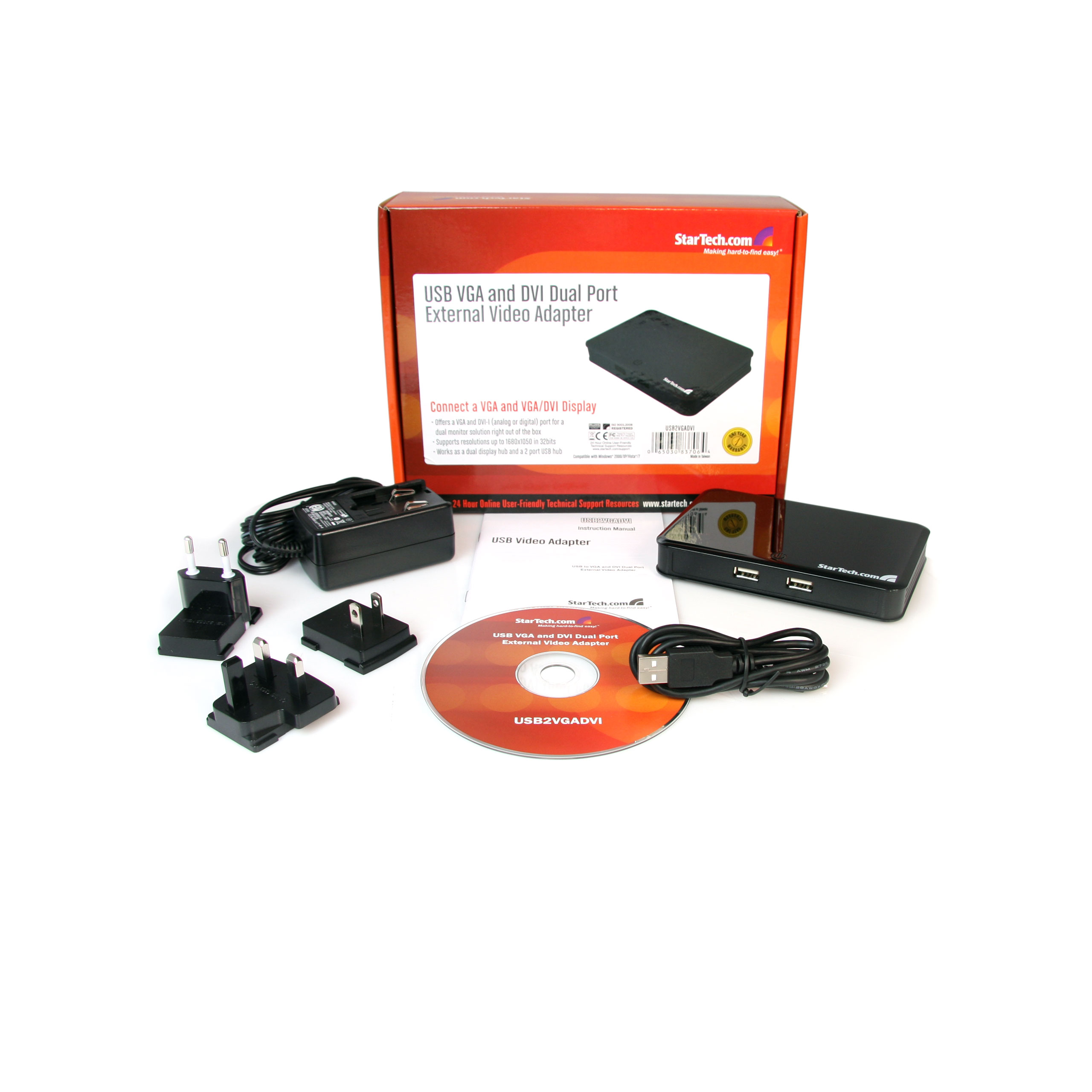

Chipset ID Trigger - Trigger 1+ LED Indicators 1 - Power (Green) Memory 32MB USB Pass-Through No Carton Depth (mm) 502 Carton Height (mm) 380 Carton Quantity 20 Carton Weight Gross (g) 14400 Included in Package - 1 - USB to VGA and DVI Adapter
- 1 - Universal Power Adapter (US/UK/EU)
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - 3ft Mini USB to USB Cable
Package Depth (mm) 68 Package Height (mm) 180 Package Width (mm) 234 Package Weight (g) 660 Packaging Description USB VGA and DVI Dual Port External Video Adapter Packaging Description India USB VGA and DVI Dual Port External Video Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 2 en-US Content Approved Yes Product Manager Eric Roth
