4 Port USB 3 1 Gen 1 Extender over Cat6a 7

Main Image

USB3004EXT2

4 Port USB 3 1 Gen 1 Extender over Cat6a 7

Extends USB 3.2 Gen 1 (5Gbps) 1 & Gigabit Ethernet | 330 ft. (100 m) | Over Single Cat6a/Cat7 | 2x Locking Power Adapters

Main Image

Product Images

Product Images

Product Images

BOM Image

Video Link YouTube

Product Name	4 Port USB 3 1 Gen 1 Extender over Cat6a 7
Product Number	USB3004EXT2
UPC	065030880688
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Extenders > USB Extenders
Category Level 1	Computer Cards and Adapters
Category Level 2	USB Cards and Extenders
Category Level 3	USB Extenders - 5Gbps
Family	USB Extenders - 5Gbps - over Cat
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	XXXXXX040X

Manual https://images.salsify.com/image/upload/s--1VELOBLt--/a112981fcbf72e0230767ff7adf197d06e0d0ff3.pdf

Product Title (Ultra-Short)	4pt USB 3.0 Extender
Product Title (Short)	4-Port USB 3.0 Extender over Cat6a 330ft
Product Title (Medium)	4-Port USB 3.0 Extender Hub with 1x Gb Ethernet over Cat6a/Cat7 - 330ft (100m)
Product Title (Standard)	4-Port USB 3.0 Extender with 1x Gigabit Ethernet Port Extension over Single Cat6a/Cat7 Cable 330ft/100m, 5Gbps USB-A Extender
Product Title (Long)	4-Port USB 3.0 Extender Hub with 1x Gigabit Ethernet Port Extension over Single Cat6a/Cat7 Cable (RJ45) - 330ft (100m) - USB Extender Kit (USB-A) - 5Gbps USB 3.2/3.1 Gen 1
Product Title (AMZ)	4-Port USB 3.0 Extender Hub with 1x Gigabit Ethernet Port Extension over Single Cat6a/Cat7 Cable (RJ45) - 330ft (100m) - USB Extender Kit (USB-A) - 5Gbps USB 3.2 Gen 1 (USB3004EXT2)
Title Ingram (Part 1)	4-Port USB 3.0 Extender Hub w/
Title Ingram (Part 2)	Gb Ethernet 100m over Cat6a/Cat7
Website Product Headline	Extends USB 3.2 Gen 1 (5Gbps) 1 & Gigabit Ethernet \| 330 ft. (100 m) \| Over Single Cat6a/Cat7 \| 2x Locking Power Adapters
Bullet 1	4-PORT USB 3.2 Gen 1 & GbE EXTENDER: Extend 4x USB 3.2 Gen 1 (5Gbps) connections & Gigabit Ethernet/LAN port up to 330ft (100 meters) over a single CAT6a/CAT7 cable; Power/Status/Link/USB 2.0 & USB 3.2 Gen 1 Indicator LEDs; SuperSpeed 5Gbps USB 3.2/3.1 Gen 1
Bullet 2	CONNECT REMOTE USB 3.2 Gen 1 DEVICES: Ideal to remotely access high speed USB 3.2 Gen 1 devices like storage banks, printers, USB 2.0 HD cameras, plotters, keyboard/mouse, POS devices, scales, laser cutters, displays, or CCTV systems from a convenient location
Bullet 3	INDUSTRIAL USB EXTENDER: USB 3.2 Gen 1 Extender is built with durable extruded aluminum construction for high wear & tear environments with mounting brackets included; provides 8kV/15kV Contact/Air Electrostatic Discharge (ESD) extended protection
Bullet 4	EXTERNALLY POWERED USB EXTENDER KIT: The USB extender over Cat6a/Cat7 cable (RJ45) includes 2x locking power adapters for the local transmitter and remote receiver; Each remote USB 3.2 Gen 1 port provides 5V, 900mA of power
Bullet 5	PLUG-AND-PLAY: The USB-A extender hub features driverless installation & is compatible w/ all major operating systems incl. Windows, macOS, Linux; Backward compatible with USB 2.0, USB 1.1 and USB 1.0 devices
Bullets (Compact)	4-Port USB 3.2 Gen 1 Type-A 5Gbps and Gigabit Ethernet port extender - 330ft/100m over CAT6a/CAT7 cable (RJ45) - Industrial Metal USB 3.2 Gen 1 extender hub; 8kV/15kV Contact/Air ESD protection - 5V, 900mA/port - Incl 2 locking power adapters
Bullets (Consolidated)	Extend 4x USB 3.2 Gen 1 Type-A 5Gbps ports and a Gigabit Ethernet port up to 330'/100m over a CAT6a/CAT7 cable (RJ45) \| USB 3.2 Gen 1 - Industrial USB 3.2 Gen 1 Extender hub \| 8kV/15kV Contact/Air ESD protection - Durable aluminum housing \| Mounting brackets incl. - Incl. 2 locking power adapters for local transmitter and remote receiver providing 5V/900mA from each remote USB port - Driverless \| OS Independent \| Works w/USB 2.0/1.x - Remotely access USB storage/3D scanners/printers/USB 2.0 HD camera
Marketing Copy
Applications	Remotely access high speed USB 3.0 devices like storage banks (USB based HDDs or SSDs), printers, USB 2.0 HD cameras, plotters, keyboard/mouse, POS devices, scales, laser cutters, displays, or CCTV systems from a convenient location Ideal for high wear-and-tear environments, such as machine shops, warehouses or other industrial settings
Website Search Keyword	100m usb extender 4 port usb extender powered usb extender usb 3 extender usb 3 over ethernet extender usb 3.0 cat6 extender usb 3.0 extender usb 3.0 extender over cat6 usb 3.0 lan extender usb 3.0 over cat6 usb 3.0 over cat6 extender usb 3.0 over ethernet extender usb 3.0 port extender usb 3.1 extender usb 3.1 extender over cat6 usb cat6 extender usb ethernet extender usb extender usb extender 100 meters usb extender 100m usb extender hub usb extender lan usb extender over cat6 usb extender rj45 usb extender via ethernet usb extension box usb extension hub usb over cat usb over ethernet cable usb over ethernet extender usb over lan usb over lan adapter usb over lan extender usb port extender usb rj45 extension adapter usb to usb extender usb-a extender black box usb extender c2g usb extender crestron usb extender extron usb extender gefen usb extender icron usb extender iogear usb extender lindy usb 3.0 extender logitech usb extender monoprice usb extension usb 2.0 extender usb 3.0 extension cable usb extender amazon usb extension cable usb3 extender over cat5

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

Accessory Products	45PATCH100BK RJ45PATCH100 RJ45PATCH50 N6PATCH100BL N6PATCH25OR WIRRJ45BLRL WIRC6CMPBLU
Related Products	USB110EXT2 USB2001EXT2NA USB2001EXT2PNA USB2001EXTV USB2002EXT2NA USB2G4LEXT2NA USB2004EXT2NA
Constrained SKU Alternatives (Limited Stock)	USB2004EXT100 C10043-USB-EXTENDER

Input Current 0.58 A
Input Voltage 100 - 240 AC
Output Current 1 A
Output Voltage (V) 24 DC
Power Consumption (In Watts) 24
Power Source 2 AC Adapters Included
Center Tip Polarity Positive

Color	Black
Humidity	20% ~ 80% RH
Material	Aluminum
Operating Temperature	0°C to 50°C (32°F to 122°F)
Product Length (mm)	232.000
Product Width (mm)	137.000
Product Height (mm)	33.000
Product Weight (g)	989.000
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
TAA Compliant	No

Jumbo Frame Support No
Max Distance 100m [328ft]
Maximum Data Transfer Rate 5 Gbps
OS Compatibility OS Independent
Cabling Cat 6a or better
Industry Standards SuperSpeed USB 3.0 (5Gbps)

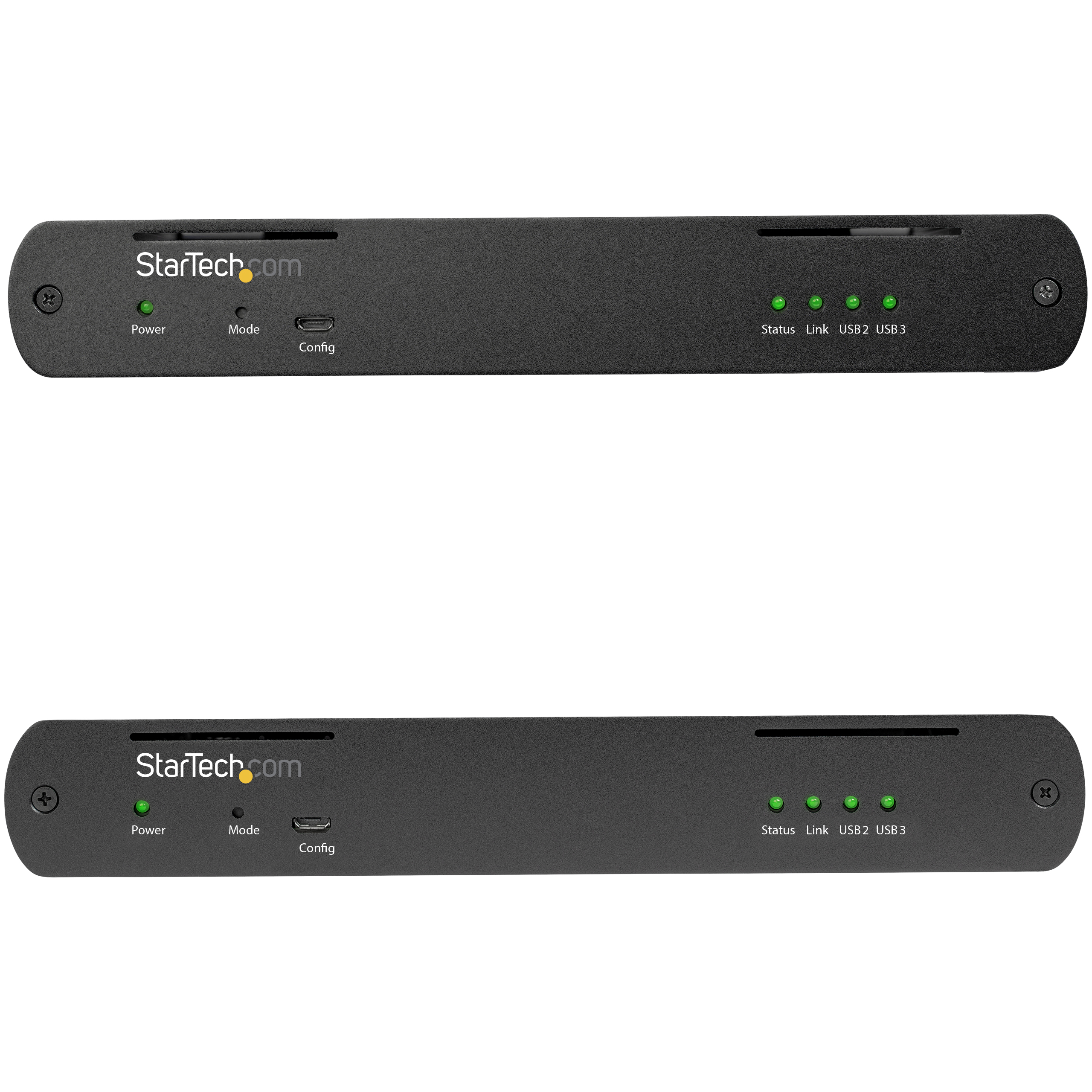

LED Indicators
2 - Power
2 - Status
2 - Link
2 - USB 2 - Status and Activity
2 - USB 3 - Status and Activity

Carton Depth (mm)	470
Carton Height (mm)	310
Carton Quantity	4
Carton Weight Gross (g)	14390

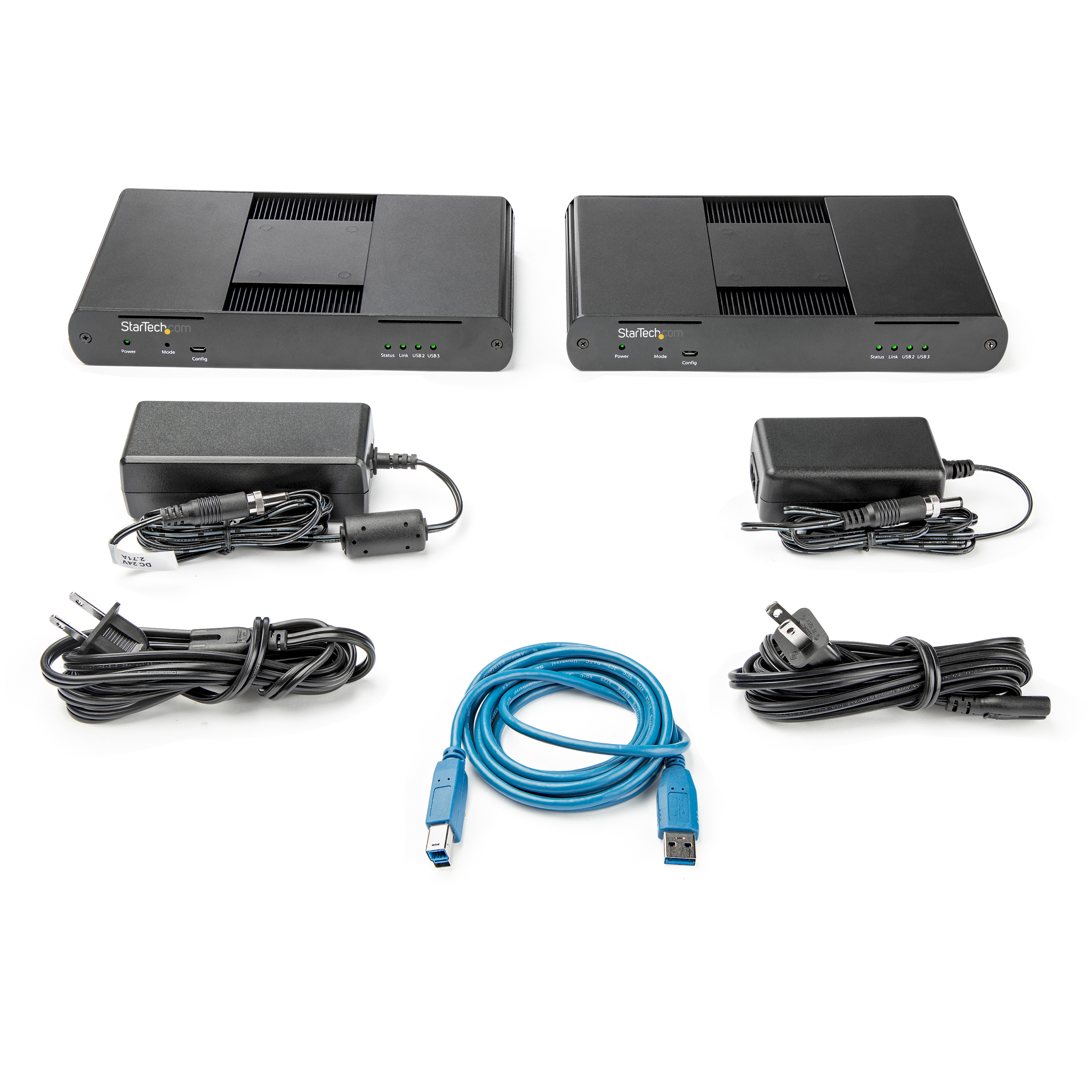

Included in Package	1 - Local Transmitter 1 - Remote Receiver 1 - 6 ft [1.8 m] USB-A to USB-B Cable 2 - Universal Power Adapters (North America) 1 - Quick-Start Guide 1 - Mounting Kit
Number of Sub-Cartons	4
Package Depth (mm)	271
Package Height (mm)	178
Package Width (mm)	218
Package Quantity	1
Package Weight (g)	3274
Packaging Description	4 Port USB 3.2 (5Gbps) Extender over Cat6a/7
Packaging Description India	4 Port USB 3.2 (5Gbps) Extender over Cat6a/7
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Quantity	1
Sub-Carton Weight (g)	0

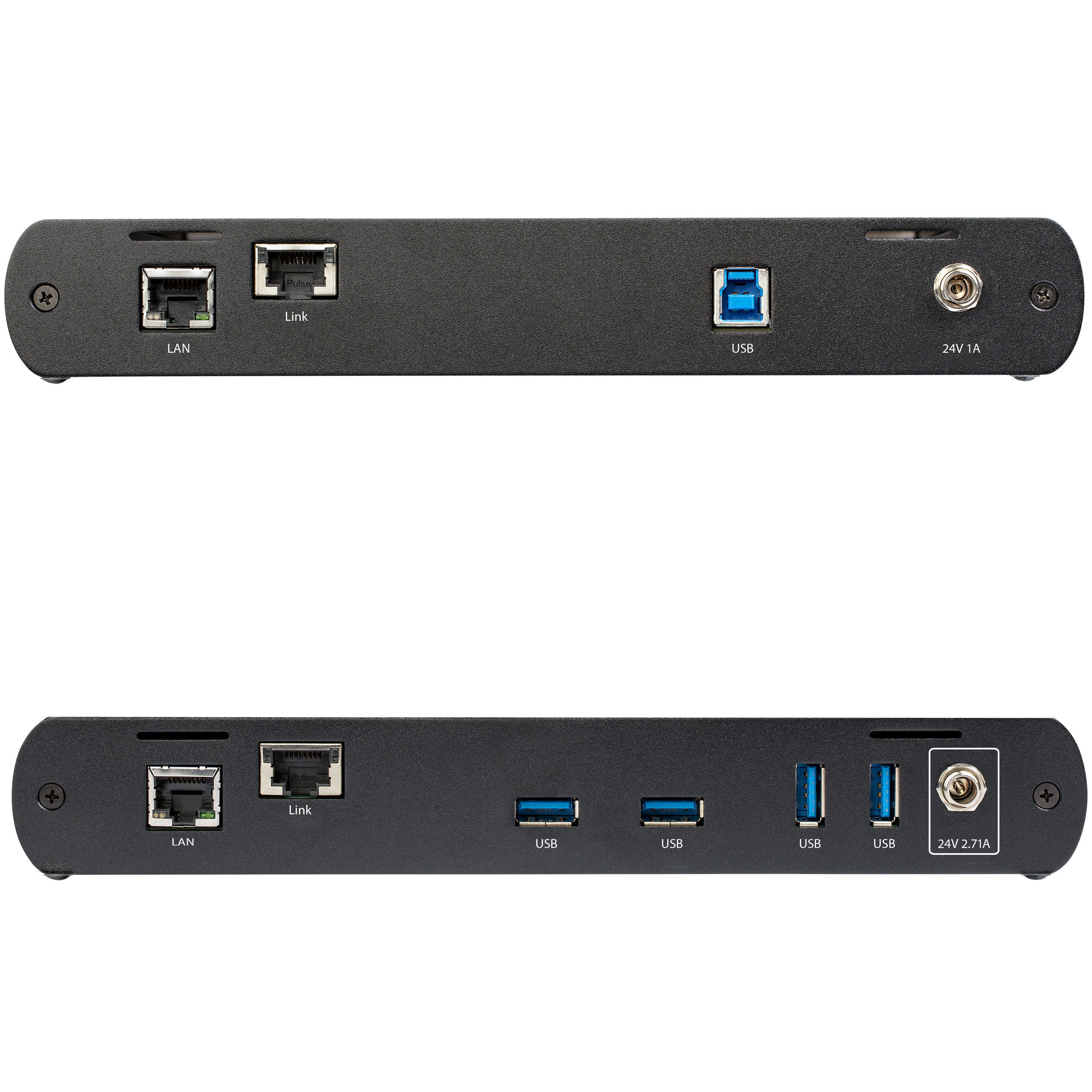

Connector 1	USB-A (5Gbps, 4.5W)
Connector 1 (Quantity)	4
Connector 2	RJ-45
Connector 2 (Quantity)	2
Host Connector 1	USB-B (5Gbps, 4.5W)
Host Connector 1 (Quantity)	1
Host Connector 2	RJ-45
Host Connector 2 (Quantity)	2

Actual Inbox Documents Created	QSG in the box
Amazon Merchandising Manager	Veronica Ye
Artwork Due Date	2020-11-26
Buying Center - AV & Collaboration	Yes
Buying Center - Data Center	No
Buying Center - End User Compute	No
Buying Center - Networking & Edge	Yes
Digital Content Due Date	2021-06-02
Enhanced Gallery Designer	Catherine Almeida
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
ID Label Silkscreened or a Label	Silkscreened label - requires dieline showing location
Launch Markets (concatenated)	CA,US
Primary Technology	None
Product Development Specialist	Scott Dunlop
Product Information Creation Specialist (PICS)	Alex Garcia
Product Manager	Natalie Goodale
Product Performance Specialist	Aaron Bens
Product Photographer	Alejandra Valencia
Target Development Completion Date	2020-11-11
Target Production Release	2020-11-26
Tech Lead	Brian Linseman
Technical Writer	Alex Garcia
Technology Lifecycle	None
Vending Machine	Not Compatible with Vending Machine

Input Current	0.58 A
Input Voltage	100 - 240 AC
Output Current	1 A
Output Voltage (V)	24 DC
Power Consumption (In Watts)	24
Power Source	2 AC Adapters Included
Center Tip Polarity	Positive

Jumbo Frame Support	No
Max Distance	100m [328ft]
Maximum Data Transfer Rate	5 Gbps
OS Compatibility	OS Independent

Cabling	Cat 6a or better
Industry Standards	SuperSpeed USB 3.0 (5Gbps)
LED Indicators	2 - Power 2 - Status 2 - Link 2 - USB 2 - Status and Activity 2 - USB 3 - Status and Activity
