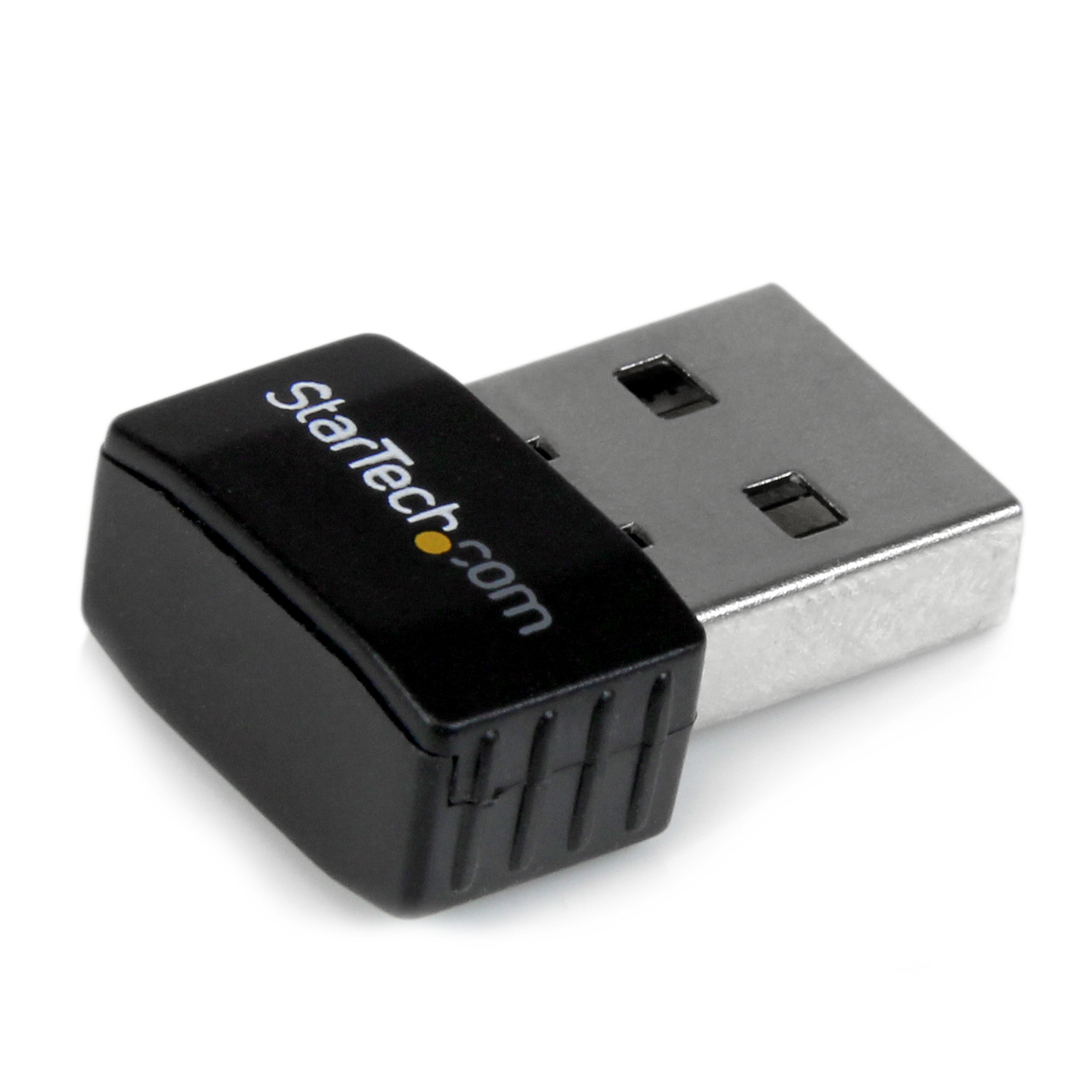

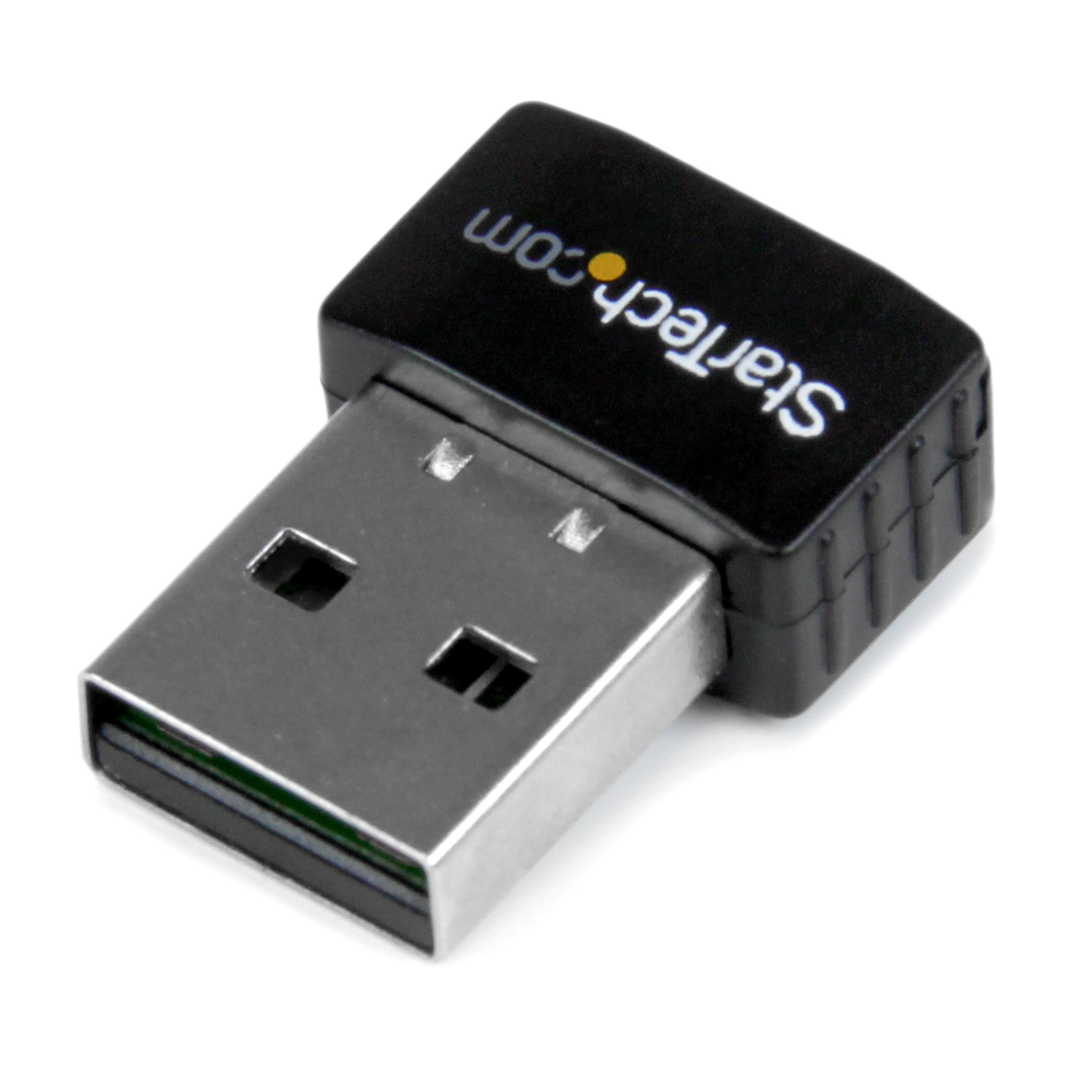

Main Image
USB300WN2X2C
Mini USB 2 0 300Mbps Wireless N Adapter
Add high-speed Wireless-N connectivity to a desktop or laptop system through USB 2.0
Main Image
Product Images
BOM Image
Quick-Start Guide
Product Name Mini USB 2 0 300Mbps Wireless N Adapter Product Number USB300WN2X2C UPC 065030858243 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 Wireless Network Adapters Family Classic Connect Wireless Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX034X Product Title (Ultra-Short) USB 300Mb Wireless-N Product Title (Short) USB 300Mbps Wireless-N Network Adapter Product Title (Medium) USB 2.0 300 Mbps Mini Wireless-N Network Adapter - 802.11n 2T2R WiFi Adapter Product Title (Standard) USB 2.0 300 Mbps Mini Wireless-N Network Adapter - 802.11n 2T2R WiFi Adapter Product Title (Long) USB 2.0 300 Mbps Mini Wireless-N Network Adapter - 802.11n 2T2R WiFi Adapter Product Title (AMZ) USB 2.0 300 Mbps Mini Wireless-N Network Adapter - 802.11n 2T2R WiFi Adapter - USB Wireless Adapter - N300 Wireless NIC (USB300WN2X2C) Title Ingram (Part 1) 802.11n USB Wireless LAN Card - Title Ingram (Part 2) N300 USB WiFi Dongle Website Product Headline Add high-speed Wireless-N connectivity to a desktop or laptop system through USB 2.0 Bullet 1 Compliant with IEEE 802.11n standards, with data rates up to 300Mbps Bullet 2 Backward compatible with 802.11b/g (11/54Mbps respectively) Bullet 3 2 Transmitter/2 Receiver (2x2:2) antenna configuration Bullet 4 Supports WEP (64-128-bit), WPA and WPA2 wireless security Bullet 5 Supports WMM Quality of Service Bullets (Consolidated) Add high-speed Wireless-N connectivity to a desktop or laptop system through USB 2.0 - USB 2.0 300 Mbps Mini Wireless-N Network Adapter - 802.11n 2T2R WiFi Adapter - USB Wireless Adapter - N300 Wireless NIC - USB WiFi Dongle - 802.11n USB Wireless LAN Card - Extremely compact design - Backward compatible with 802.11b/g (11/54Mbps respectively) Marketing Copy Applications - Add wireless networking capabilities, without having to open up your computer case
- Replace or upgrade an existing WiFi connection to IEEE 802.11n standards
- Connect to a wireless-N network in remote locations where wired connections are unavailable
- Add high-speed WiFi connectivity to support demanding applications such as streaming video, VoIP and network backups
Required Regulatory Compliance Marks - FCC - IR - Wireless - United States - FCC Part 15, Subpart C
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements Available USB port Related Products - USB867WAC22
- USB433WACDB
- USB150WN1X1W
- USB150WN1X1
- USB300WN2X2D
Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity 10% ~ 90% RH (Non-condensing) Material Plastic Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Primary Material Plastic Product Length (mm) 22.000 Product Width (mm) 16.000 Product Height (mm) 6.000 Product Weight (g) 2.000 Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F) TAA Compliant No Bandwidth 20 / 40MHz Maximum Data Transfer Rate 300 Mbps OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows Server 2008 R2
- Linux
- Windows 10
- Windows Server 2016
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- Windows 11
- Windows Server 2022
Security Features - WEP Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption

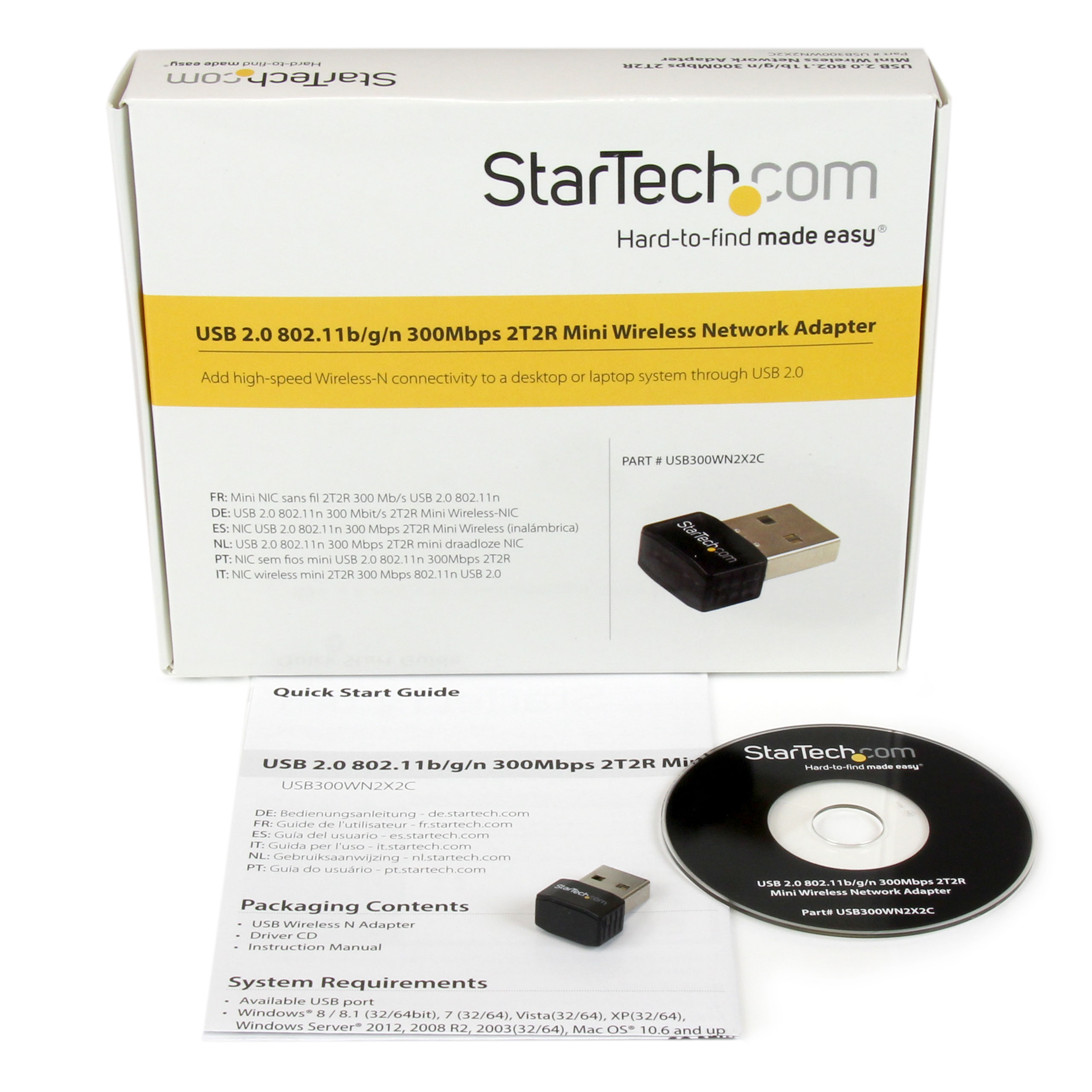

Antenna Configuration 2x2:2 (TxR:S) Bus Type USB 2.0 Chipset ID Realtek - RTL8192EU Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Interface/Bridge Wireless Ethernet LED Indicators 1 - Link / Activity Carton Depth (mm) 498 Carton Height (mm) 332 Carton Quantity 200 Carton Weight Gross (g) 4638 Included in Package - 1 - USB Wireless N Adapter
- 1 - Instruction Manual
Package Depth (mm) 175 Package Height (mm) 33 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 62 Packaging Description USB 2.0 802.11n 300Mbps 2T2R Mini Wireless NIC Packaging Description India USB 2.0 802.11n 300Mbps 2T2R Mini Wireless NIC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 Wi-Fi 4 (802.11n, 600Mbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-08-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CO,DK,ES,EU,FI,FR,IE,IT,MX,NL,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
