USB300WN2X2D
High Gain USB Wi-Fi Wireless N Network Adapter USB
Add high-powered, dual band Wireless-N connectivity, with extended range to a desktop or laptop through USB
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name High Gain USB Wi-Fi Wireless N Network Adapter USB Product Number USB300WN2X2D UPC 065030848619 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 Wireless Network Adapters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX049X Product Title (Ultra-Short) USB Wireless Adapter Product Title (Short) Dual Band Wireless N USB Network Adapter Product Title (Standard) USB 802.11N Dual Band Wireless Network Adapter – 300 Mbps High Power 2T2R Wi-Fi 2.4/5GHz Product Title (Long) USB 802.11N Dual Band Wireless Network Adapter – 300 Mbps High Power 2T2R Wi-Fi 2.4/5GHz Product Title (AMZ) USB 802.11N Dual Band Wireless Network Adapter – 300 Mbps High Power 2T2R Wi-Fi 2.4/5GHz - High Gain Wireless USB Adapter (USB300WN2X2D) Title Ingram (Part 1) High Gain USB Wi-Fi Wireless N N Title Ingram (Part 2) etwork Adapter USB 802.11N Website Product Headline Add high-powered, dual band Wireless-N connectivity, with extended range to a desktop or laptop through USB Bullet 1 2 Transmitter/2 Receiver (2x2:2) antenna configuration, with MIMO support Bullet 2 Compliant with IEEE 802.11n standard, with transfer rates up to 300Mbps Bullet 3 Backward compatible with IEEE 802.11b/g standards, for up to 11/54Mbps connections respectively Bullet 4 Dual detachable 5dBi dual band antennas Bullet 5 Support for WMM/WMM-PS Quality of Service (QoS) Bullets (Consolidated) Add high powered dual band Wireless-N connectivity with extended range to a desktop or laptop through USB - Compatible with USB equipped computers such as HP Pavilion/Compaq model PCs and Dell Inspiron 530/Mini Series computers - USB Network Card/USB NIC/Wireless over USB/Dual Band NIC - Supports Dual Band Wireless 802.11 N/G (300 Mbps) for high speed wireless Internet applications such as online gaming and HD Video Streaming - Upgrade your existing Wireless NIC externally via USB Marketing Copy Applications - Connect to a WiFi network while on the go, from a laptop
- Connect to a 5 GHz WiFi network, which will not receive interference from common wireless devices, such as as cordless phones
- Connect to WiFi networks in areas with lots of obstructions or near the maximum range of the WiFi access point
- Connect a computer to a network, where cables cannot be used, such as outdoors
- Access a nearby wireless network from an outdoor location
- Replace or upgrade the wireless capabilities of a desktop or laptop computer
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes The included USB Y cable is 42in (1066mm) long, while the breakout portion is 15in (381mm) Accessory Products - RPSMA10MF
- NRPSMA1FM
- RPSMASMA10MM
- NRPSMA1MM
Related Products - USB300WN2X2
- USB150WN1X1
- PEX300WN2X3
- PEX300WN2X2
- PCI555WG
Power Source USB-Powered Cable Length (mm) 1066.8 Color Black Humidity 10% ~ 90% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 88 Product Width (mm) 56 Product Height (mm) 18 Product Weight (g) 35 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Bandwidth 20/40 MHz Frequency 2.4/5.0 GHz Maximum Data Transfer Rate 300 Mbps OS Compatibility - Windows 7
- Windows 8
- Linux
- Mac OS X Mavericks (10.9)
- Windows 10
- Windows 11
Security Features - WEP Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption

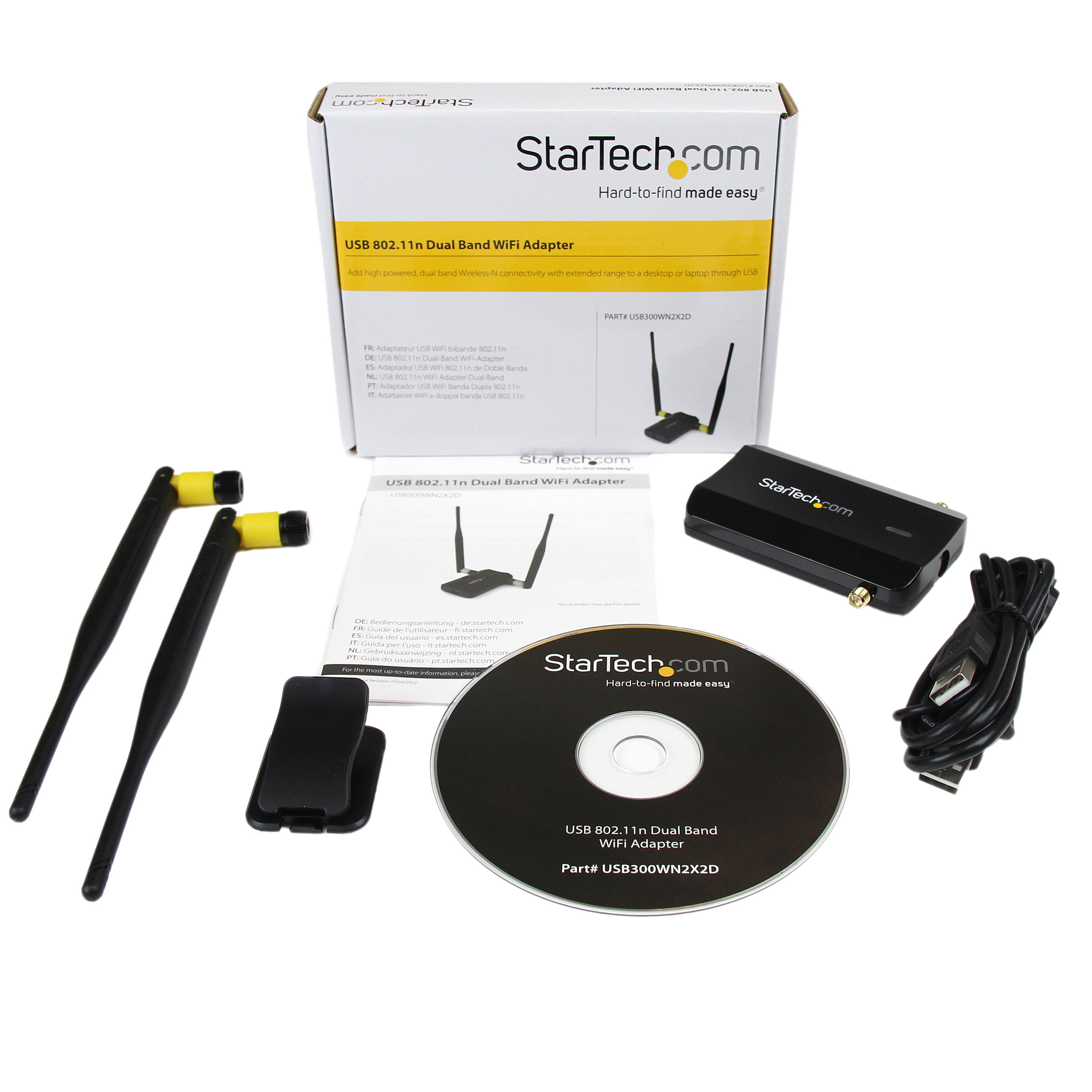

Supported Protocols CSMA/CA USB Type and Rate USB 2.0 (480Mbps) Antenna Configuration 2x2:2 (TxR:S) Bus Type USB 2.0 Chipset ID Ralink - RT3572L Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE802.11n Interface/Bridge Wireless Ethernet LED Indicators 1 - Link/Activity Carton Depth (mm) 375 Carton Height (mm) 365 Carton Quantity 100 Carton Weight Gross (g) 22338 Included in Package - 2 - Dual Band Antenna
- 1 - USB WiFi Adapter
- 1 - Mini USB Y Cable
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Monitor Clip
Package Depth (mm) 136 Package Height (mm) 32 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 210 Packaging Description USB 802.11n Dual Band WiFi Adapter Packaging Description India USB 802.11n Dual Band WiFi Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RP-SMA (50 Ohm) Connector 1 (Quantity) 2 Connector 2 USB Mini-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
